XLT
Extra Light. Extra Tuff.
Built to Move More.

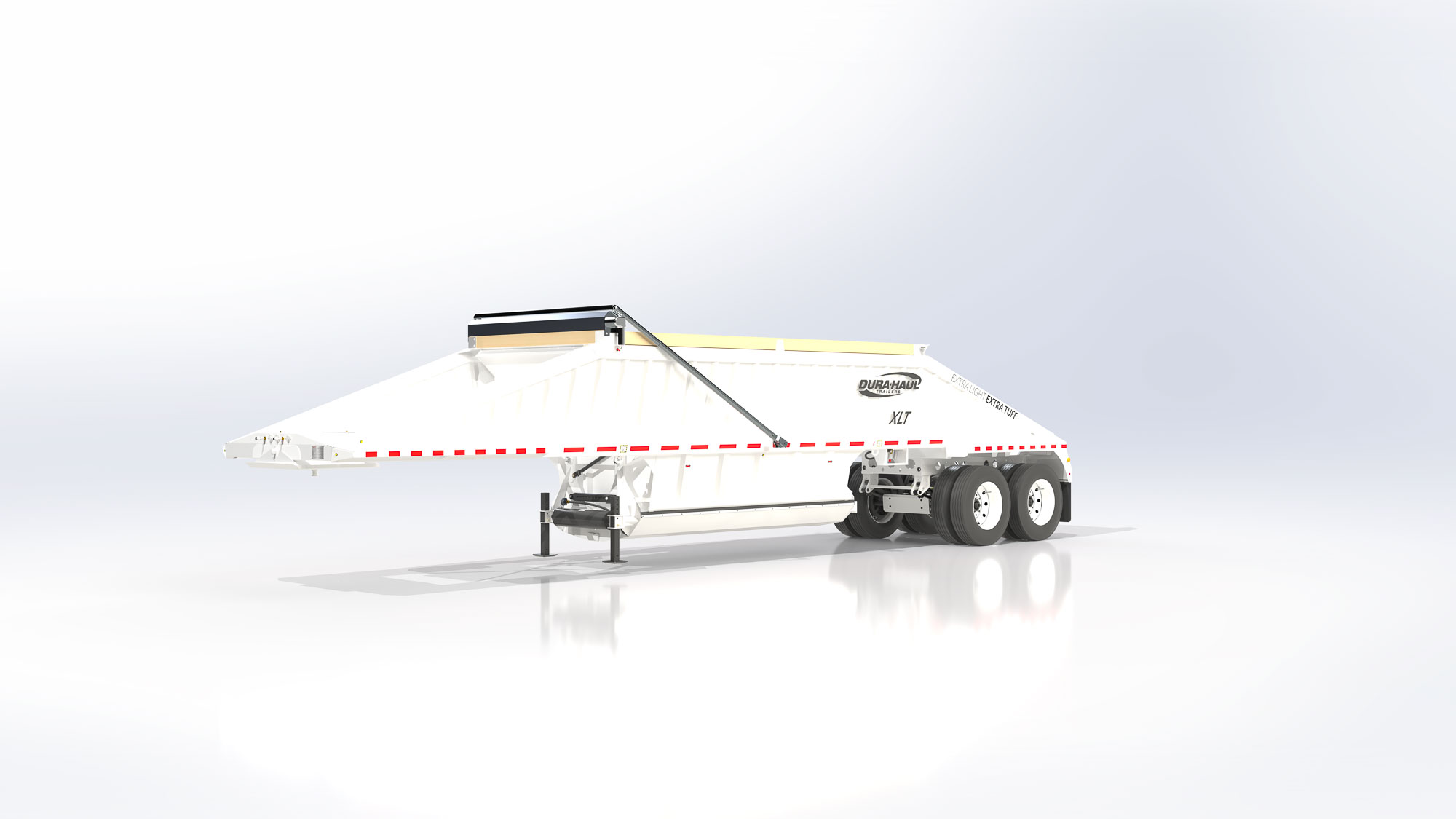

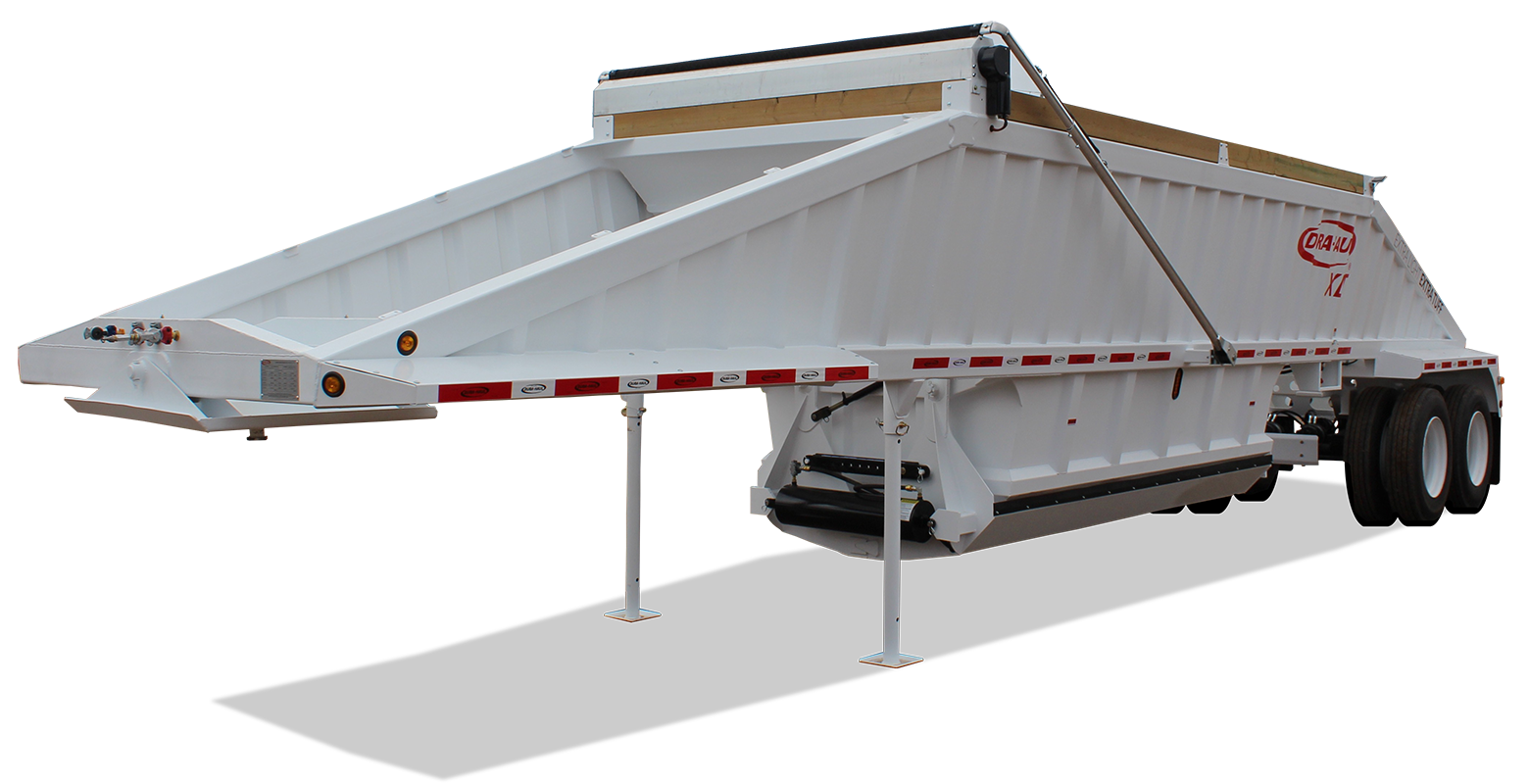

The Dura-Haul XLT Belly Dump is engineered for operators who want to maximize hauling efficiency without giving up the strength needed for demanding work.
With a lightweight design, 23.5 cubic yard capacity, durable steel hopper construction, and a controlled gate system, the XLT is built to keep material moving from the loading site to the next unload.
23.5 yd³
Capacity
12,975 lbs
Weight
40'
Overall Length
Remote-Controlled Gates

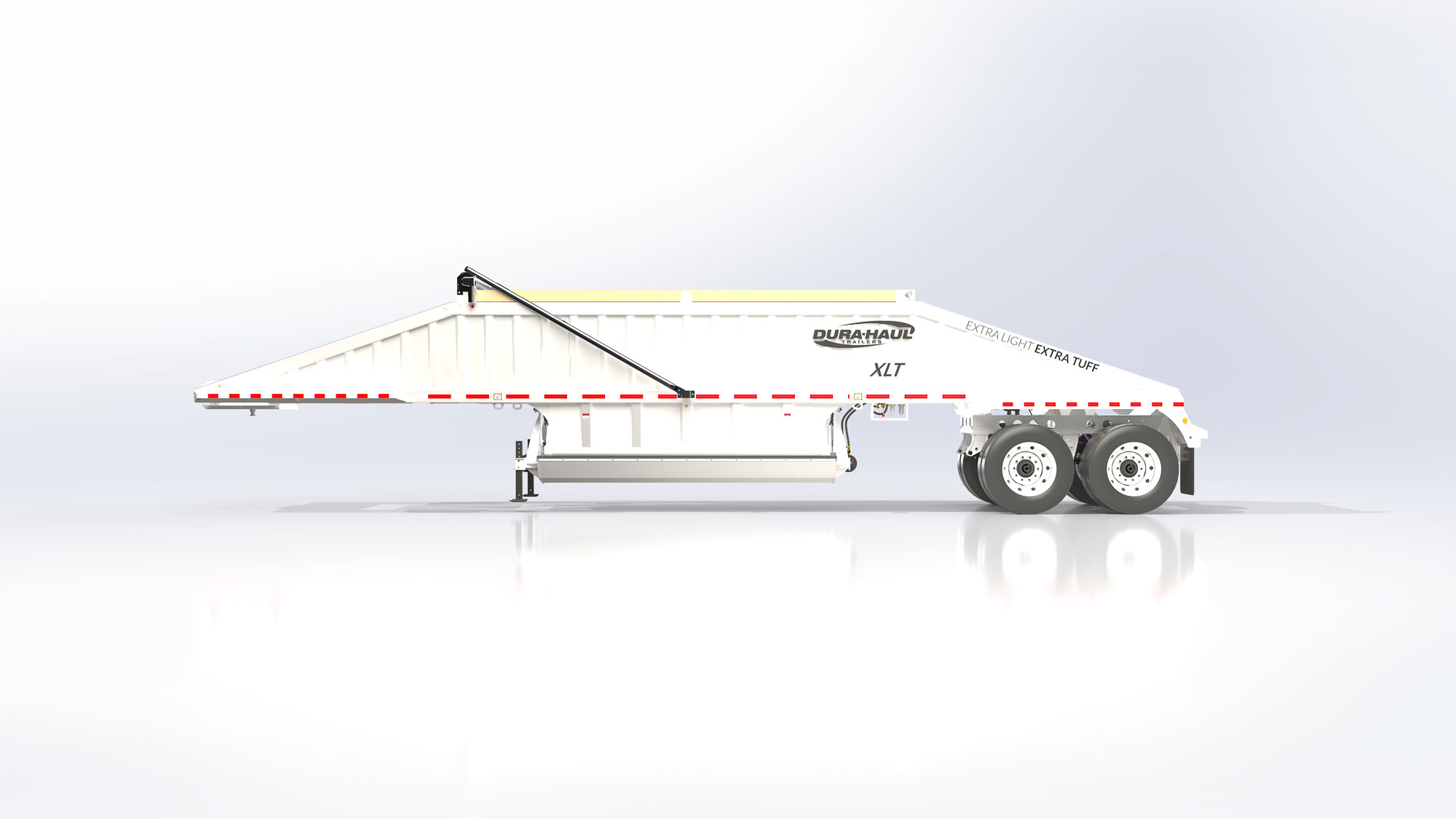

XLT
BELLY DUMP

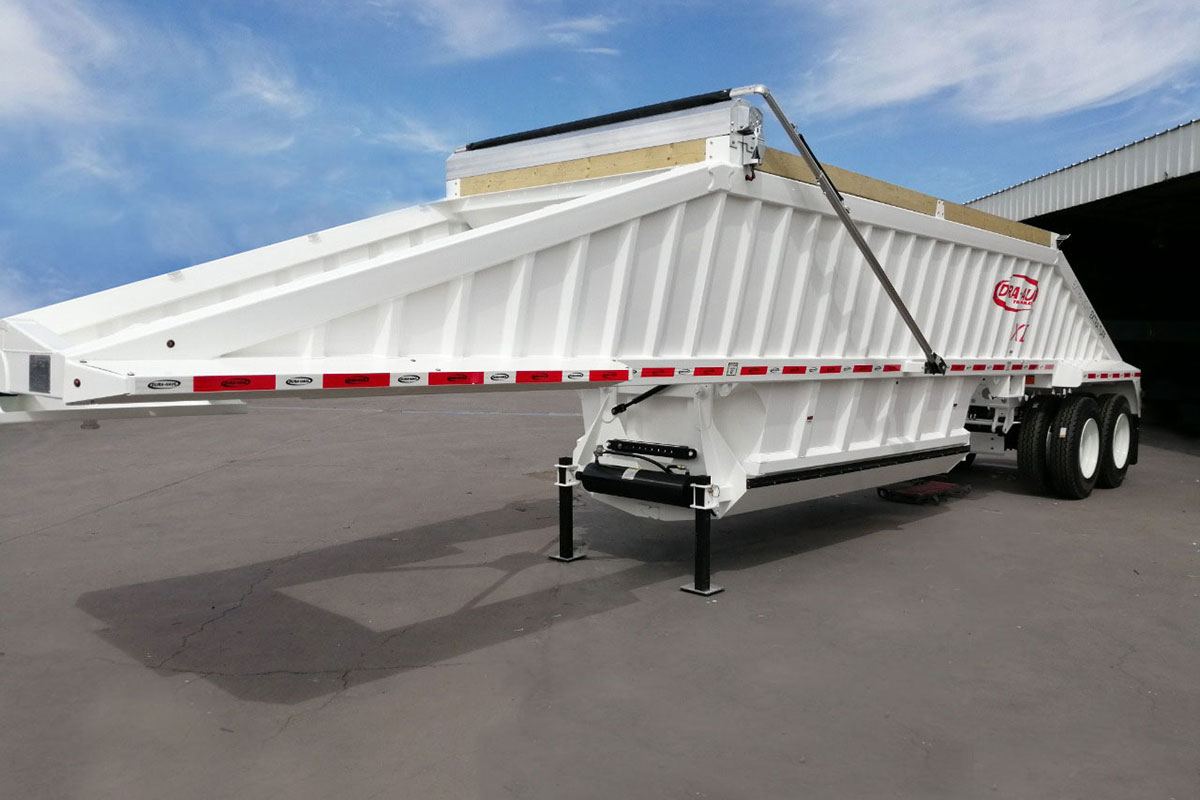

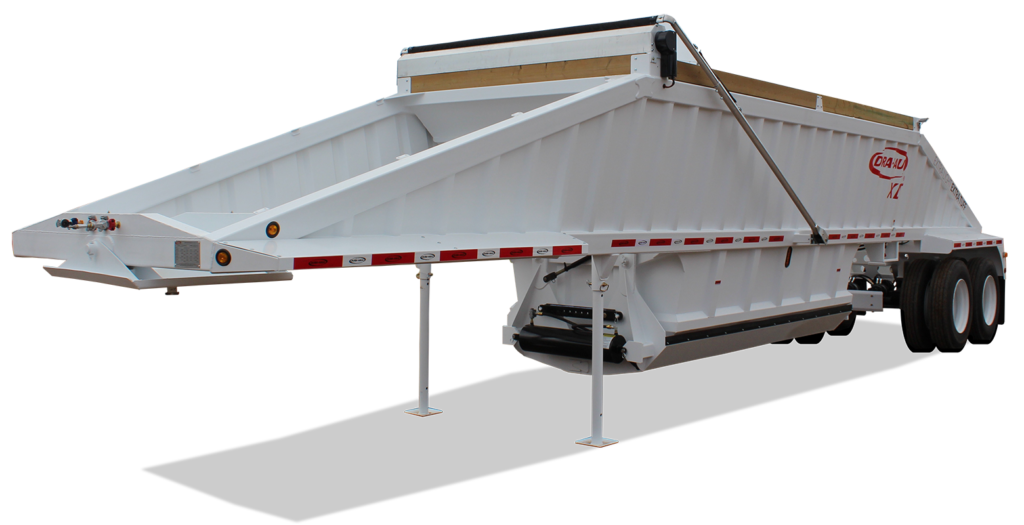

The XLT Belly Dump Enclosed Trailer by Dura Haul offers rugged efficiency and thoughtful design to handle the toughest jobs. With an optional front ladder, accessing your cargo is easier and safer, making loading and adjustments convenient. The extra-wide belly doors ensure smooth and rapid unloading, maximizing productivity on-site. Additionally, the versatile flip tarp—available in electric or manual options—provides reliable load coverage, while bolt-on fenders enhance durability and make maintenance straightforward. Built for demanding hauls, this trailer combines strength with smart functionality.
Quick Specifications
Built for the Load.
Ready for the Next Job.
ONE TRAILER. MORE WAYS TO WORK.
The XLT is designed for operations where moving material efficiently is part of every workday.

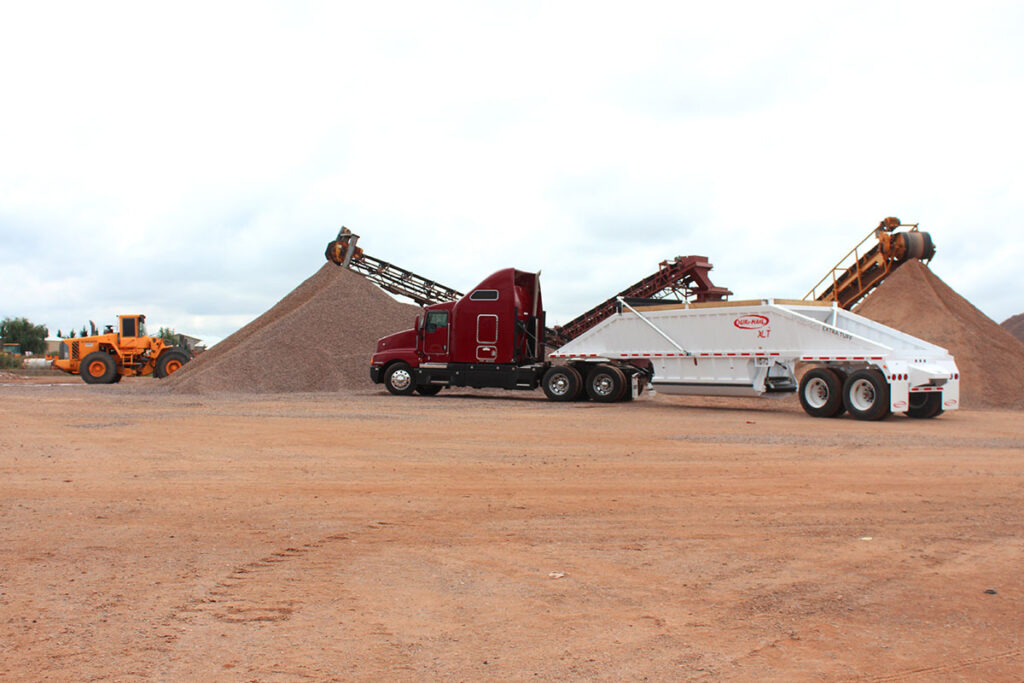

CONSTRUCTION MATERIAL HAULING
Move dirt, sand, aggregate, and other bulk materials between suppliers, jobsites, and project locations.
ROAD & SITE DEVELOPMENT
Keep material flowing for road construction, site preparation, and large-scale earthmoving operations.
AGRICULTURAL & COMMERCIAL OPERATIONS
Transport bulk materials where high-volume hauling and efficient unloading are essential to the job.
BUILT FOR MORE THAN THE HAUL
The Features Behind the XLT
The EKH-DD brings together the features that matter when you’re hauling heavy equipment: a stable gooseneck platform, durable construction, practical loading access, and flexible configurations.
23.5 Cubic Yard Capacity
Designed with high-volume hauling in mind, giving operators the space needed to move more material per trip.
Extra Light Design
At 12,975 lbs, the XLT is engineered to reduce trailer weight while maintaining the strength required for demanding applications.

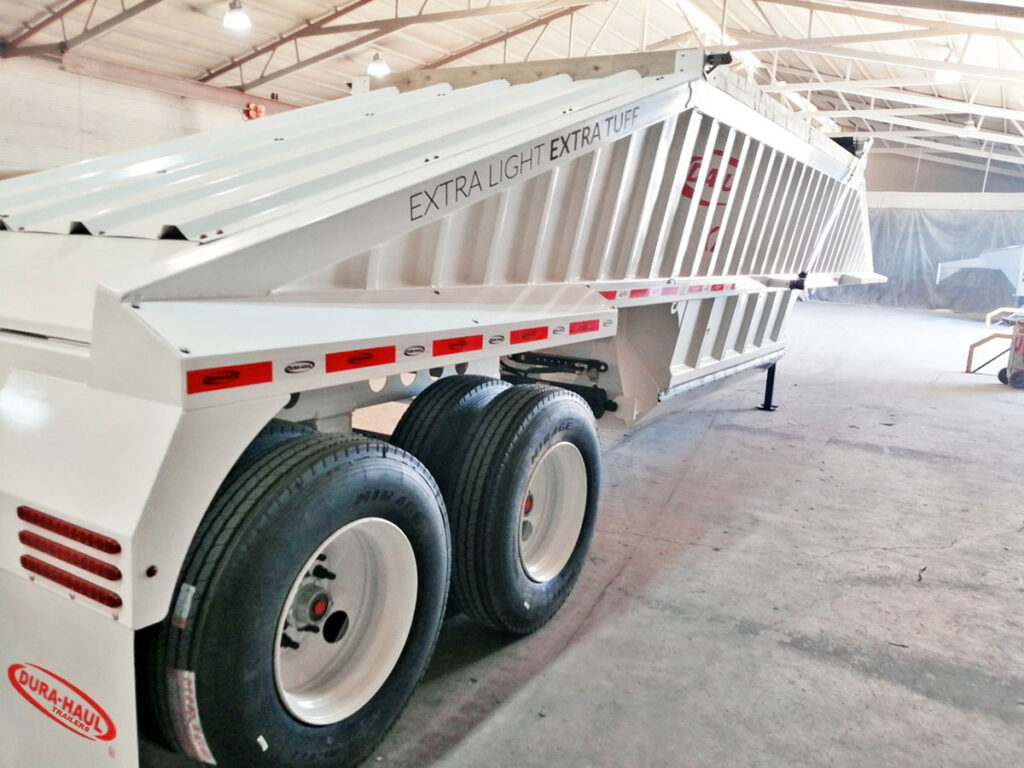

36" Corrugated Sides
Corrugated steel sides provide the trailer with a durable structure while defining its 23.5 cubic yard hauling capacity.
Heavy-Duty Hopper Construction
The upper hopper uses 10 gauge steel plate, while the lower hopper is constructed from 3/16" steel plate.
Controlled Gate System
Built with 3/16" steel gates and bar stops, with air operation and electric controls available from inside the truck cab.
Dual-Cylinder Air System
Two 8" OEM bore cylinders and a 60-gallon reservoir provide the air system needed to operate the trailer's unloading gates.
Heavy-Duty Suspension
Equipped with the Hutch H-9700 Series 4 Spring / 3 Leaf Suspension, with air ride suspension also available.
25K Tandem Axles
Two 25,000 lb axles provide the foundation for the trailer's hauling configuration, with track options available.
DOT-Ready Safety System
Full DOT-approved LED lighting, ABS sensors on the rear axle, and a push/pull block with underride bumper support safer operation on the road.
Technical Specifications
Explore the detailed specifications of the Dura-Haul XLT Belly Dump, including capacity, hopper construction, gate operation, suspension, axle configuration, safety equipment, and available options.
Dimensions & Capacity
| Length | 40' |
| Width | 96" |
| Overall Height | 8'11" |
| Capacity | 23.5 Cubic Yards with 6" Bang Boards |
| Weight | 12,975 lbs |
| Sides | 36" High Corrugated Sides |
Hopper Construction
| Upper Hopper | 10 Gauge Steel Plate |
| Lower Hopper | 3/16" Steel Plate |
Gates & Air System
| Gates | 3/16" Steel Gates |
| Gate Stops | Bar Stops |
| Gate Operation | Manually Air Controlled |
| Cab Control | Electric Control from Truck Cab |
| Air Cylinders | (2) 8" OEM Bore Cylinders |
| Air Reservoir | 60 Gallons |
| Filtration | Oil and Water Filters |
Suspension
| Standard Suspension | Hutch H-9700 Series |
| Spring Configuration | 4 Spring / 3 Leaf |
| Alternative Suspension | Air-Ride Available |
Axles & Fifth Wheel
| Axles | (2) 25,000 lb Axles |
| Standard Track | 71 1/2" |
| Available Track | 77 1/2" |
| Fifth Wheel | Oscillating Fifth Wheel Plate |
Wheels & Tires
| Wheels | (8) 8.25 × 24.5 Steel Wheels |
| Tires | (8) 11R × 24.5 Tires |
Electrical & Safety
| Lighting | Full DOT-Approved LED Sealed Lights |
| Wiring Protection | Fully Enclosed Conduit with Junction Box |
| ABS | Sensors on Rear Axle |

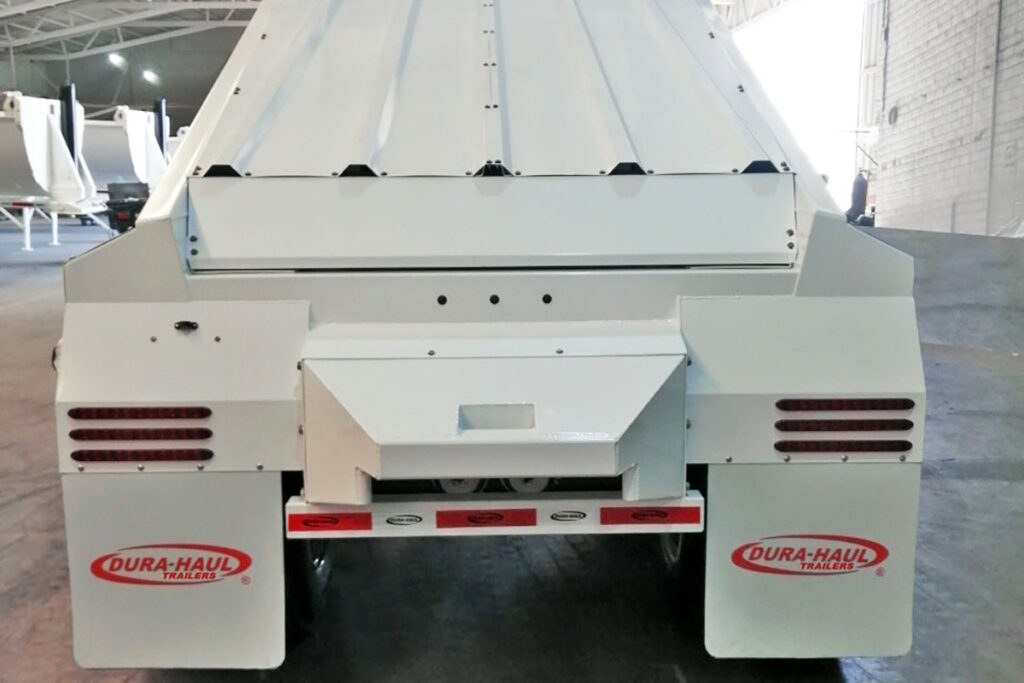

| Rear Bumper | Push/Pull Block with DOT-Approved Underride Bumper |
Available Options
| Suspension | Air-Ride Suspension |
| Lift Axles | Available |
| Tarp Options | Numerous Configurations Available |
| Wheels & Tires | Multiple Options Available |
| Color | Various Color Options |
| Shed Plates | Front and Rear Available |
| Air Pintle Hitch | Available |
| Alternative Suspension | Hutch H-900 3 Spring Single Point Suspension |
Available Options
Configure It for the Way You Work
One platform. Built to move more.
The XLT is built around a full-size 40′ belly dump platform designed to balance capacity, trailer weight, and structural durability. The XLT can be configured with options that adapt the trailer to different hauling operations and fleet requirements.
Air-Ride Suspension
Upgrade to an air-ride suspension configuration for operations that require a different ride and suspension setup.
Lift Axles
Add lift axles to support specific operational and hauling requirements.
Tarp Options
Choose from numerous tarp configurations to match the materials and conditions you work with.
Wheels & Tires
Select wheel and tire options that fit your preferred configuration.
Shed Plates
Front and rear shed plate options provide additional configuration flexibility.
Air Pintle Hitch
Configure the trailer with an air pintle hitch for compatible operational requirements.
Hutch H-900 Suspension
An available Hutch H-900 3 Spring Single Point Suspension offers an alternative suspension configuration.
Custom Color Options
Match your company branding or fleet appearance with available powder coat color options.
Move More. Waste Less.
Keep Hauling.
The Dura-Haul XLT Belly Dump combines 23.5 cubic yards of capacity, lightweight construction, durable steel components, and a controlled unloading system into one efficient hauling platform.
When every load matters, the right trailer can help you keep more material moving.
Extra Light. Extra Tuff. Ready to Work.
FAQ
The XLT offers 23.5 cubic yards of capacity with 6″ bang boards.
The trailer has a listed weight of 12,975 lbs.
The XLT measures 40′ long, with a width of 96″ and an overall height of 8’11”.
The upper hopper is constructed with 10 gauge steel plate, while the lower hopper uses 3/16″ steel plate.
The gates are manually air controlled and can also be electrically controlled from the truck cab.
The standard configuration uses a Hutch H-9700 Series 4 Spring / 3 Leaf Suspension. Air-ride suspension is also available as an option.
The XLT uses two 25,000 lb axles with a 71½” track, with a 77½” track also available.
Yes. The trailer includes ABS sensors on the rear axle.
Available options include air-ride suspension, lift axles, tarp options, wheel and tire configurations, various colors, front and rear shed plates, an air pintle hitch, and the Hutch H-900 3 Spring Single Point Suspension.
features

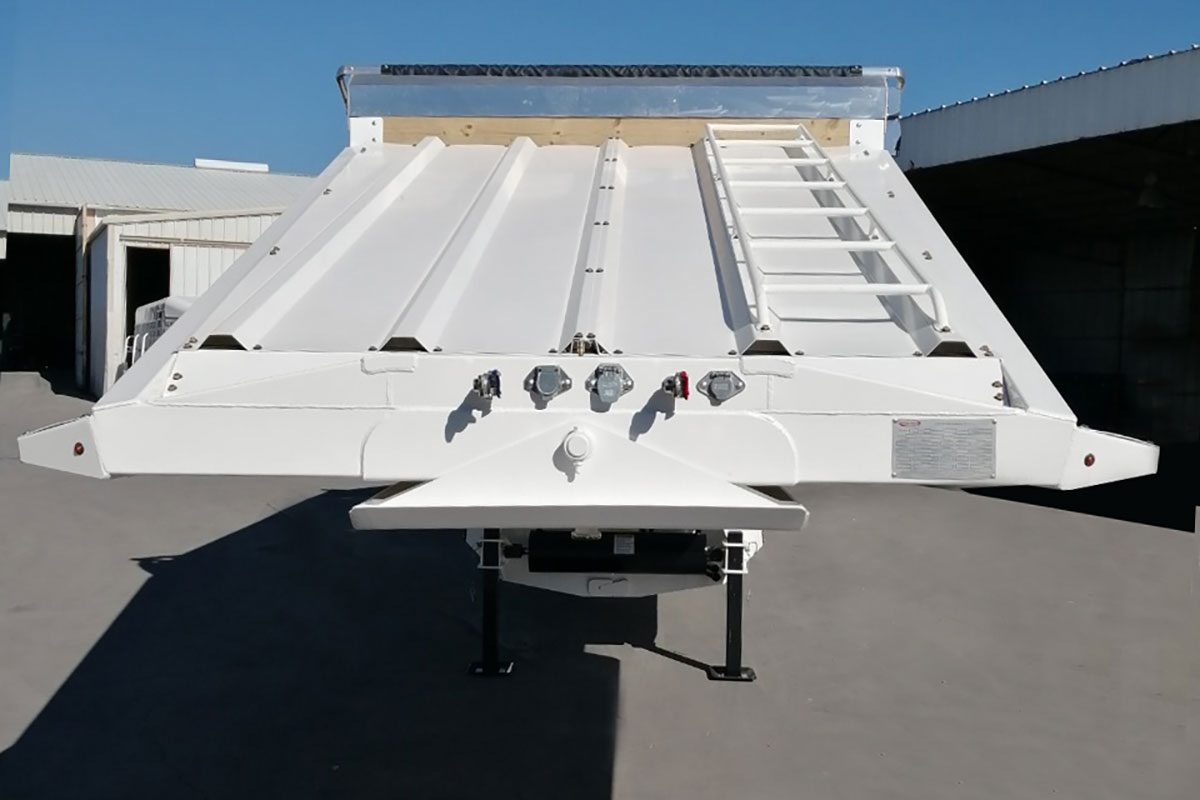

FRONT OPTIONAL LADDER
Easily access and inspect your load with our convenient, durable front ladder.
BOLT-ON FENDERS
Reliable bolt-on fenders for added durability and easy replacement.
