EKH-DS
Step Up. Load Up. Move More.
The Dura-Haul EKH-DS is built for operators who need a capable gooseneck equipment hauler with a practical loading system and the stability to keep heavy equipment moving.
With an 83″ wide deck, 2′ dovetail, stand up ramps, and a 12″ engineered gooseneck, the EKH-DS gives you a dependable platform for loading, hauling, and getting back to work.
Available in 20′, 24′, and 28′ lengths, all with a 16,000 lb GVWR.
16,000 lbs
GVWR
20'–28'
Lengths
12" Engineered Gooseneck
2' Dovetail +
Stand Up Ramps
EKH-DS
EQUIPMENT HAULER

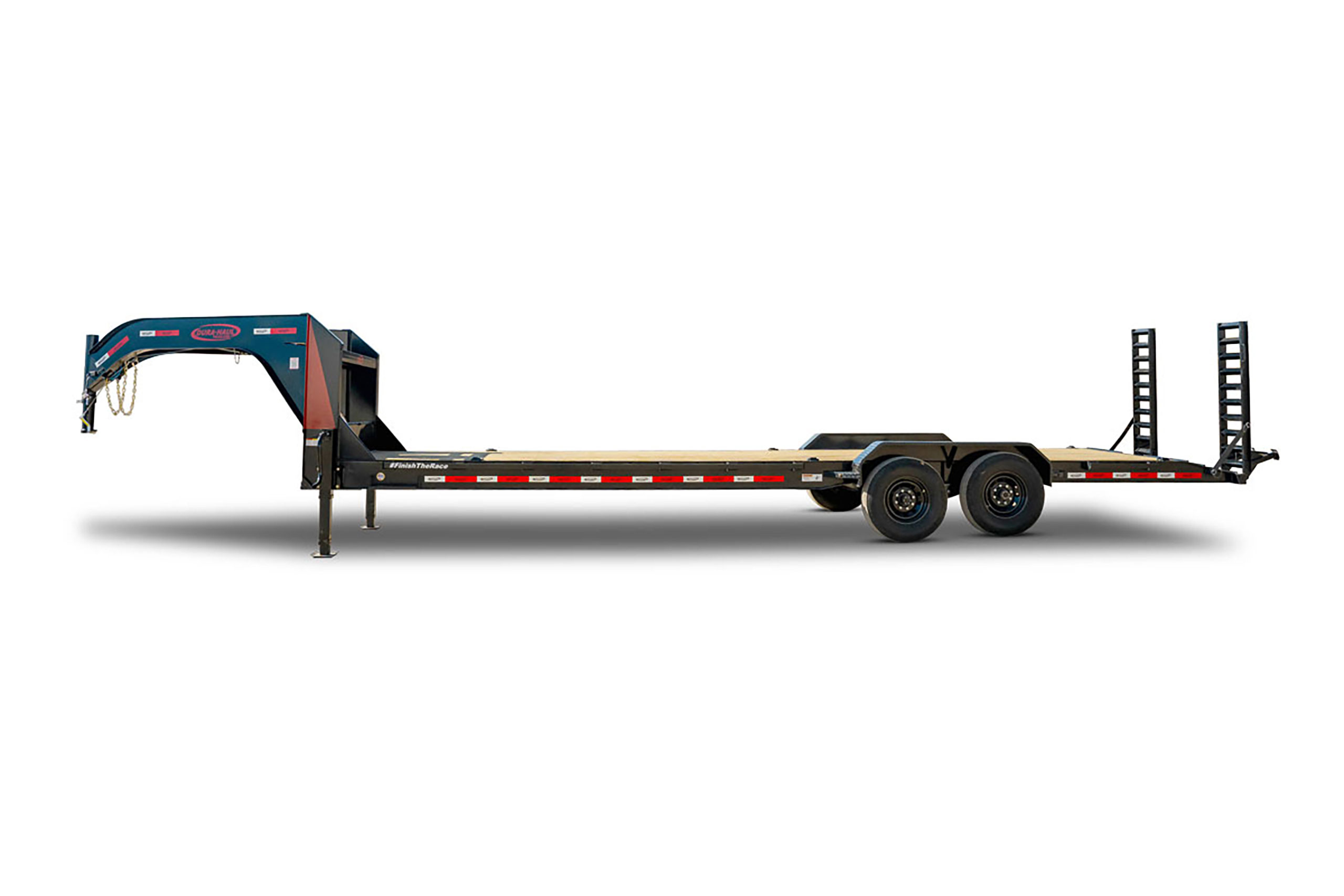

EKH-DS — Equipment Hauler Dovetail with Stand Up Ramps
Engineered for superior strength and enhanced load capacity, making it ideal for transporting heavy equipment and machinery. With a reinforced wood deck and multiple tie-down points, your cargo is secured for every journey. The trailer has multiple ramp options for easy loading and unloading, while the adjustable coupler offers versatility for various hauling needs.
Quick Specifications
Wherever the Equipment Goes, You Go.
ONE TRAILER. MORE WAYS TO WORK.
From the first load of the day to the last drop-off, the EKH-DS is built to support the equipment that keeps your operation moving.
CONSTRUCTION & JOBSITE EQUIPMENT
Move skid steers, compact loaders, excavators, and other essential equipment between demanding jobsites.
LANDSCAPING & PROPERTY WORK
Transport the equipment you rely on to clear, build, maintain, and improve properties.
FARM & RANCH OPERATIONS
Haul tractors, implements, and working equipment where the next job needs to get done.
BUILT TO WORK.
DESIGNED TO KEEP UP.
The Features That Do the Heavy Lifting.
The EKH-DS brings together the features that matter when you’re hauling heavy equipment: a stable gooseneck platform, durable construction and practical loading access.

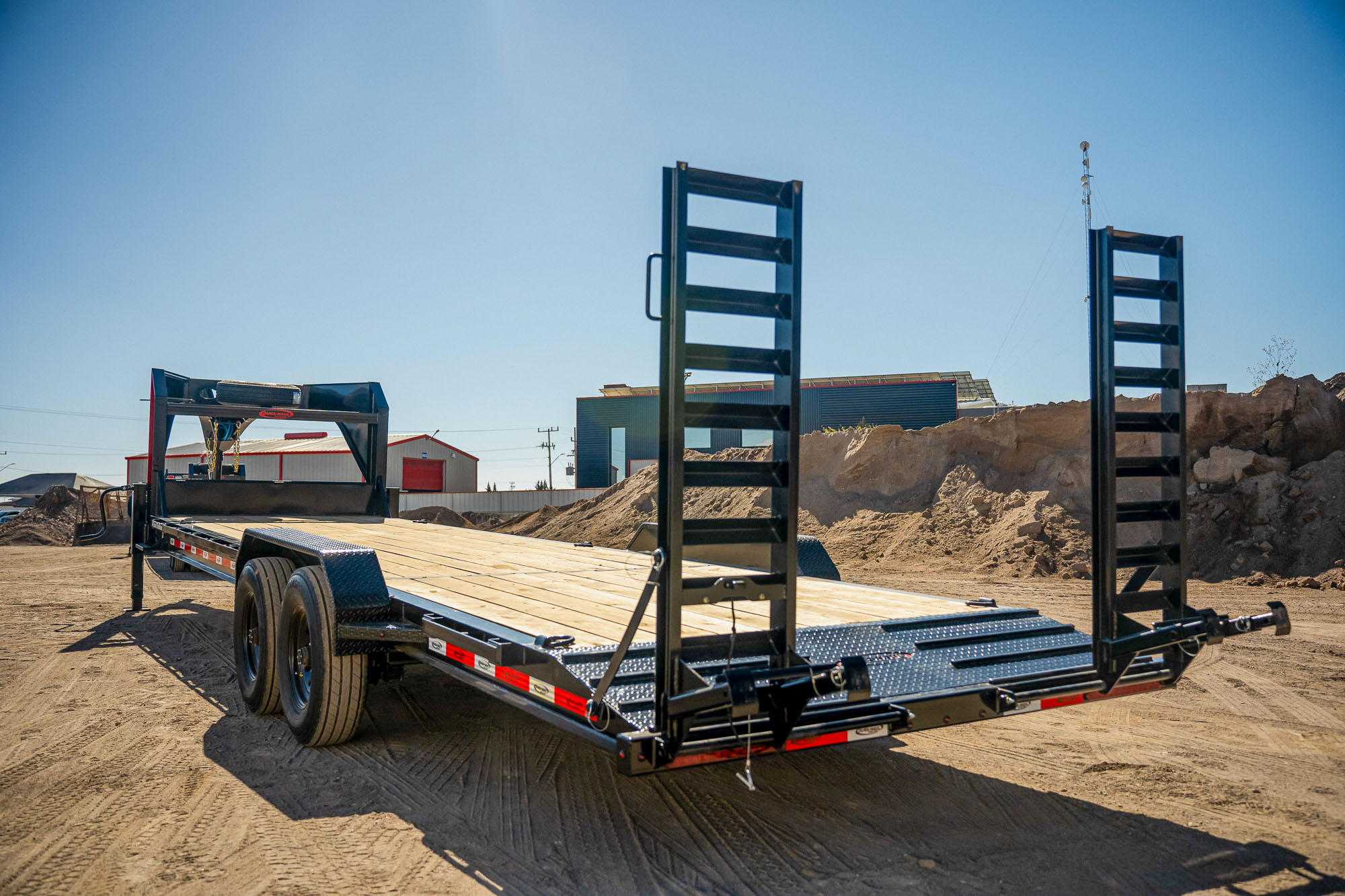

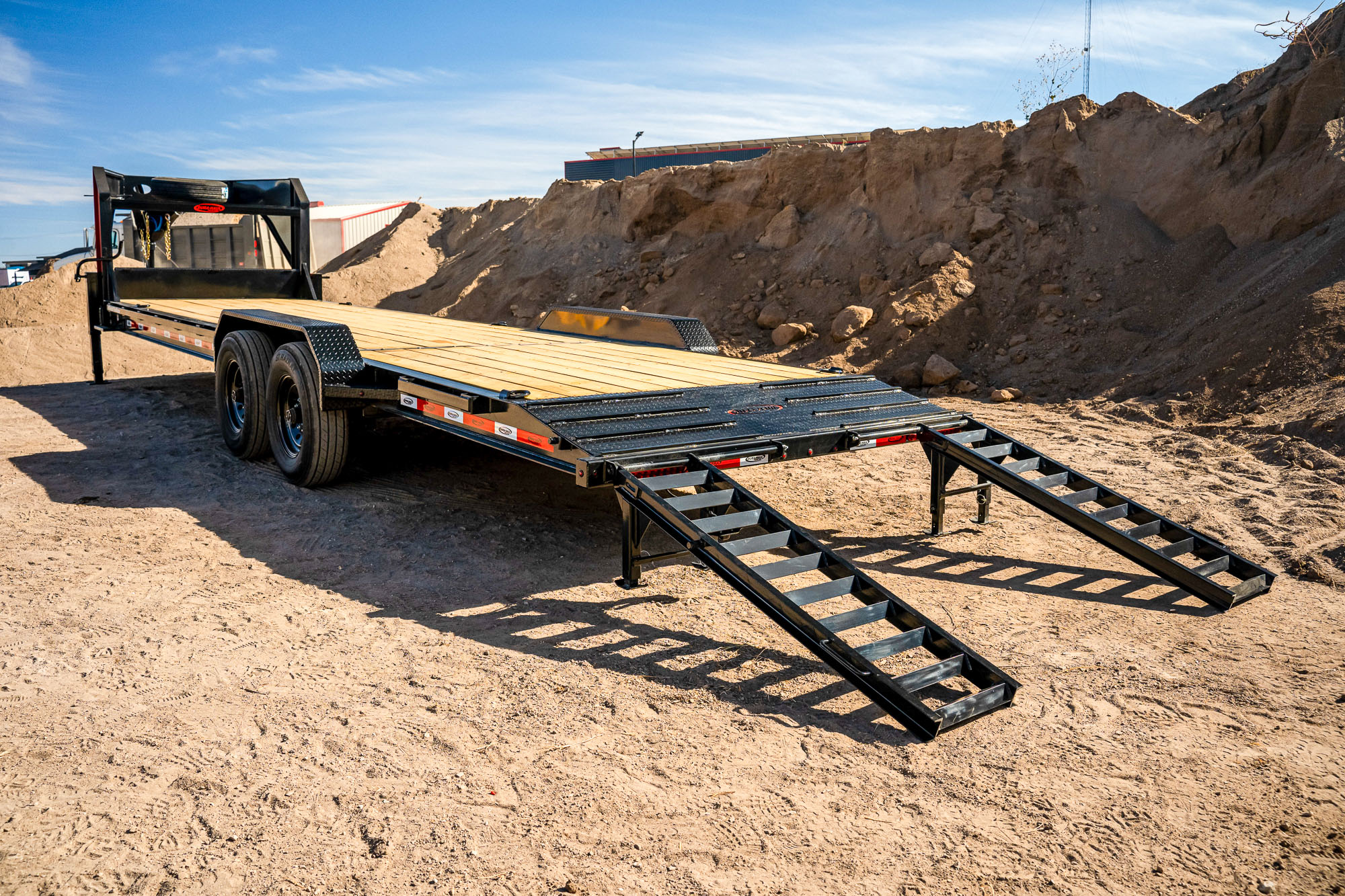

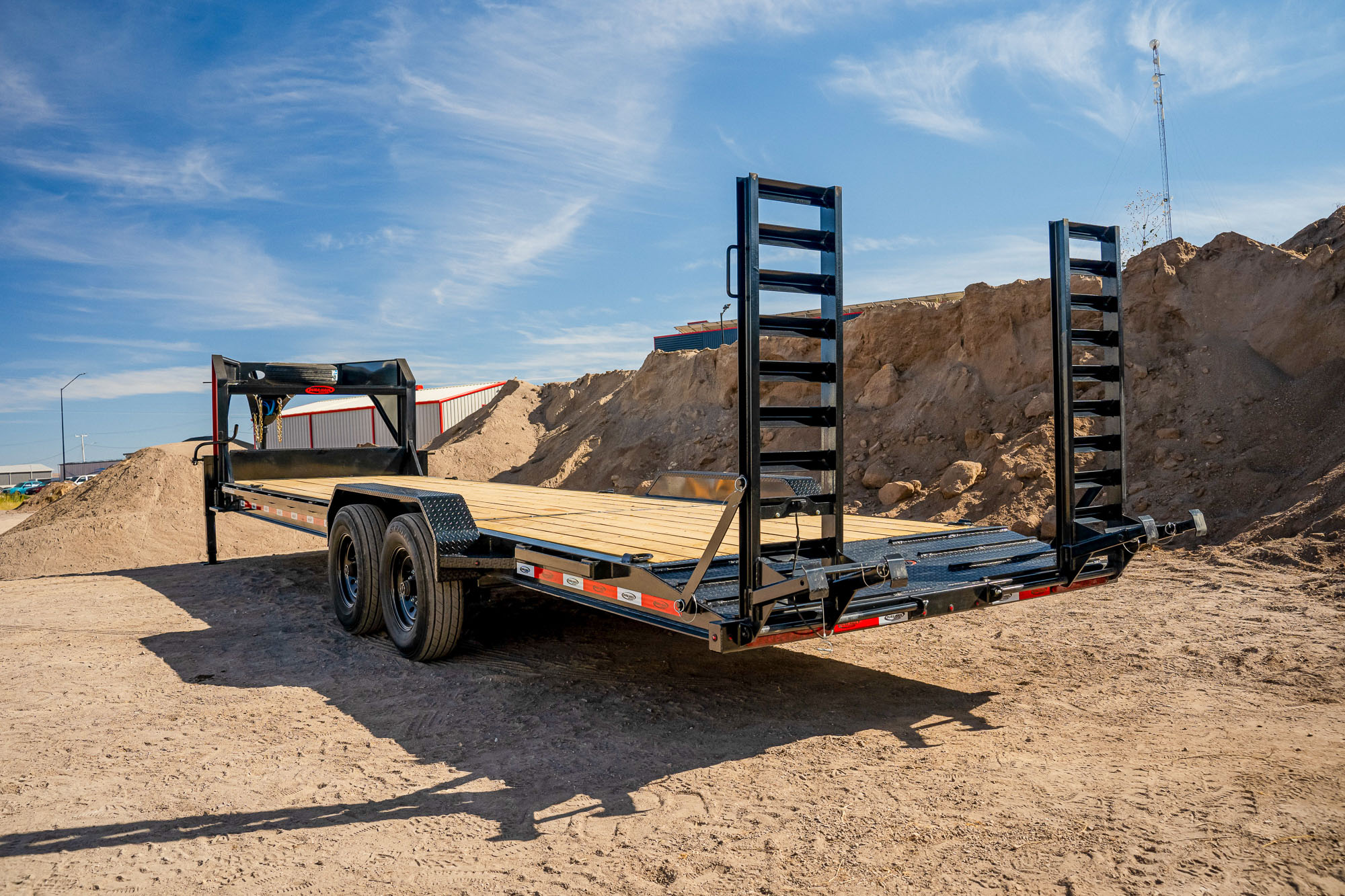

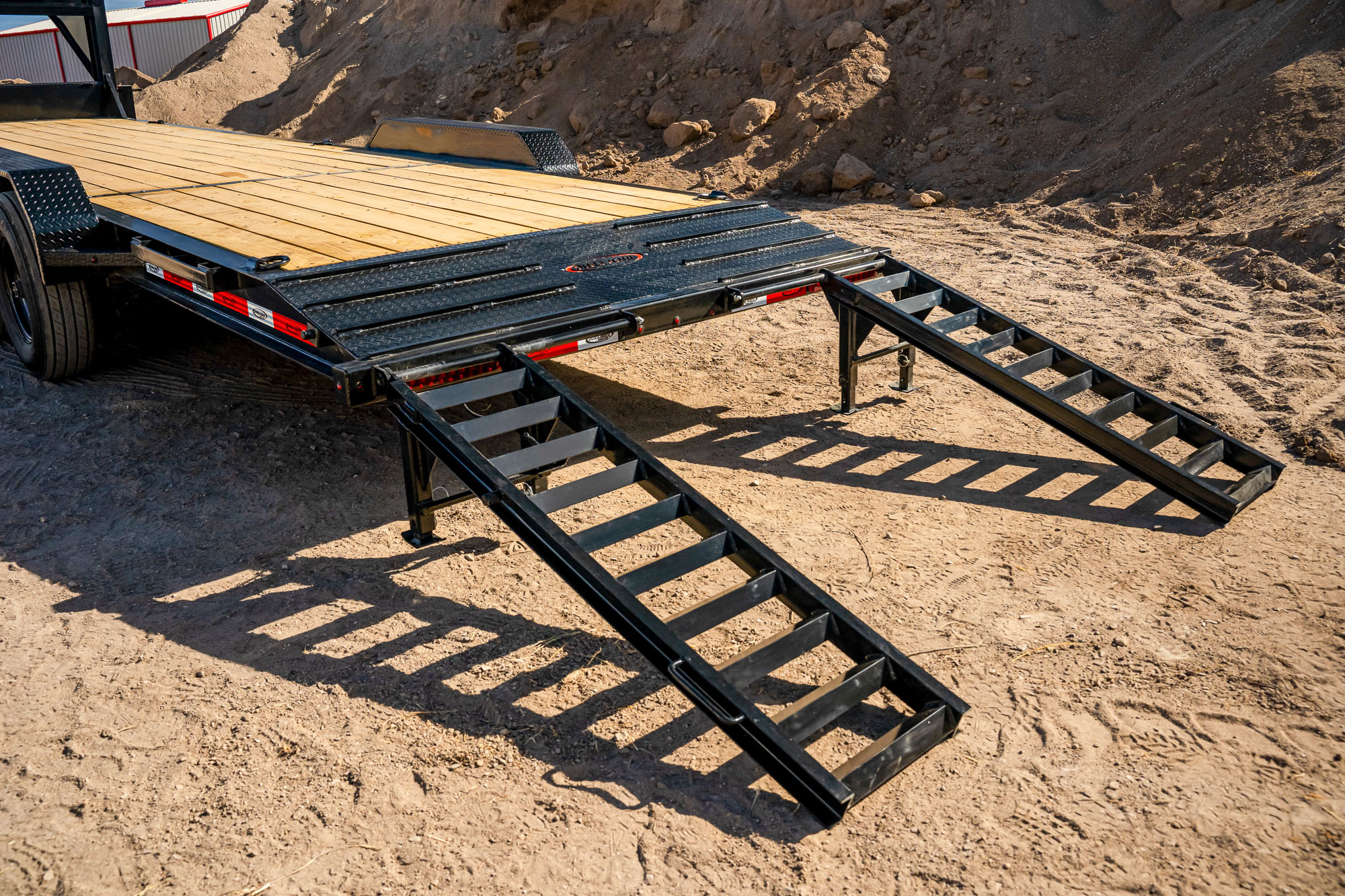

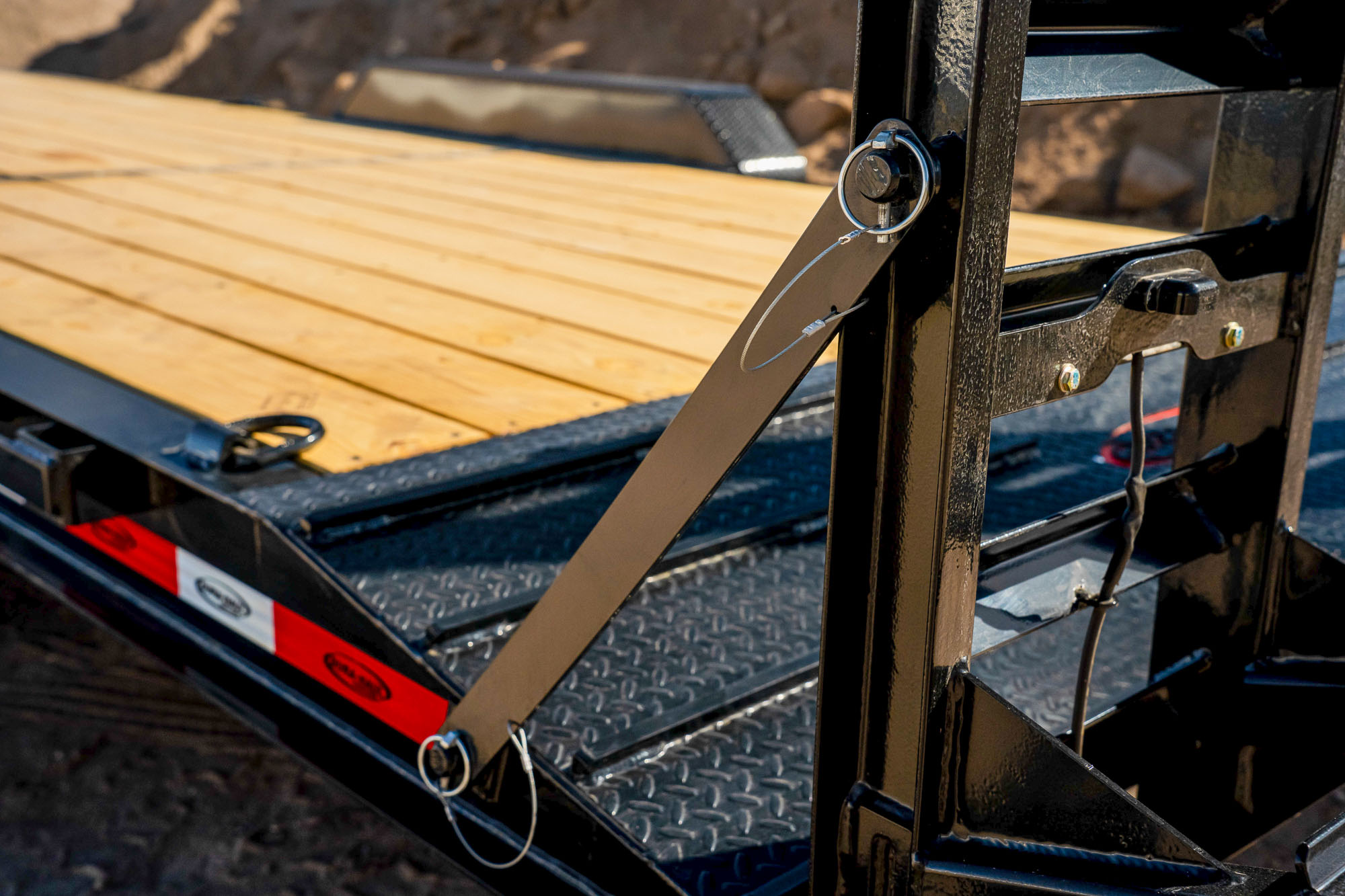

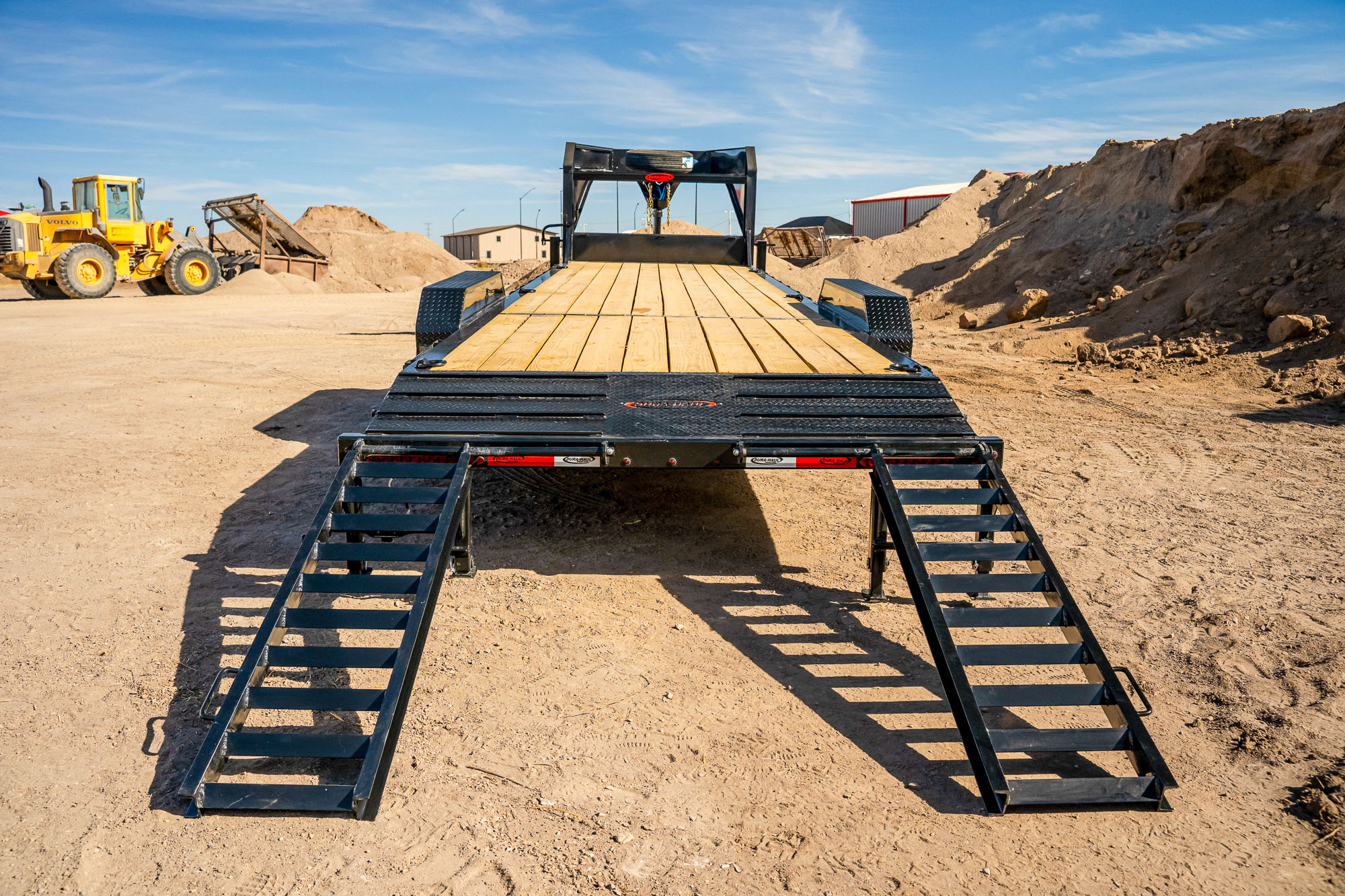

Stand Up Ramps
Stand up ramps provide a dependable loading solution for moving equipment on and off the trailer.

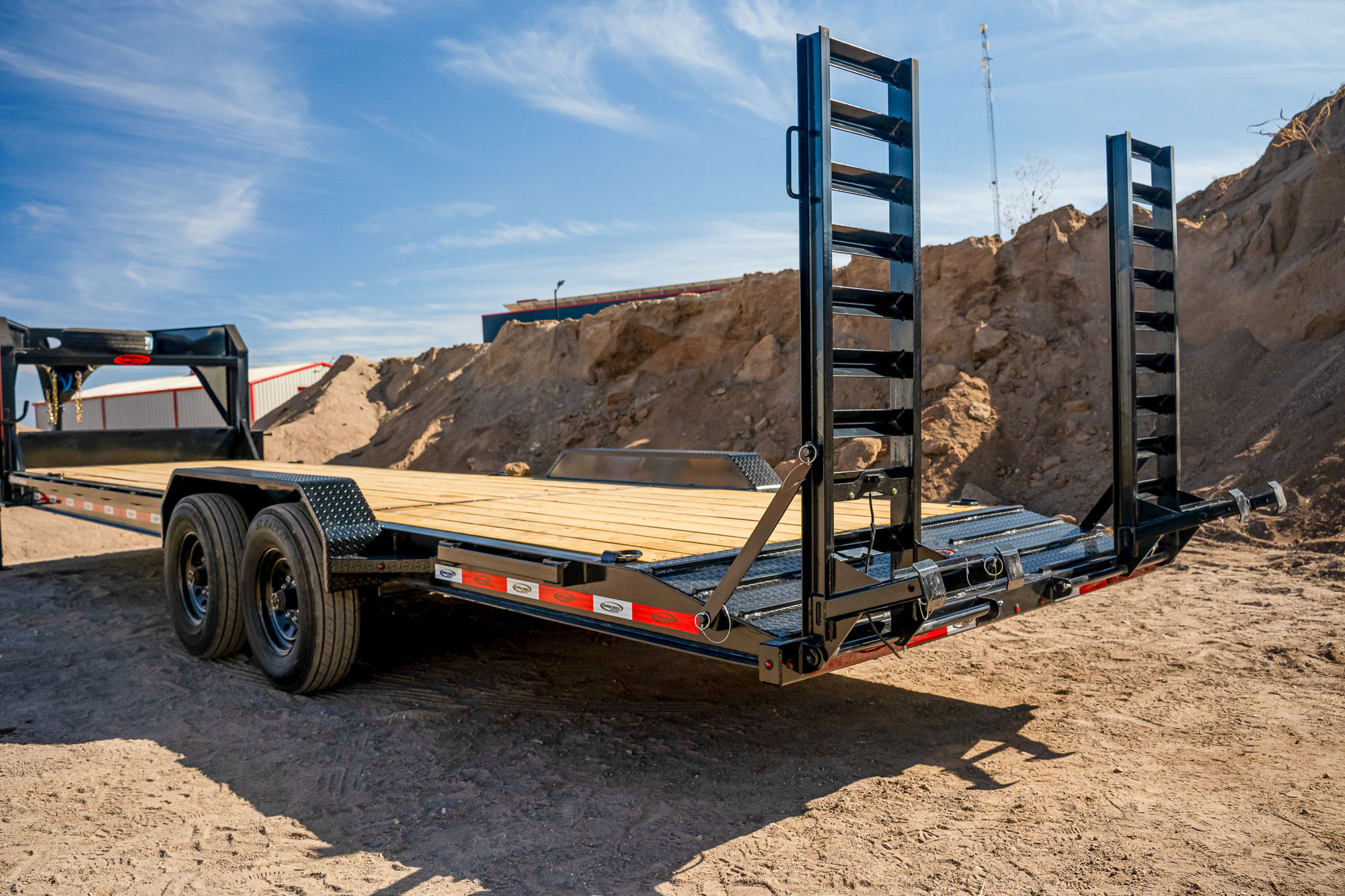

2' Dovetail
The 2' dovetail works with the stand up ramps to create a practical rear loading system.

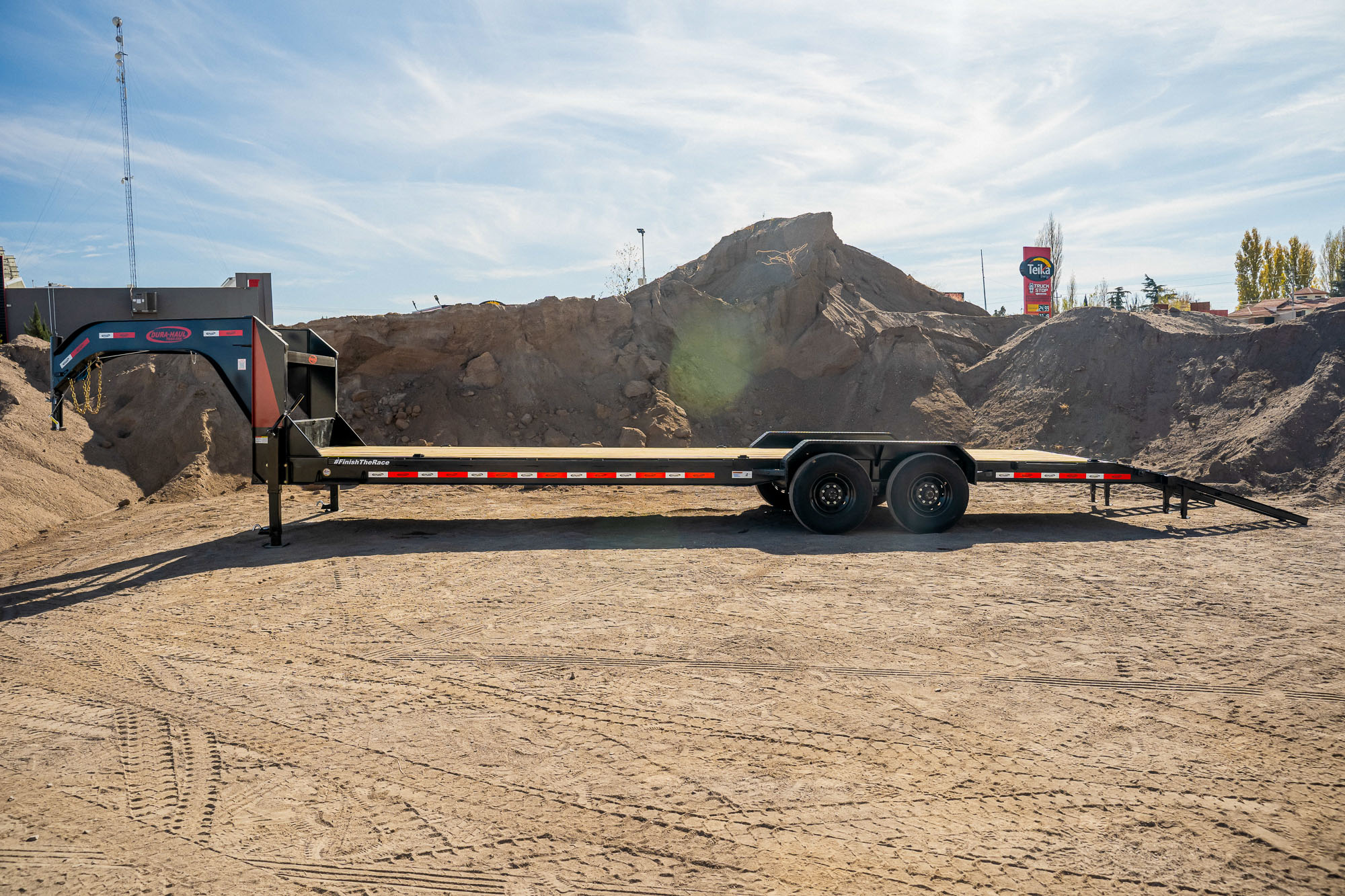

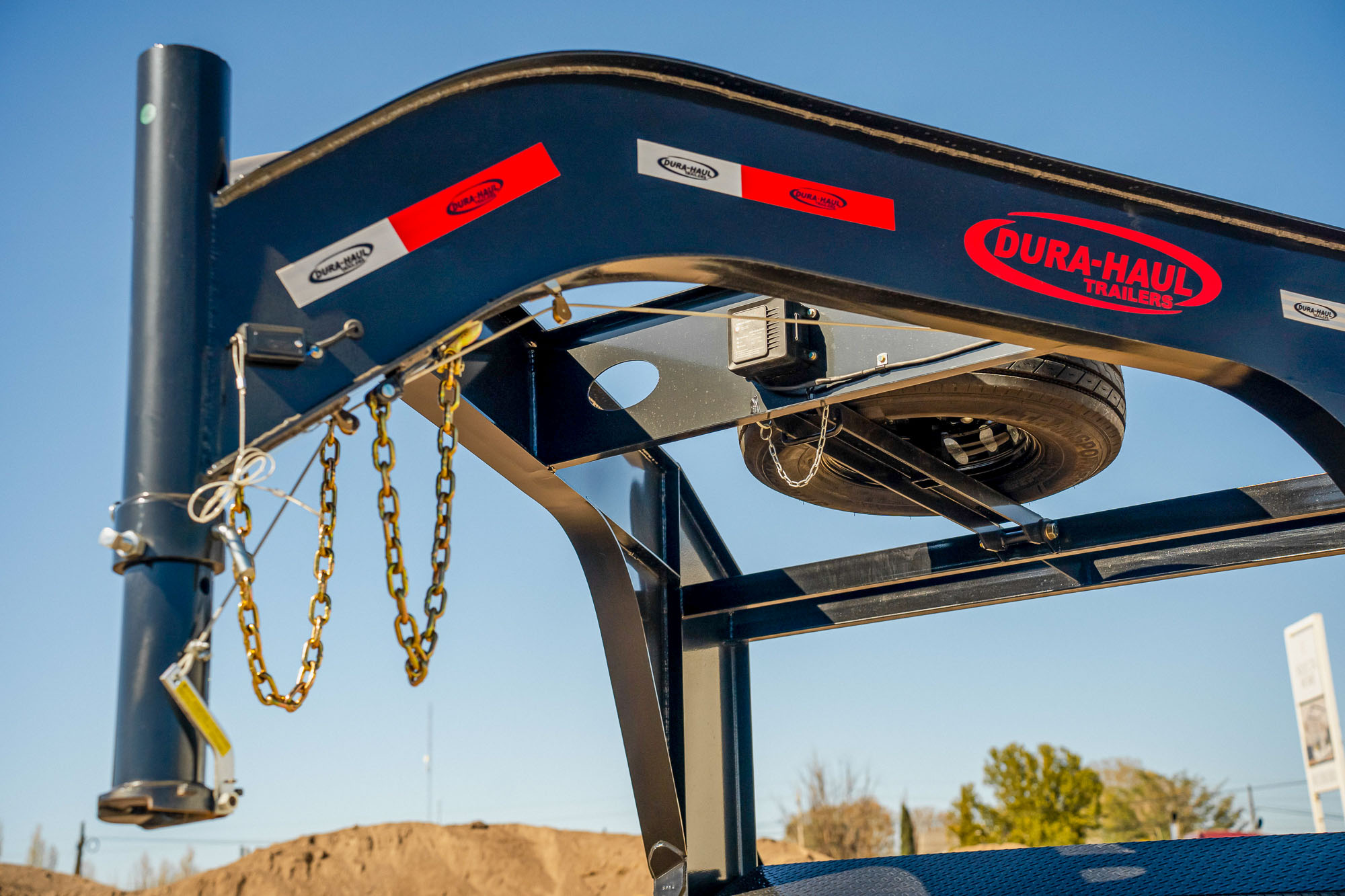

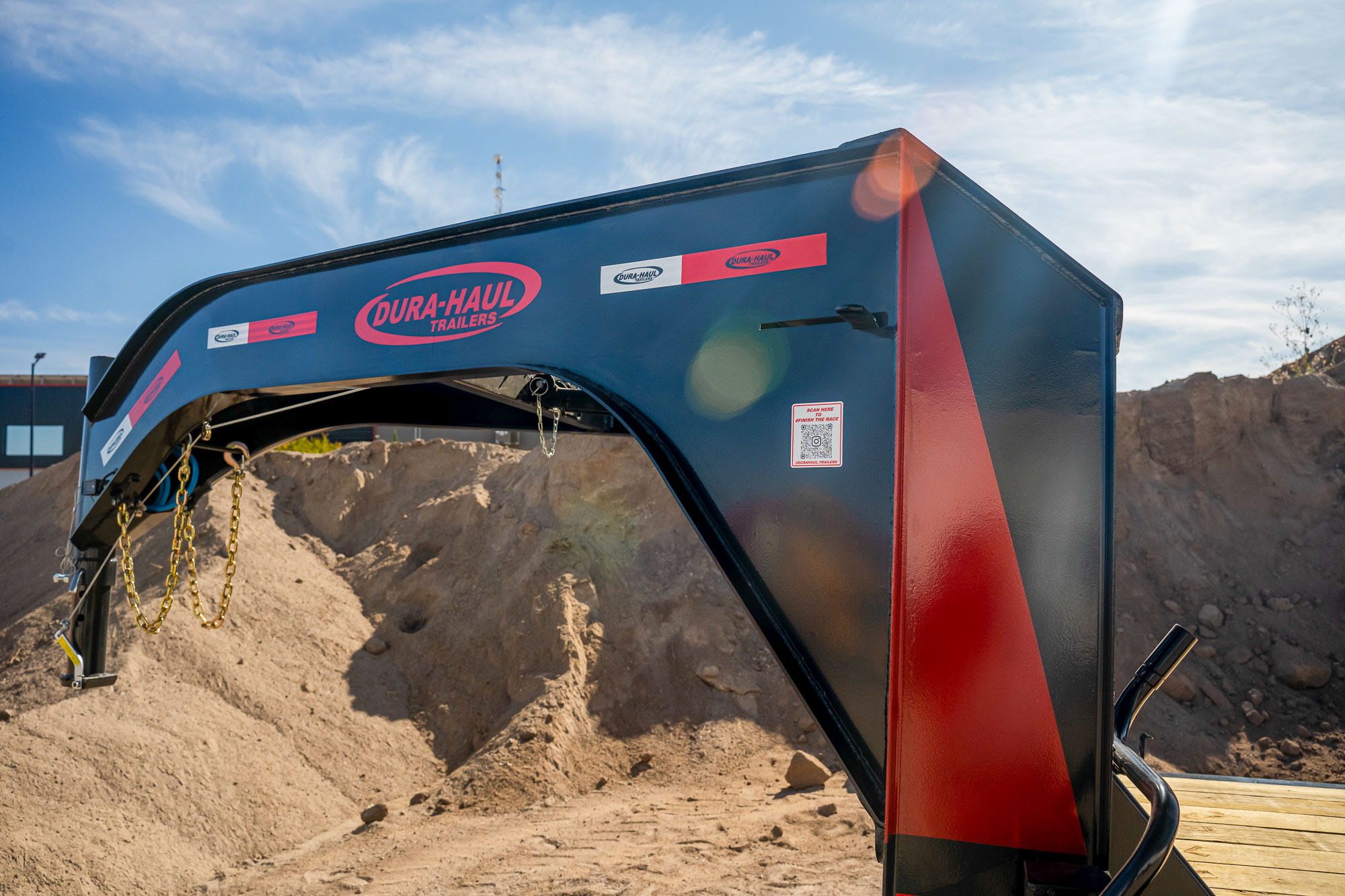

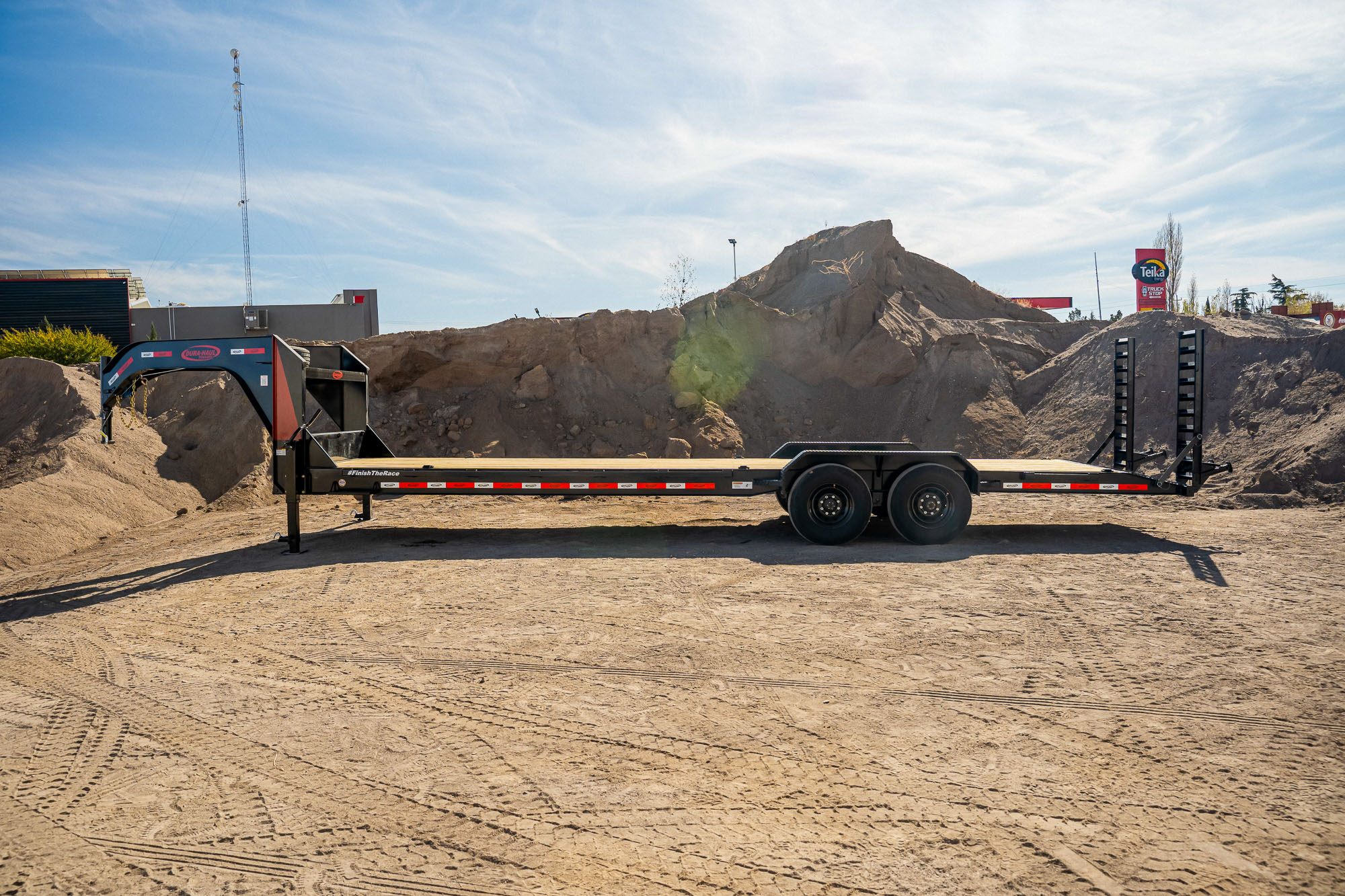

12" Engineered Gooseneck
Designed to provide improved stability, weight distribution, and overall control while hauling.

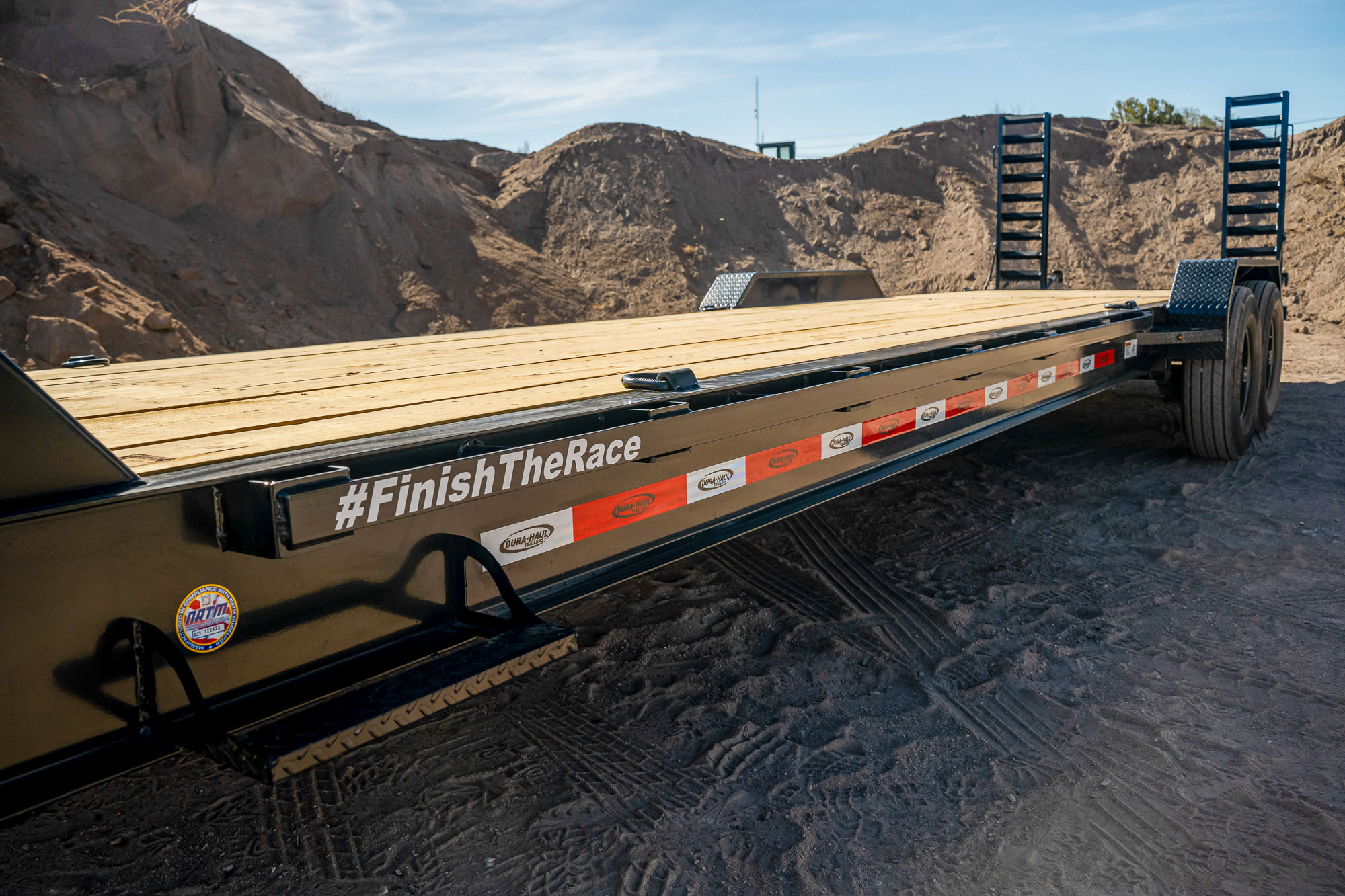

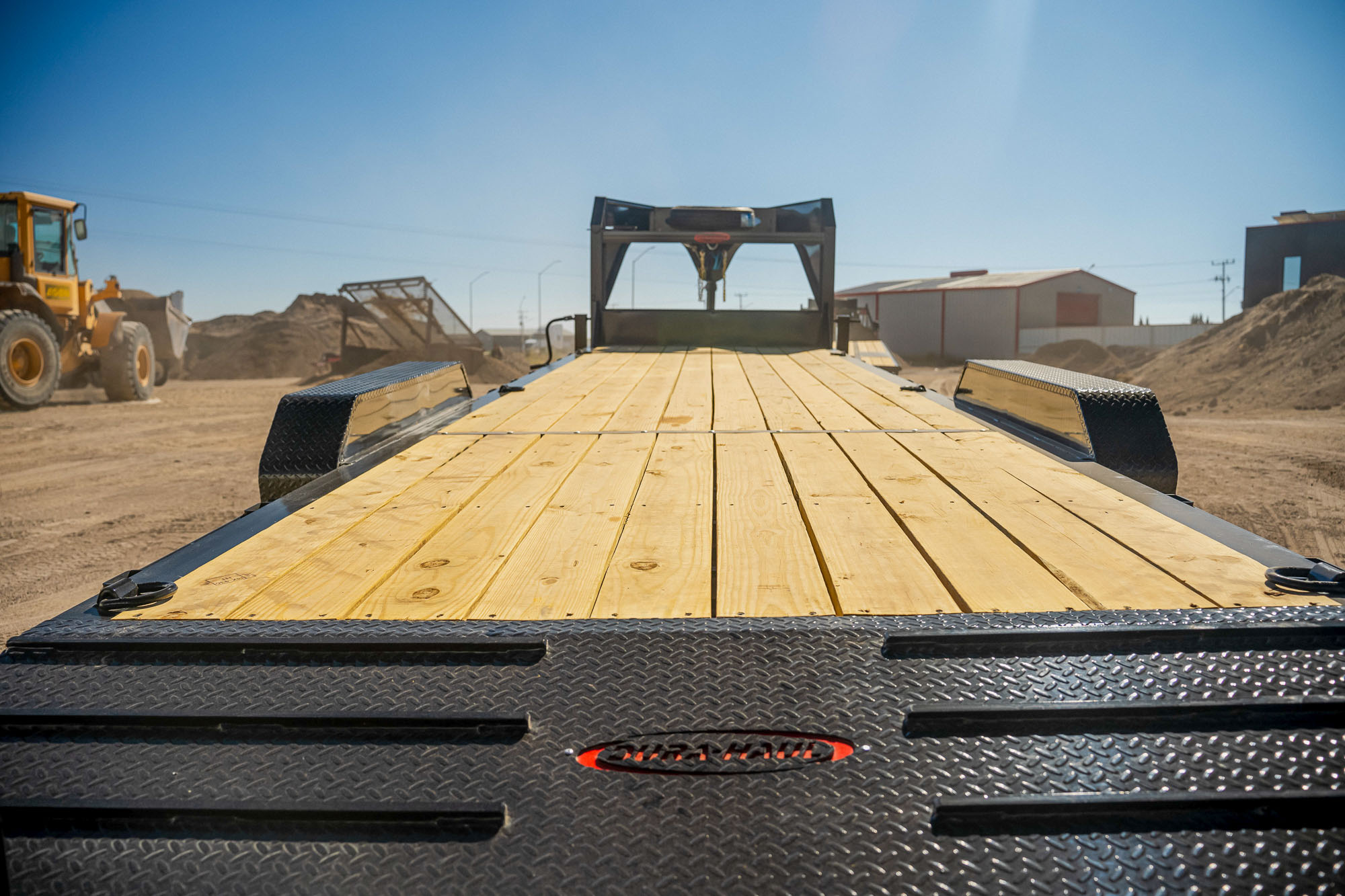

83" Wide Deck
An 83" wide platform provides practical space for transporting a variety of equipment.

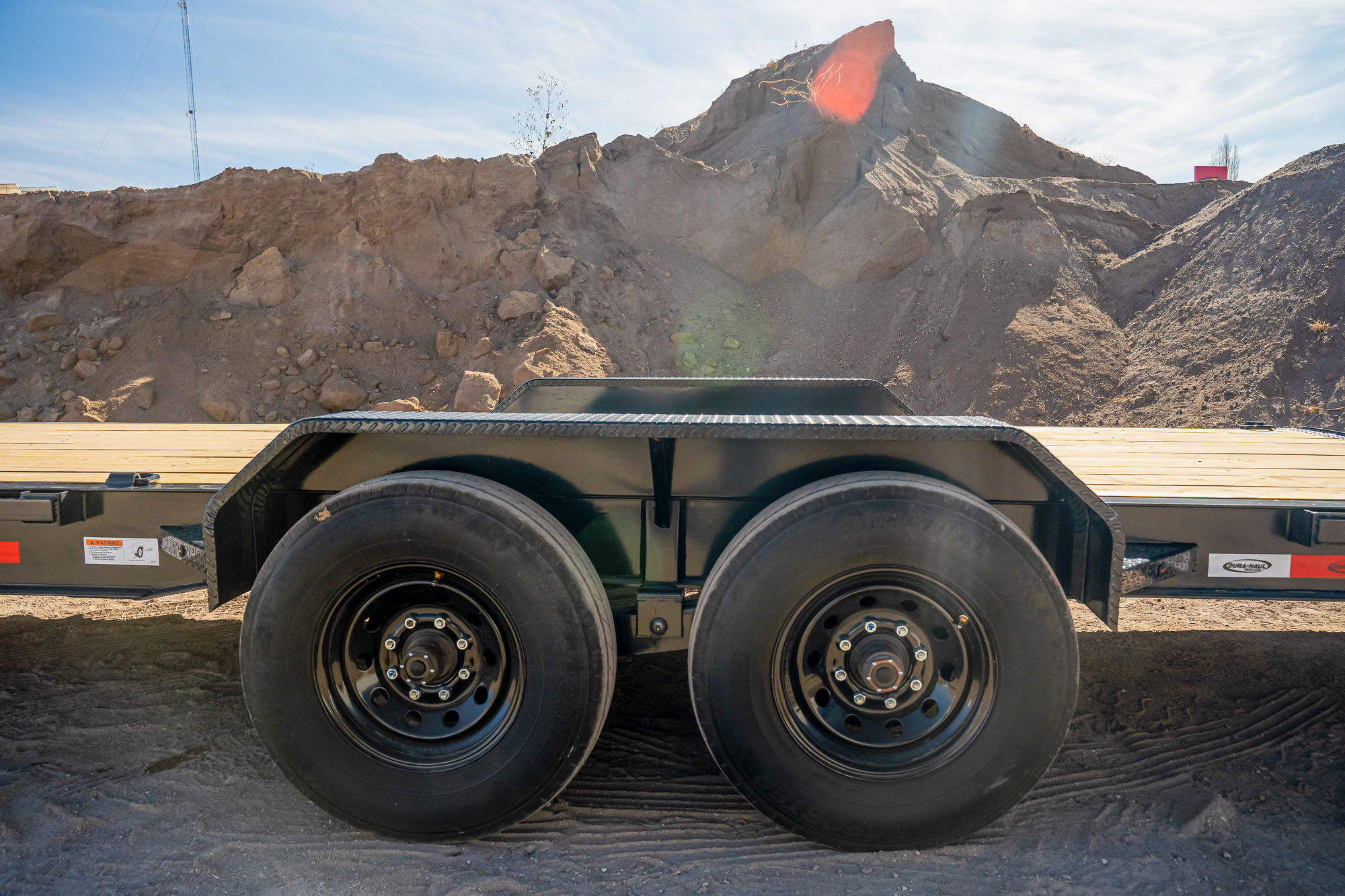

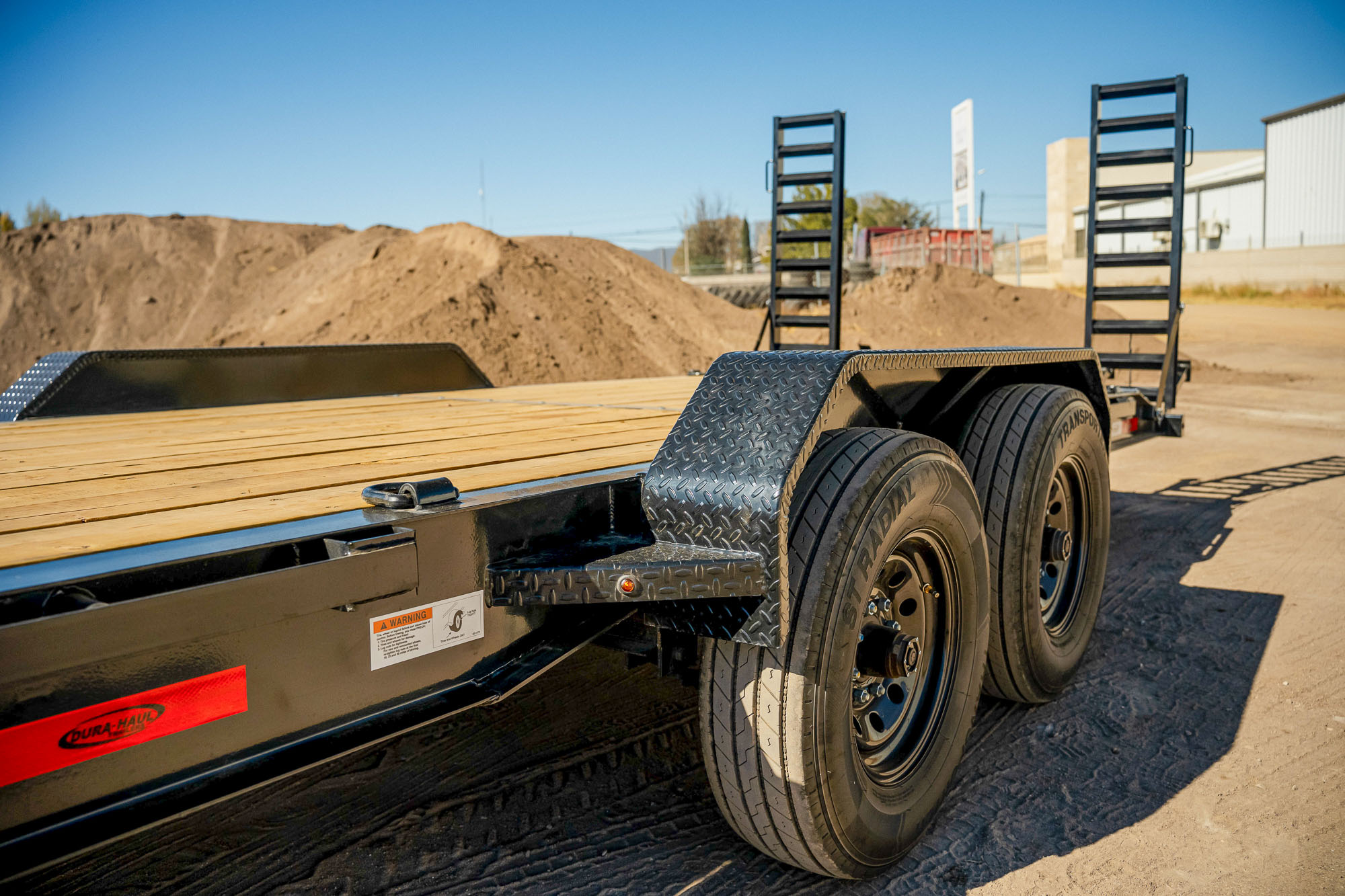

16K Tandem Axle Configuration
Equipped with tandem 8,000 lb axles and electric brakes to support the trailer's 16,000 lb GVWR.
8" I-Beam Frame
The 8" I-beam frame provides a strong foundation for demanding equipment-hauling applications.

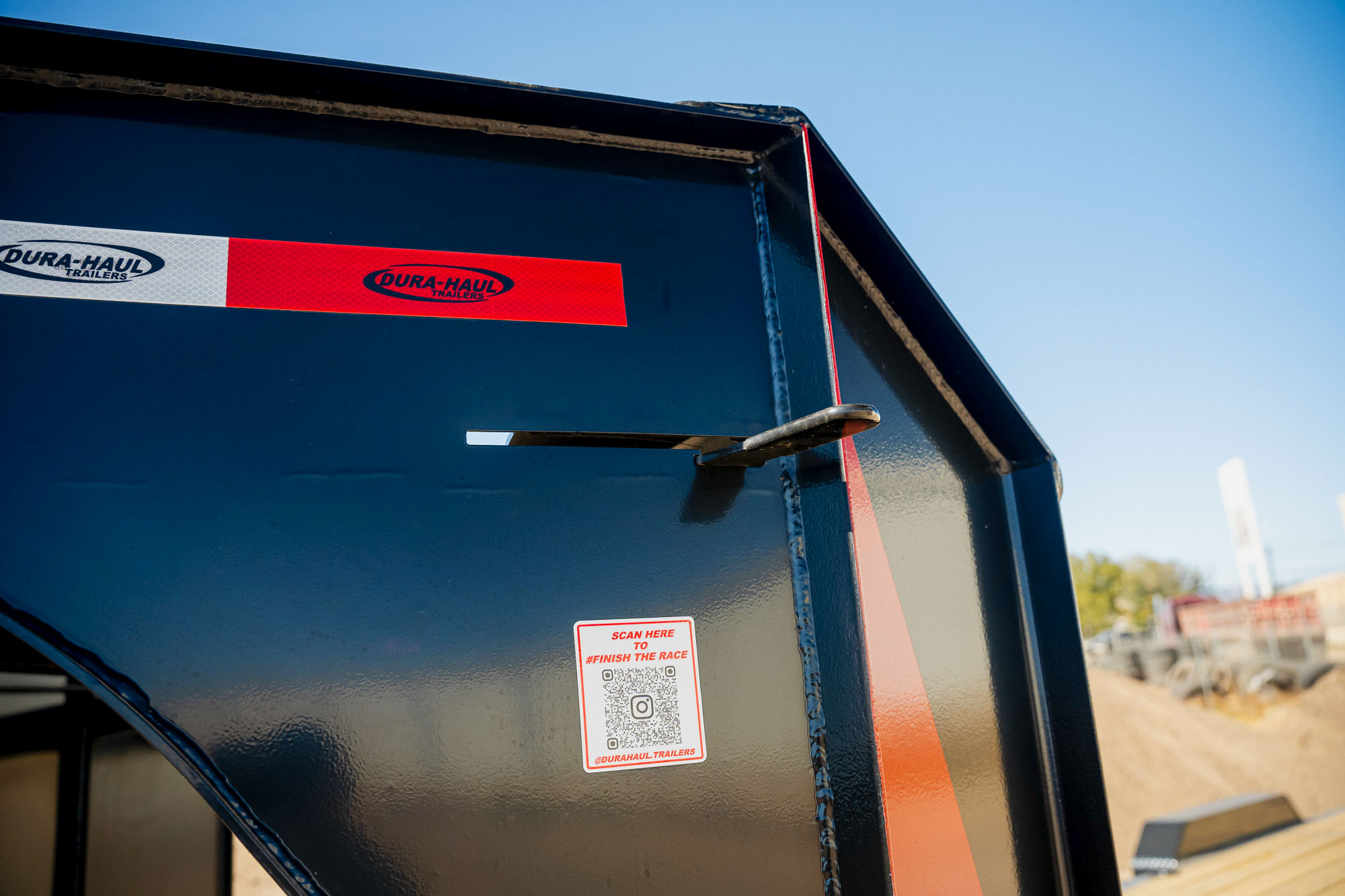

EZ Latch Coupler
The EZ Latch allows you to release the coupler from outside the truck bed for a more convenient hookup process.

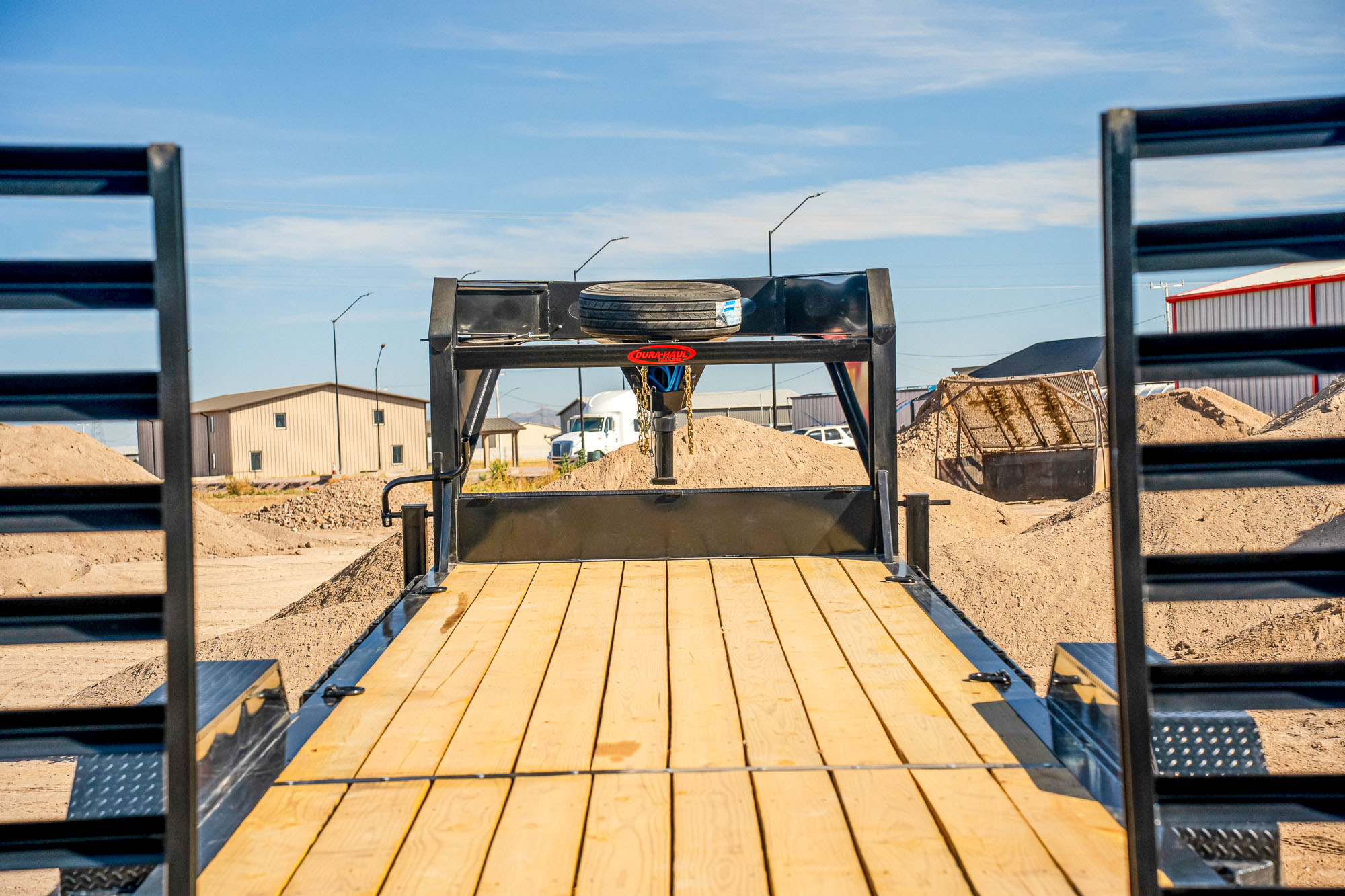

Double-Treated Wood Decking
Double-treated 1½" wood decking provides a durable surface for repeated loading and hauling.

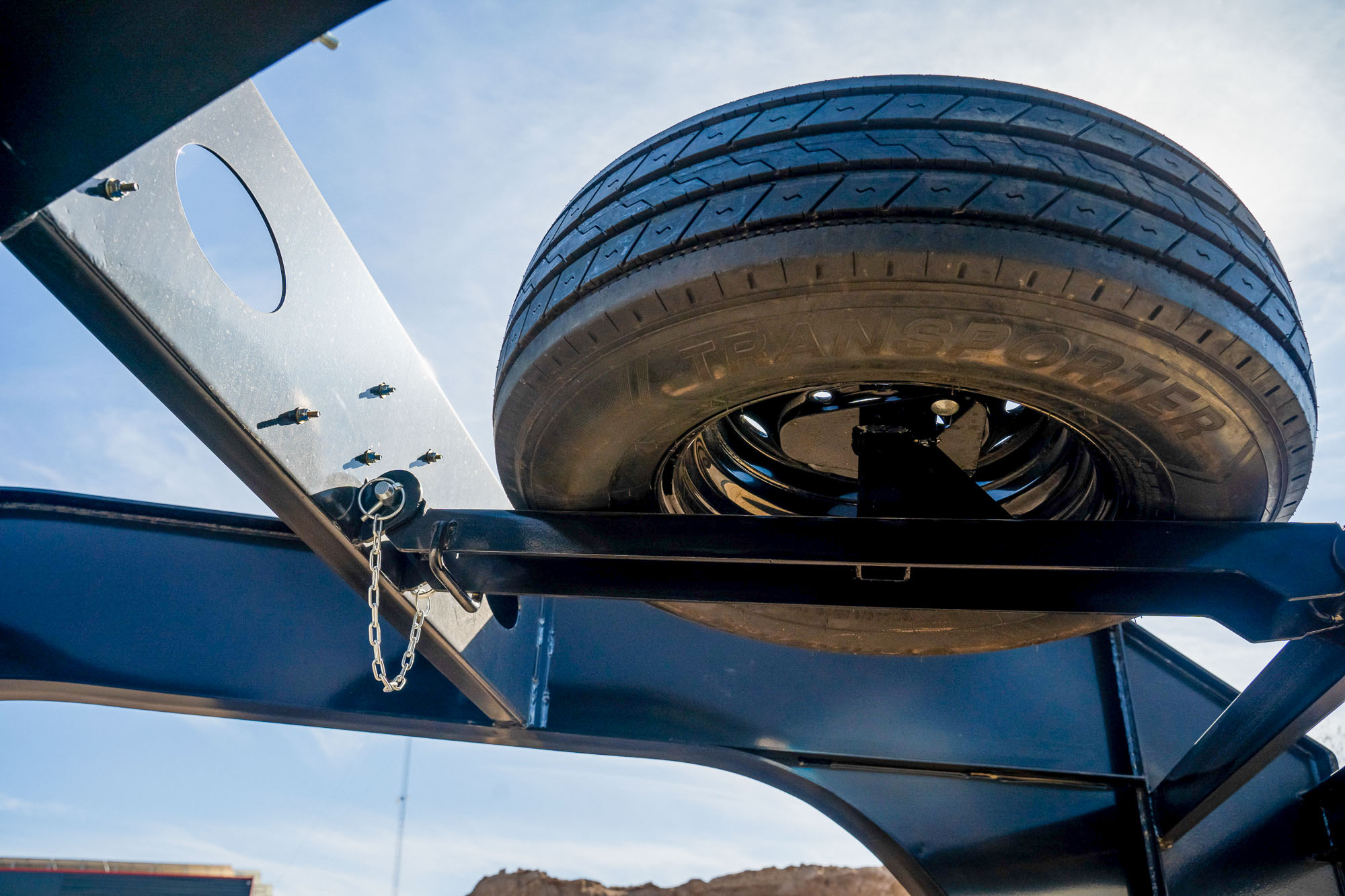

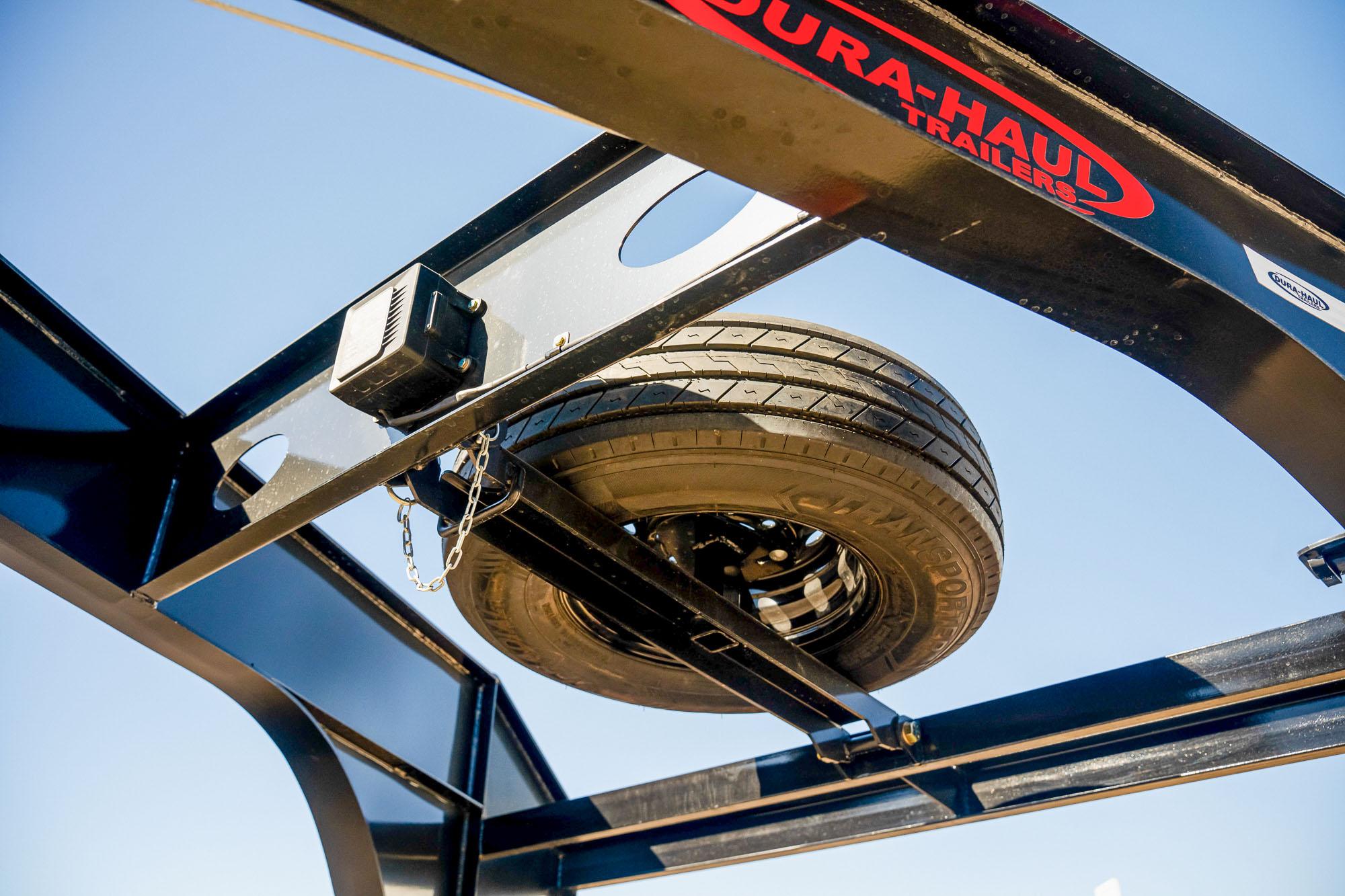

Drop-Down Spare Tire Mount
Keeps the spare tire securely positioned while providing convenient access when needed.
Technical Specifications
The Dura-Haul EKH-DS is a gooseneck equipment hauler built with an 83″ wide deck, 2′ dovetail, stand up ramps, and a 16,000 lb GVWR for dependable equipment hauling.
Size & Weight
| Size | Axles | GVWR | Weight |
|---|---|---|---|
| 20' | 7K–8K | 16,000 lbs | 3,373 lbs |
| 24' | 7K–8K | 16,000 lbs | 4,100 lbs |
| 28' | 7K–8K | 16,000 lbs | 7,300 lbs |
Frame & Deck
| Frame | 8" I-Beam |
| Deck Width | 83" |
| Dovetail | 2' |
| Decking | 1½" Double-Treated Wood |
| Gooseneck | 12" Engineered Gooseneck |
| Side Step | Included |
| Fenders | Removable |
Loading
| Ramp Type | Stand Up Ramps |
| Winch Plate | Included |
Load Securement
| D-Rings | (6) 1/2" Around Bed |
| Rubrail | Included |
| Stake Pockets | Along Sides |
Coupler & Jack
| EZ Latch | Quick Release Outside Truck Bed |
| Coupler | 2-5/16" Adjustable Up & Down |
| Jack | 12,000 lb Spring-Loaded Adjustable Leg Crank Jack |
| Safety Chains | (2) |
Axles, Brakes & Suspension
| Axles | 8,000 lb Tandem Axles |
| Brakes | Electric Brakes |
| Suspension | Multi-Leaf Spring with Equalizer |
| Tires | ST235/80R16 — 14 Ply |
| Wheels | 8-Hole |
| Hubs | Quick Lube Hubs & Dust Caps |
Equipment & Convenience
| Toolbox | Lockable |
| Spare Tire Mount | Drop-Down Spare Tire Mount |
Electrical & Safety
| Wiring | All-Weather Wiring & Harness |
| Safety Break-Away | System with Cable and Battery |
| LED Markers | (11) DOT Approved — Fender, Side & Rear |
| Safety Tape | Reflective DOT Safety Tape |
Finish
| Finish | Superior Powder Coat Paint Finish |
Available Options
| Color | Optional |
| Deck on Neck | Optional |
| Winch | Optional |
| Hydraulic Jack | Optional |
Available Options
CHOOSE YOUR TRAILER
Three Lengths. One Purpose: Keep Equipment Moving.
Choose the EKH-DS length that best fits the equipment you haul and the space your operation requires.
Choose Your Trailer
20' EKH-DS
Compact. Capable. Ready to Work.
Approx. Weight: 3,373 lbs
8K Axle Options
A practical choice for operators who need a capable 16K gooseneck equipment hauler in a more compact length.
24' EKH-DS
More Deck. More Possibilities.
Approx. Weight: 4,100 lbs
8K Axle Options
The 24' configuration provides additional space for larger equipment while maintaining the same dependable 16K hauling platform.
28' EKH-DS
Built for the Bigger Moves.
Approx. Weight: 7,300 lbs
8K Axle Options
With the longest available deck, the 28' EKH-DS gives operators more room for equipment that demands additional hauling space.
Deck on Neck
Add usable deck space over the gooseneck for additional hauling versatility.
Winch
Add a winch to support equipment loading and recovery applications.
Hydraulic Jack
Upgrade the trailer with a hydraulic jack for added convenience during coupling and uncoupling.
Custom Color Options
Match your company branding or fleet appearance with available powder coat color options.
The Job Doesn't Wait.
Neither Should You.
When the next job calls for equipment, the Dura-Haul EKH-DS is ready to help get it there.
With a 16,000 lb GVWR, engineered gooseneck, 83″ wide deck, 2′ dovetail, and stand up ramps, it delivers a practical combination of loading capability and hauling control.
Load It. Haul It. Get Back to Work.
FAQ
The EKH-DS is available in 20′, 24′, and 28′ lengths, all with an 83″ wide deck and a 16,000 lb GVWR.
DS refers to the trailer’s Dovetail and Stand Up Ramp configuration.
The EKH-DS features stand up ramps for loading and unloading equipment.
All available EKH-DS sizes are configured with a 16,000 lb GVWR.
The trailer uses tandem 8,000 lb axles with electric brakes and a multi-leaf spring suspension with equalizer.
The EKH-DS features an 83″ wide deck with 1½” double-treated wood decking.
The EZ Latch allows for quick release of the coupler from outside the truck bed, making the coupling process more convenient.

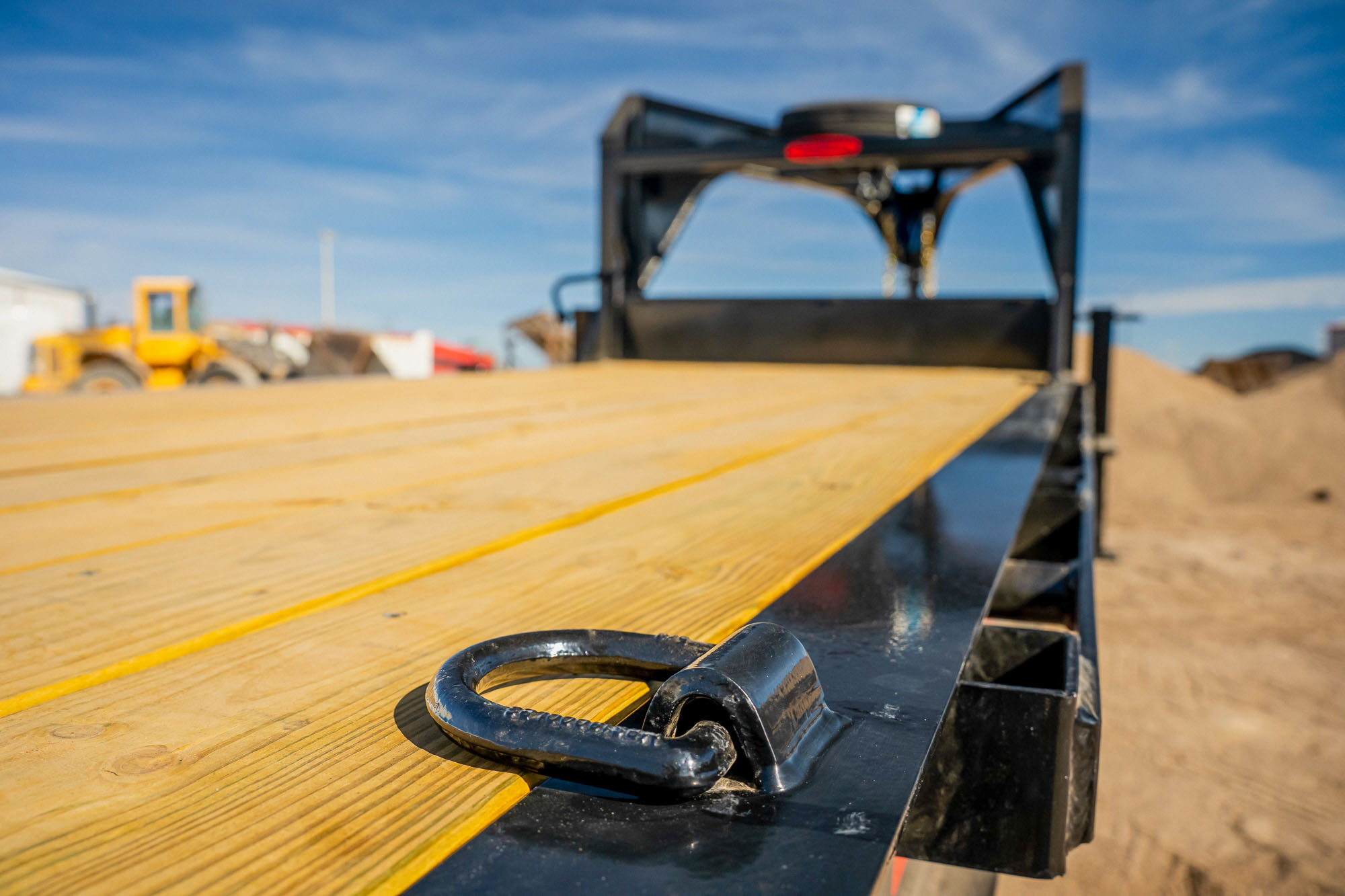

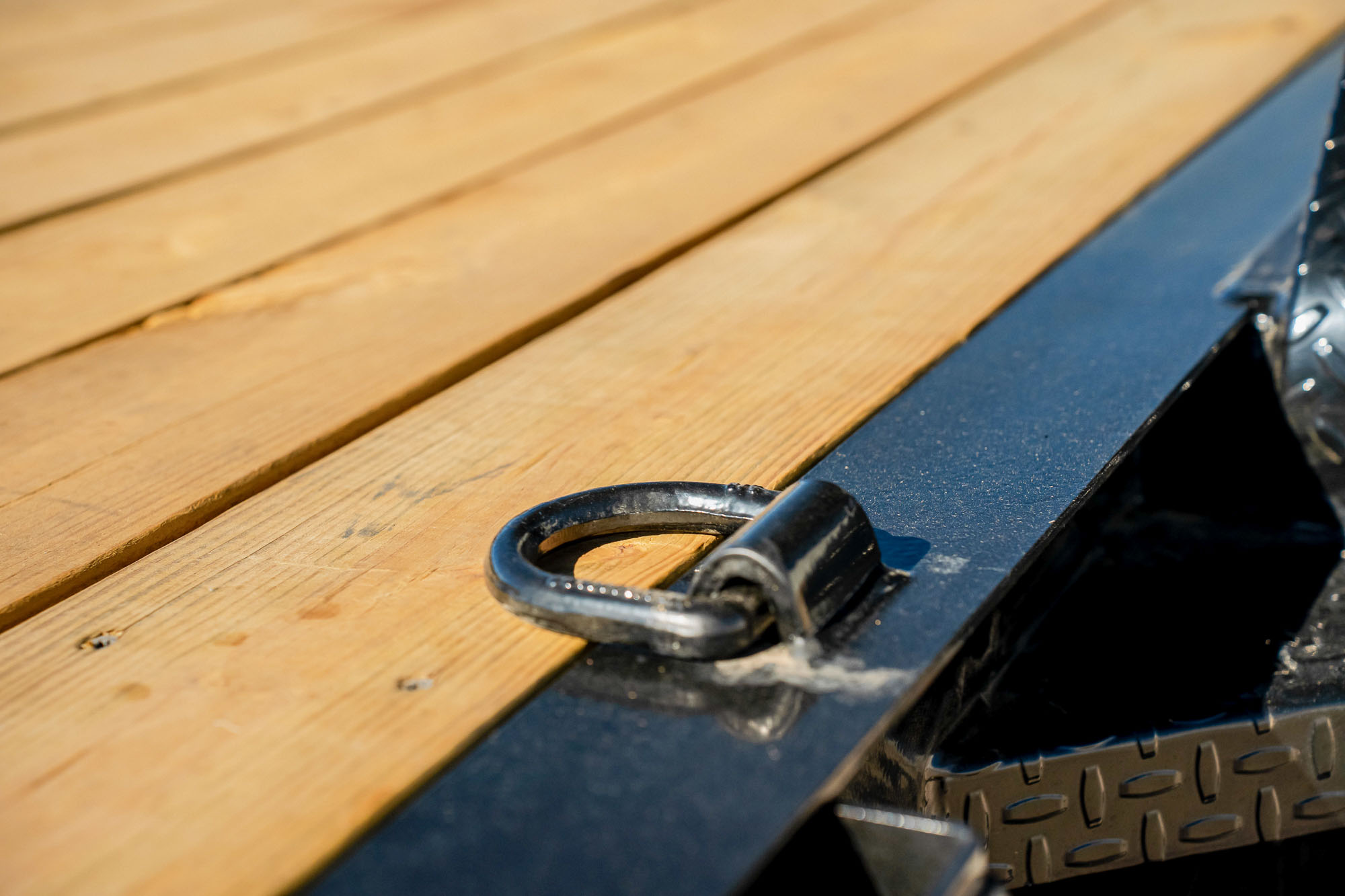

Yes. The trailer includes six 1/2″ D-Rings positioned around the bed, along with rubrail and stake pockets on the sides.
Available options include color, deck on neck, winch, and hydraulic jack.
features
83" wide deck
Its heavy-duty, reinforced deck provides exceptional durability, making it capable of handling a wide range of cargo types with ease. Whether you’re transporting heavy equipment, vehicles, or general materials, this trailer offers the flexibility and strength needed to get the job done.

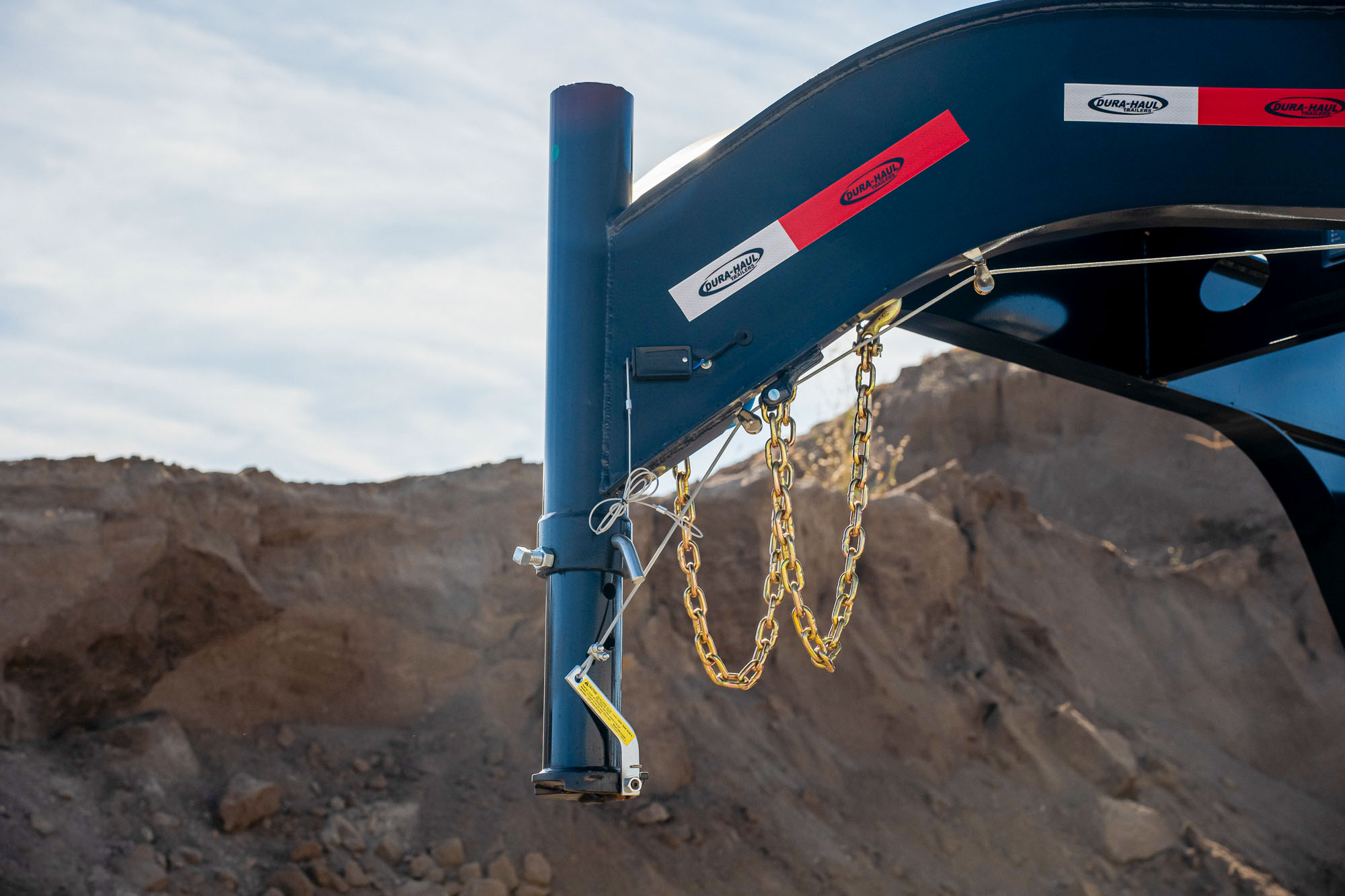

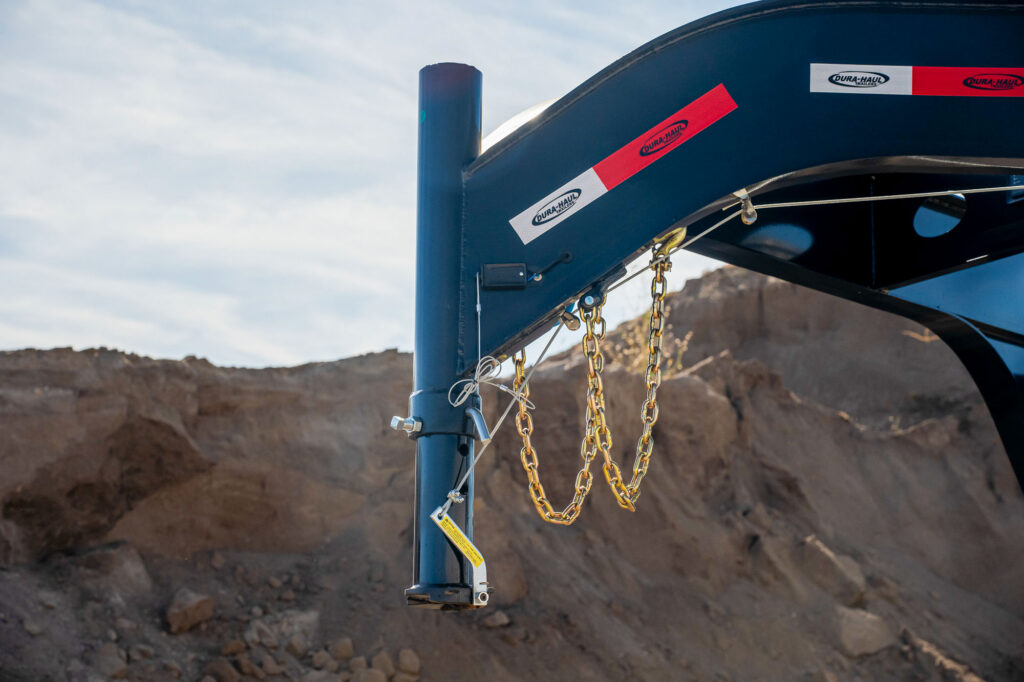

DURABLE COUPLER
Dura-Haul trailers are equipped with a durable coupler and heavy-duty safety chains on the front, ensuring a secure connection and enhanced safety during transport.
