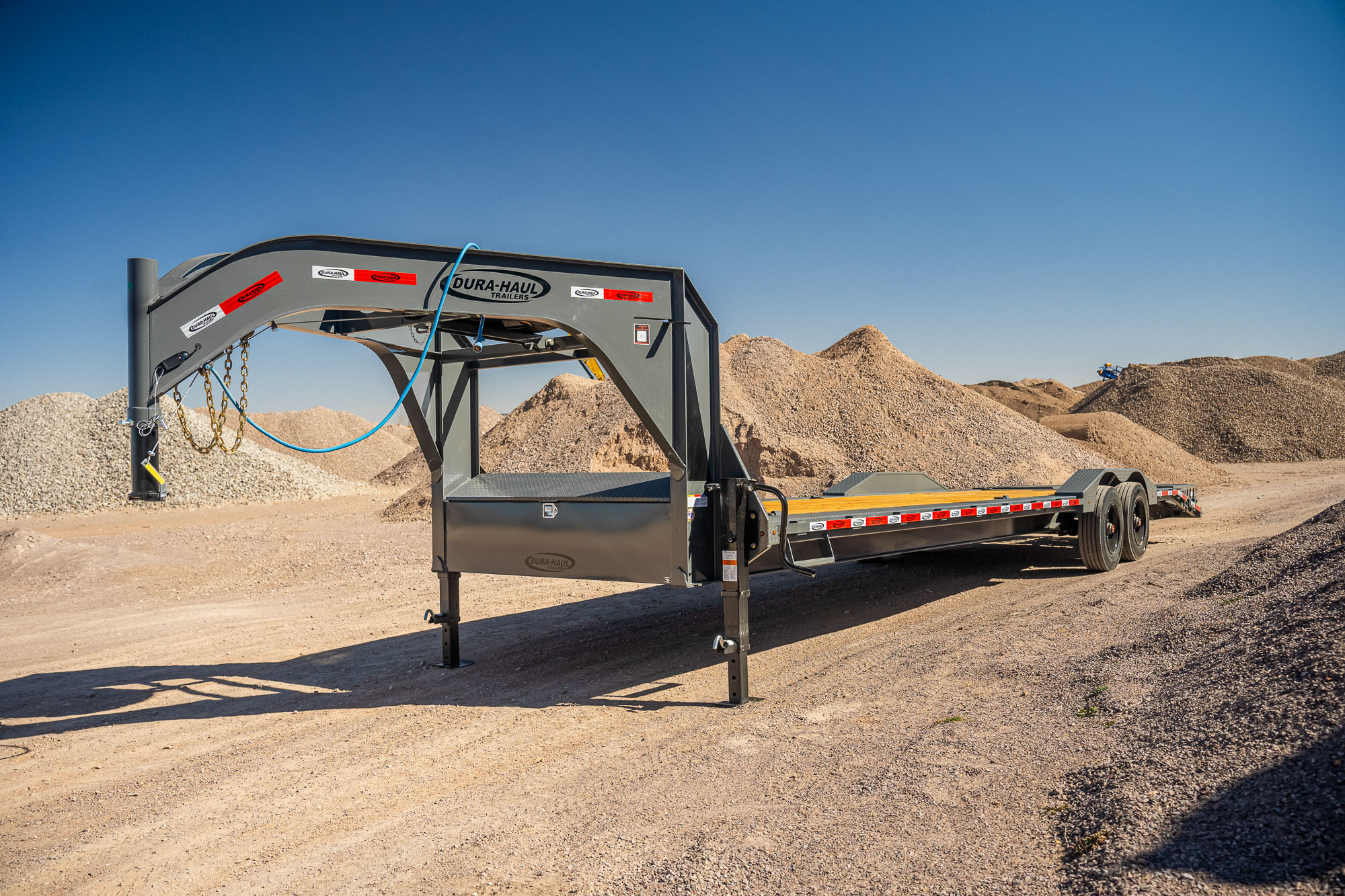

EKH-DD
Dovetail and Dura Ramps.

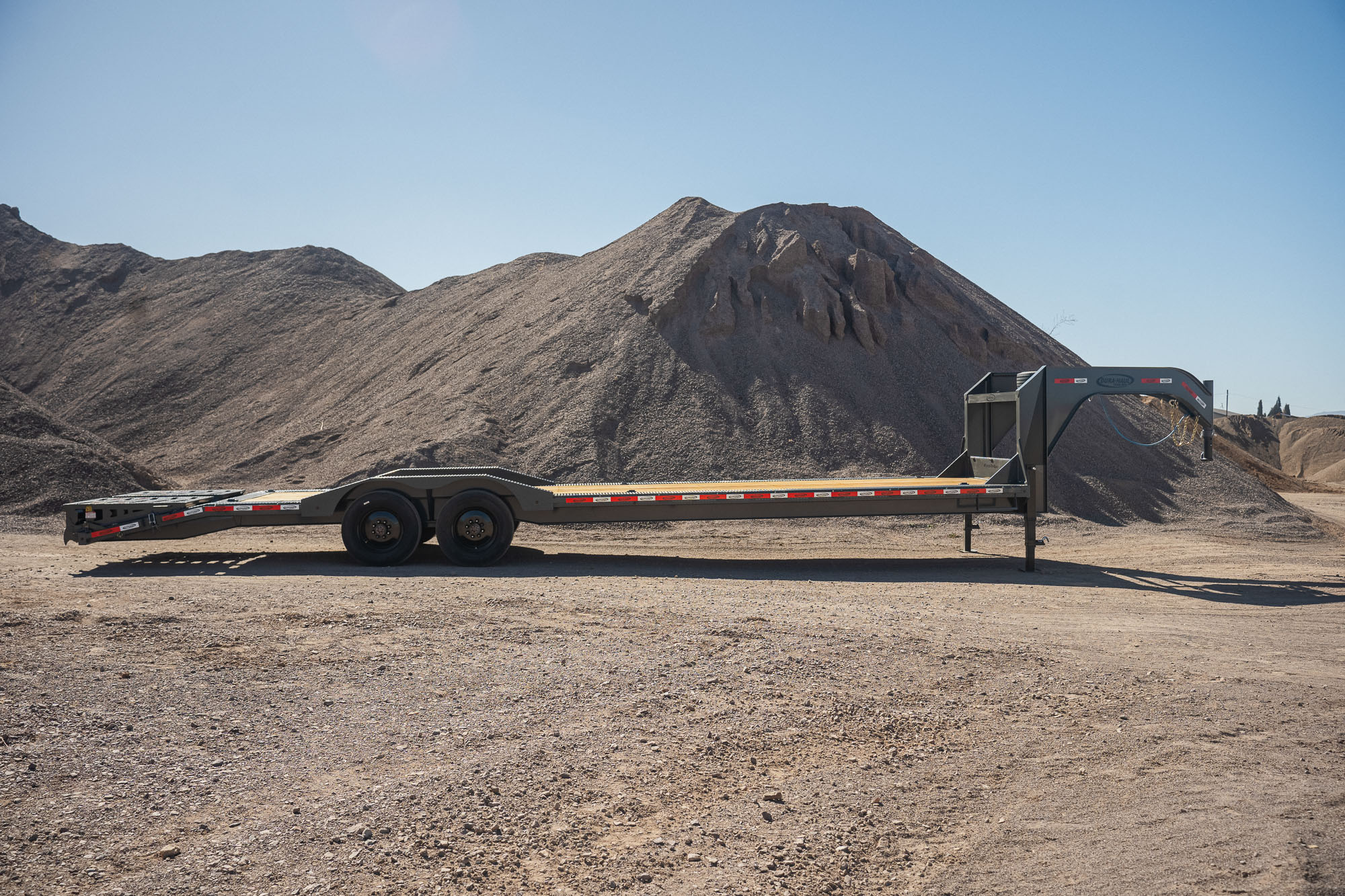

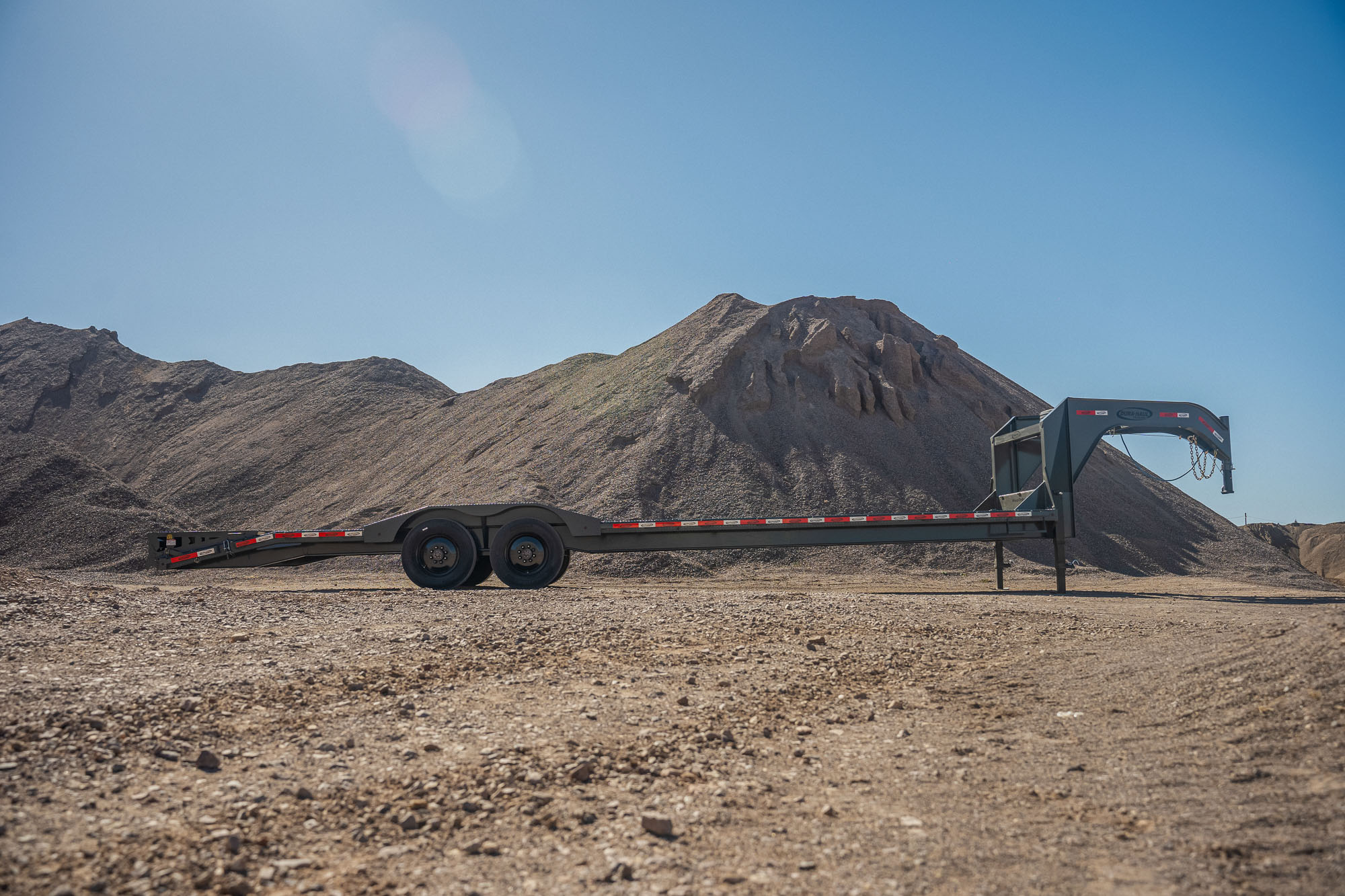

The Dura-Haul EKH-DD Equipment Hauler combines the stability and control of a gooseneck with a wide equipment-hauling platform designed for demanding jobs.
Featuring a 102″ wide deck, 4′ dovetail, and Dura Ramps, the EKH-DD is built to help you load, secure, and transport equipment with confidence.
Available in lengths from 24′ to 32′, with configurations ranging from 16,000 to 20,000 lbs GVWR.
16K–20K
GVWR
24'–32'
Lengths
102" Wide
Deck
4' Dovetail +
Dura Ramps
EKH-DD
EQUIPMENT HAULER
EKH-DD — Equipment Hauler Dovetail and Dura Ramps
The Drive Over Fenders are built to handle oversized equipment without the hassle. Their rugged design lets you drive directly over them, streamlining the loading process and minimizing the risk of damage. Perfect for jobs where time and precision matter.
Quick Specifications
Load with confidence.
Haul with control.
Get to the next job.
ONE TRAILER. MORE WAYS TO WORK.
The EKH-DD combines a gooseneck configuration, wide deck, and heavy-duty loading system for operations that need to move equipment from one demanding job to the next.
CONSTRUCTION EQUIPMENT
Transport excavators, skid steers, compact loaders, and other jobsite equipment with a wide deck and dependable loading system.
AGRICULTURAL EQUIPMENT
Move tractors, implements, and equipment between properties with the stability and control of a gooseneck setup.
HEAVY EQUIPMENT HAULING
Built for operators who need additional deck space and higher GVWR configurations for demanding hauling applications.
Built for the Equipment That Keeps You Moving
The Features That Keep You Moving.
The EKH-DD brings together the features that matter when you’re hauling heavy equipment: a stable gooseneck platform, durable construction, practical loading access, and flexible configurations.

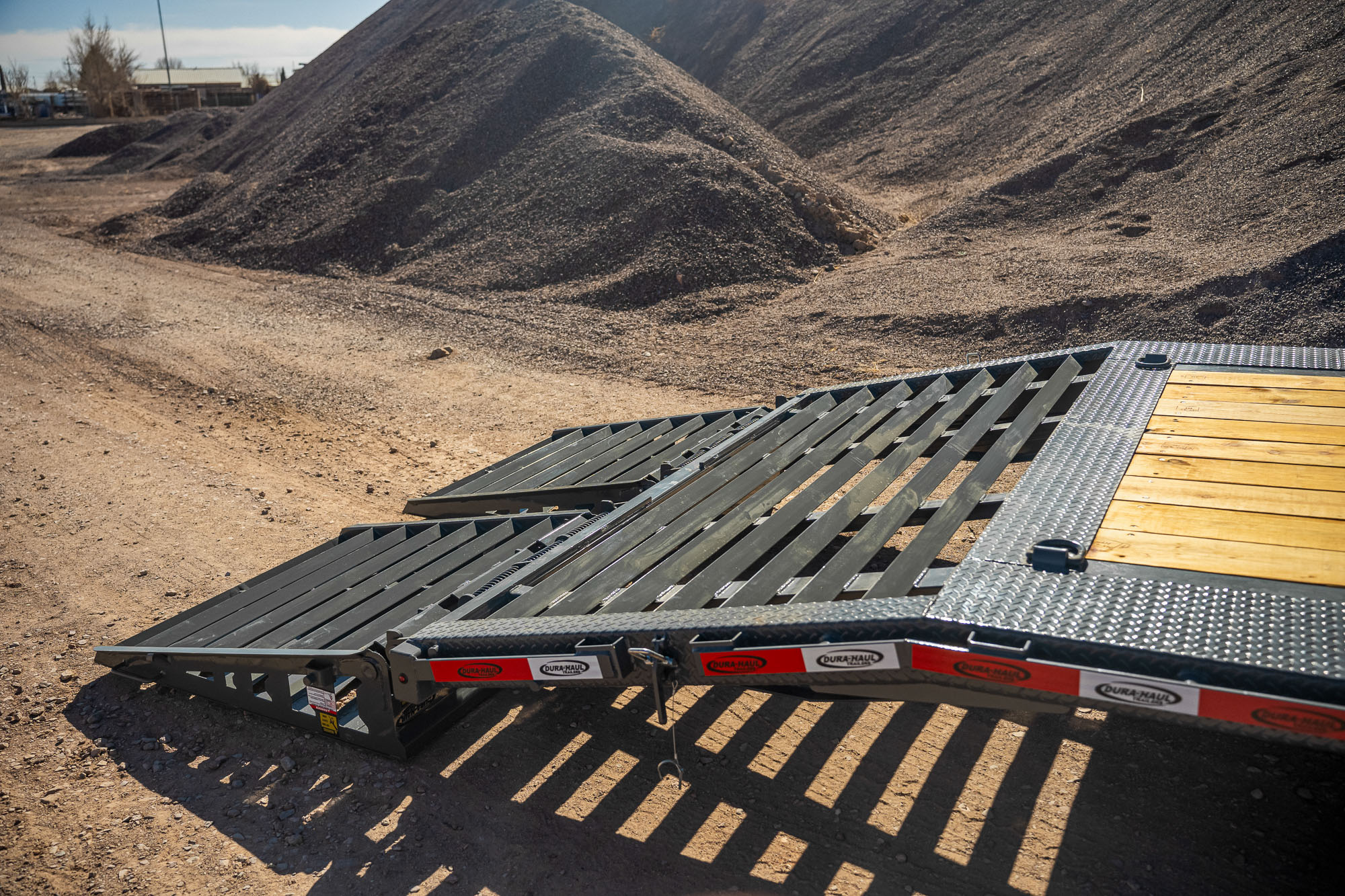

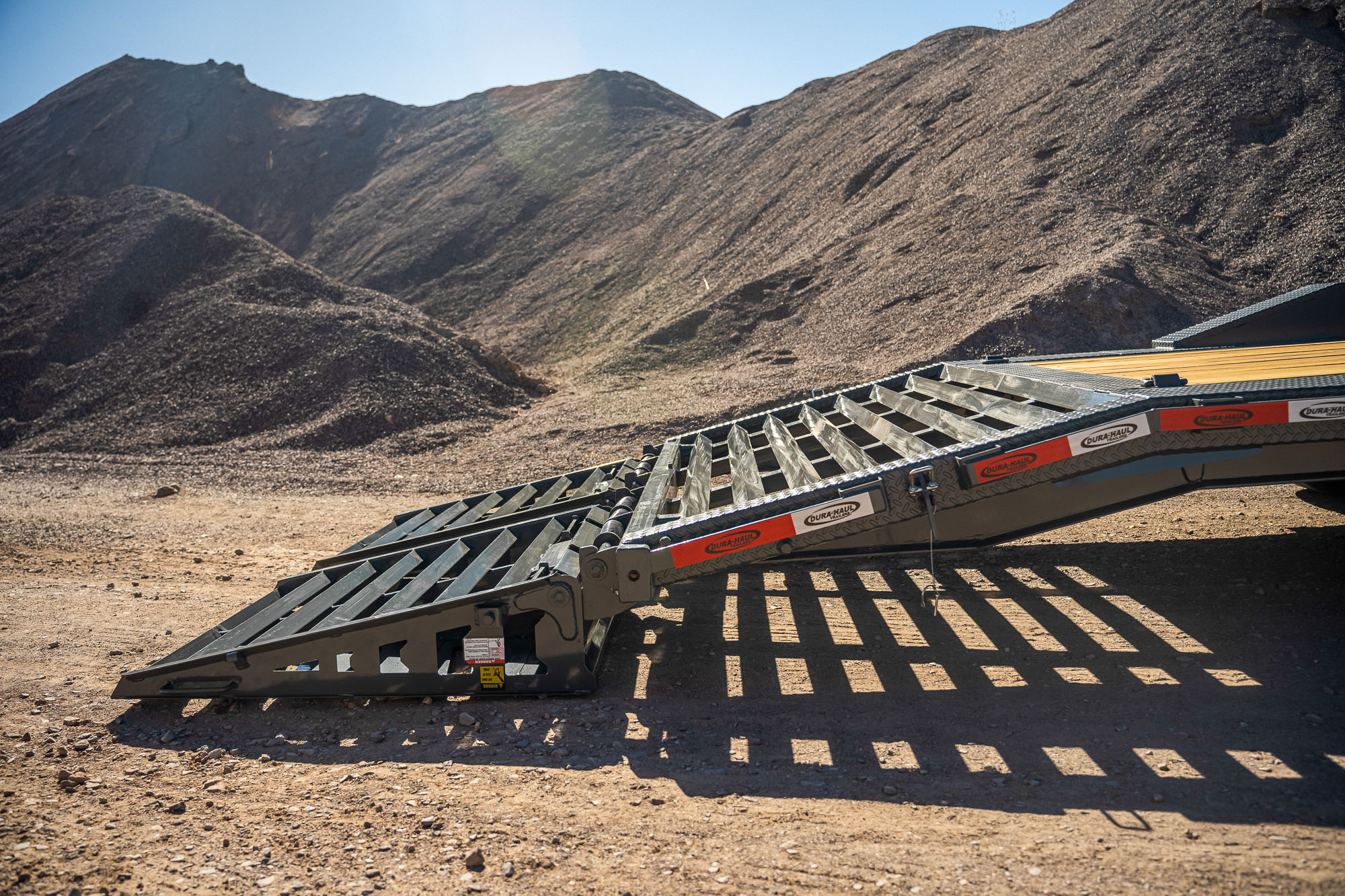

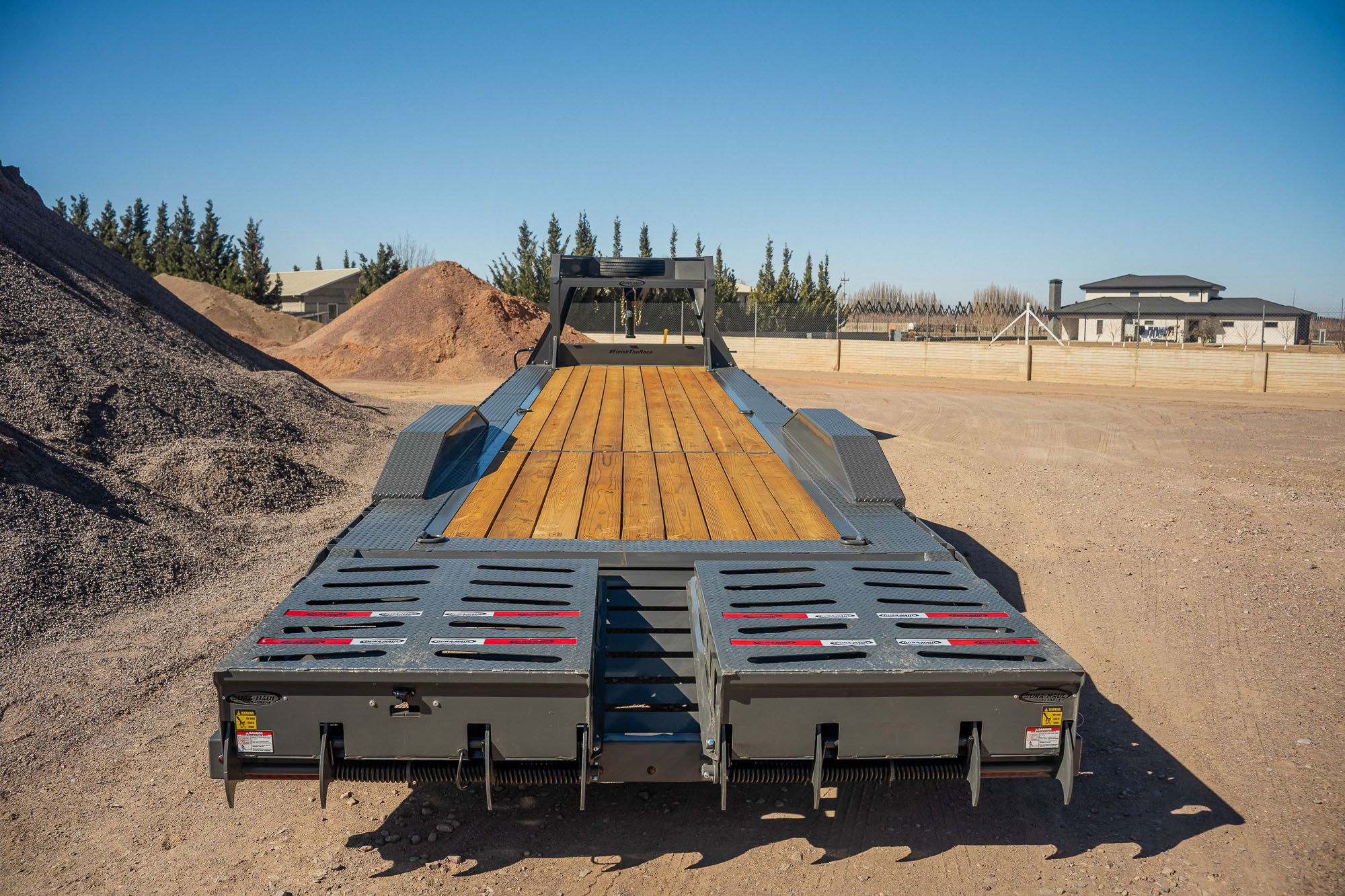

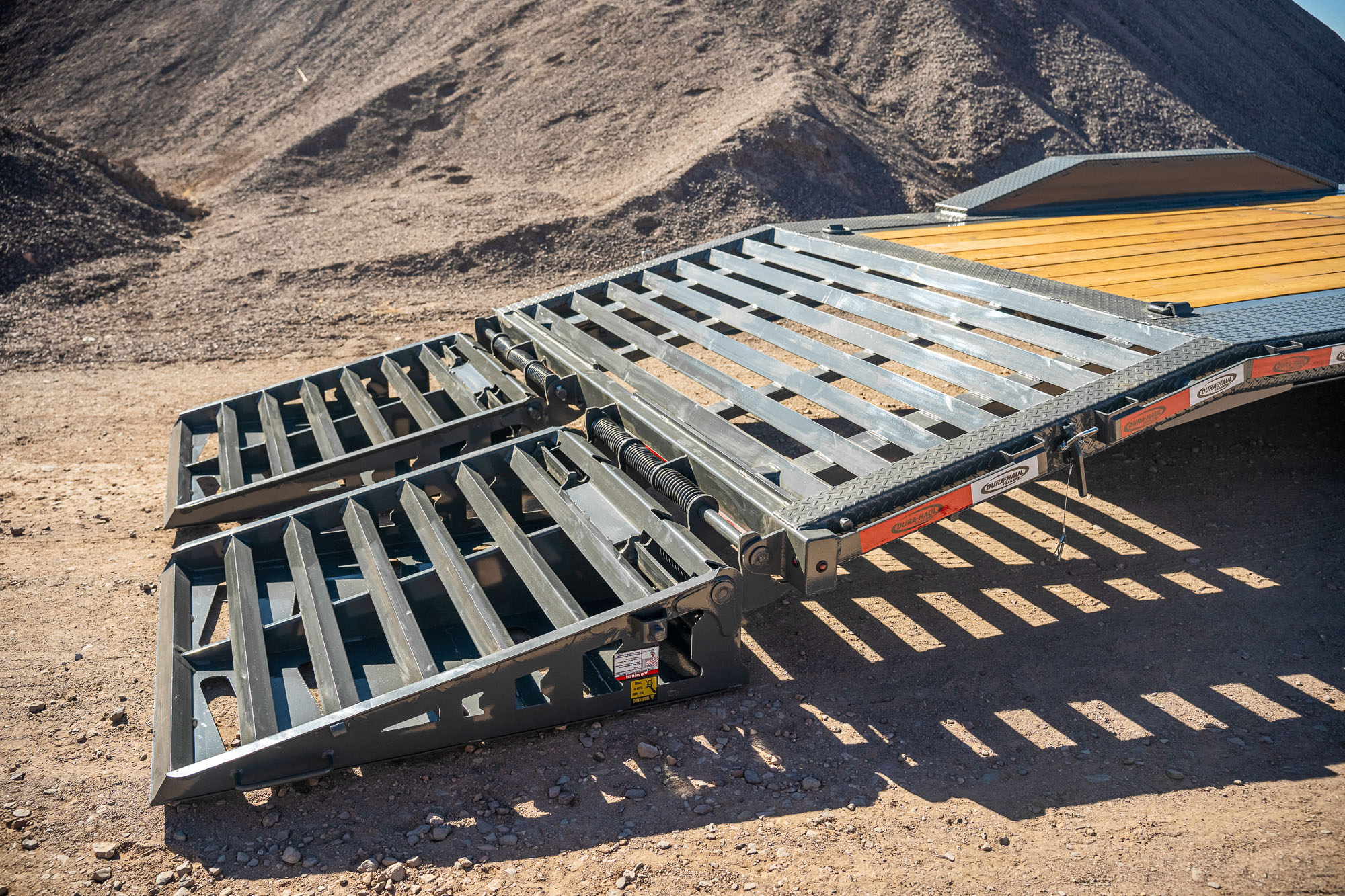

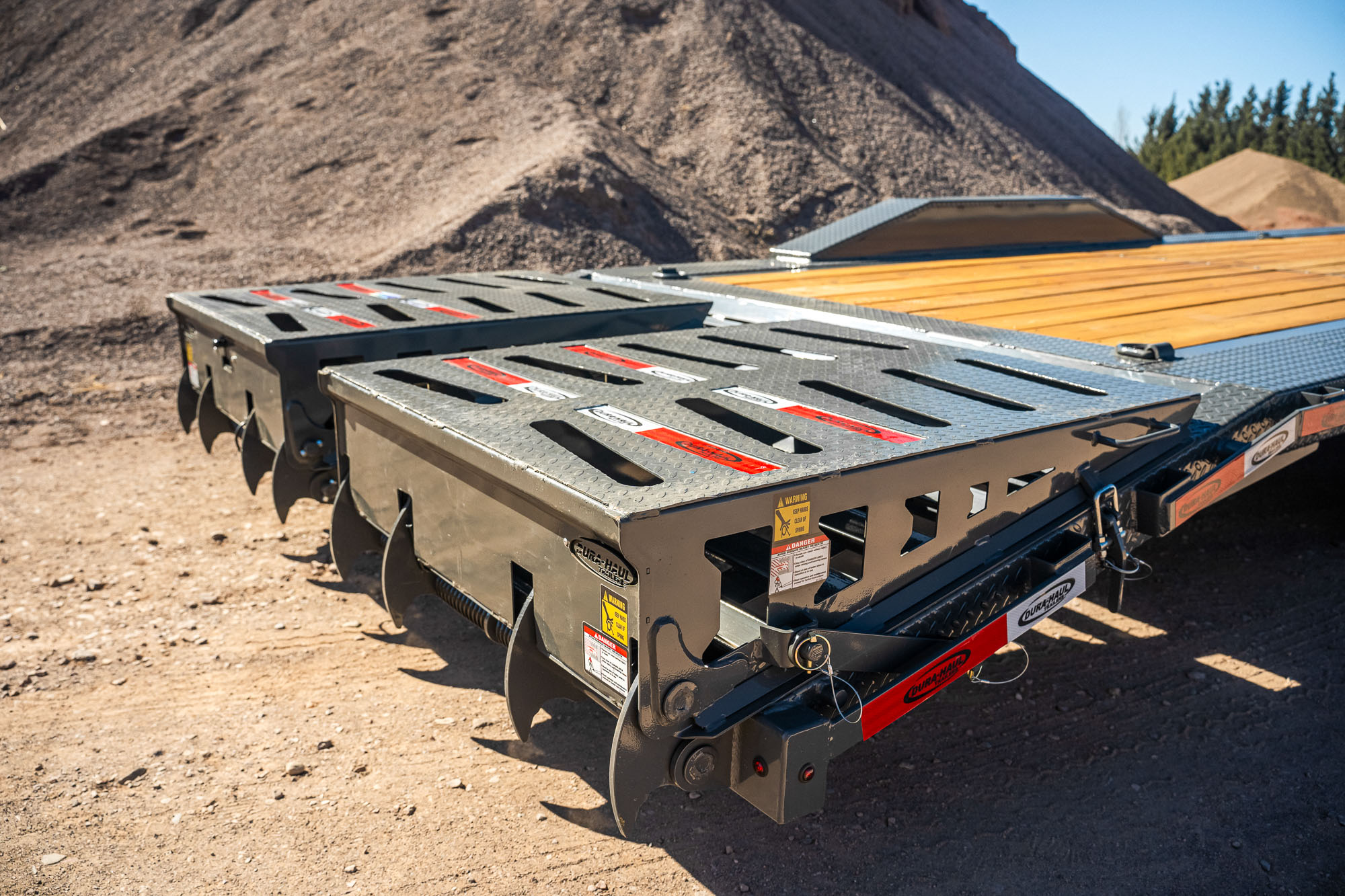

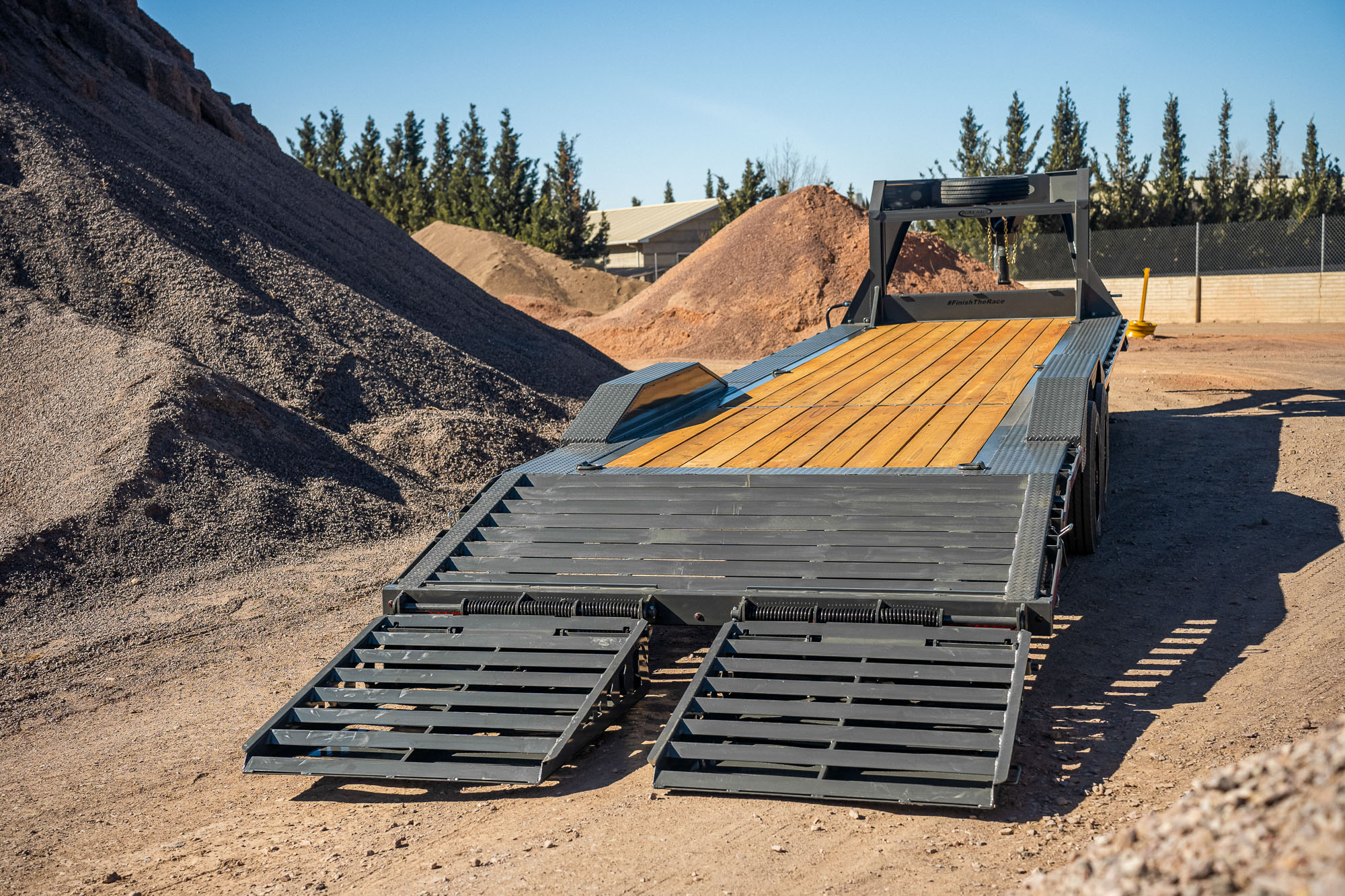

Dura Ramps
The Dura Ramp system provides a dependable loading solution designed for repeated equipment loading and unloading.
102" Wide Deck
The 102" wide deck provides additional platform space for accommodating a wide range of equipment and hauling applications.

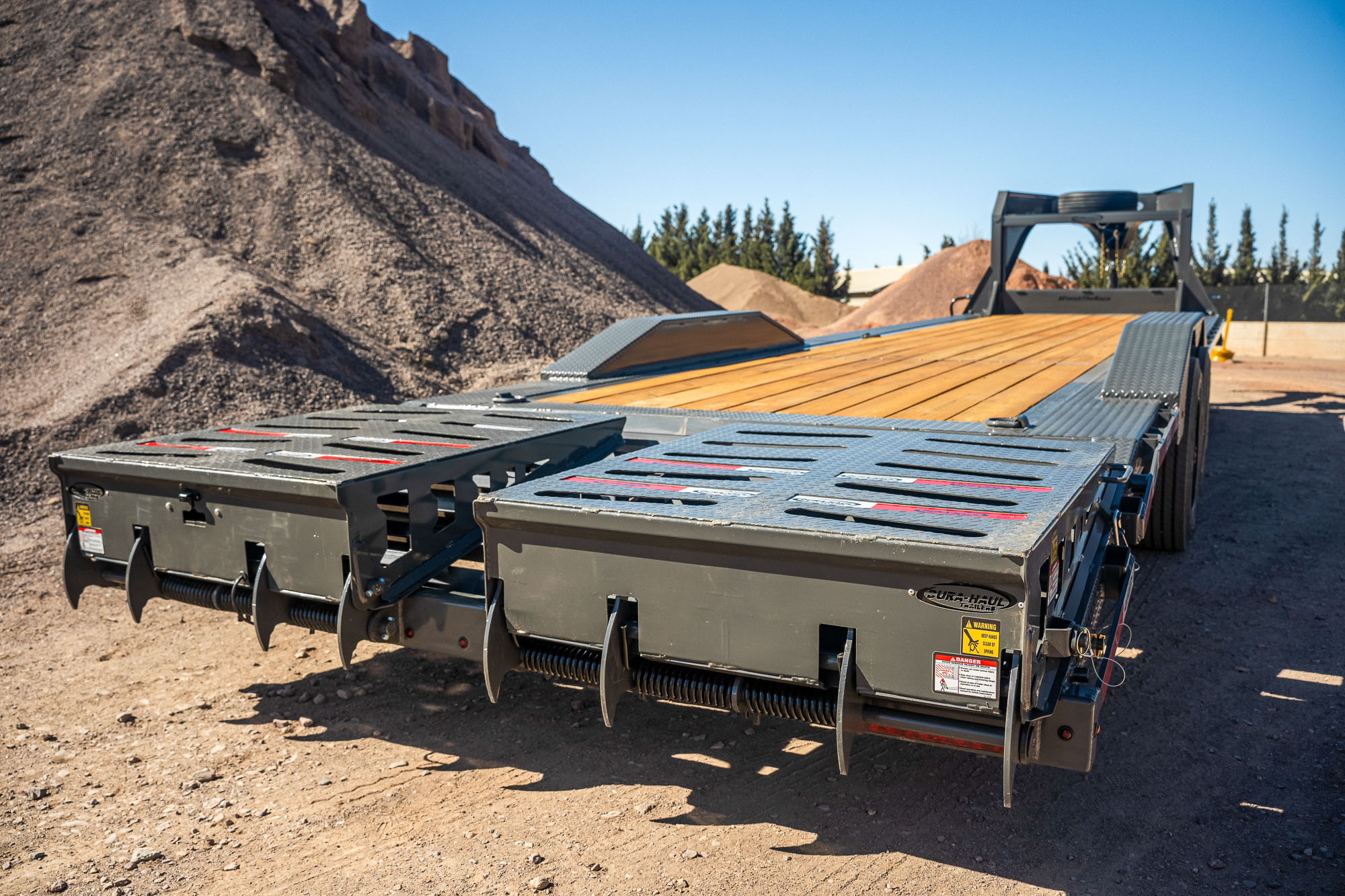

4' Dovetail
The 4' dovetail works with the Dura Ramps to create a practical loading configuration for moving equipment on and off the trailer.

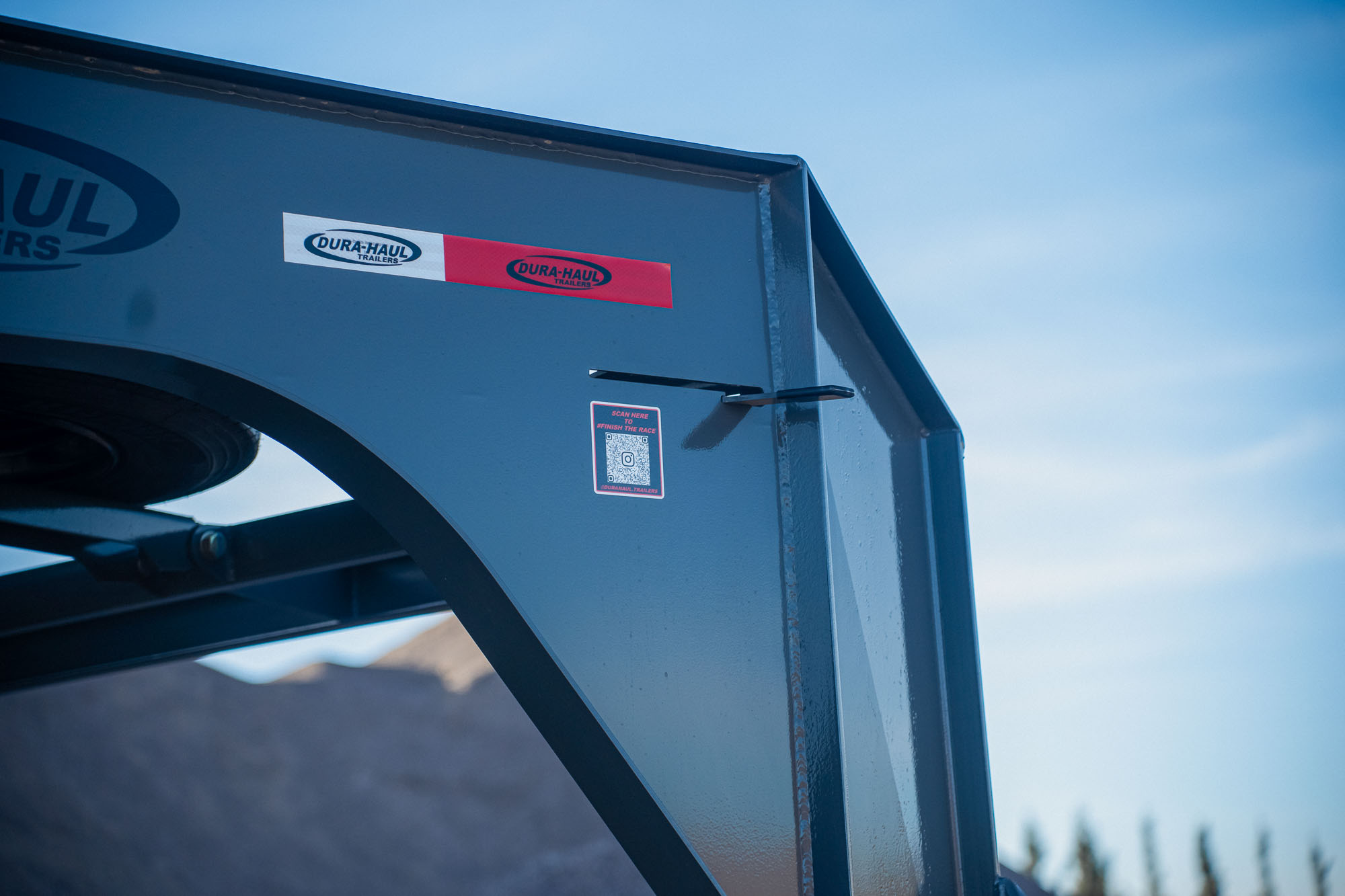

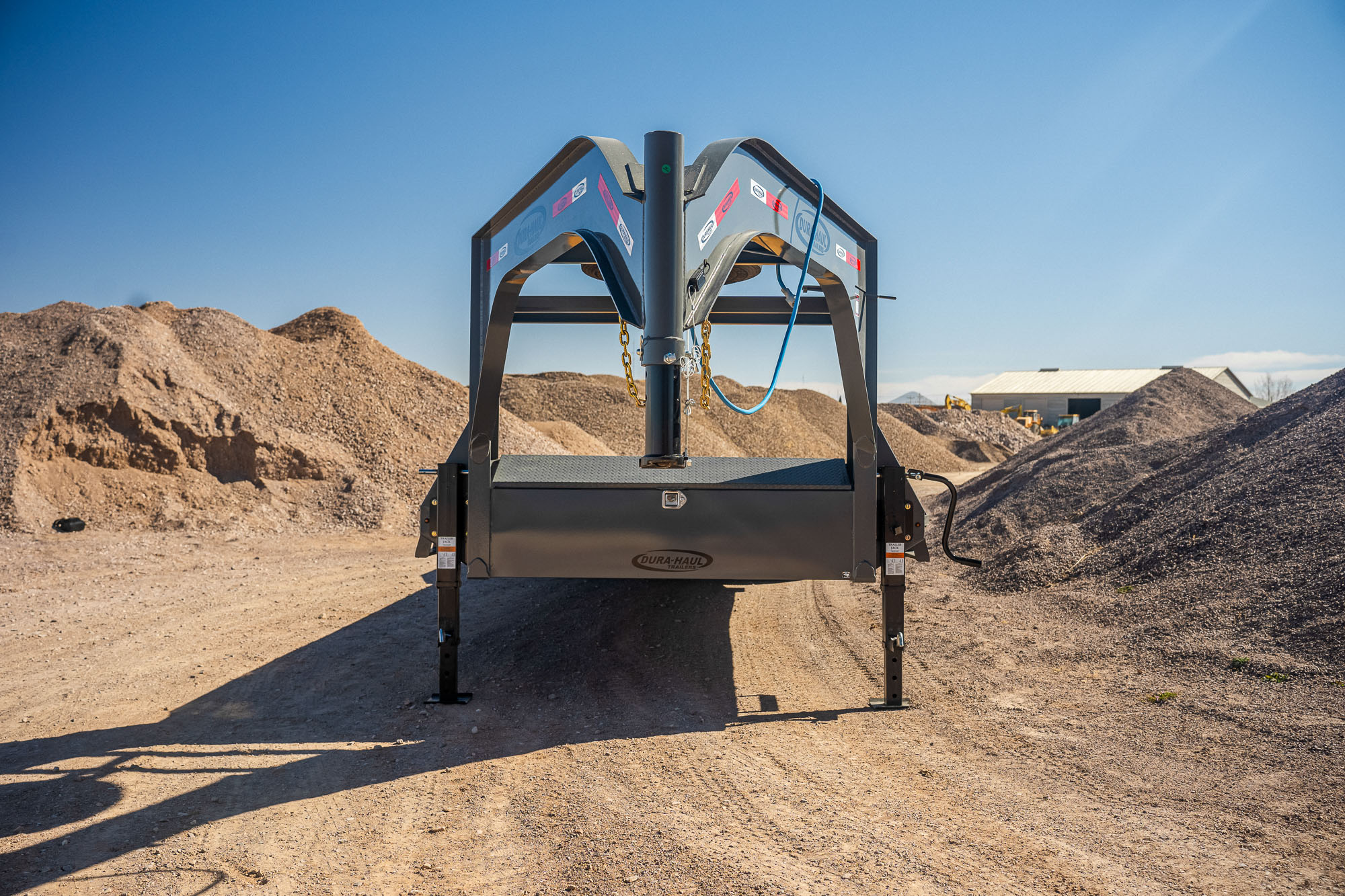

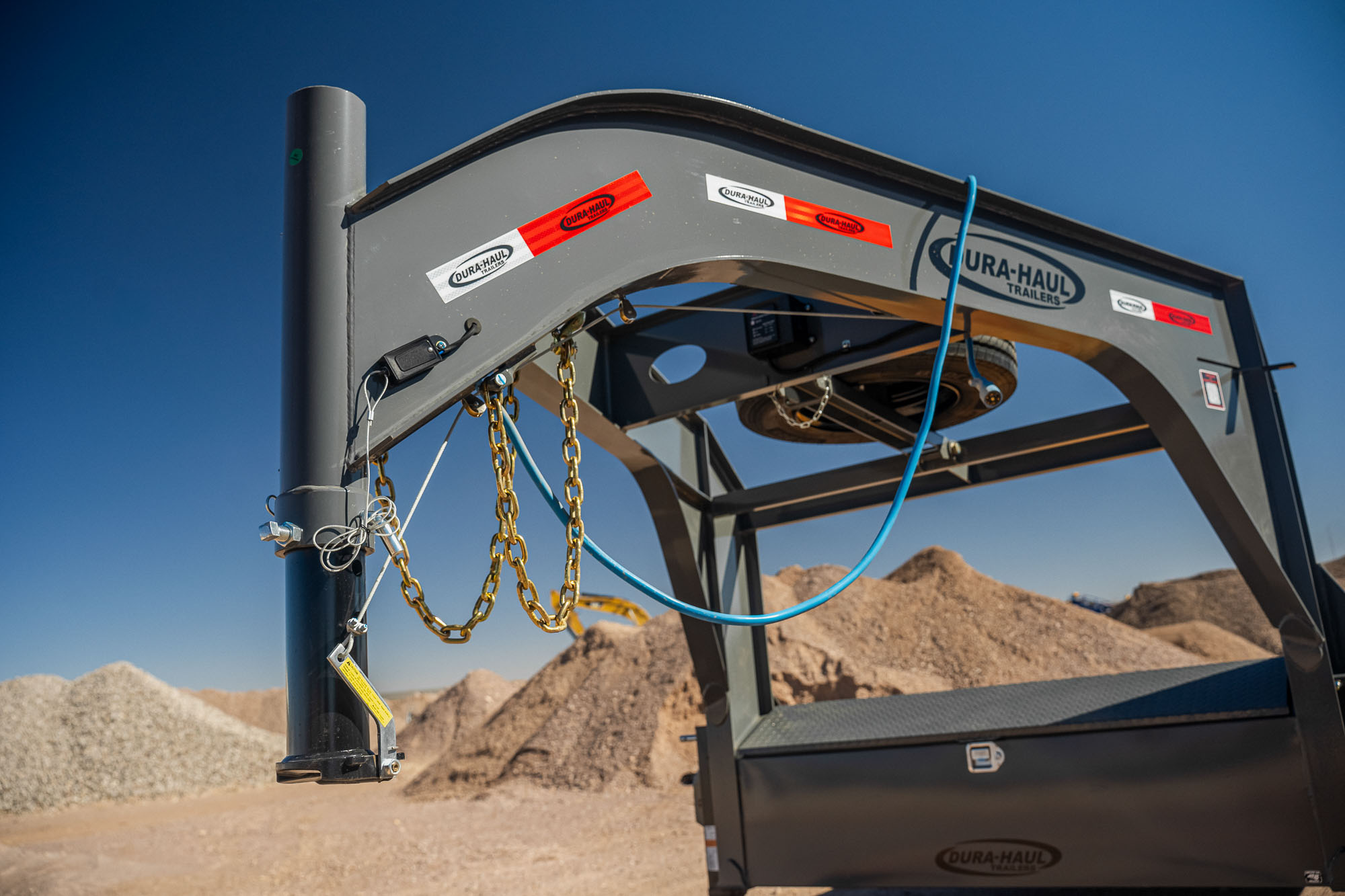

12" Engineered Gooseneck
The engineered 12" gooseneck is designed to provide improved stability, weight distribution, and overall control while hauling.
EZ Latch Coupler
The EZ Latch allows for quick release of the coupler from outside the truck bed, helping make the hookup process more convenient.

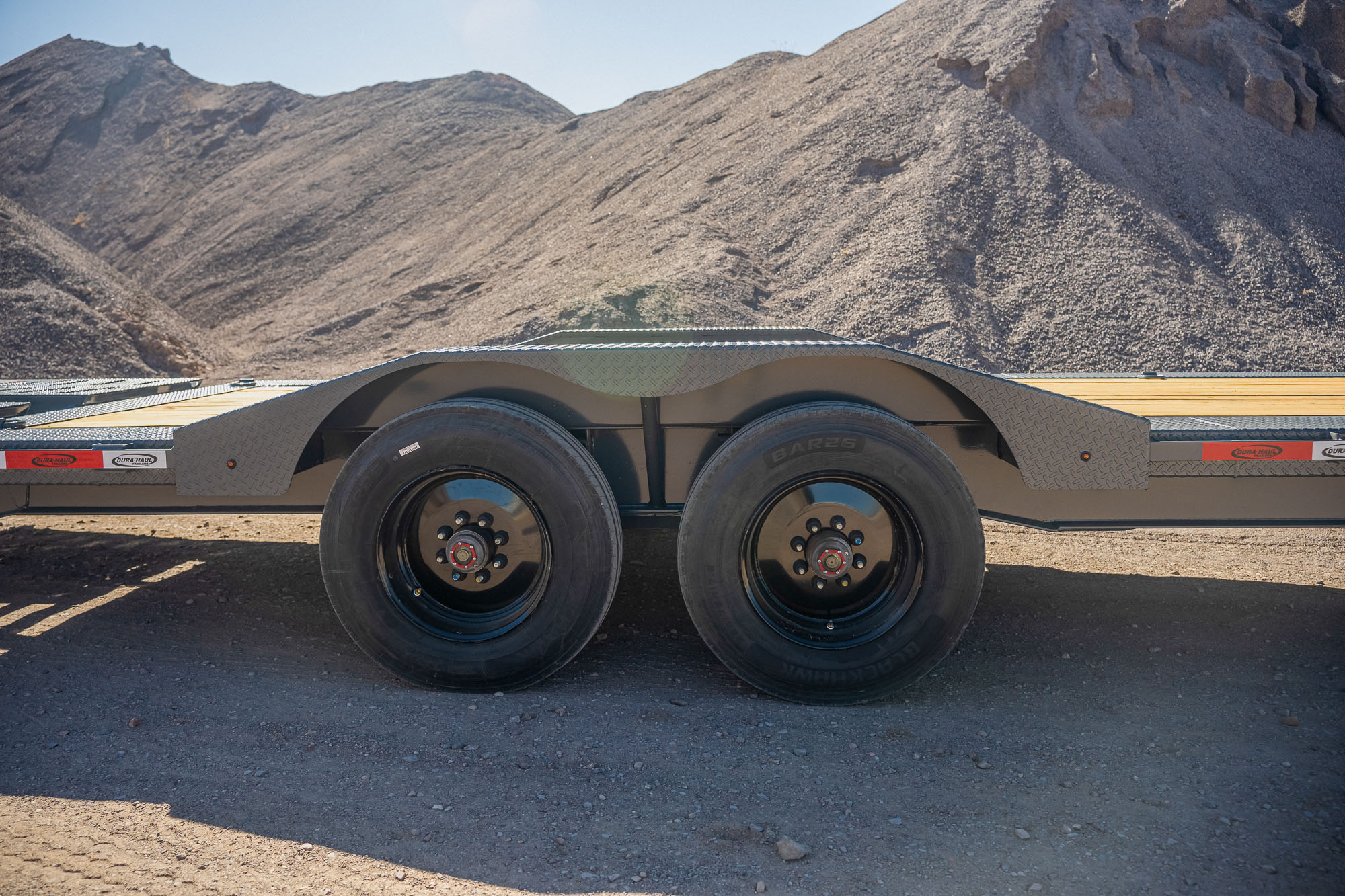

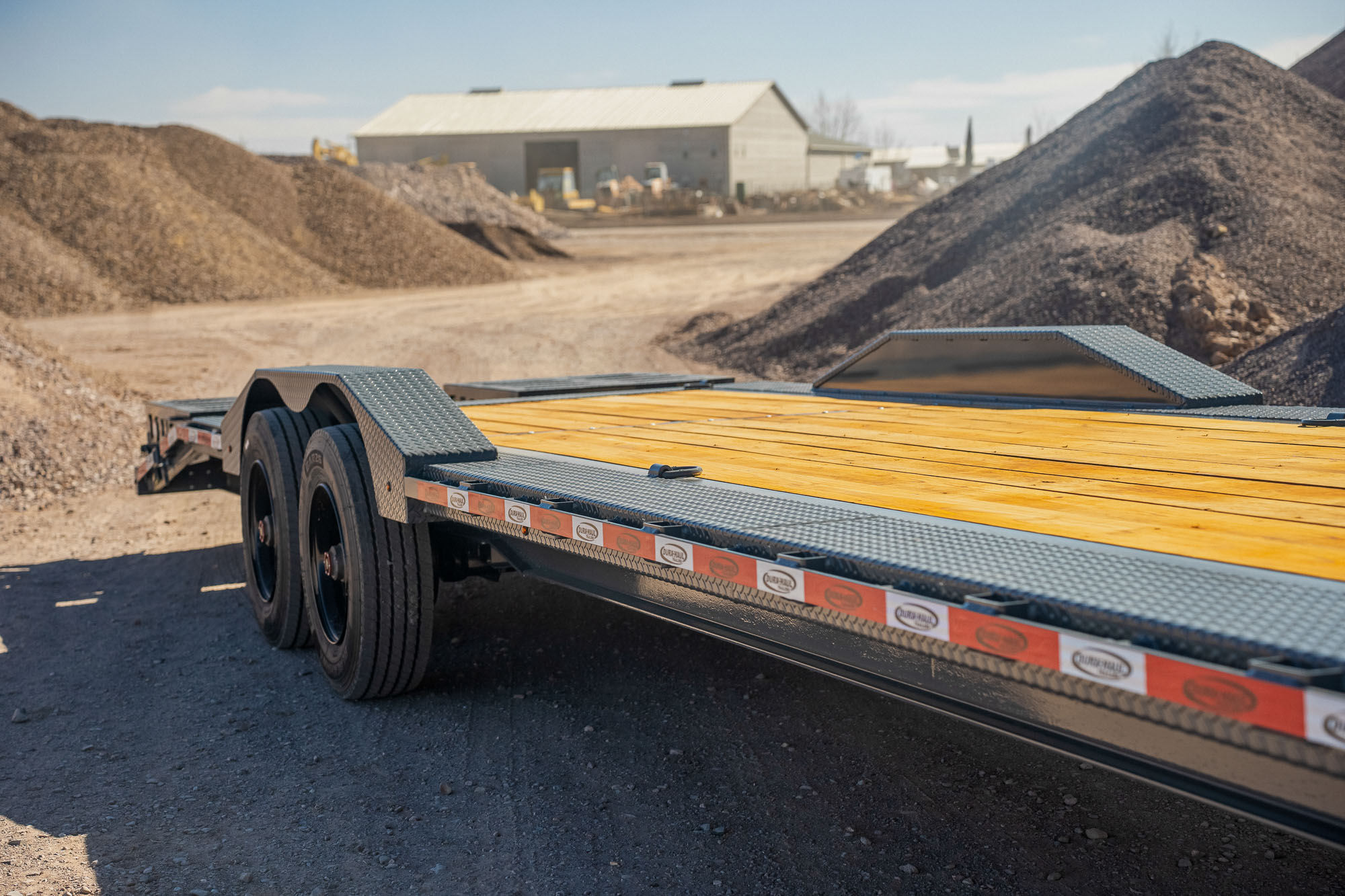

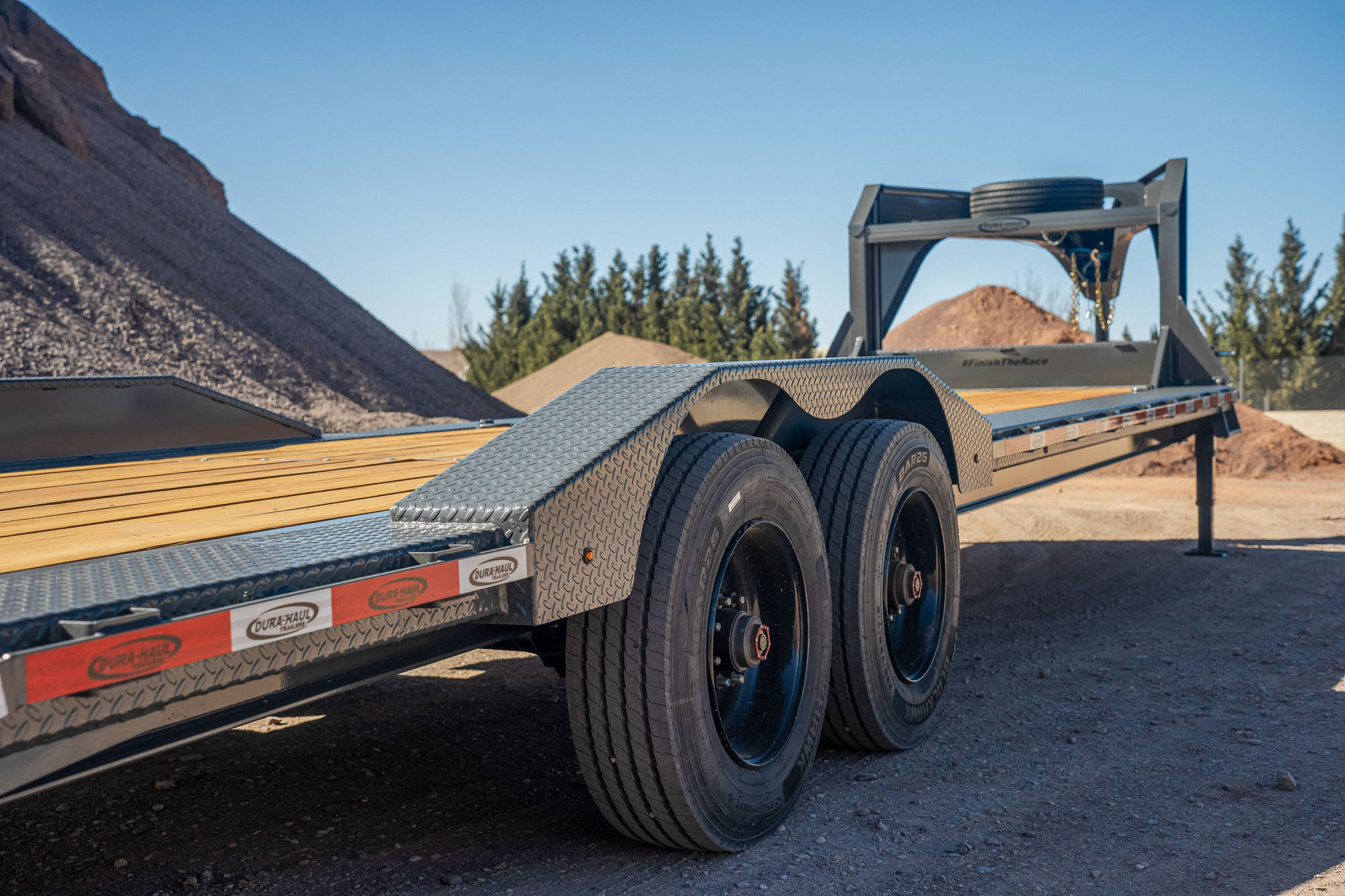

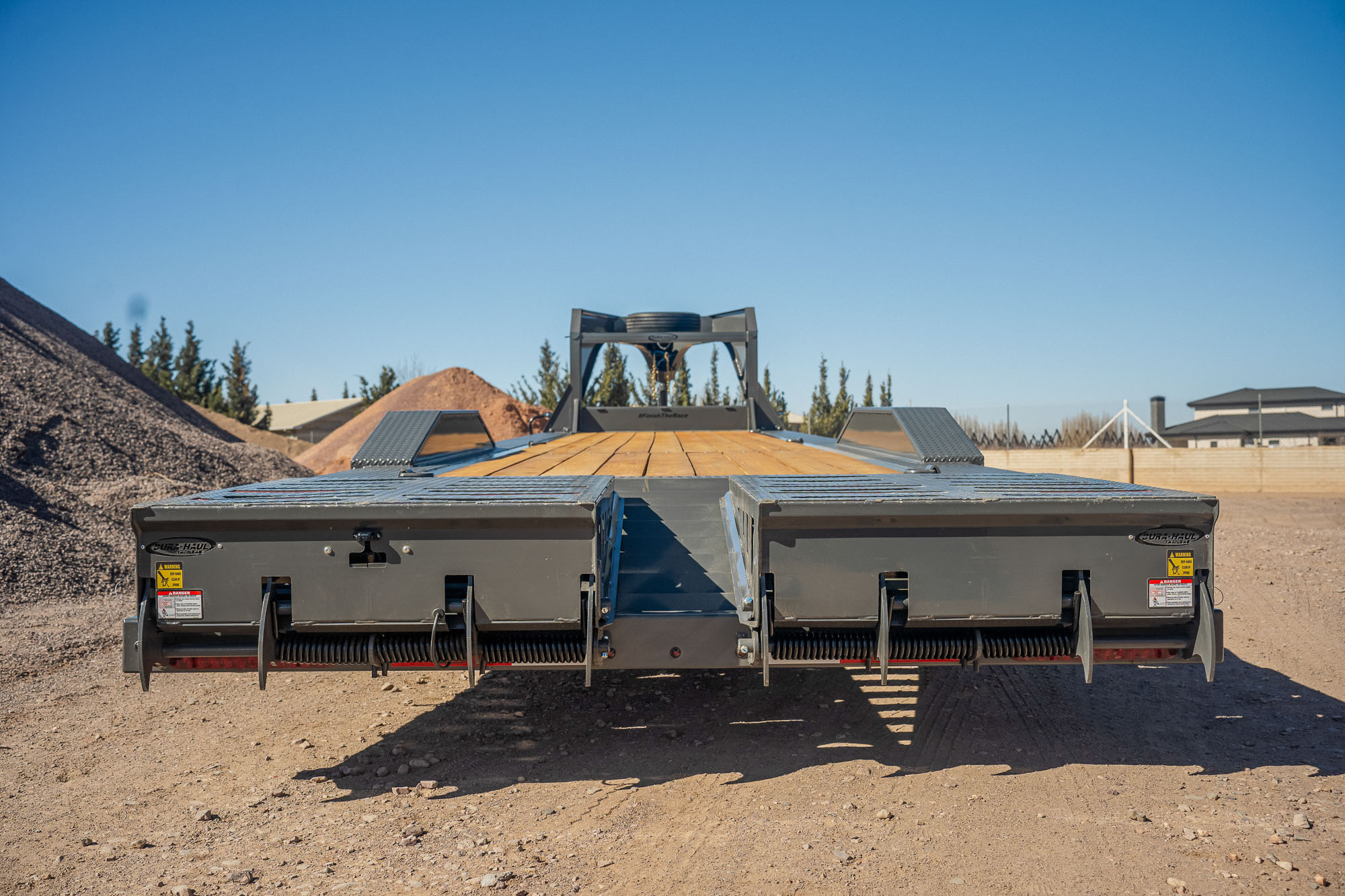

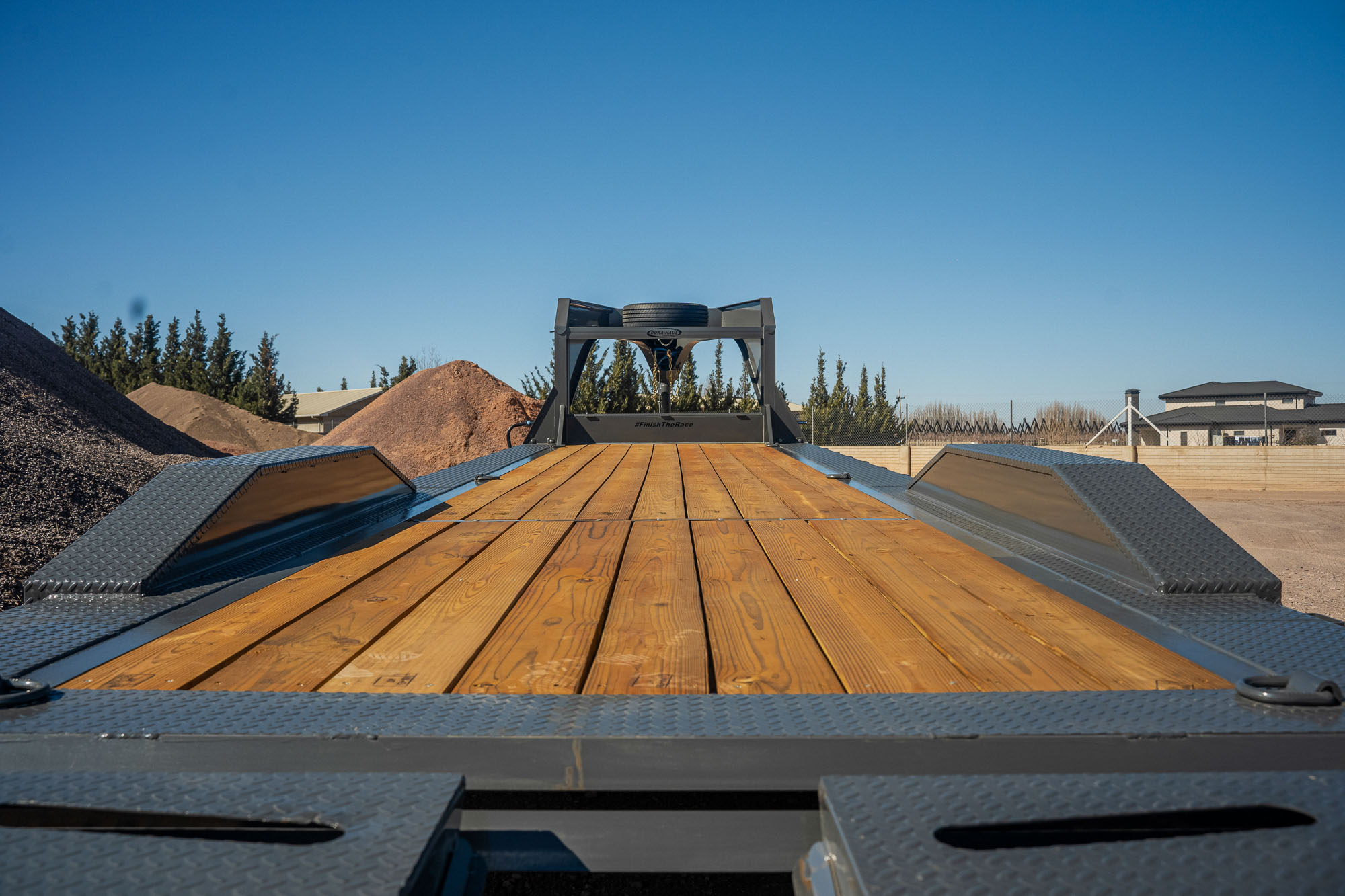

Drive Over Fenders
Drive over fenders provide additional loading versatility while allowing equipment to utilize the trailer's full available deck width.
Tandem Torsion Axles
Available with 8,000 or 10,000 lb tandem axle configurations, the EKH-DD uses torsion axles to support different GVWR requirements.

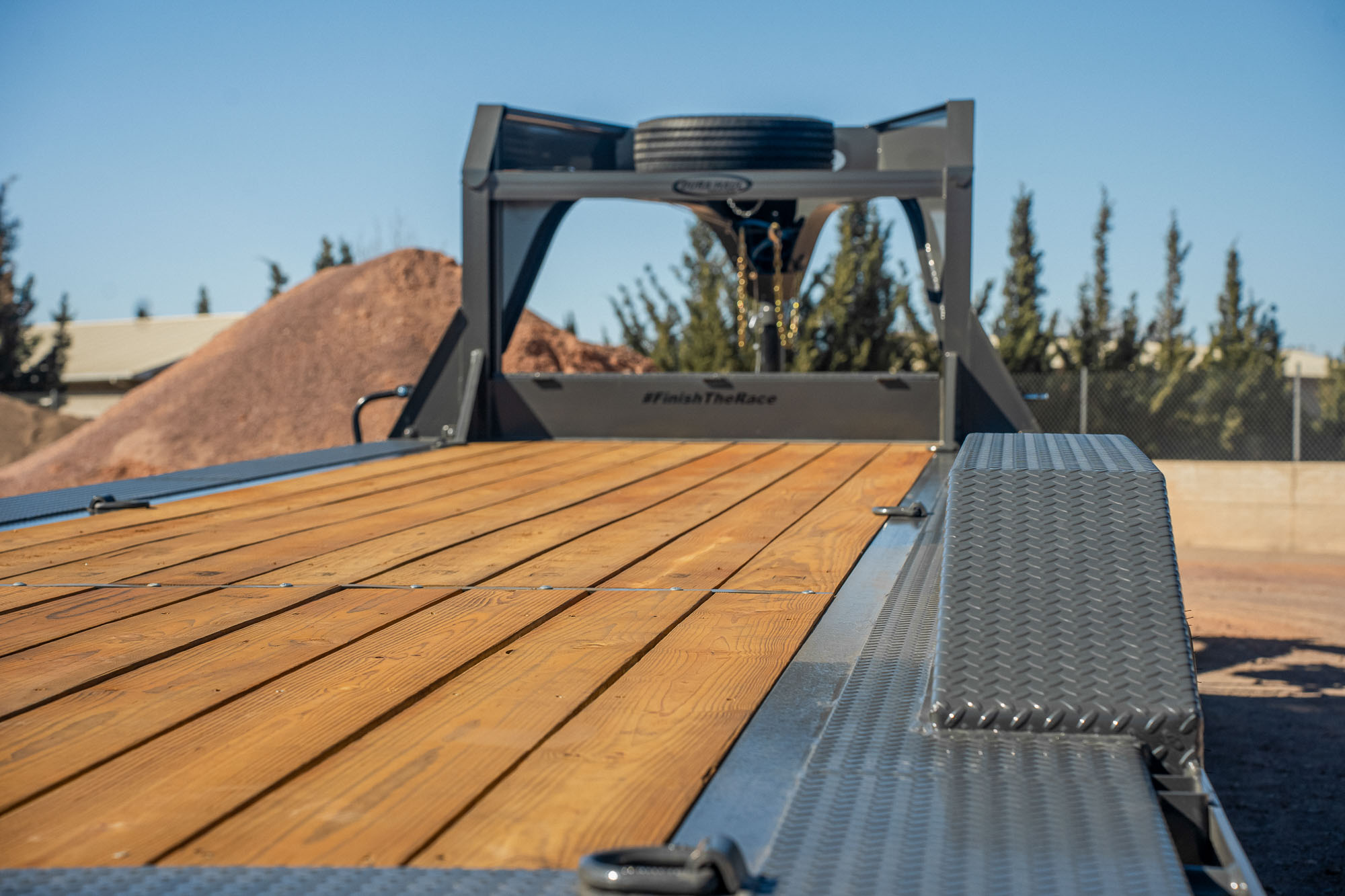

Double-Treated Wood Decking
Double-treated 1½" wood decking provides a durable surface for repeated equipment loading and hauling.

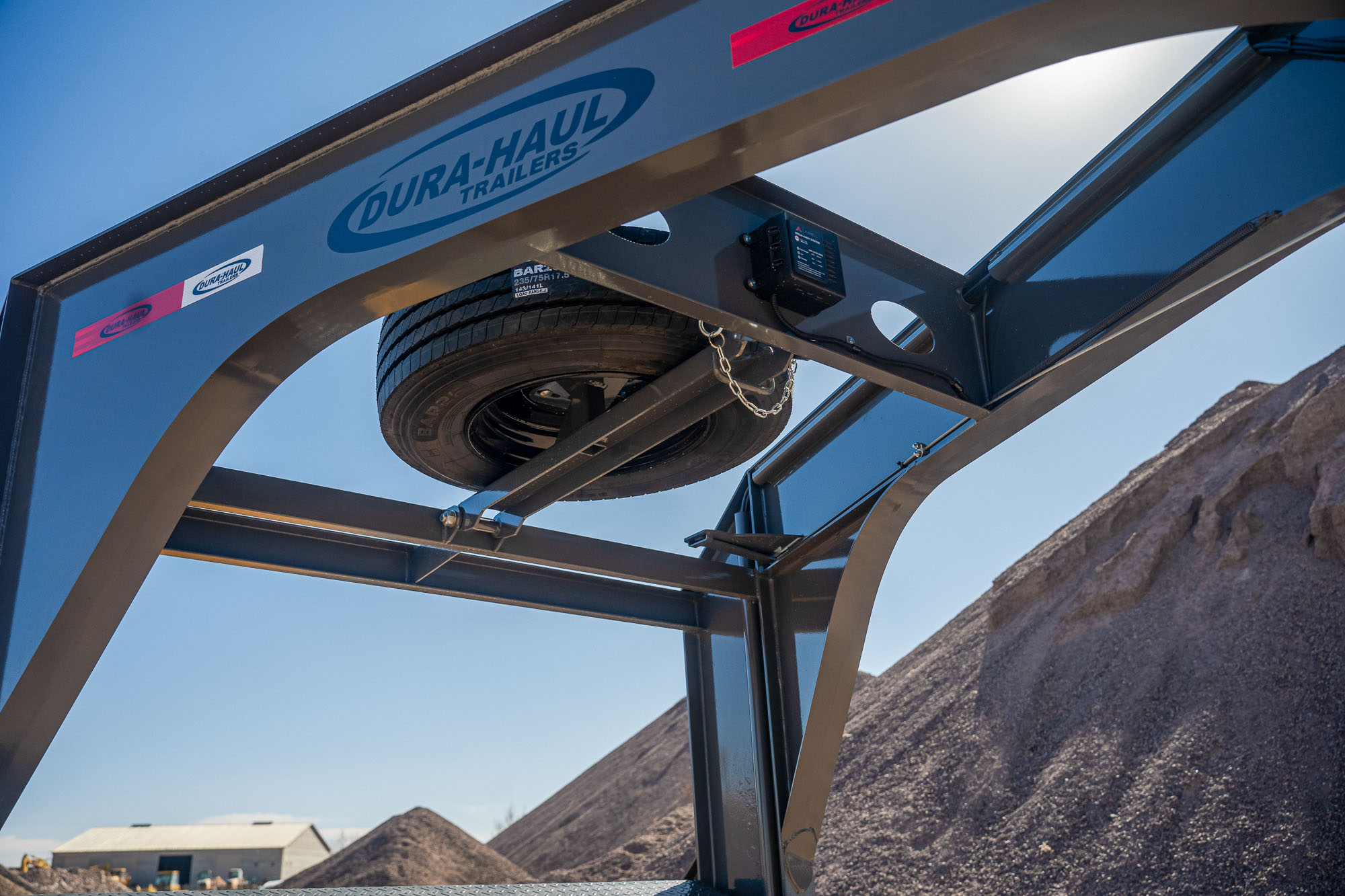

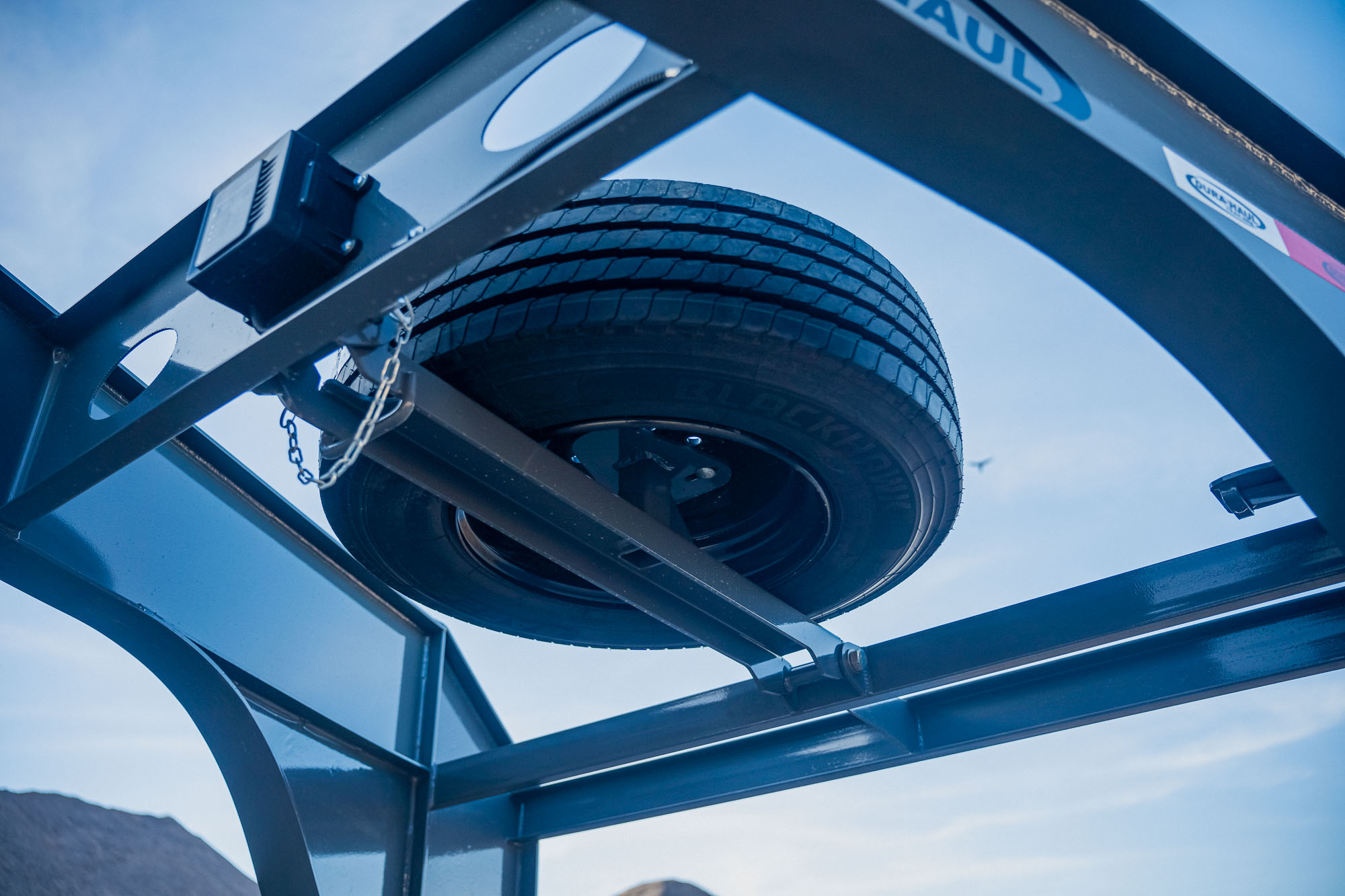

Drop-Down Spare Tire Mount
The drop-down spare tire mount provides convenient access while keeping the spare securely positioned on the trailer.
Technical Specifications
Explore the detailed specifications of the Dura-Haul EKH-DD, including available sizes, axle configurations, loading equipment, frame construction, safety features, and available options.
Size & Weight
| Size | Axles | GVWR | Weight |
|---|---|---|---|
| 24' | 8K–10K | 16,000–20,000 lbs | 3,650 lbs |
| 26' | 8K–10K | 16,000–20,000 lbs | 4,100 lbs |
| 28' | 8K–10K | 16,000–20,000 lbs | 4,550 lbs |
| 32' | 10K | 20,000 lbs | 7,300 lbs |
Frame & Deck
| Frame | 8" or 12" I-Beam Frame |
| Deck Width | 102" |
| Dovetail | 4' |
| Decking | 1½" Double-Treated Wood |
| Gooseneck | 12" Engineered Gooseneck |
| Side Step | Included |
| Fenders | 7 Gauge Diamond Plate Drive Over Fenders |
Loading
| Ramp Type | Dura Ramps |
| Winch Plate | Included |
Load Securement

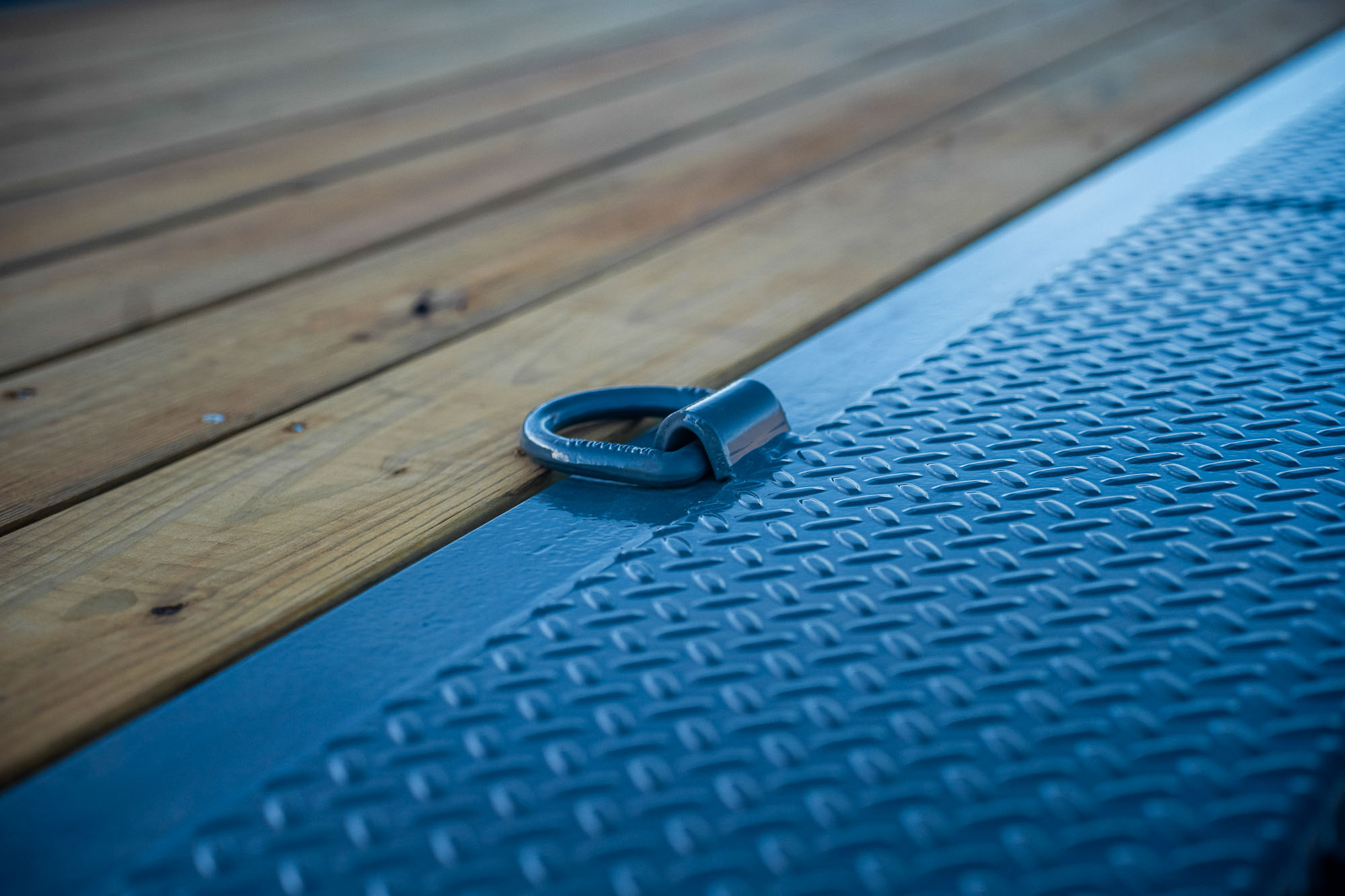

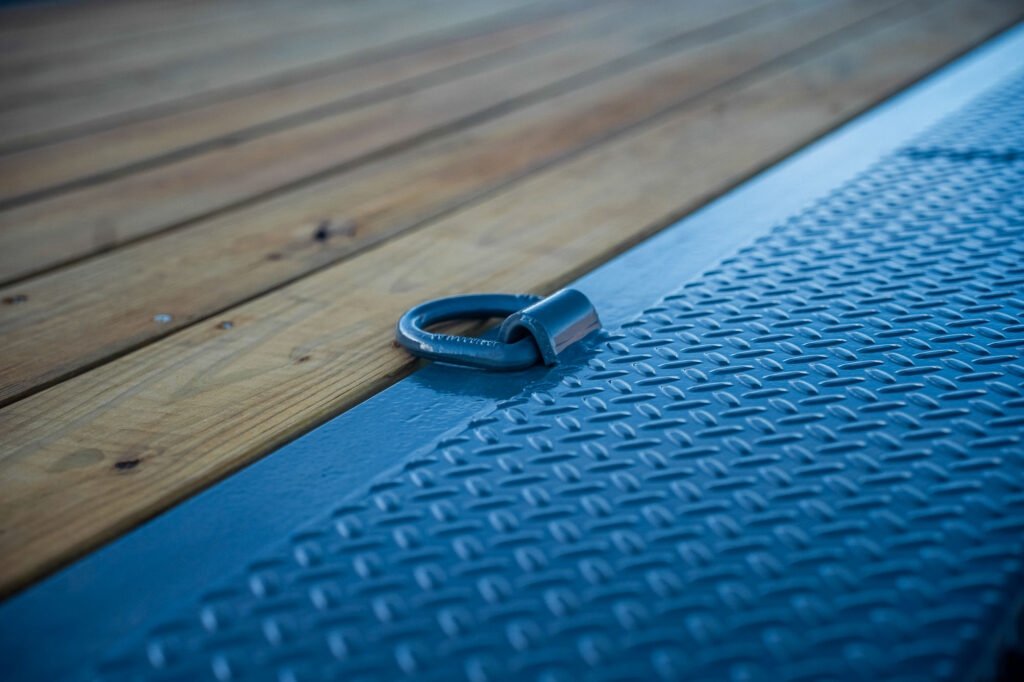

| D-Rings | (6) 1/2" Around Bed |
| Rubrail | Included |
| Stake Pockets | Along Sides |
Coupler & Jack
| EZ Latch | Quick Coupler Release Outside the Truck Bed |
| Coupler | 2-5/16" Adjustable Up & Down |
| Jack | 12,000 lb Spring-Loaded Adjustable Leg Crank Jack |
| Safety Chains | (2) |
Axles, Brakes & Suspension
| Axles | 8,000 to 10,000 lb Tandem Axles |
| Brakes | Electric Brakes |
| Suspension | Torsion Axles |
| Tires | ST235/80R16 or ST235/80R17.5 LRE |
| Tire Configuration | 14-Ply or 18-Ply |
| Wheels | 8-Hole |
| Hubs | Quick Lube Hubs & Dust Caps |
Equipment & Convenience
| Toolbox | Lockable |
| Side Step | Included |
| Drive Over Fenders | Included |
| Spare Tire Mount | Drop-Down |
Electrical & Safety
| Wiring | All-Weather Wiring & Harness |
| Safety Break-Away | System with Cable and Battery |
| LED Markers | (11) DOT-Approved — Fender, Side & Rear |
| Safety Tape | Reflective DOT Safety Tape |
Finish
| Finish | Superior Powder Coat Paint Finish |
Available Options
| Color | Optional |
| Deck on Neck | Optional |
| Hydraulic Jack | Optional |
| Axles | Optional Configuration |
| Spare Tire | Optional |
| Winch | Optional |
Available Options
CHOOSE YOUR TRAILER
Four Lengths. Multiple Capacity Configurations.
Choose the EKH-DD configuration that fits the equipment you haul and the capacity your operation requires.
Choose Your Trailer
24' EKH-DD
Compact Length. Heavy-Duty Capability.
Approx. Weight: 3,650 lbs
8K–10K Axle Options
A practical option for operators who need a capable gooseneck equipment hauler with multiple axle and GVWR configurations.
26' EKH-DD
More Deck. More Possibilities.
Approx. Weight: 4,100 lbs
8K–10K Axle Options
A practical option for operators who need a capable gooseneck equipment hauler with multiple axle and GVWR configurations.
28' EKH-DD
More Room for Demanding Loads.
Approx. Weight: 4,550 lbs
8K–10K Axle Options
The 28' configuration provides additional deck space for operators hauling larger equipment or equipment combinations.
32' EKH-DD
Maximum Length. Maximum Capacity.
Approx. Weight: 7,300 lbs
10K Axle Options
The largest EKH-DD configuration provides a long equipment-hauling platform with a 20,000 lb GVWR and 10K tandem axles.
Deck on Neck
Add usable deck space over the gooseneck for additional hauling versatility.
Hydraulic Jack
Upgrade the trailer with a hydraulic jack for added convenience during coupling and uncoupling.
Axles
Select the axle configuration that best fits your capacity requirements.
Spare Tire
Add a spare tire for additional preparedness on the road and at the jobsite.
Winch
Add a winch to support equipment loading and recovery applications.
Custom Color Options
Match your company branding or fleet appearance with available powder coat color options.
Ready for the Heavy Work Ahead
When your operation depends on moving equipment, you need a trailer built with the capacity, stability, and loading features to keep up.
The Dura-Haul EKH-DD combines a gooseneck configuration, 102″ wide deck, 4′ dovetail, Dura Ramps, and up to 20,000 lbs GVWR into one dependable equipment-hauling platform.
Load Heavy. Haul with Confidence.
FAQ
The EKH-DD is available in 24′, 26′, 28′, and 32′ lengths.
DD refers to the trailer’s Dovetail and Dura Ramps configuration.
The EKH-DD is available in configurations ranging from 16,000 to 20,000 lbs GVWR, depending on the selected size and axle configuration.
The EKH-DD is equipped with Dura Ramps.
The trailer features a 102″ wide deck.
Depending on the selected trailer size, the EKH-DD is available with 8,000 or 10,000 lb tandem axle configurations.
Yes. The trailer features a 12″ engineered gooseneck designed to provide stability, weight distribution, and control while hauling.
The EZ Latch allows for quick release of the coupler from outside the truck bed, helping make coupling and uncoupling more convenient.
Yes. The EKH-DD includes 7 gauge diamond plate drive over fenders, allowing equipment to use the full width of the deck.
Available options include color, deck on neck, hydraulic jack, axle configurations, spare tire, and a winch.
features
HEAVY-DUTY CONSTRUCTION FOR DEPENDABLE PERFORMANCE
Crafted with high-strength materials, these fenders are made to support serious weight without compromising stability. Paired with reinforced ramps, they create a complete solution for transporting tractors, skid steers, and other industrial machines. Built to last and engineered to perform under pressure.
VERSATILITY THAT KEEPS YOU MOVING
Whether you’re in construction, agriculture, or any industry that moves heavy gear, the EKH’s Drive Over Fenders help you load faster and safer. Add this accessory to your trailer and experience a smoother, more efficient way to haul—less stress, more results.
