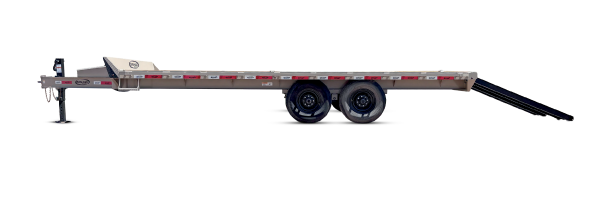

DRO-SP
Straight Deck. Pull-Out Ramps. Built to Work.
A heavy-duty deckover trailer designed around a straightforward loading system and a wide, unobstructed platform. The DRO-SP combines an 8″ Ultra-Strong I-Beam frame with Pull-Out Ramps and 14,000–16,000 lb GVWR configurations.
20' or 22'
Deck
14K–16K
GVWR
8" Ultra-Strong
I-Beam Frame
7K / 8K Tandem Axles
DRO-SP
DECKOVER
The DRO Deckover Trailer by Dura Haul combines a robust design with increased load capacity, perfect for transporting heavy machinery and equipment. Featuring a reinforced wood deck and multiple tie-down points, it ensures secure, stable hauling. Choose from slide-out or stand-up ramps for loading versatility, and enjoy the convenience of an adjustable coupler and durable powder-coated finish.
Quick Specifications
A Straightforward Trailer for Serious Work
The DRO-SP is built for contractors, equipment operators, and businesses that need a dependable deckover platform for moving equipment, vehicles, and other demanding loads.
Its Straight Deck design provides a clean, full-width working surface, while Pull-Out Ramps give you a practical loading solution when it’s time to put equipment on the trailer.
Full-Width Platform
More usable deck space for equipment and cargo.
Unobstructed Load Placement
Position your load without working around wheel wells.
Built for Versatility
A practical platform for equipment, vehicles, and materials.
Your Equipment Has a Job.
So Does Your Trailer.
The DRO-SP is designed around the everyday needs of contractors and equipment operators who depend on their trailer to move machines from one job to the next.
Whether you’re hauling construction equipment, landscaping machinery, vehicles, or other cargo, the DRO-SP gives you a wide and practical platform to work with.

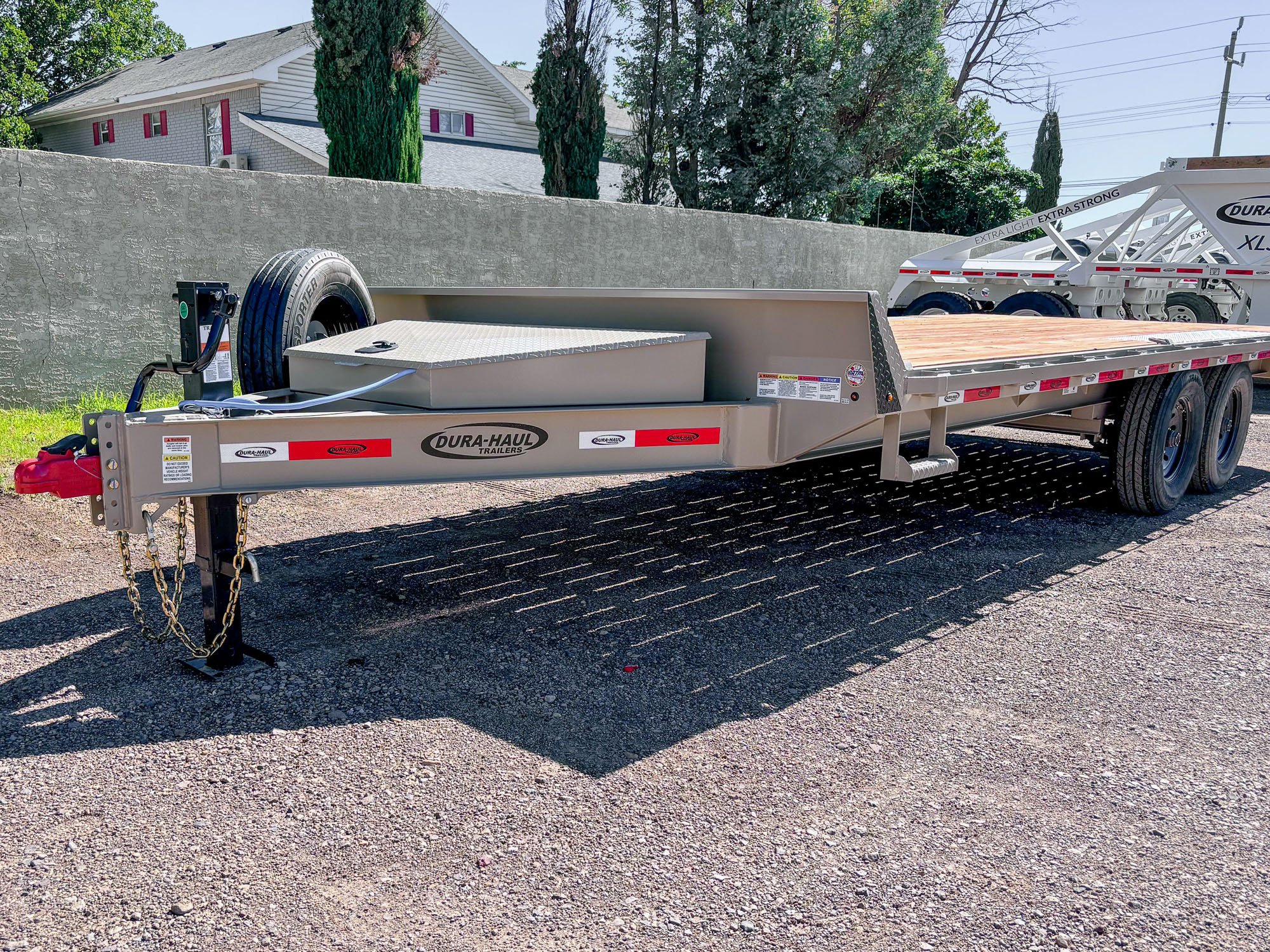

8" I-Beam Frame
Provides the structural foundation for the trailer.

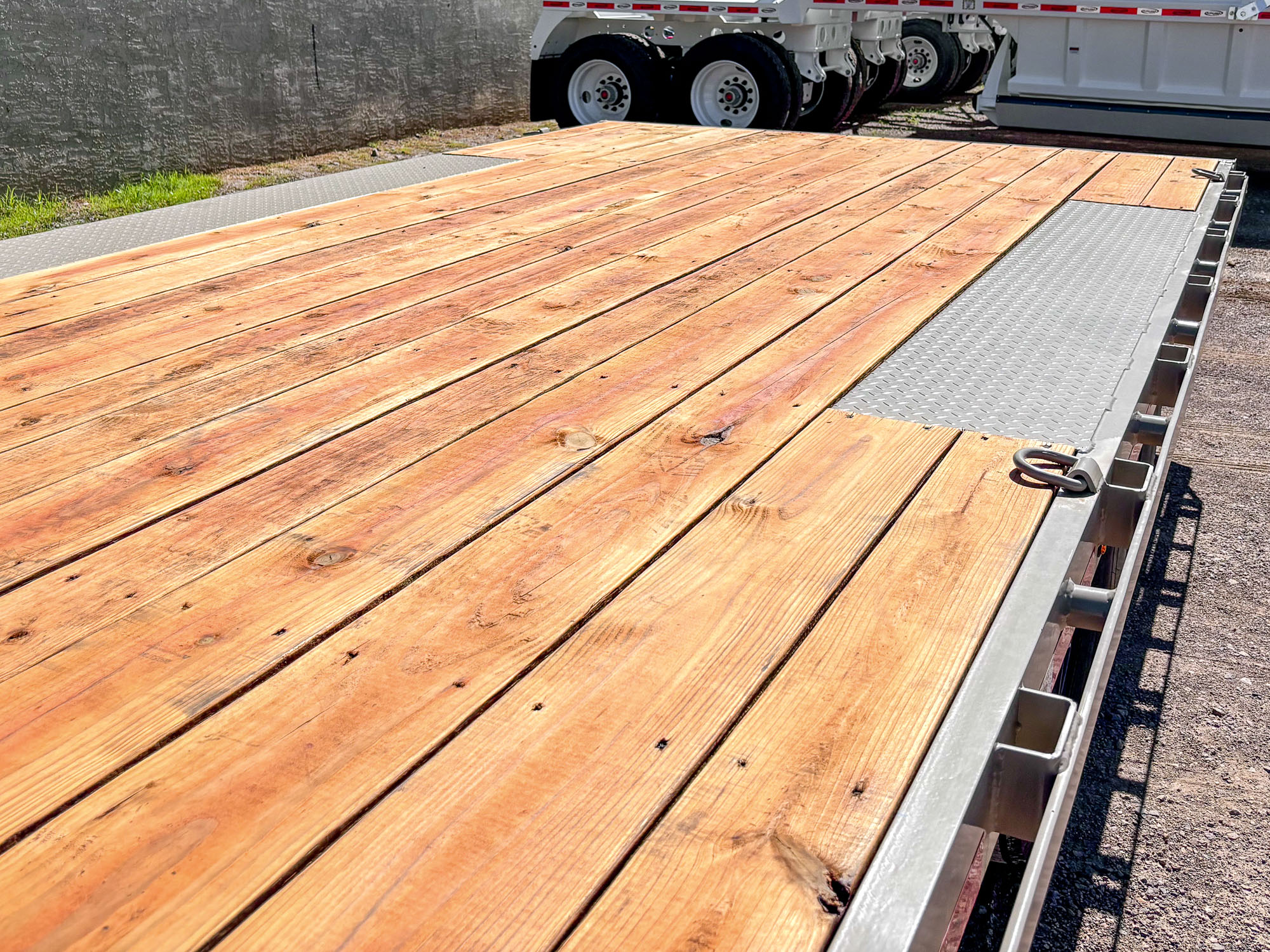

Double Treated Wood Decking
A reinforced wood deck designed for demanding hauling applications.
3" Channel Cross-Members
Cross-members are positioned 16" on center for additional deck support.

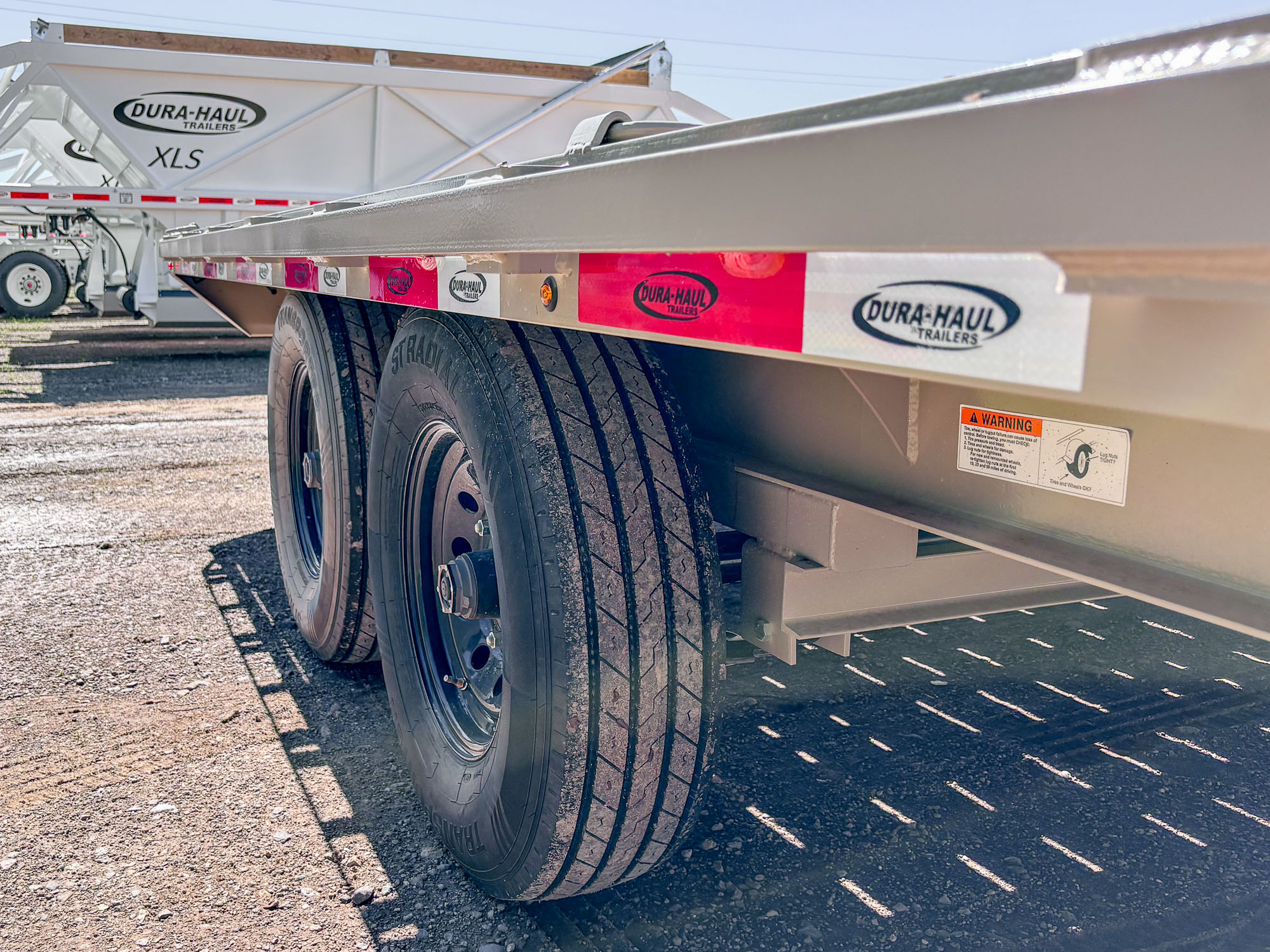

Multi-Leaf Spring Suspension
Multi-leaf spring suspension with an equalizer helps distribute the load across the running gear.

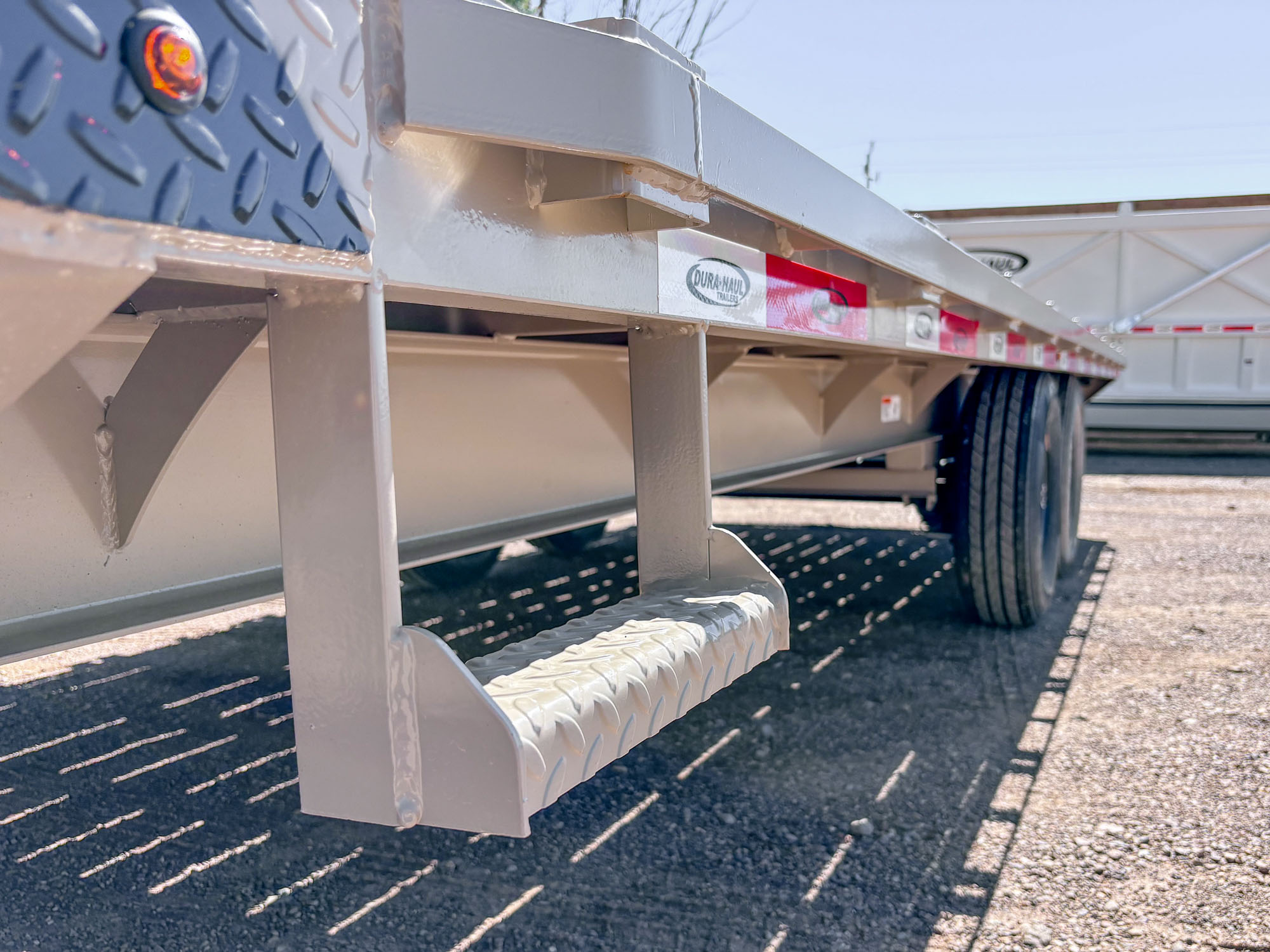

Built-In Side Step
Convenient access to the deck.

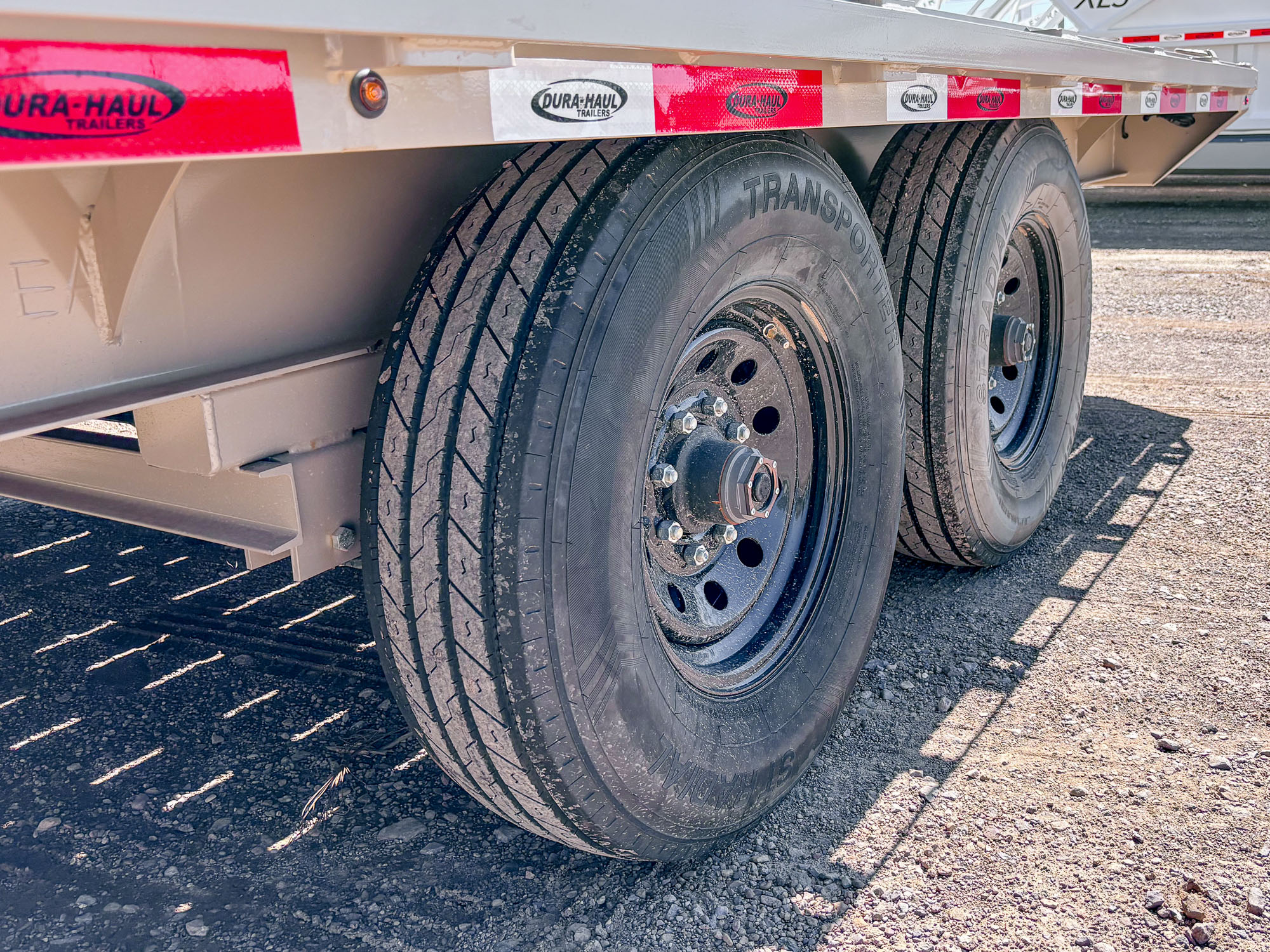

7K or 8K Tandem Axles
Provide a combined 14,000 lb - 16,000 lb GVWR platform.

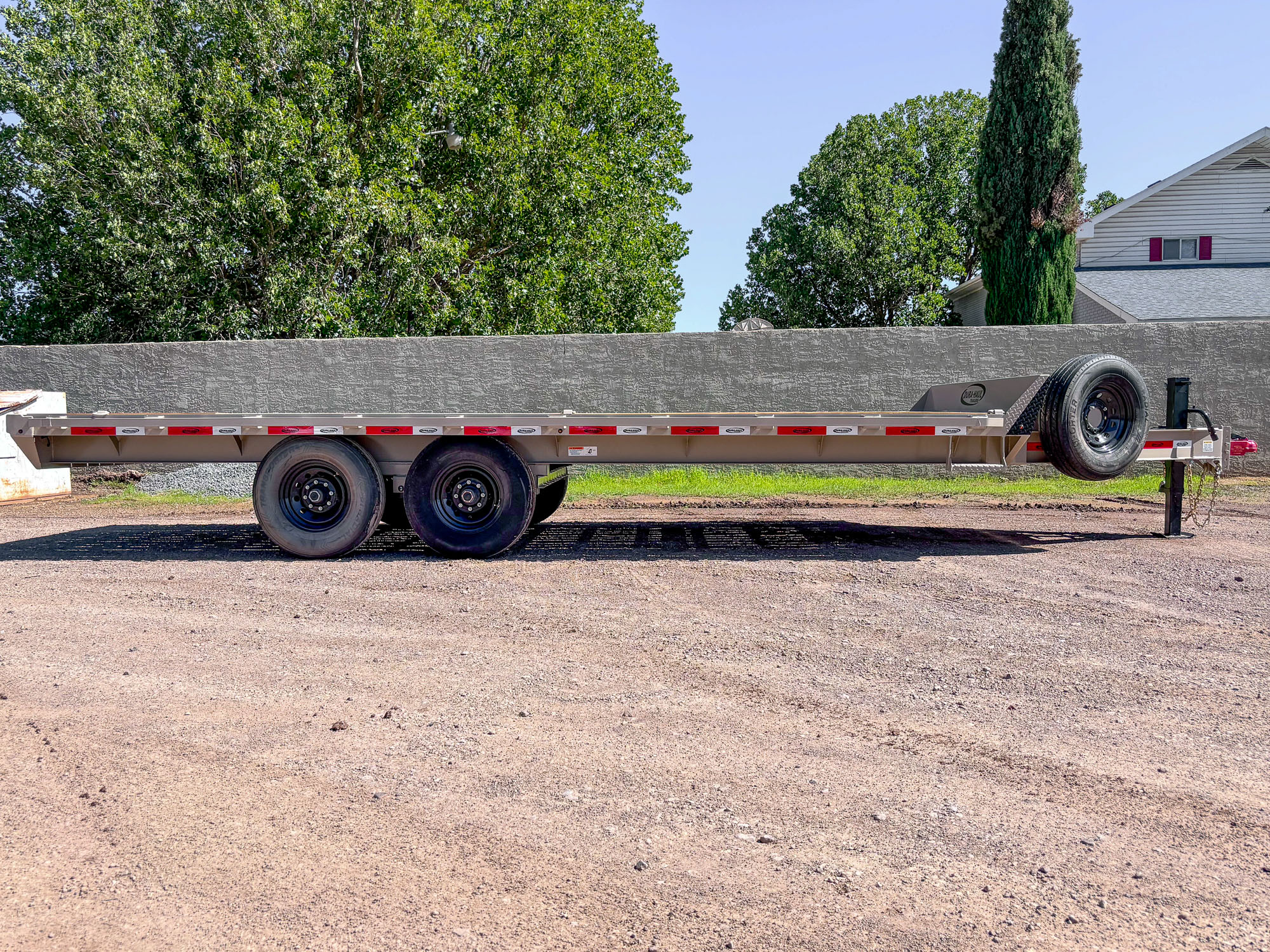

Spare Tire Mount
Keeps your spare tire with the trailer.

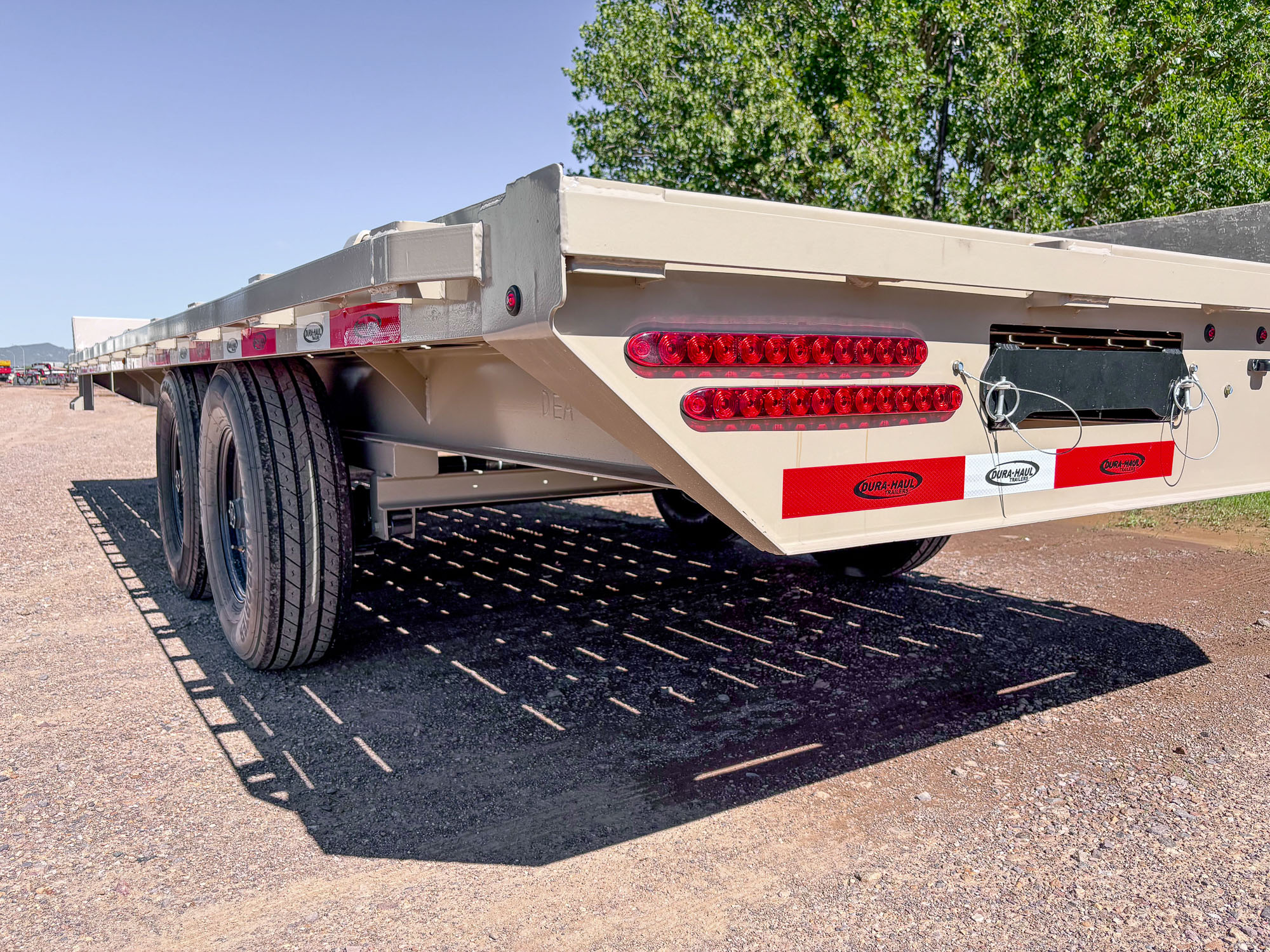

Rubrail & Stake Pockets
Integrated along the sides for additional securement options.

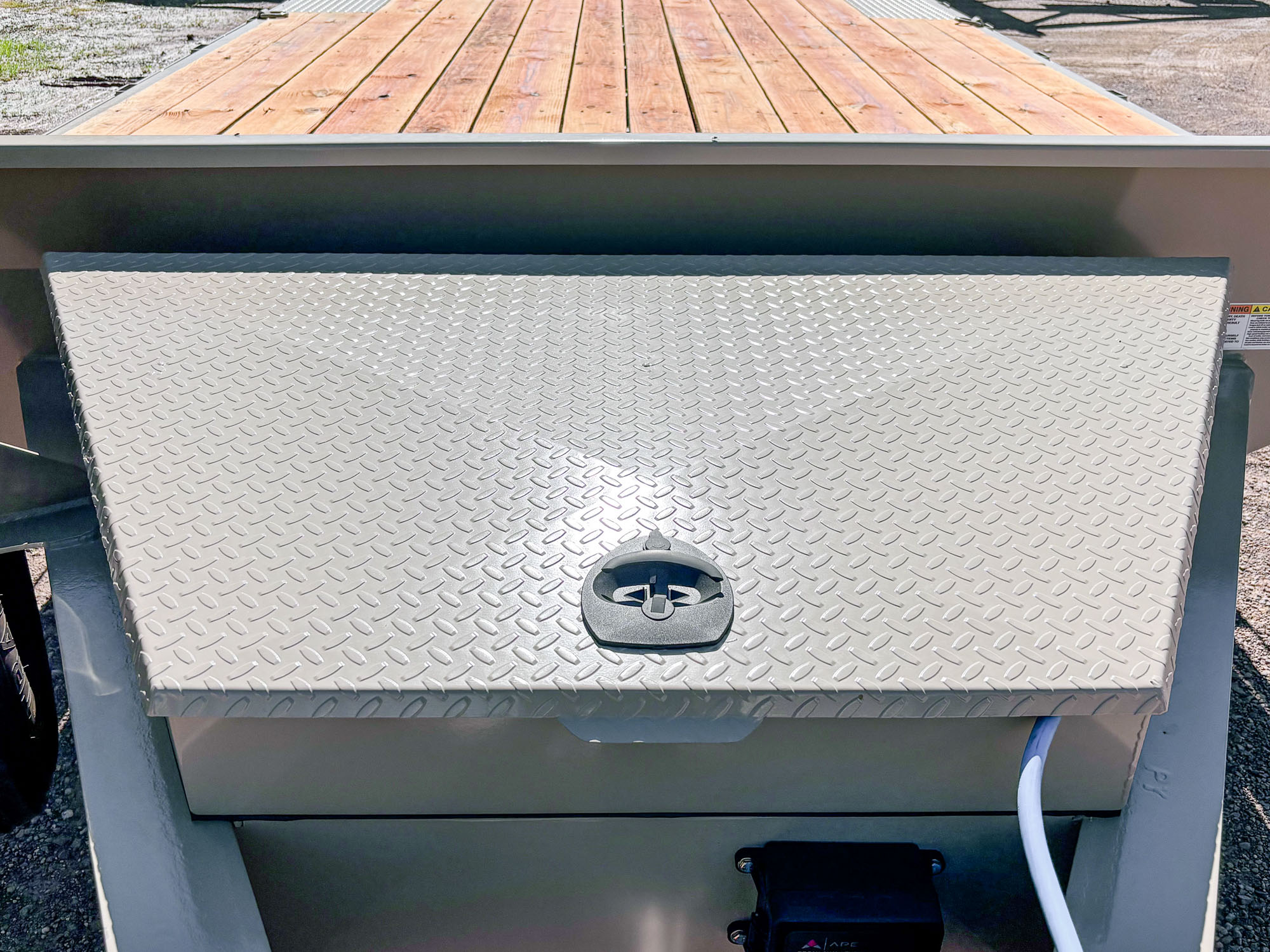

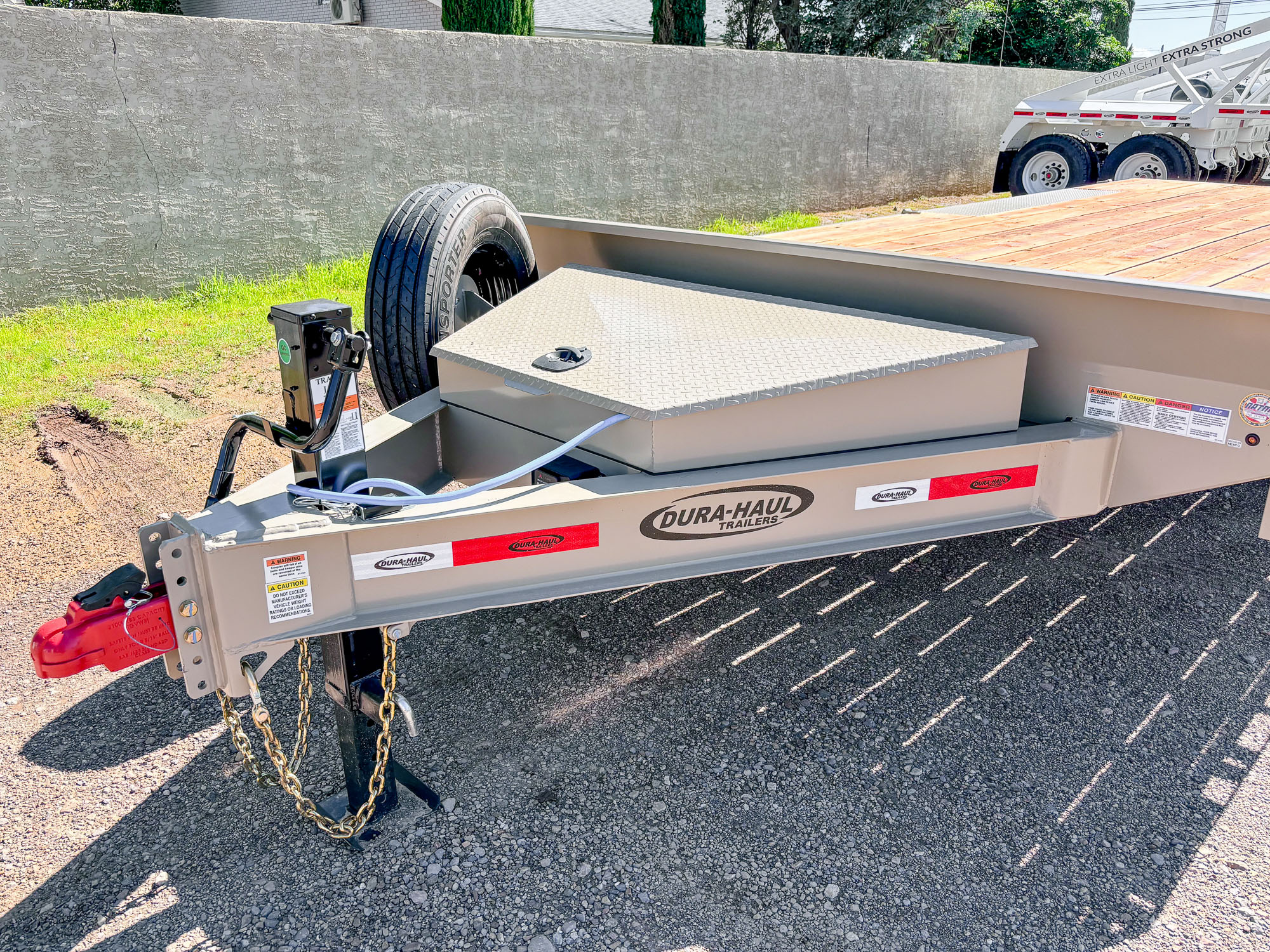

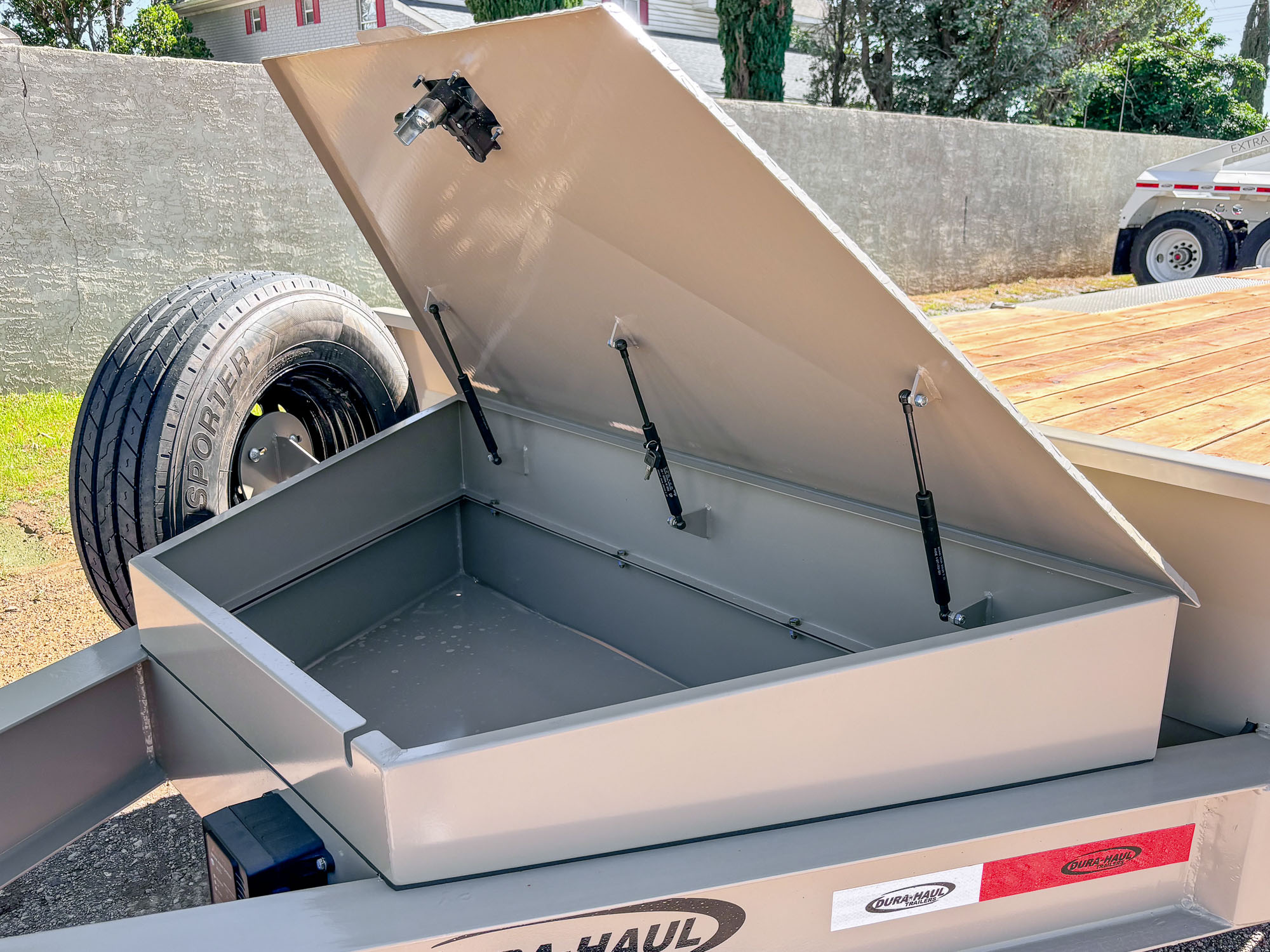

Bolt-On Toolbox
Provides storage and houses the charger, pump, battery and remote control.
Technical Specifications
The DRO-SP combines a straight deckover platform with pull-out ramps, heavy-duty I-beam construction, and professional-grade running gear for demanding equipment hauling applications.
General Specifications
| Available Sizes | 20' / 22' |
| GVWR | 14,000–16,000 lbs |
| Approx. Weight — 20' | 3,393–4,950 lbs |
| Approx. Weight — 22' | 3,573–5,130 lbs |
| Deck Configuration | Straight Deck |
| Ramp System | Pull-Out Ramps |
Frame & Deck
| Frame | 8" Ultra-Strong I-Beam |
| Bed Cross-Members | 3" Channel — 16" OC |
| Decking | Double Treated Wood |

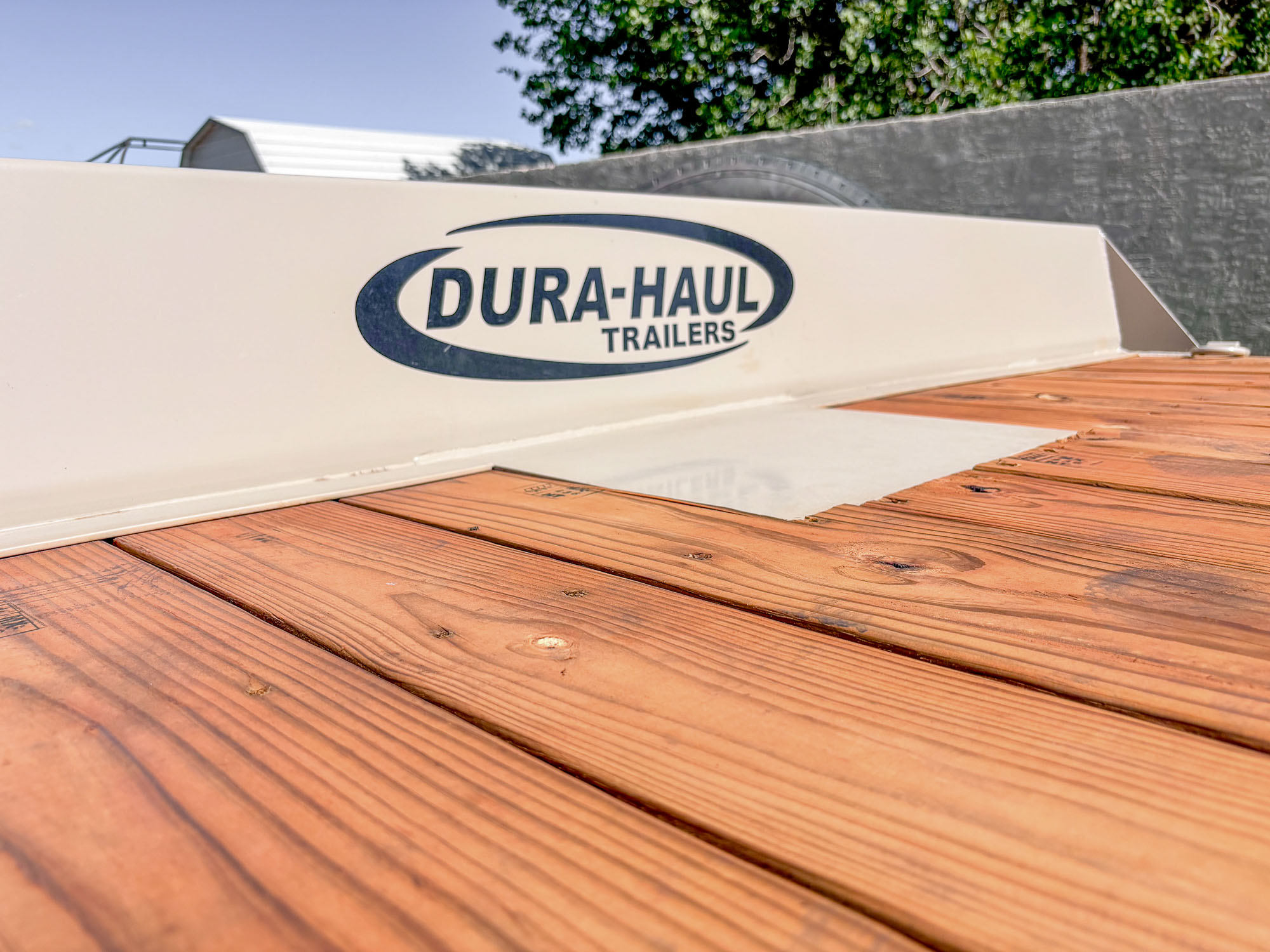

| Front Stop Rail | Formed |
| Rubrail | Side Rubrail |
| Stake Pockets | Side-Mounted |
Ramps & Loading
| Ramp Configuration | Pull-Out Ramps |
| Winch Plate | Included |
Axles, Brakes & Suspension
| Axles | 7,000 lb or 8,000 lb Tandem |
| Brakes | Electric |
| Suspension | Multi-Leaf Spring with Equalizer |
| Wheels | 16" 8-Hole |
| Tires | ST235/80R16 LRE — 14 Ply |
| Hubs | Quick-Lube Hubs & Dust Caps |
Load Securement
| D-Rings | ½" — 6 Around Deck |
| Rubrail | Side Rubrail |
| Stake Pockets | Side-Mounted |
Hitch & Equipment

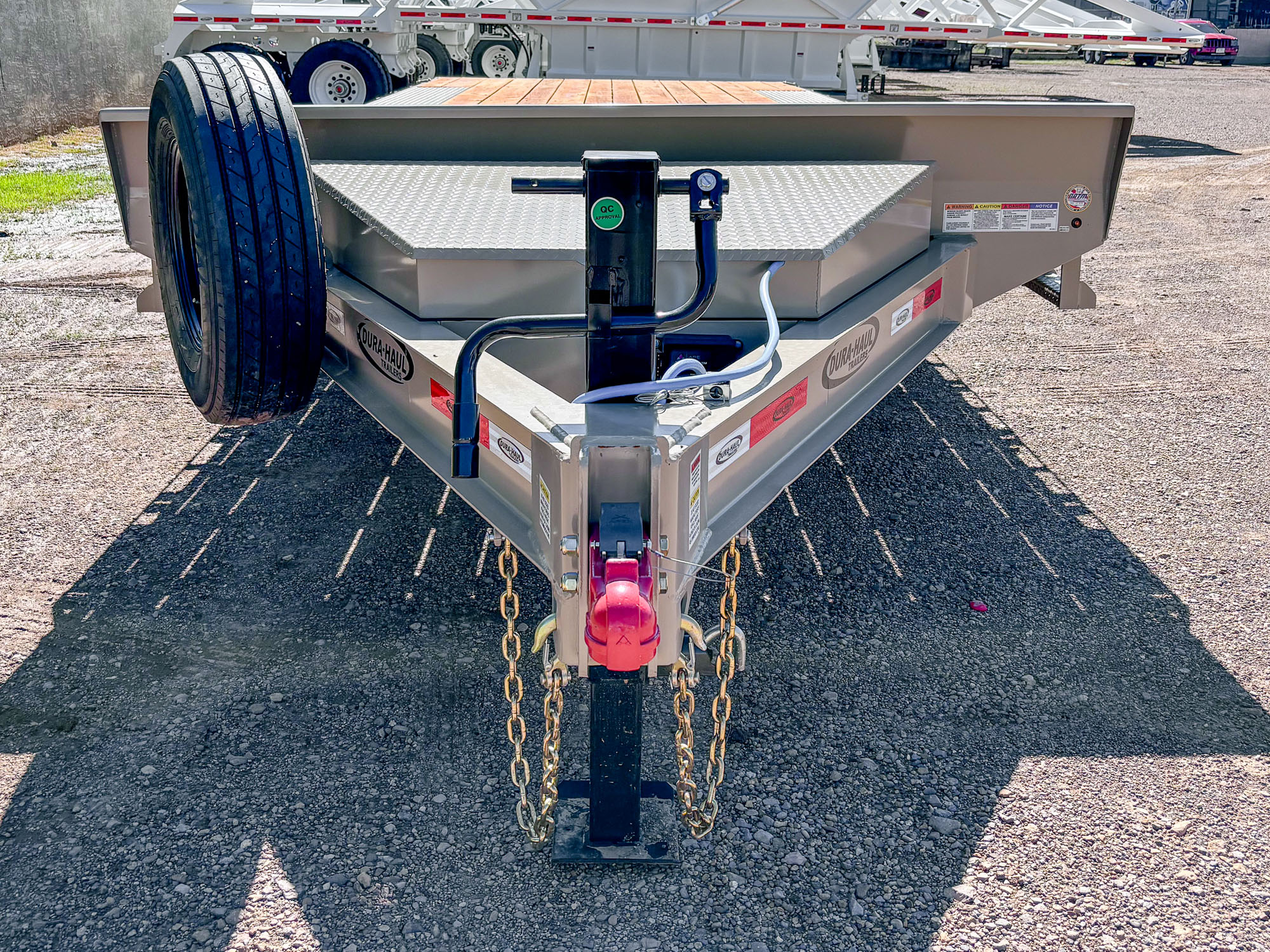

| Hitch | Adjustable — 5 Positions |
| Coupler | 2-5/16" |
| Jack | 12,000 lb Spring-Loaded Adjustable Leg Crank Jack |
| Toolbox | Bolt-On Toolbox |
| Spare Tire | Spare Tire Mount |
| Side Step | Built-In |
Safety & Electrical

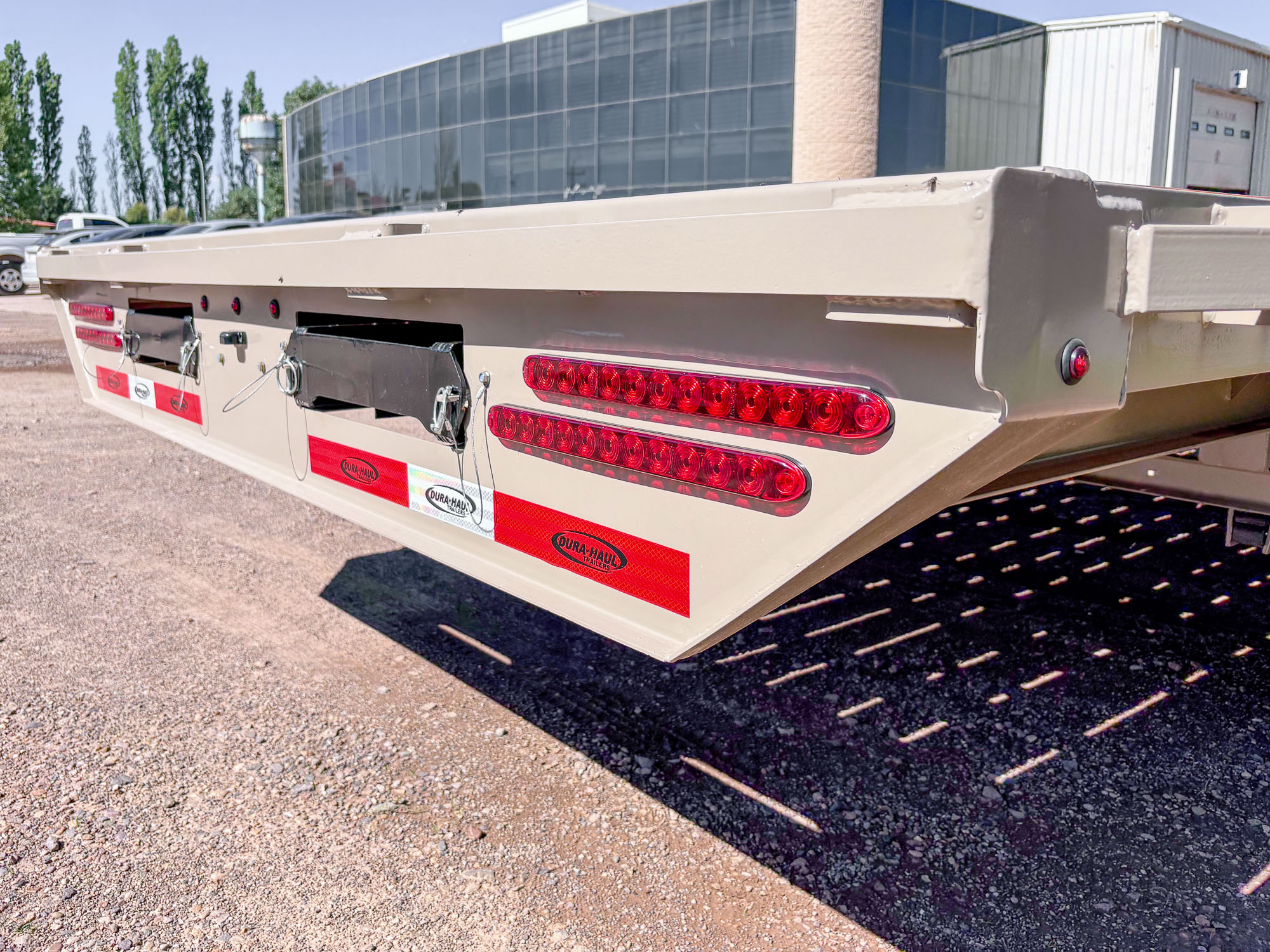

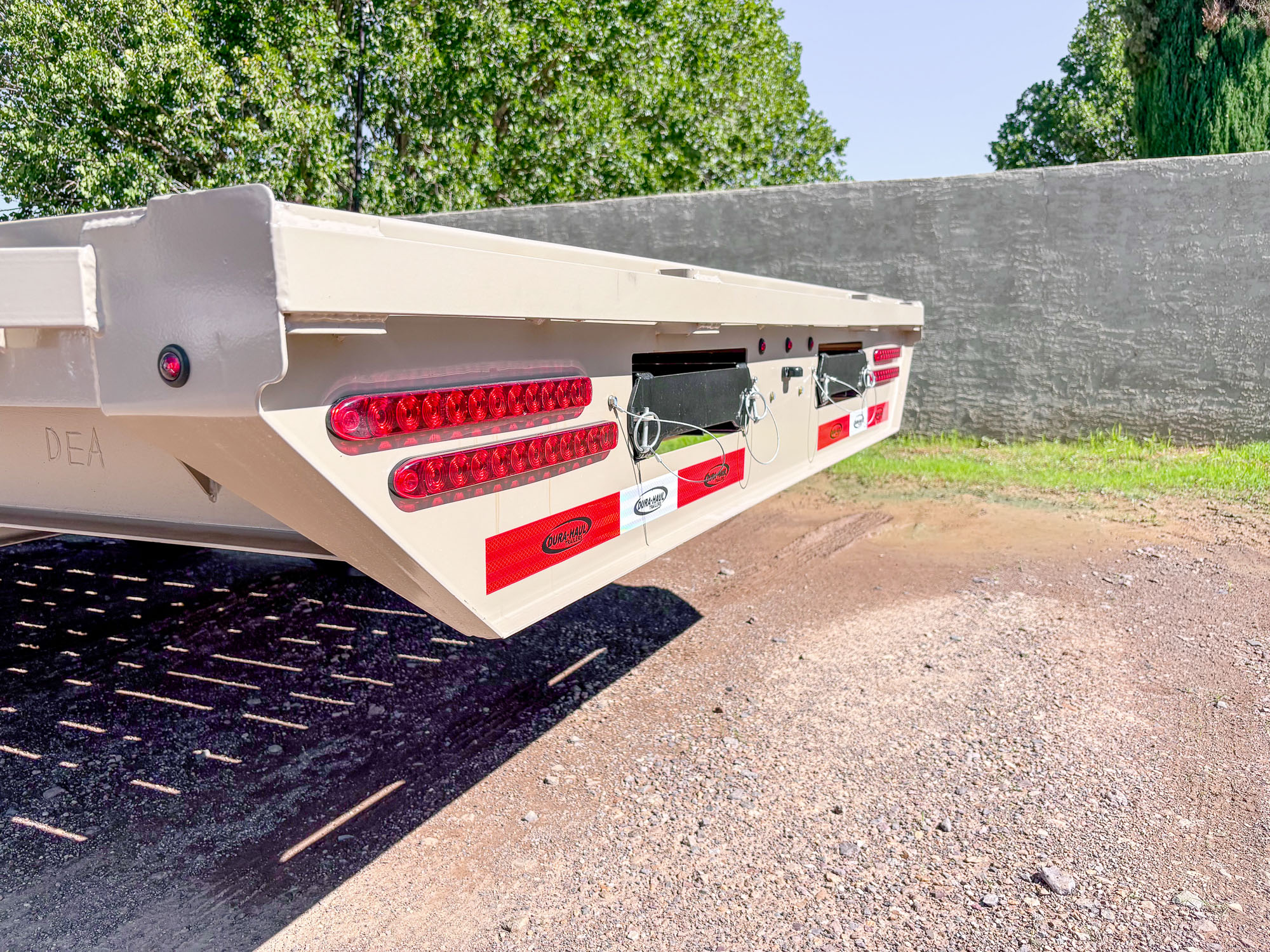

| Lighting | DOT-Approved LED |
| LED Markers | Side & Rear — 11 |
| Wiring | All-Weather Wiring & Harness |

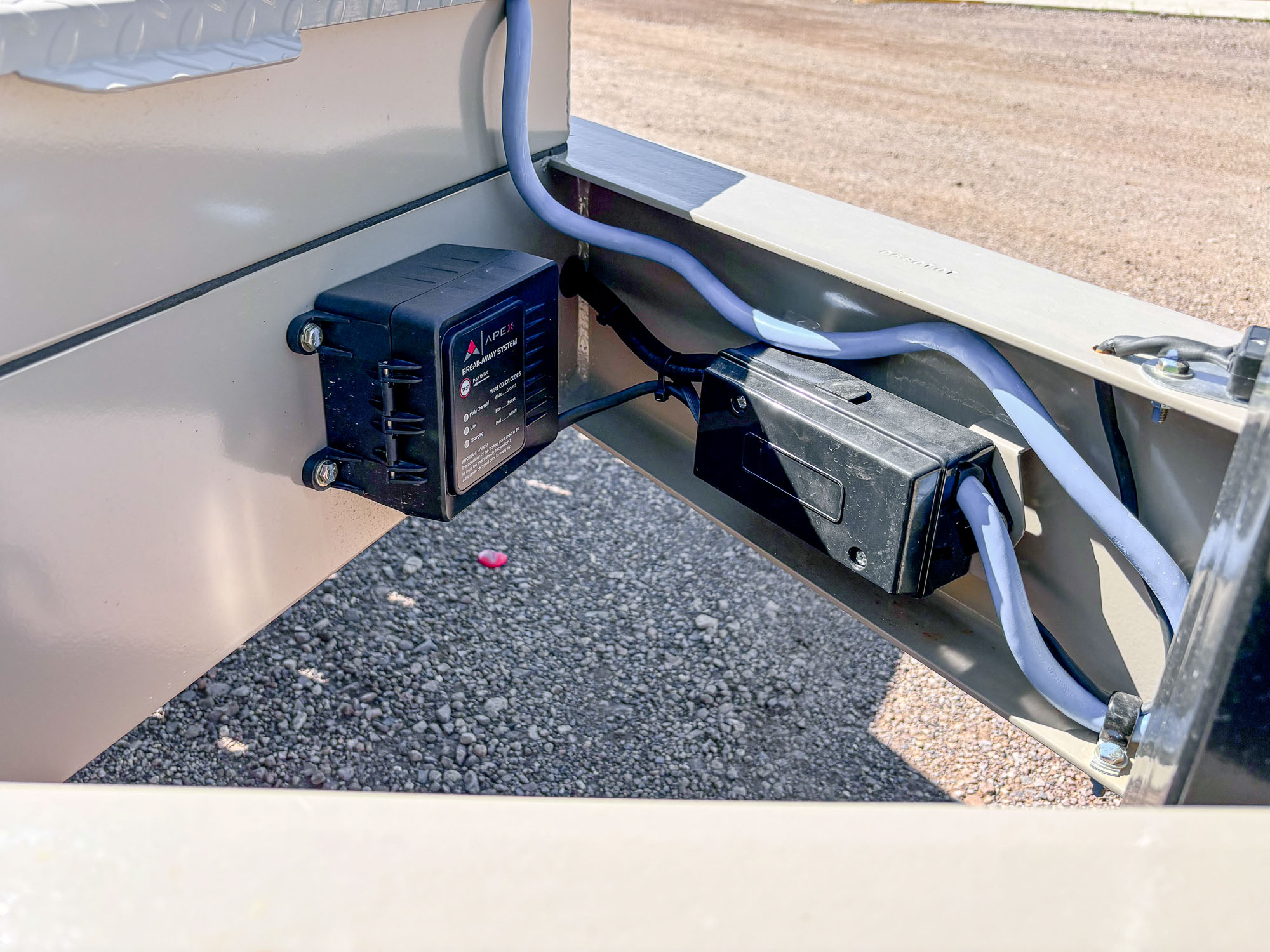

| Safety Break-Away | System with Cable & Battery |
| Safety Chains | 2 |
| Safety Tape | Reflective DOT Safety Tape |
Finish
| Finish | Powder Coat Superior Finish |
| Powdercoating | Dura-Haul Powdercoating Process |
Available Options
| Color | Optional |
| Winch | Optional |
| Hydraulic Axles | Optional |
| Hydraulic Brakes | Optional |
| Deck on Neck | Optional |
| Side Toolboxes | Optional |
Available Options
Choose the Deck Length That Fits Your Work
The DRO-SP is available in 20′ and 22′ configurations, both with 14,000–16,000 lb GVWR and 7K–8K tandem axle configurations.
Choose Your Trailer
20' DRO-SP
14,000-16,000 LB GVWR
Approx. Weight: 3,393–4,950 lbs
A versatile configuration for general equipment and cargo hauling.
22' DRO-SP
14,000-16,000 LB GVWR
Approx. Weight: 3,573–5,130 lbs
Additional deck length for larger equipment and hauling applications.
Hydraulic Jack
Optional hydraulic jack configuration.
Winch
Add a winch for applications requiring additional pulling capability.
Custom Color Options
Choose from available color options to match your operation or fleet.
Built to Haul.
Ready to Work.
The DRO-SP gives you the wide platform of a deckover trailer with the straightforward loading convenience of Pull-Out Ramps.
20′ or 22′. 14K–16K GVWR. Built around an 8″ I-Beam frame.
Put Your DRO-SP to Work.
FAQ
The DRO-SP is designed for contractors, equipment operators, and businesses that need to transport construction equipment, vehicles, materials, and other demanding loads.
The deckover design provides a wide, unobstructed platform above the wheels, giving operators more usable deck space and greater flexibility when positioning equipment and cargo.
The Pull-Out Ramps can be deployed when equipment needs to be loaded and stored when they are not required, keeping the straight deck clear during normal hauling.
The DRO-SP is available in 20′ and 22′ configurations.
The DRO-SP is available from 14,000 to 16,000 lb GVWR, depending on the axle configuration.
The DRO-SP is available with 7,000 lb or 8,000 lb tandem axles with electric brakes and multi-leaf spring suspension with an equalizer.
Available options include color, winch and hydraulic jack.
features

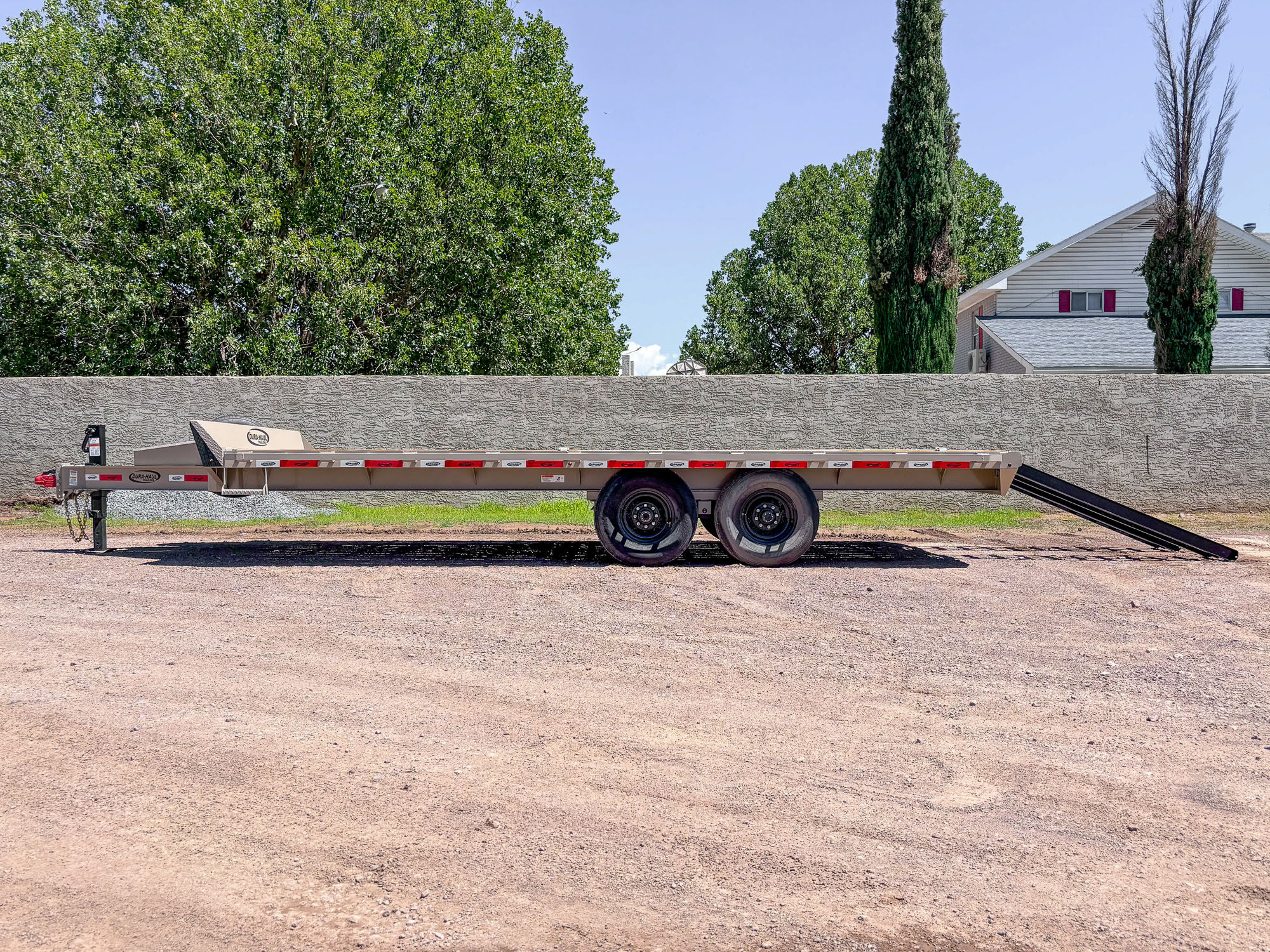

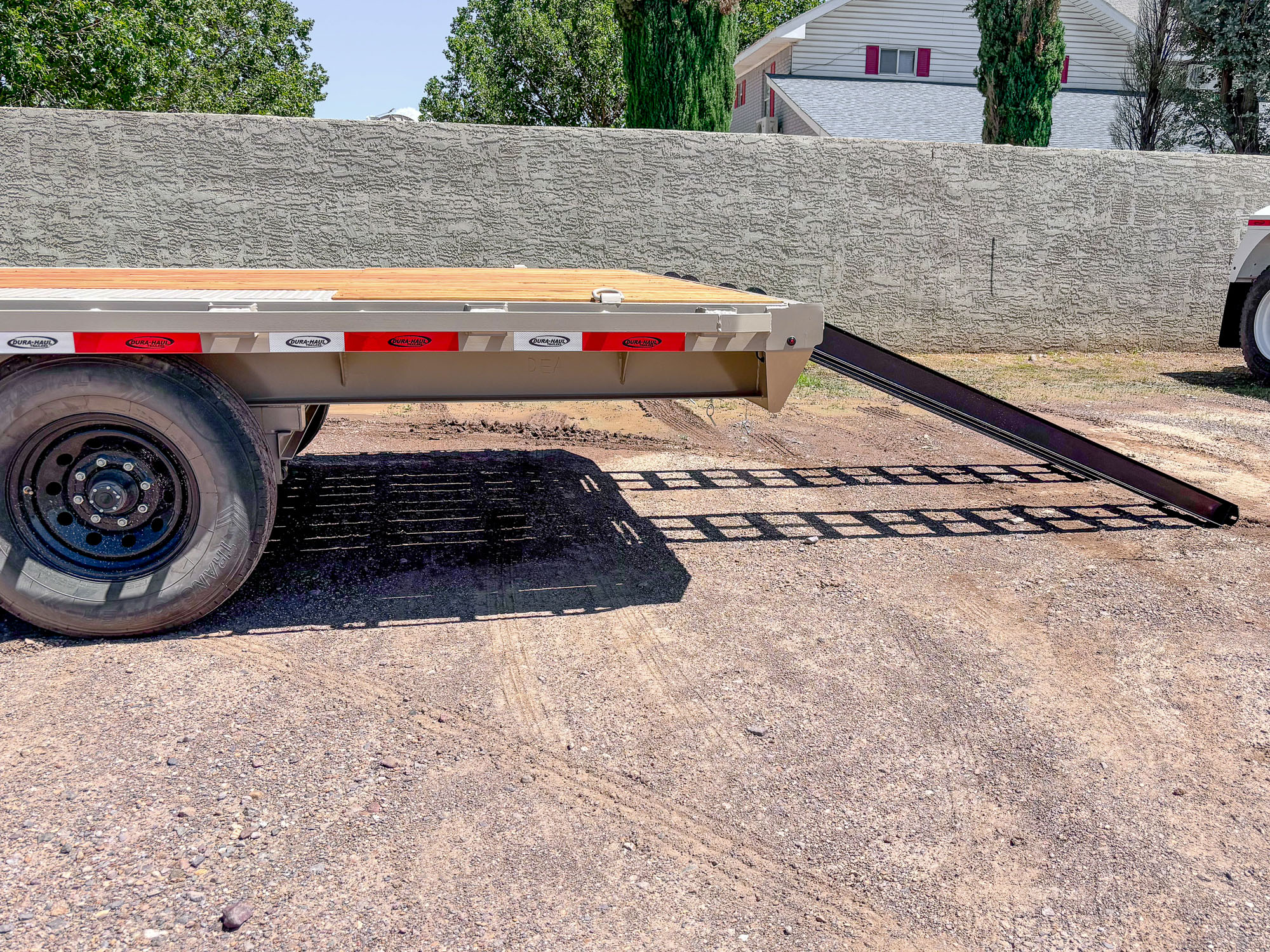

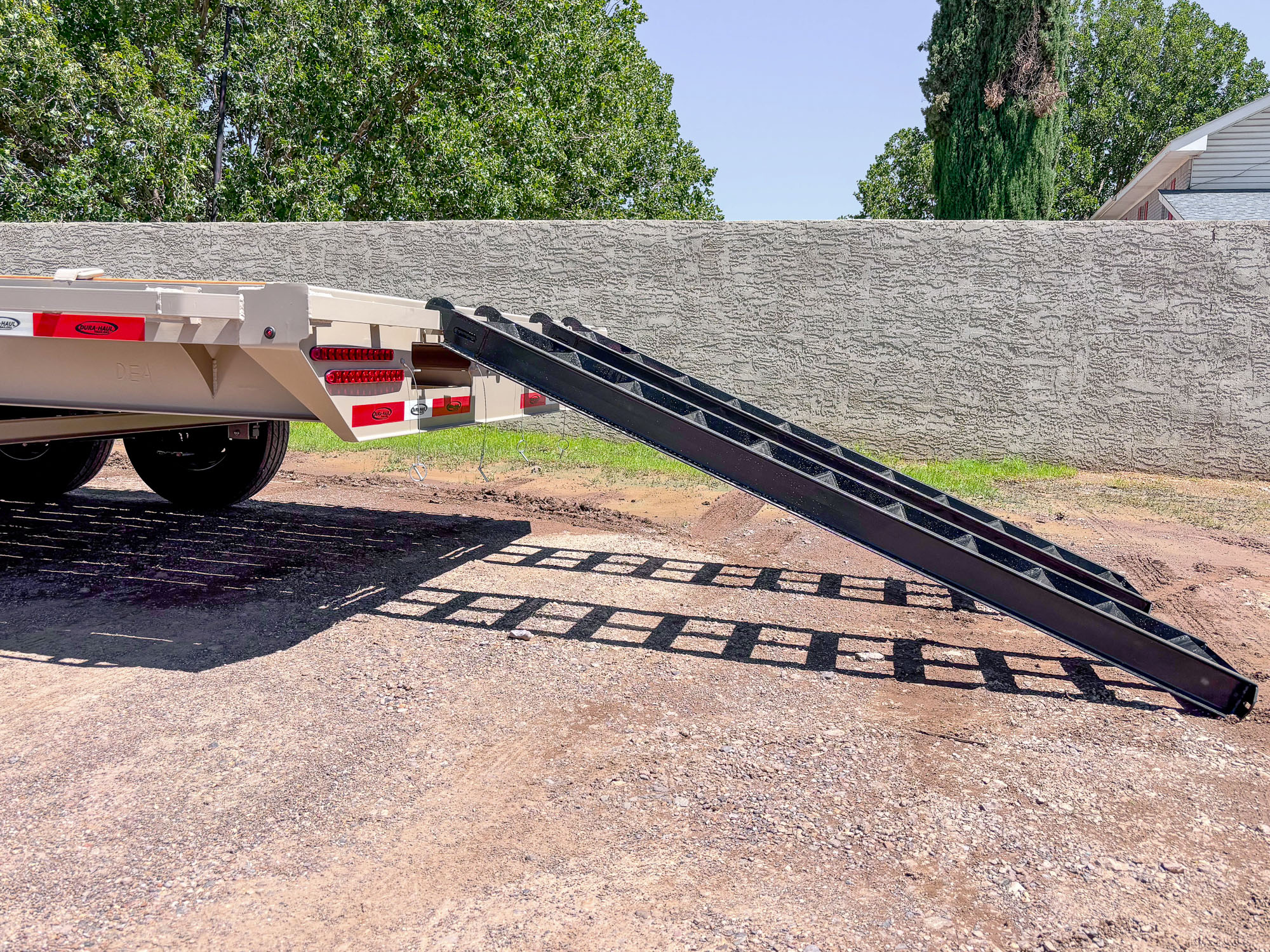

PULL-OUT RAMPS
Easily adaptable for any job, the pull-out ramps provide secure, smooth loading for heavy equipment, ensuring reliable performance on every haul.

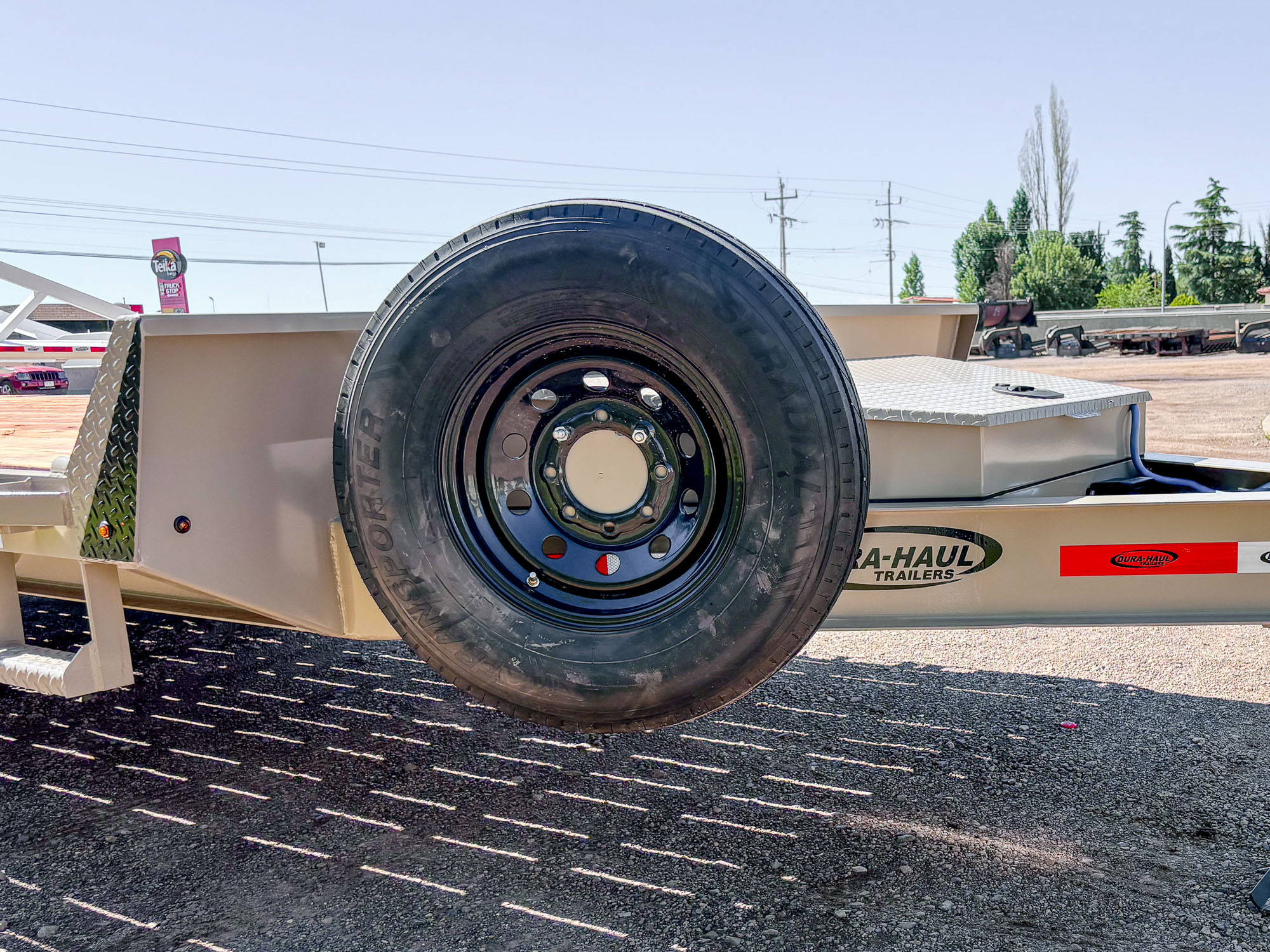

SPARE TIRE MOUNT
Stay prepared with the convenient spare tire mount, so you’re always ready for the road ahead.
