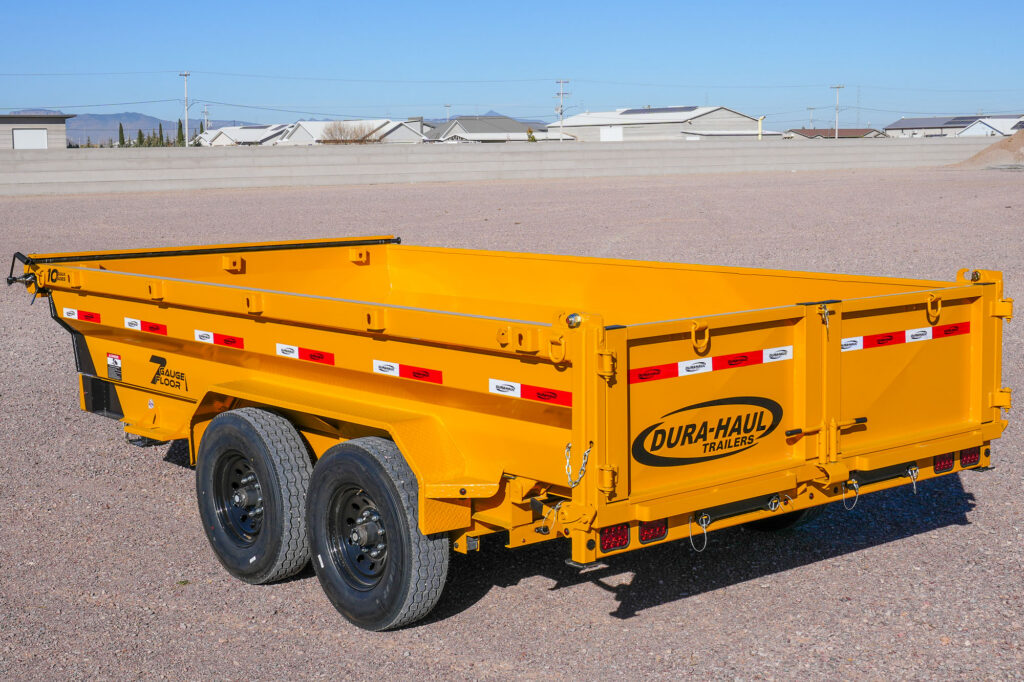

DRL-xS
Dump It. Load It. Get Back to Work.
The Dura-Haul DRL-xS Dump Trailer gives you the versatility to handle more than one type of job.
With a heavy-duty hydraulic scissor lift, easy-load 27″ deck height, and 6’3″ HD Quick Pull Ramps, the DRL-xS is built for hauling materials, dumping loads, and loading equipment when the job demands it.
With three available side-height configurations—2′, 3′, and 4’—you can choose the setup that best fits the materials and applications your business handles.
Available in 14′ and 16′ lengths with 14,000 to 16,000 lbs GVWR configurations.
8.45–9.8 yd³
Capacity
27"
Deck Height
Hydraulic
Scissor Lift
7K / 8K
Tandem Axles
DRL-2S
DUMP TRAILER
Quick Specifications
Built to Dump. Ready to Load.
Some jobs require hauling material. Others require moving equipment.
The DRL-2S is designed to give you both capabilities in one trailer. Its dump body handles material hauling and unloading, while the 6’3″ HD Quick Pull Ramps provide a practical way to load compatible equipment onto the trailer.
When the work changes, your trailer is ready to change with it.
Haul. Load. Dump. Repeat.
From the Yard to the Jobsite
A contractor can use the 6'3" HD Quick Pull Ramps and low 27" deck height to load equipment needed for the job.
Haul. Dump. Keep the Job Moving.
For crews working with materials such as dirt, sand, and other jobsite materials, the DRL-2S provides the capacity to haul the load and the hydraulic scissor lift to unload it efficiently.
When the Job Doesn't Stay the Same
You may need to move equipment in the morning, haul material during the day, and unload at the end of the job.
LOW PROFILE. EASY LOADING. BUILT TO DUMP.
With an extra-low 27″ deck height, the DRL-2S is designed to make loading more accessible.
Combined with the 6’3″ HD Quick Pull Ramps, the low-profile design gives operators a practical loading solution without adding another trailer to the operation.

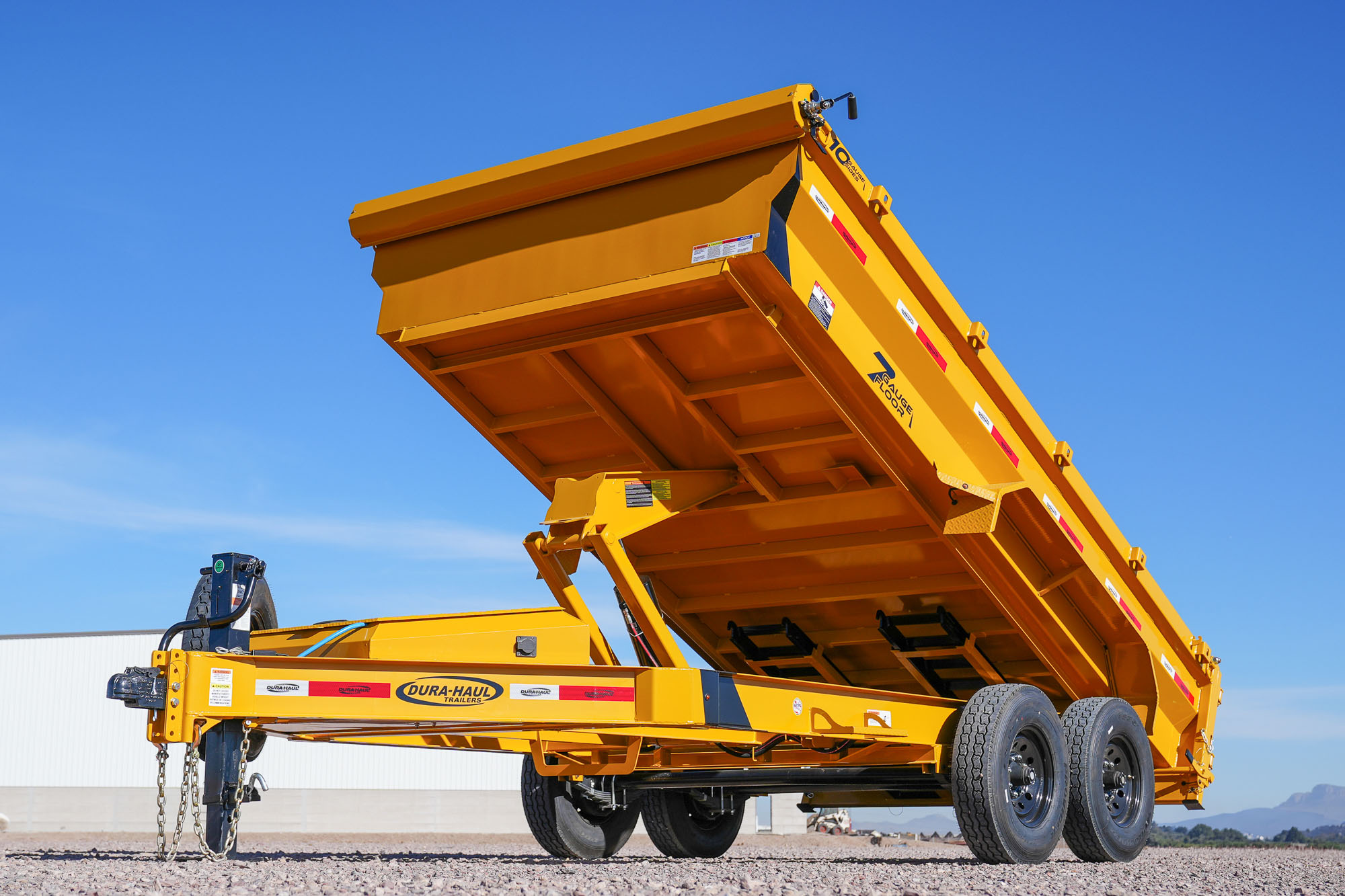

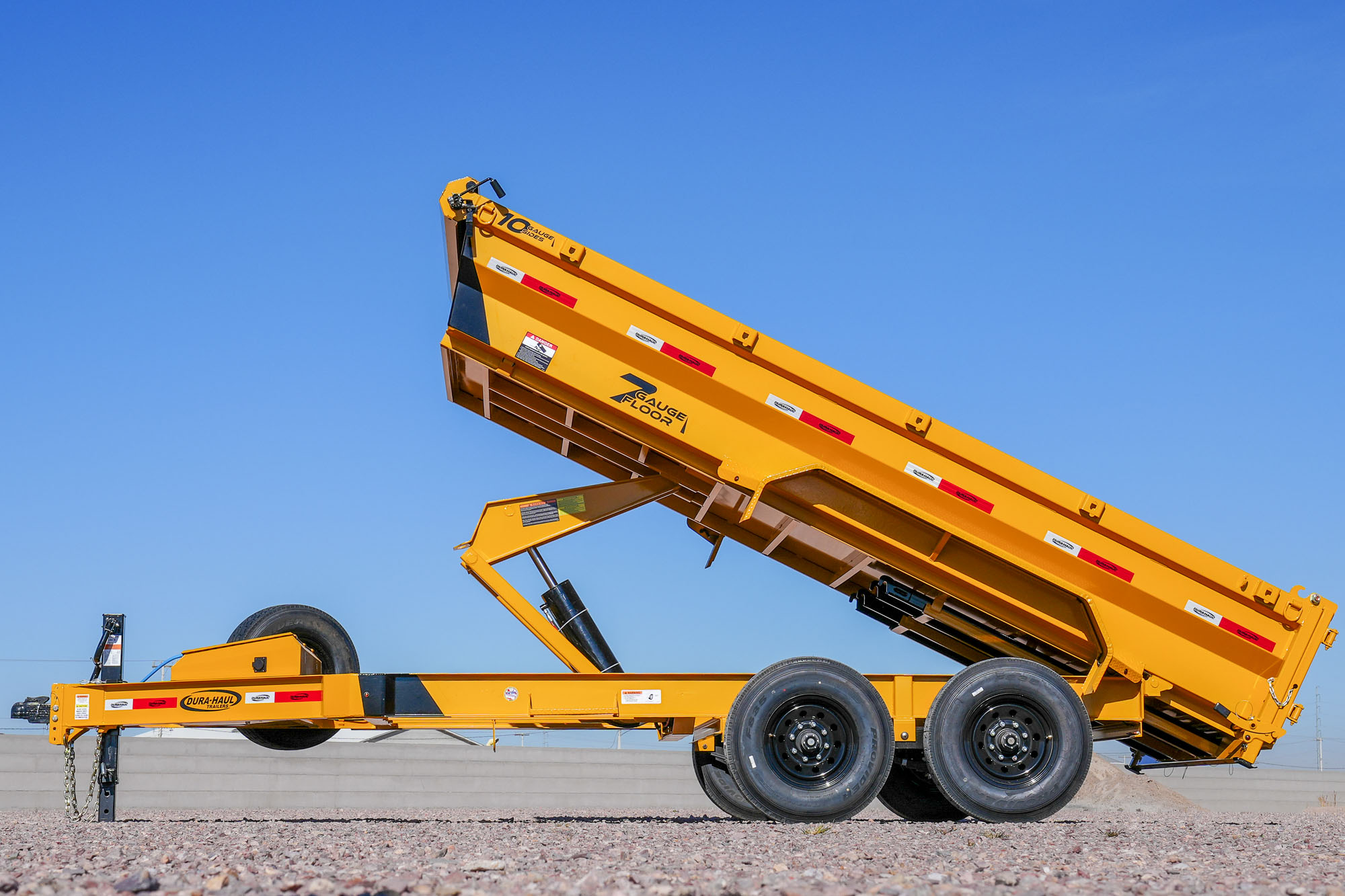

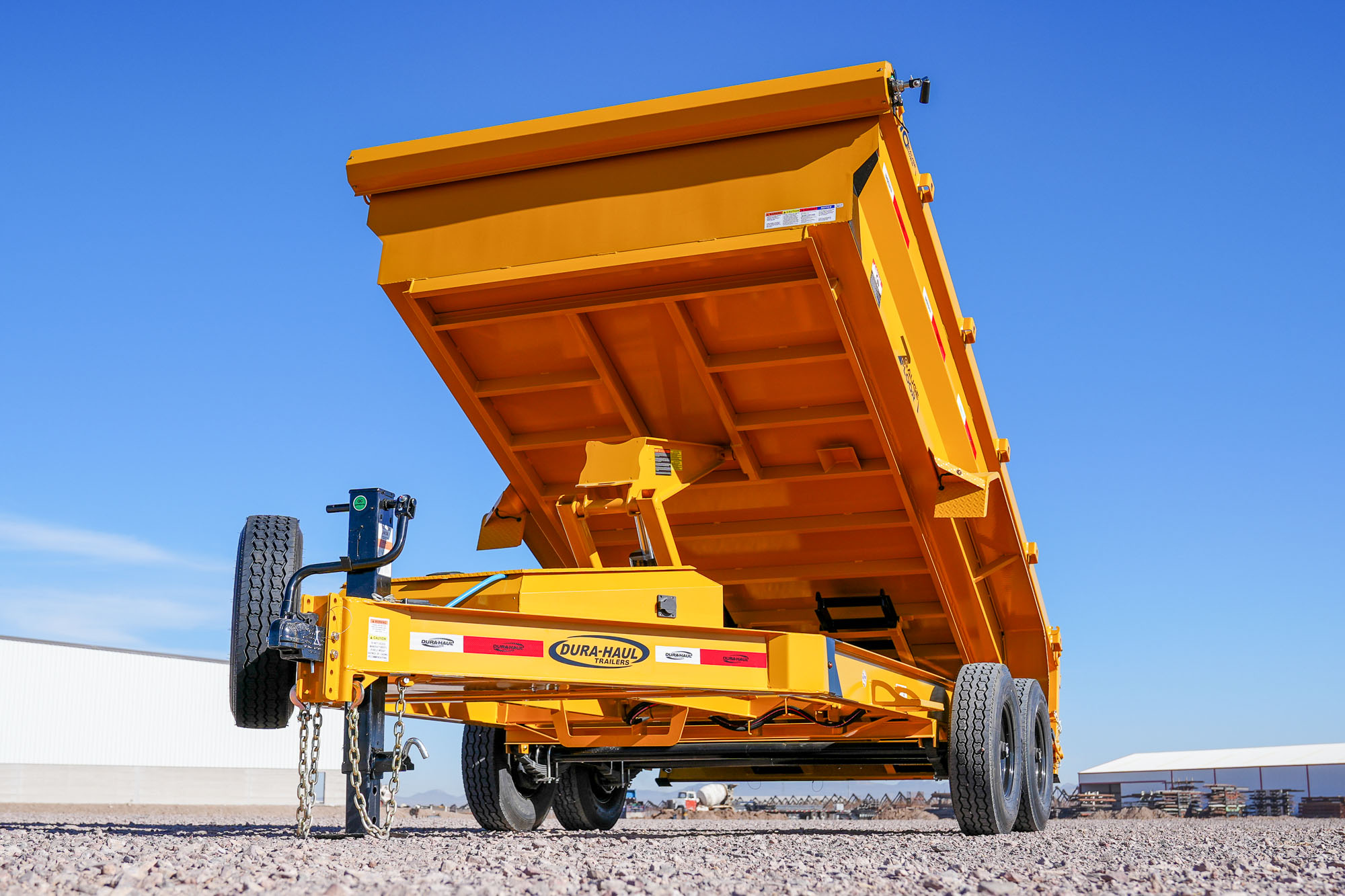

At the core of the DRL-2S is a heavy-duty hydraulic scissor lift designed to raise the dump body for unloading.
27" Extra-Low
Deck
A low-profile deck designed for easier loading access.

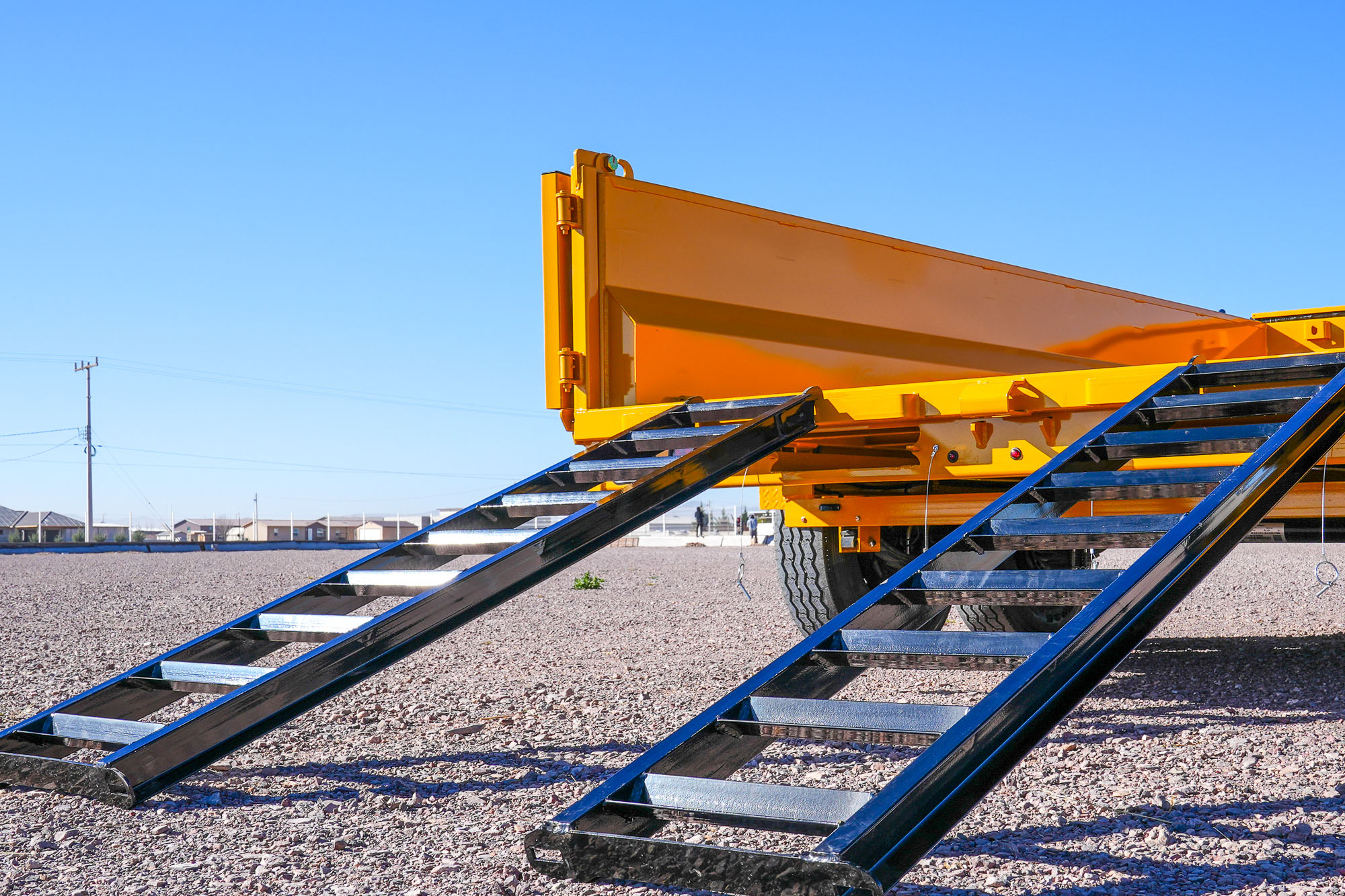

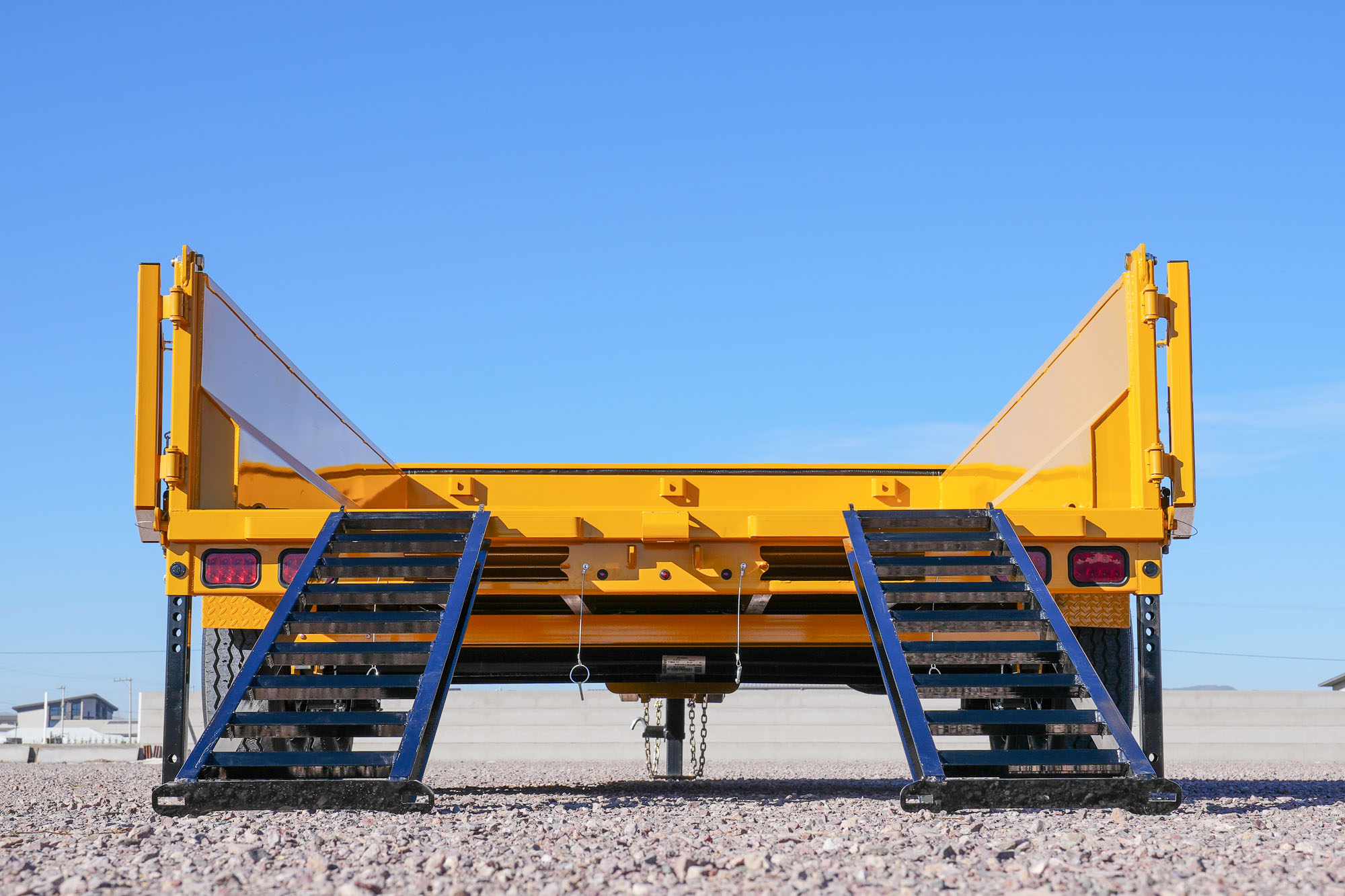

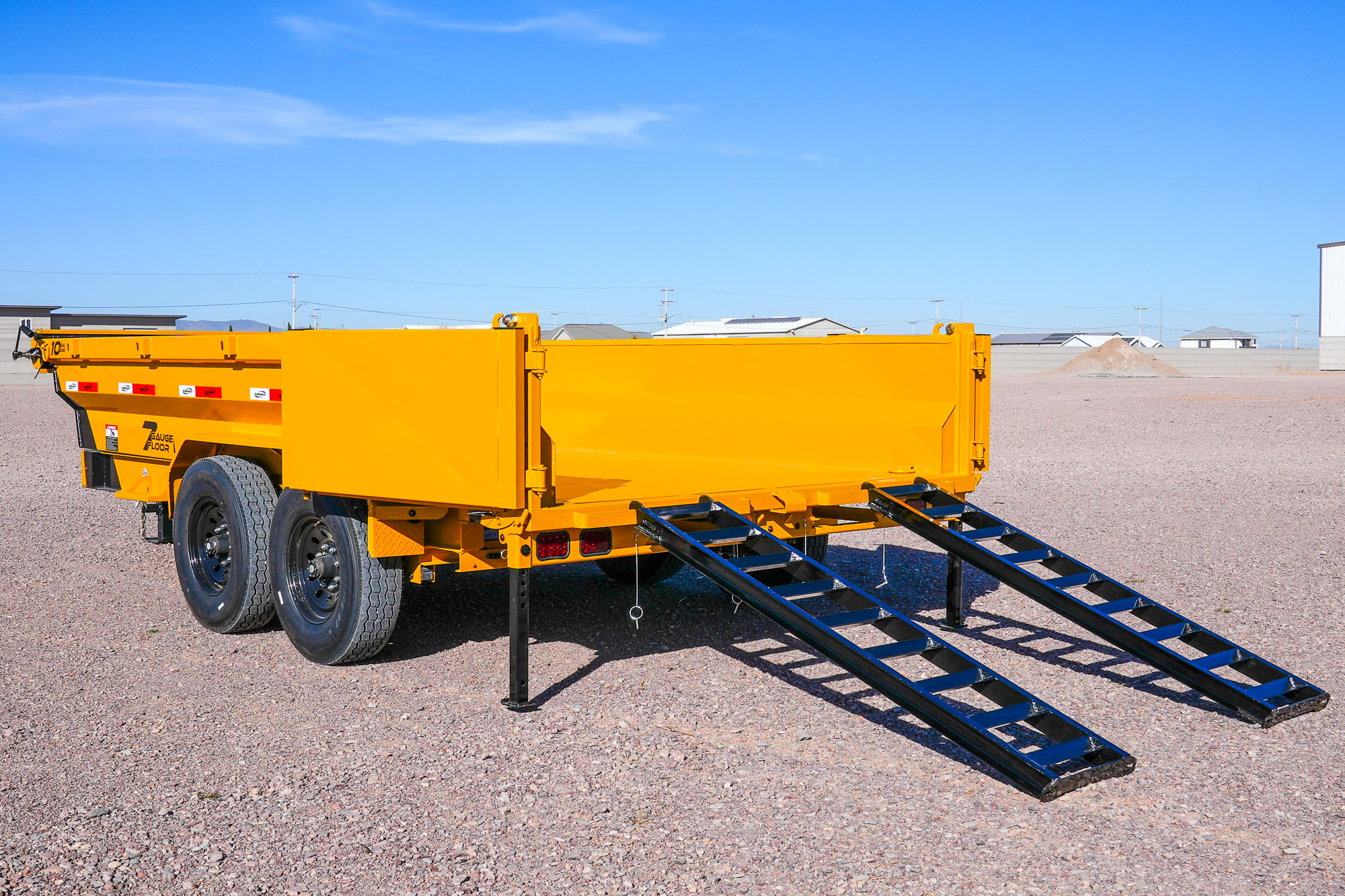

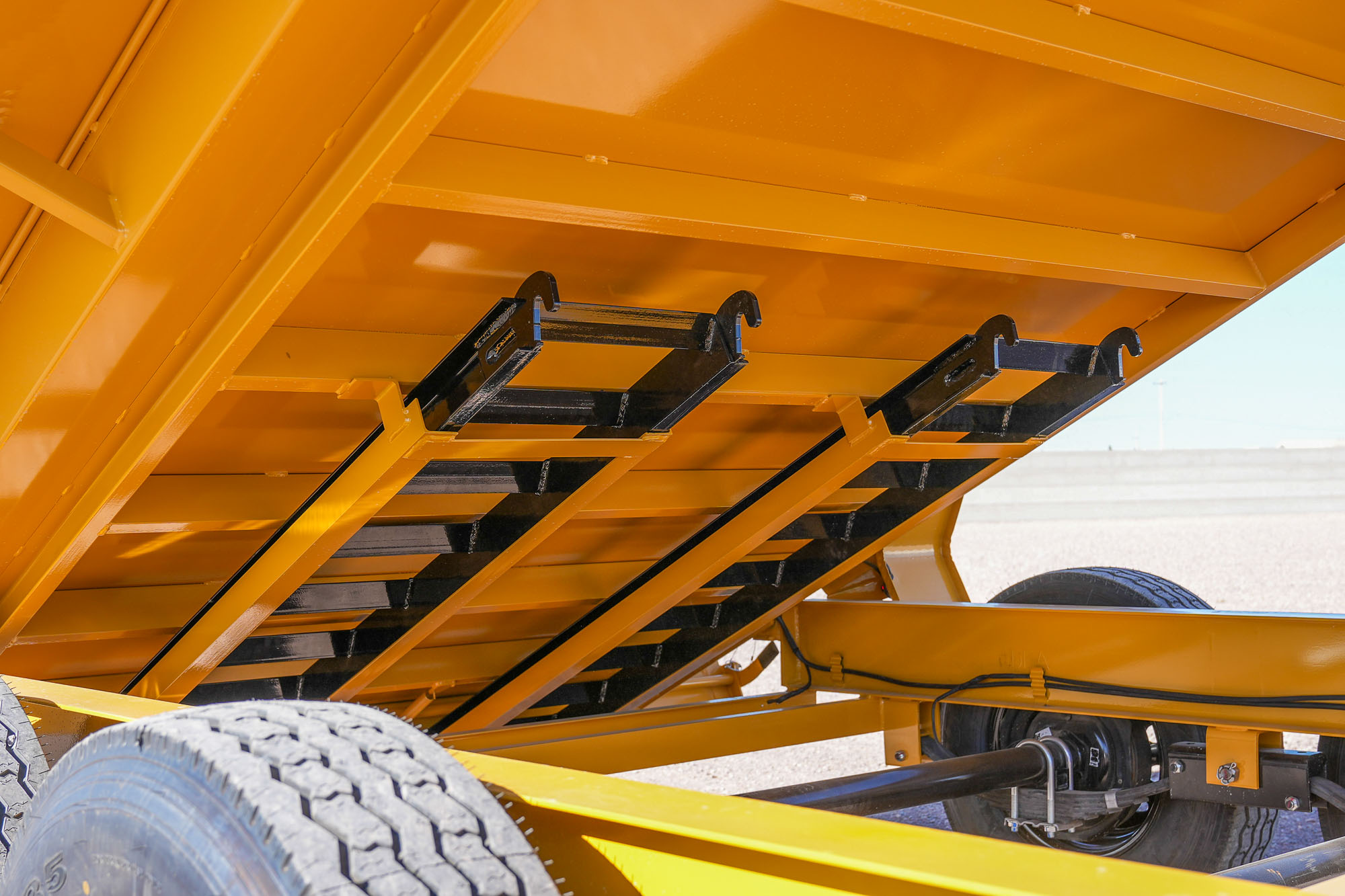

6'3" HD Quick Pull Ramps
Built to provide a convenient equipment loading solution.

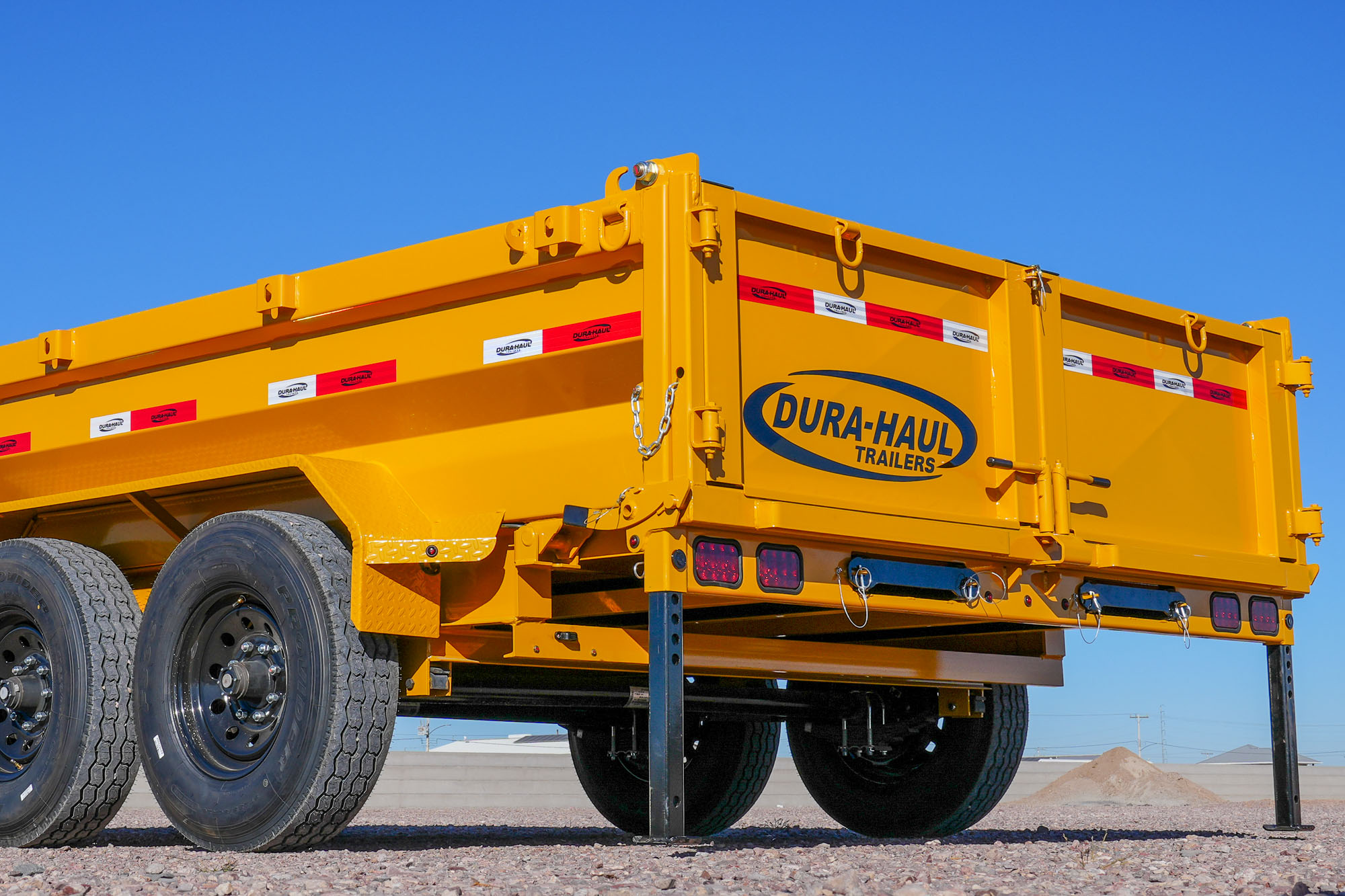

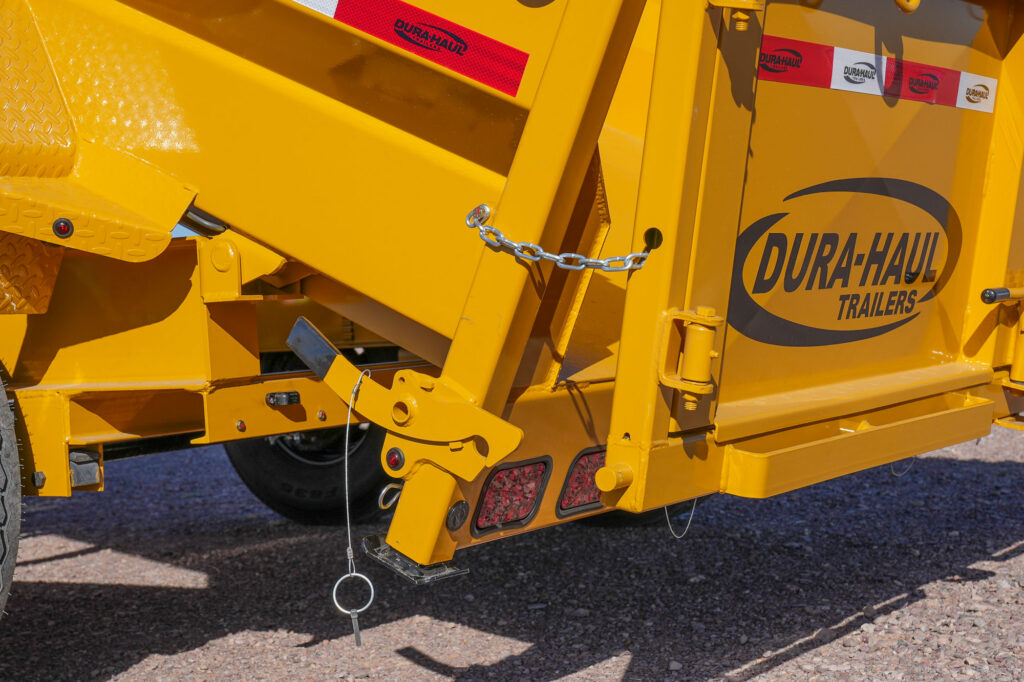

Rear
Easy Stabilizer
Additional support designed for loading operations.

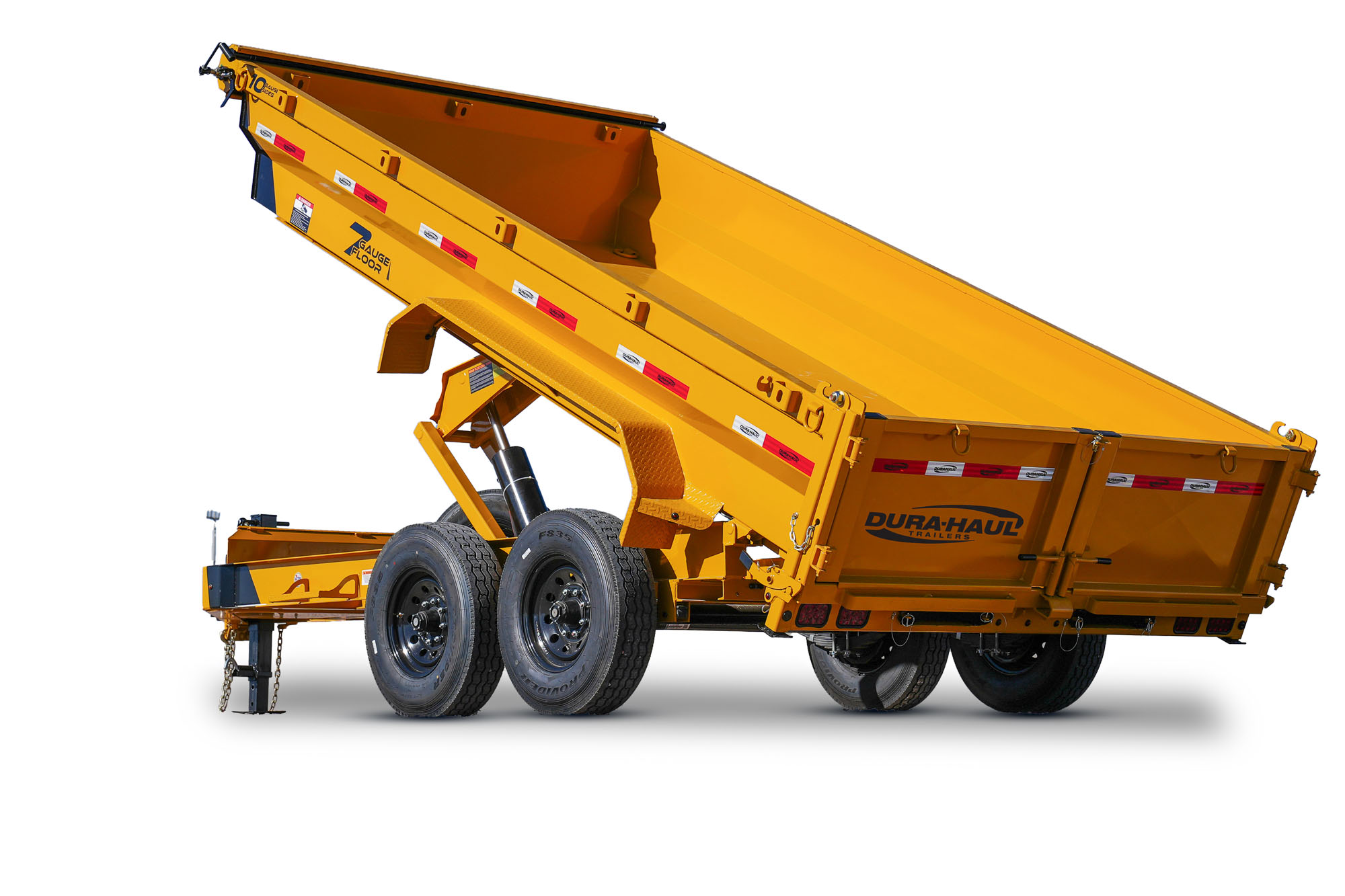

Heavy-Duty Hydraulic Scissor Lift
Designed for dependable lifting performance.

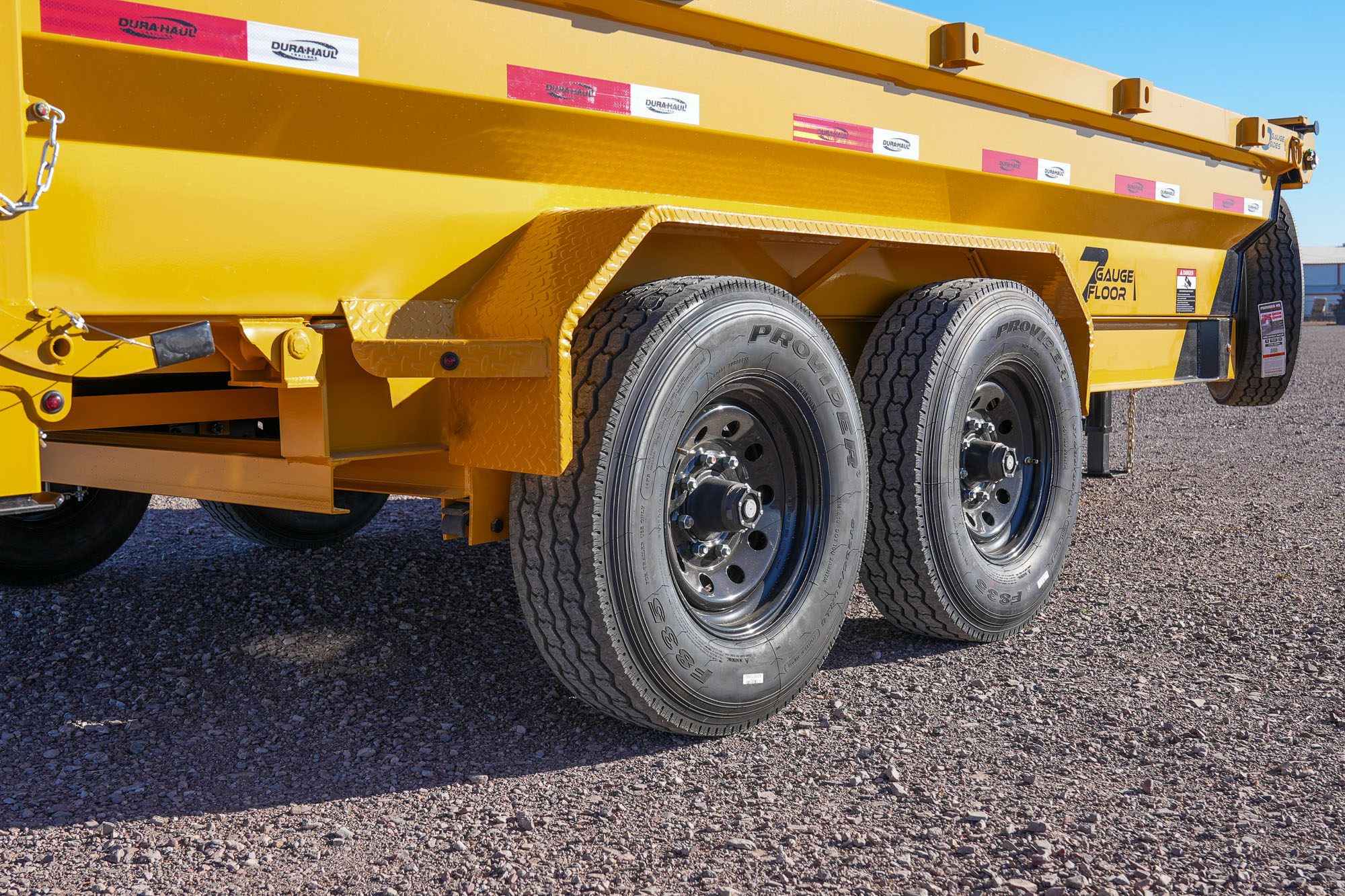

7K or 8K Tandem Axles
Available axle configurations.

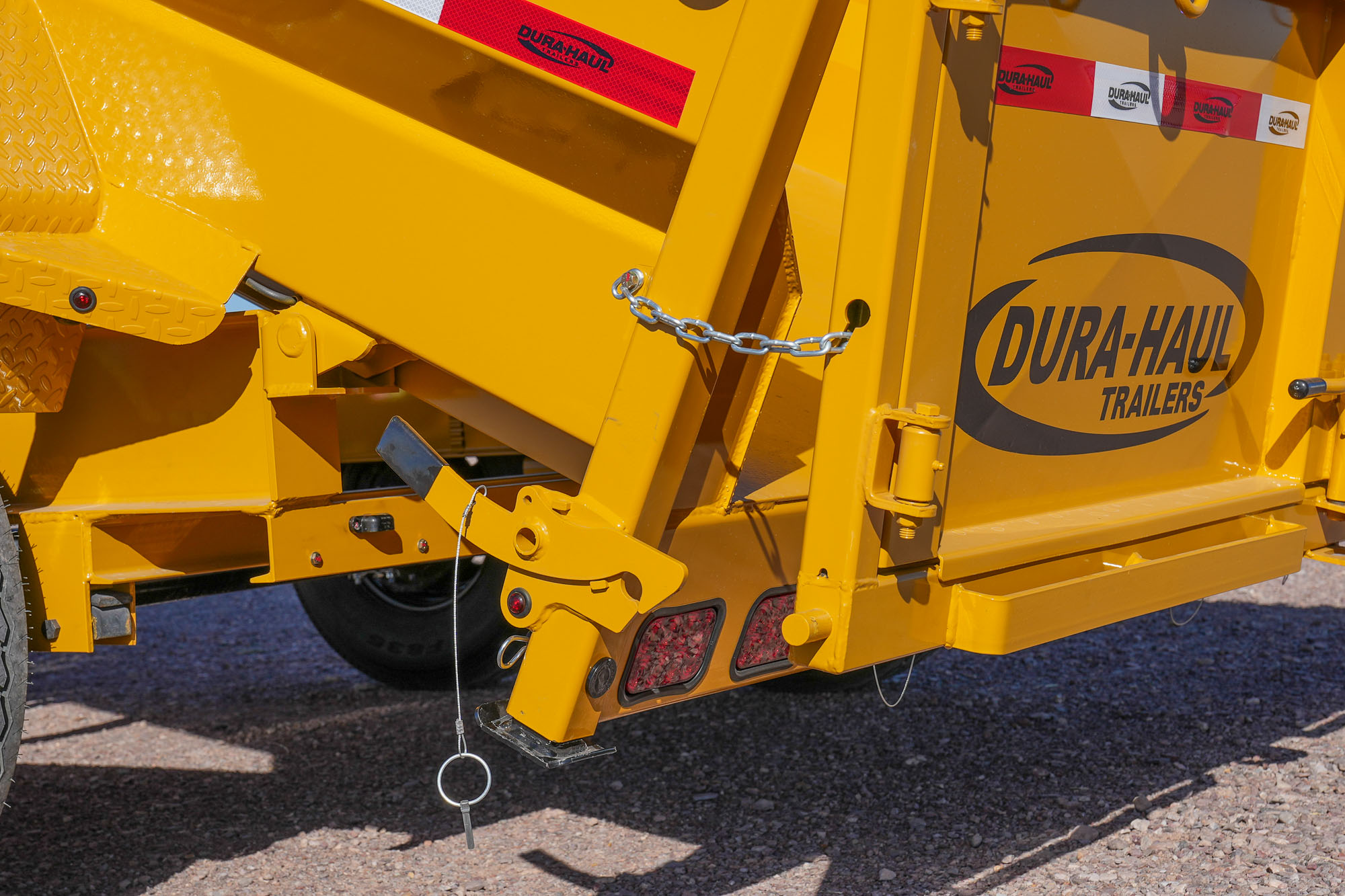

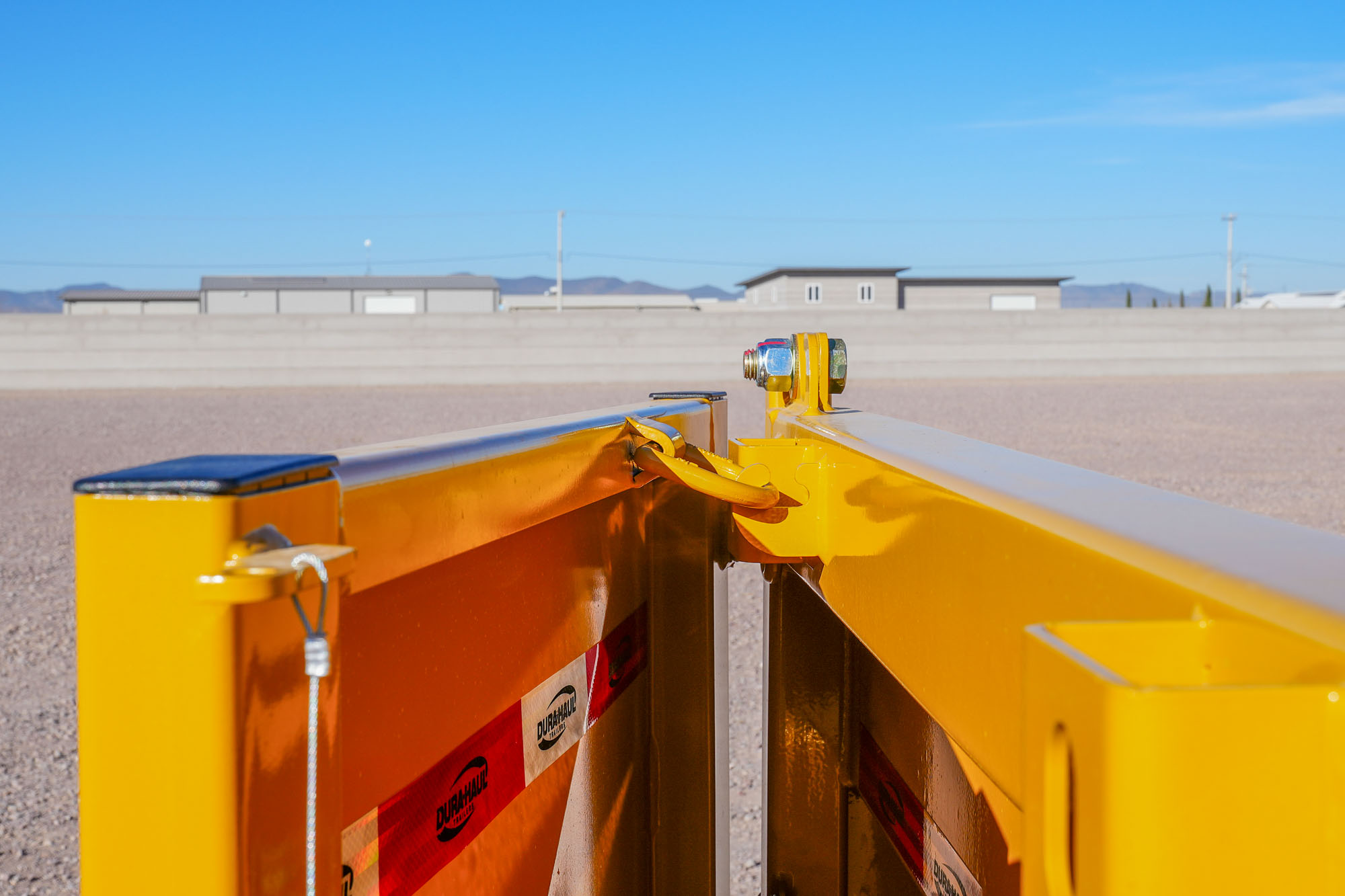

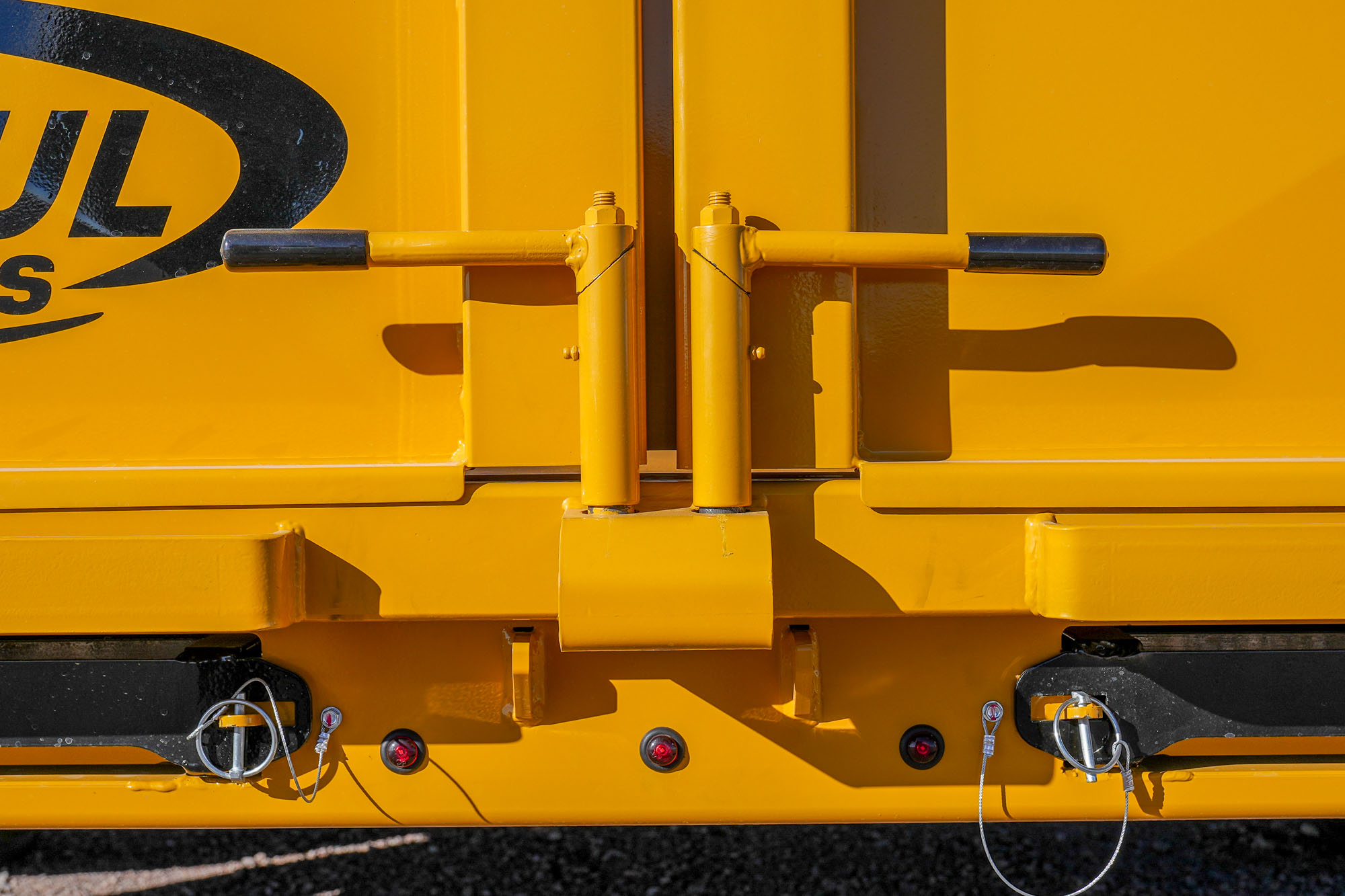

Twix Door Locking System
Designed to secure the rear door system.

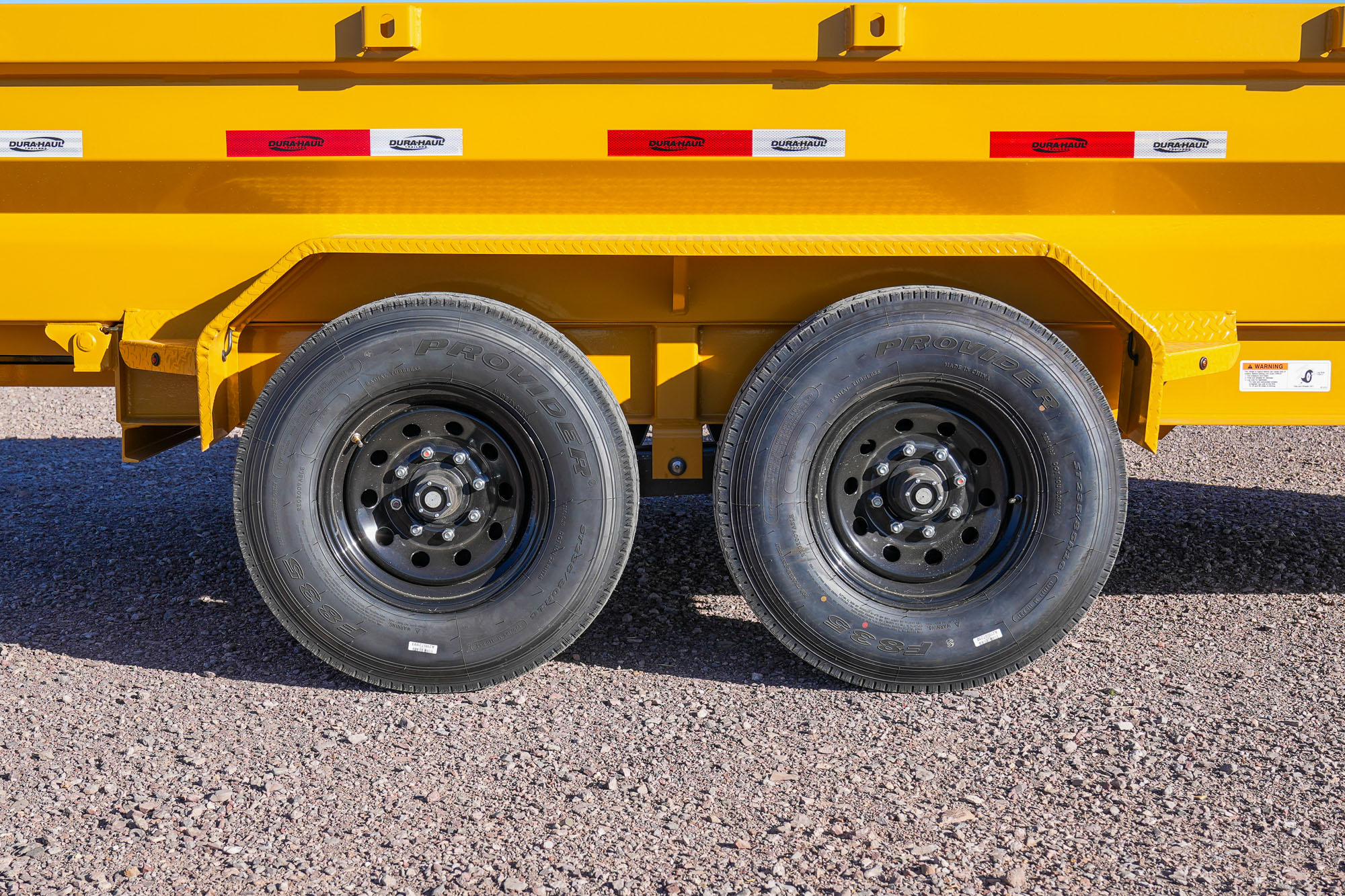

Multi-Leaf Spring Suspension with Equalizer
Designed to support balanced load distribution.
7-Gauge Smooth Plate Floor
A heavy-duty floor surface for daily hauling.
8" Ultra Strong
I-Beam Frame
Provides the foundation of the trailer.
Technical Specifications
General Specifications
| Available Sizes | 14' / 16' |
| Capacity | 8.45–9.8 yd³ |
| GVWR | 14,000–16,000 lbs |
| Deck Height | 27" |
| Box Width | 91" |
Size & Capacity
| Size | Axles | Capacity | GVWR | Weight |
|---|---|---|---|---|
| 14' | 7K–8K | 8.45 yd³ | 14,000–16,000 lbs | 4,740 lbs |
| 16' | 7K–8K | 9.8 yd³ | 14,000–16,000 lbs | 4,960 lbs |
Frame & Body
| Frame | 8" Ultra Strong I-Beam |
| Flooring | 7-Gauge Smooth Plate |
| Bed Cross-Members | 3" Channel — 16" OC |
| Side Height | 24" |
| Sides | Fully Formed 10-Gauge Engineered Sides |
| Top Rail | 10-Gauge — 2.75" × 4.25" |
| Top Box Width | 91" |
Hydraulic System
| Lift System | Heavy-Duty Hydraulic Scissor Lift |
| Hydraulic Equipment | Pump, Battery, Charger & Remote Control |
| Toolbox | Lockable Toolbox |
Loading
| Deck Height | Extra-Low 27" |
| Ramps | HD Quick Pull Ramps — 6'3" Long |
| Rear Stabilizer | Rear Easy Stabilizer |

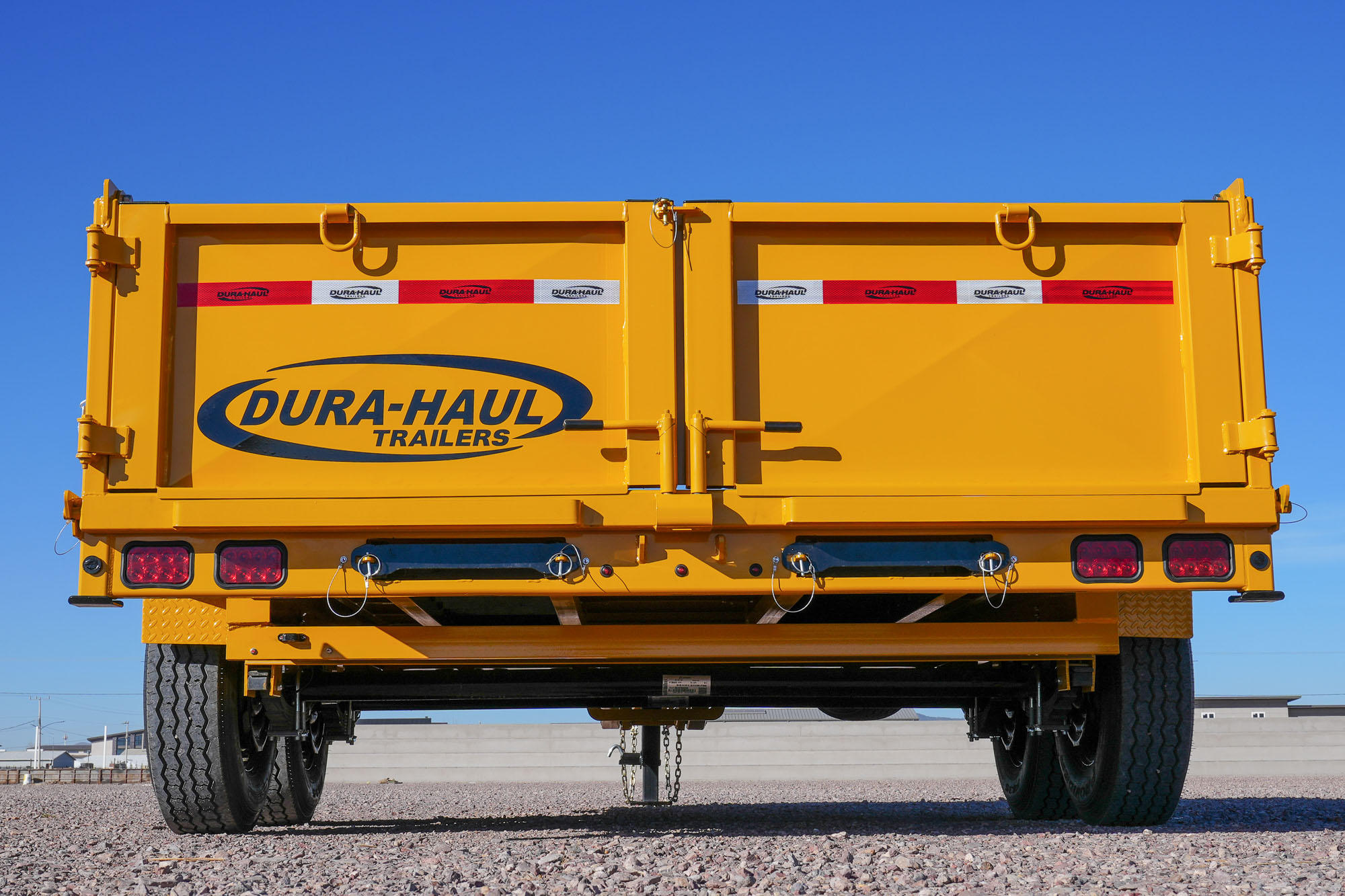

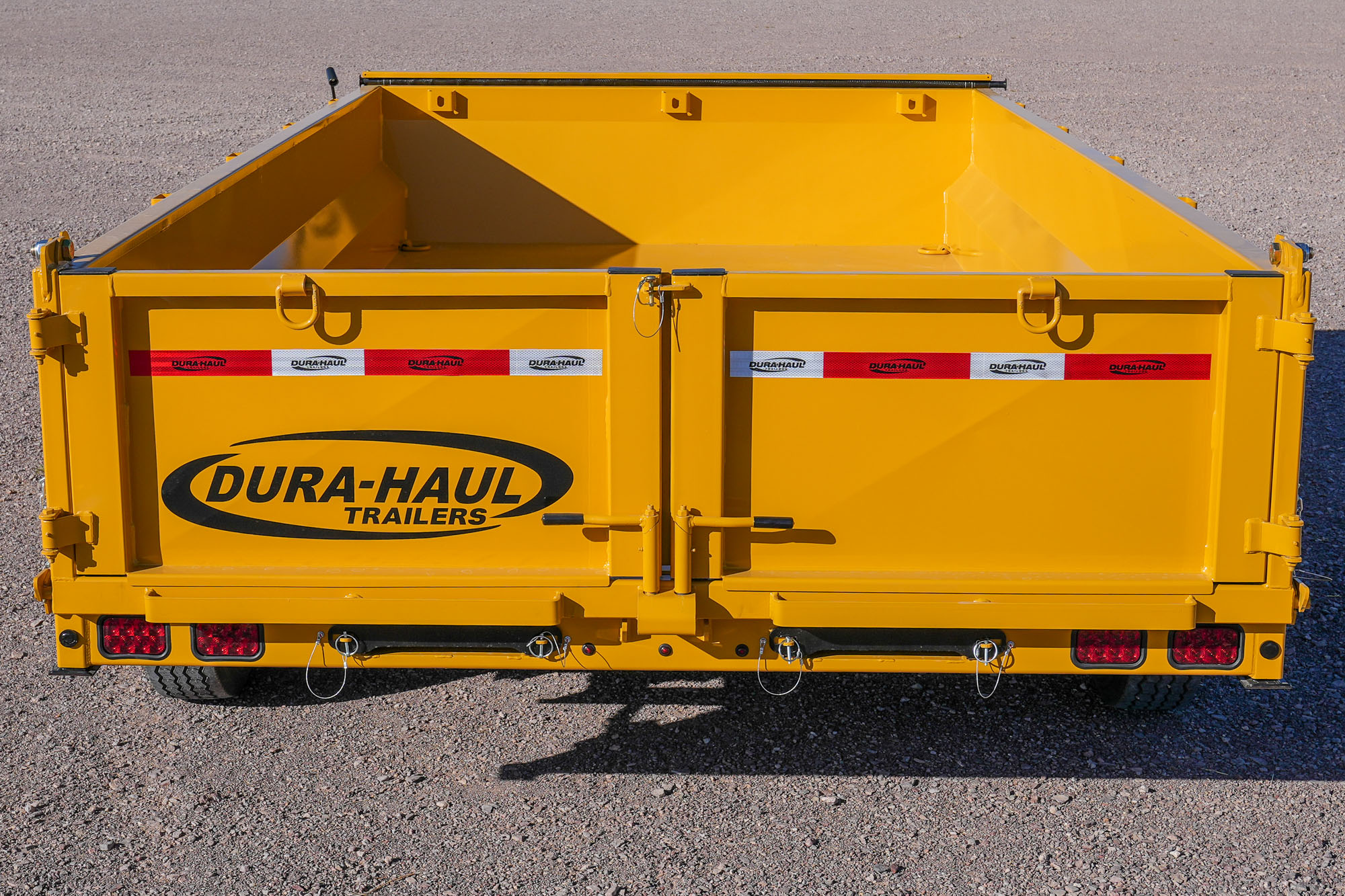

Rear Gate & Doors
| Rear Gate | Adjustable Rear Spreader Gate |
| Doors | Barn Doors |
| Gate Handles | Roadside & Curbside |

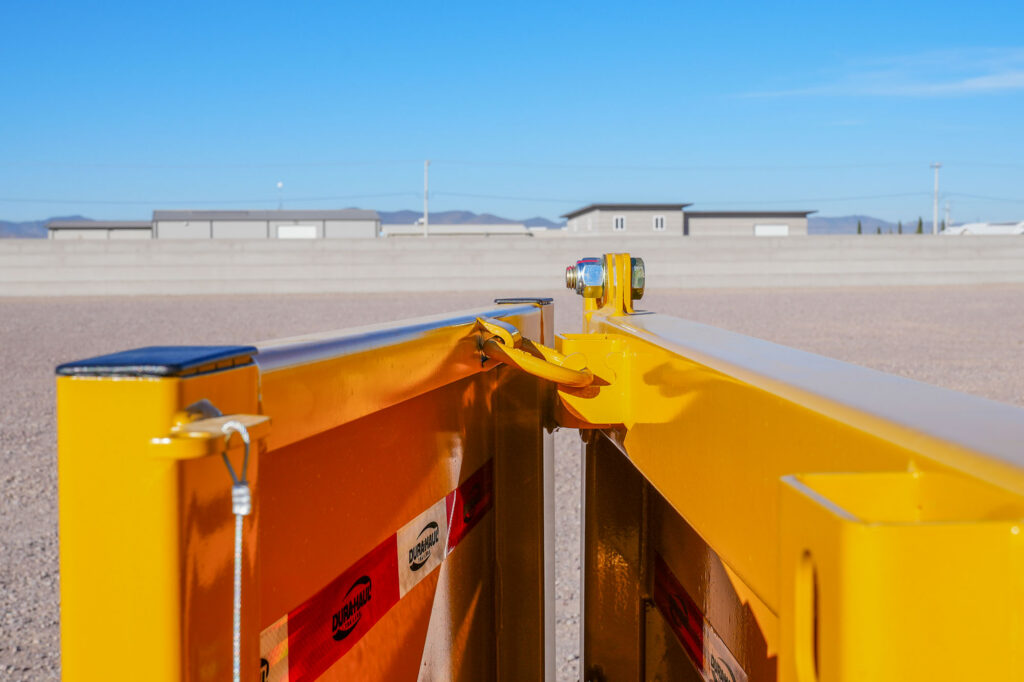

| Door Locking System | Twix Door Locking System |
| Open Door Safety | Open Door Safety Locks |
Axles, Brakes & Suspension
| Axles | 7,000 or 8,000 lb Tandem |
| Brakes | Electric Brakes |
| Suspension | Multi-Leaf Spring with Equalizer |
| Tires — 7K | ST235/80R16 LRE — 10 Ply |
| Tires — 8K | ST235/80R16 LRE — 14 Ply |
| Wheels | 16" 8-Hole |
| Hubs | Quick-Lube Hubs & Dust Caps |
Load Securement

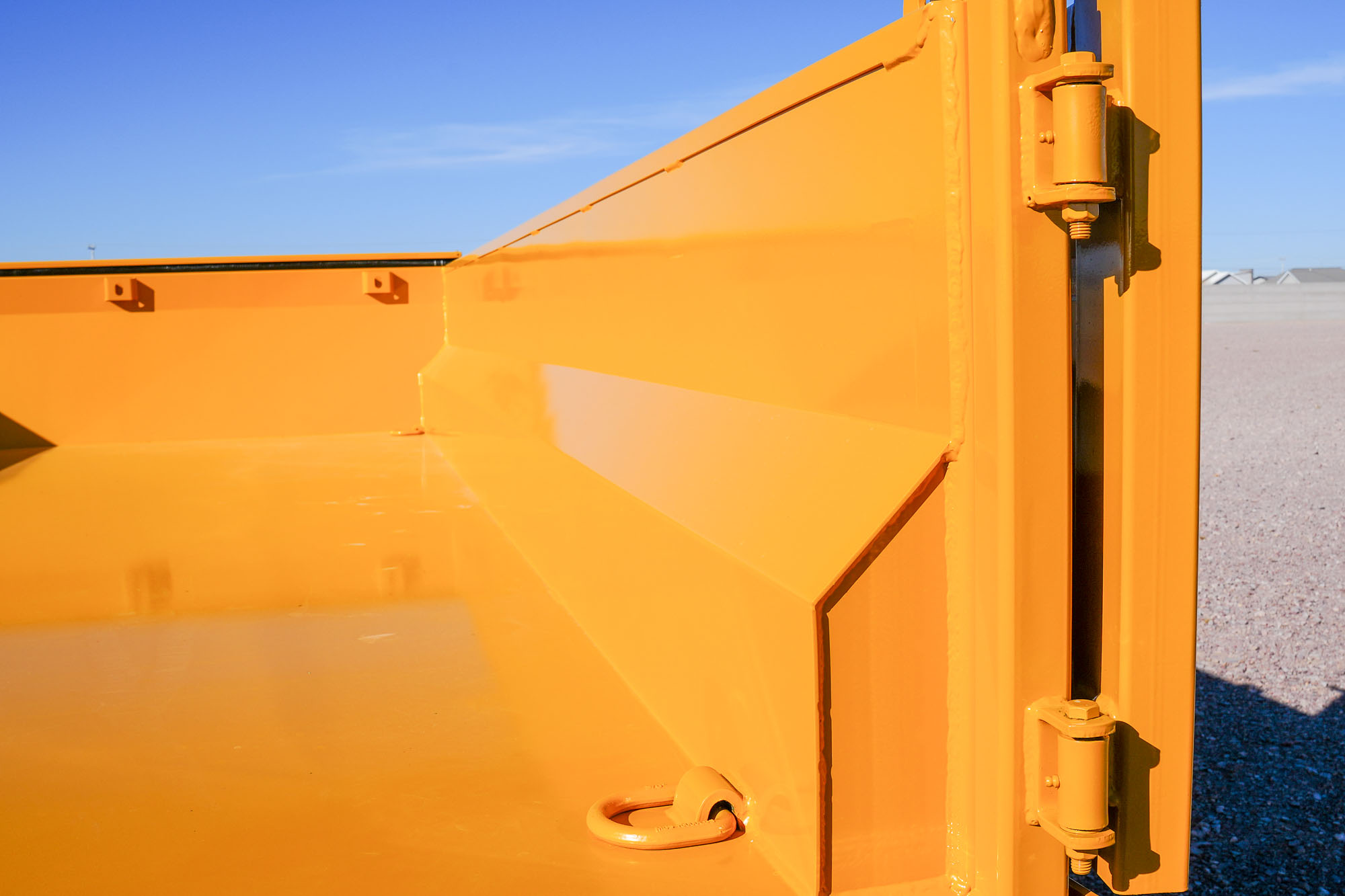

| Interior D-Rings | (4) 5/8" |
| Exterior D-Rings | (6) 1/2" |
| 14' Extension Pockets | 15 |
| 16' Extension Pockets | 17 |
Tarp & Cover
| Tarp System | Tarp and Cover |
| Tarp Width | 91" |
| Tarp Operation | Crank Roller Style |
| Rear Securement | Rear Rod Tarp Hooks |

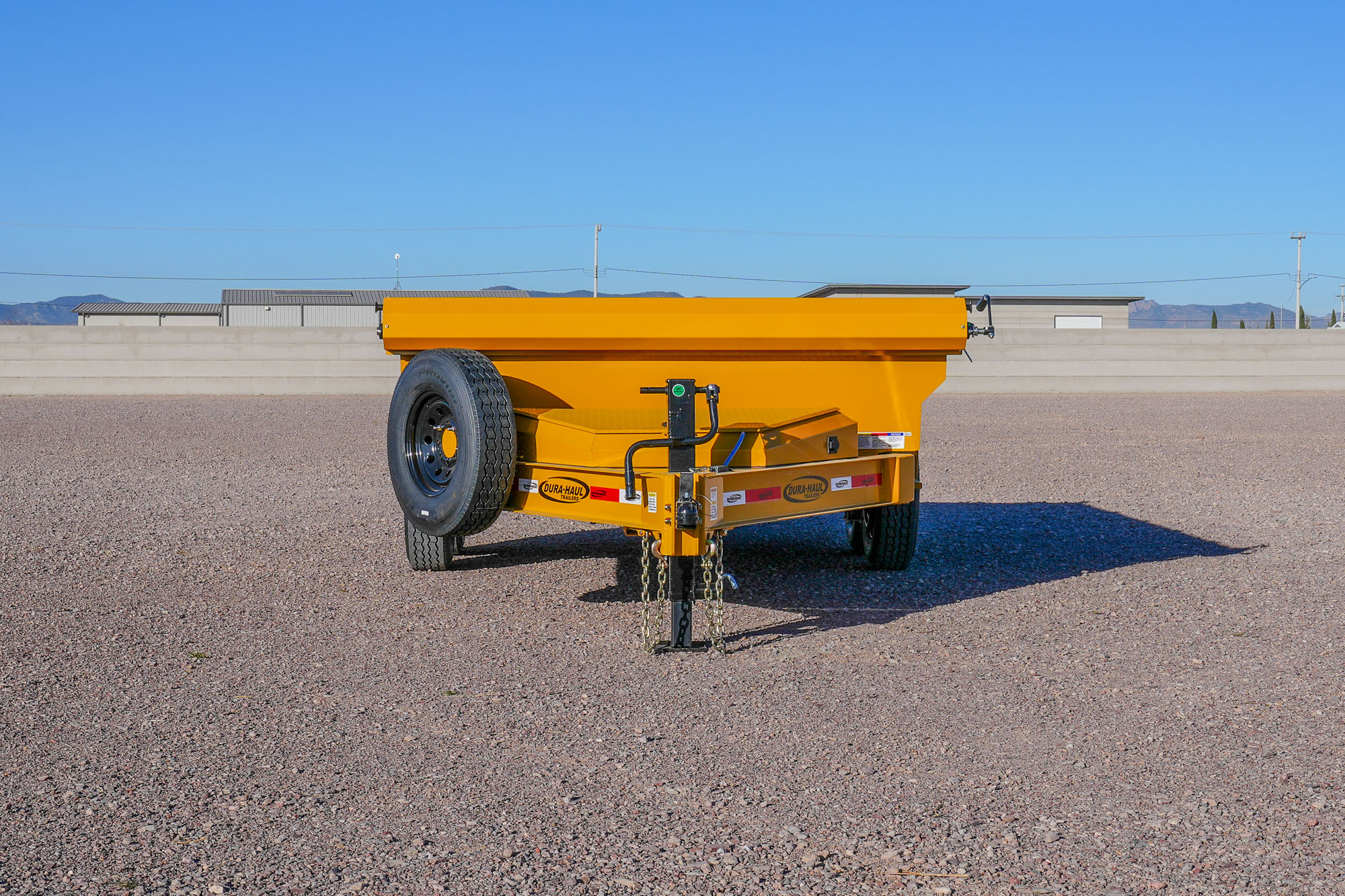

Hitch & Jack
| Coupler | 2-5/16" |
| Hitch Adjustment | 5 Positions |
| Jack | 12,000 lb Spring-Loaded Adjustable Leg Crank Jack |
| Safety Chains | 2 |
Equipment & Convenience
| Side Step | Built-In |
| Fenders | Diamond Plate |
| Spare Tire Mount | Included |
| Lubrication | Grease Zerk |
Electrical & Safety
| Wiring | All-Weather Wiring & Harness |
| Safety Break-Away | System with Cable |
| LED Markers | Fender, Side & Rear — (11) DOT Approved |
| Safety Tape | Reflective DOT Safety Tape |
Finish
| Finish | Superior Powder Coat Paint Finish |
Available Options
| Color | Optional |
| Axles | Optional |
| Electric Tarp | Optional |
| Solar Panel | Optional |
| Hydraulic Jack | Optional |
| Spare Tire | Optional |
Available Options
Choose the Capacity That Fits Your Work
Configure Your DRL-2S. Available options allow you to adapt the trailer to your operation.
Choose Your Trailer
14' DRL-2S
8.45 yd³ Capacity
Approx. Weight: 4,740 lbs
7K or 8K Tandem Axles
A compact configuration with the versatility to haul, load, and dump while maintaining a low-profile design.
16' DRL-2S
9.8 yd³ Capacity
Approx. Weight: 4,960 lbs
7K or 8K Tandem Axles
Additional length and capacity for operations that need more volume while maintaining the same low-profile versatility.
Axles
Select the axle configuration that fits your hauling requirements.
Manual or Electric Tarp
Add convenient electric tarp operation for faster and easier load covering.
Hydraulic Jack
Upgrade the trailer's jack system.
Solar Panel
Add solar charging capability to help maintain the trailer's electrical system.
Spare Tire
Custom Color Options
Match your company branding or fleet appearance with available powder coat color options.
More Than a Dump Trailer
The Dura-Haul DRL-2S gives you the capacity to haul materials, the hydraulic power to dump them, and the low-profile versatility to load when the job demands more.
Haul It. Load It. Dump It.
FAQ
The DRL-2S combines dump trailer capability with a low-profile design and 6’3″ HD Quick Pull Ramps, allowing the trailer to handle material hauling and equipment loading applications.
The DRL-2S is available in 14′ and 16′ lengths.
The 14′ model offers 8.45 cubic yards of capacity, while the 16′ model offers 9.8 cubic yards.
The DRL-2S features an extra-low 27″ deck height, designed to provide easier access during loading.
The trailer uses a heavy-duty hydraulic scissor lift.
The DRL-2S is available with 7,000 lb or 8,000 lb tandem axles, both including electric brakes.
The trailer uses a multi-leaf spring suspension with an equalizer.
Yes. The trailer includes 6’3″ HD Quick Pull Ramps and a rear easy stabilizer.
Available options include color, axles, an electric tarp, solar panel, hydraulic jack, and spare tire.
features

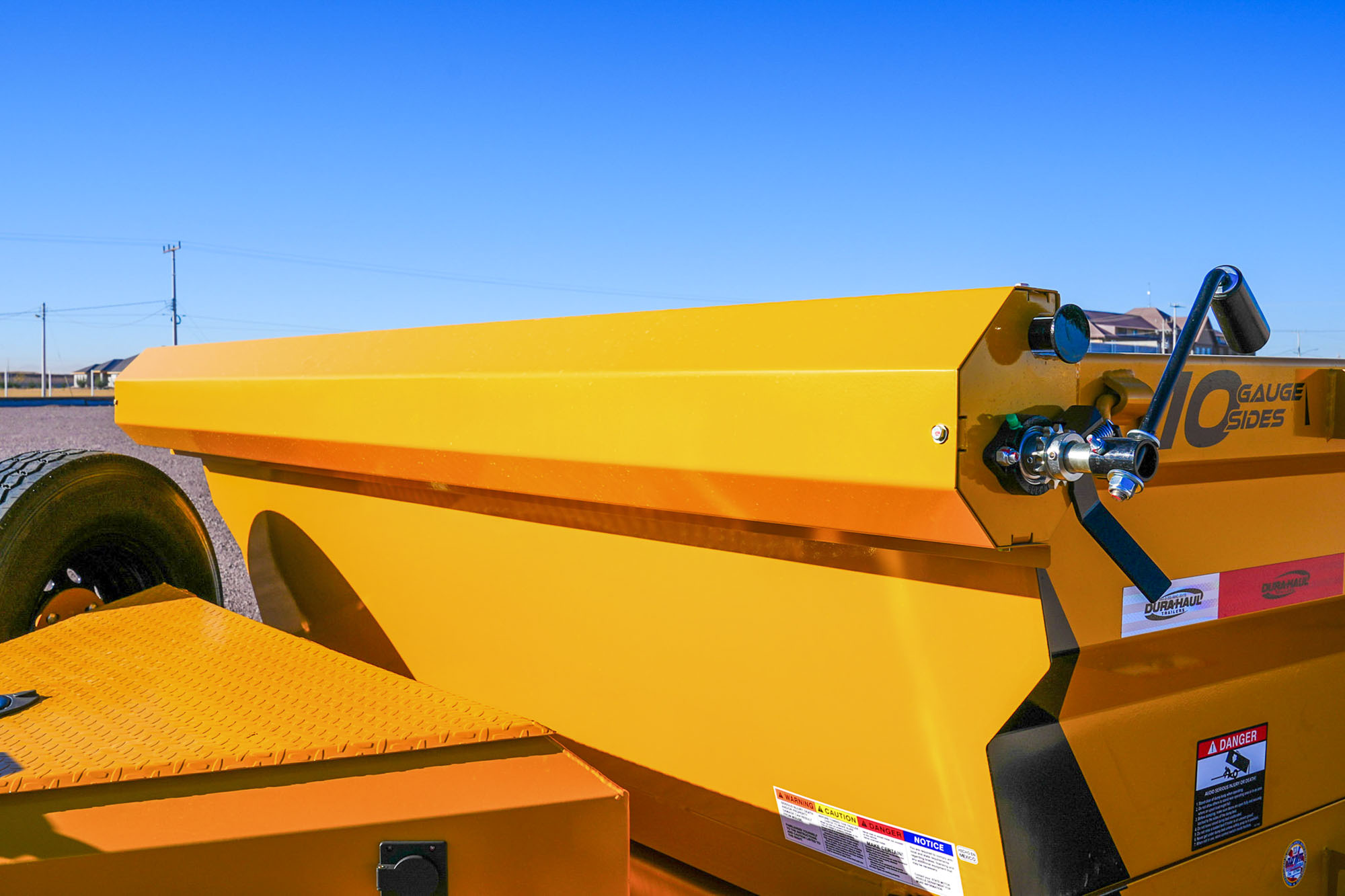

24" Fully Formed 10-Gauge Engineered Sides
Built with a 10-gauge top rail measuring 2.75″ × 4.25″.

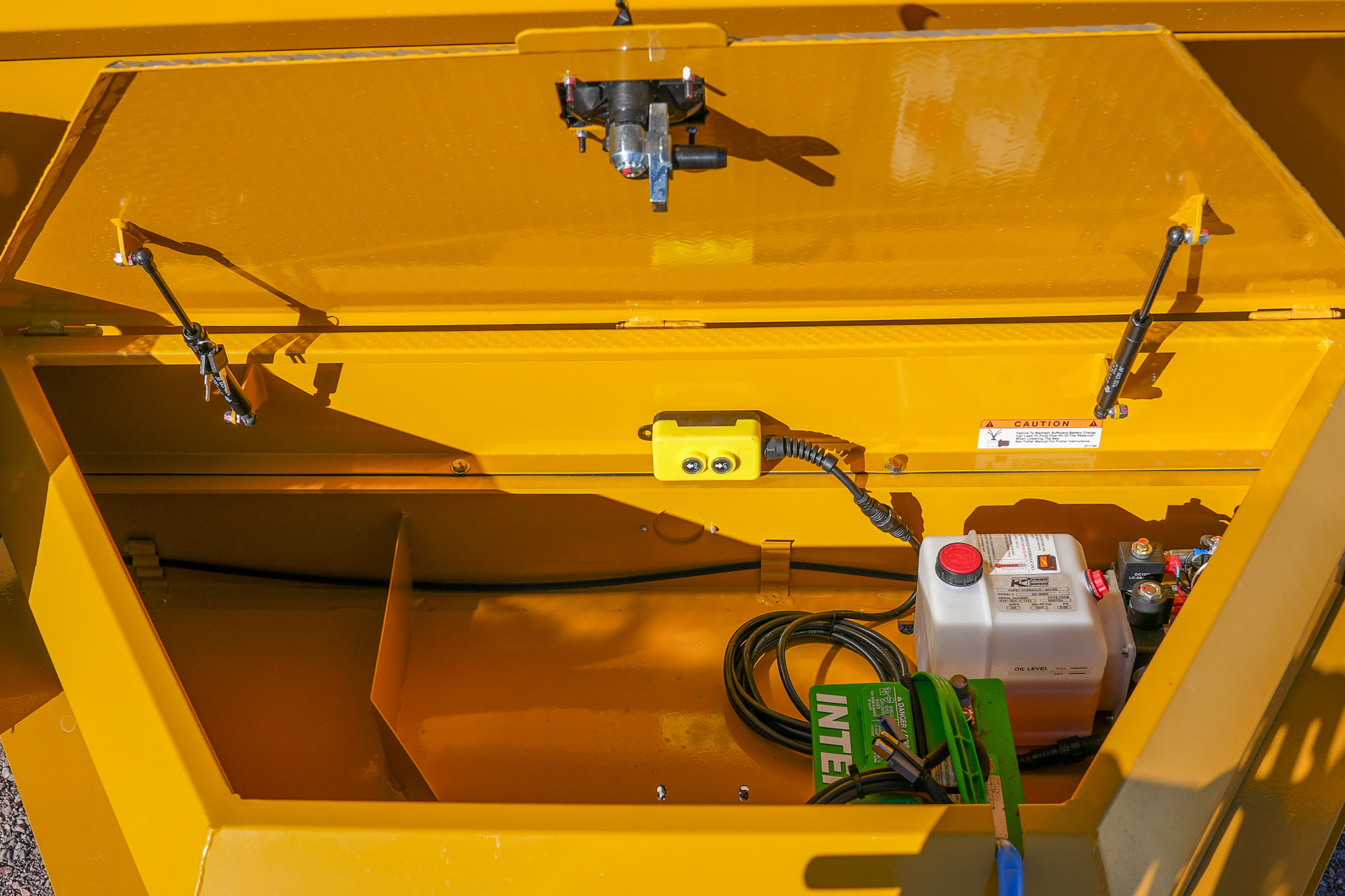

Lockable Hydraulic Toolbox
Our dump trailers feature a durable and spacious toolbox that houses a reliable KTY hydraulic pump. This setup provides easy access to essential tools and ensures your hydraulic system is protected and ready to perform, even in the toughest conditions.
