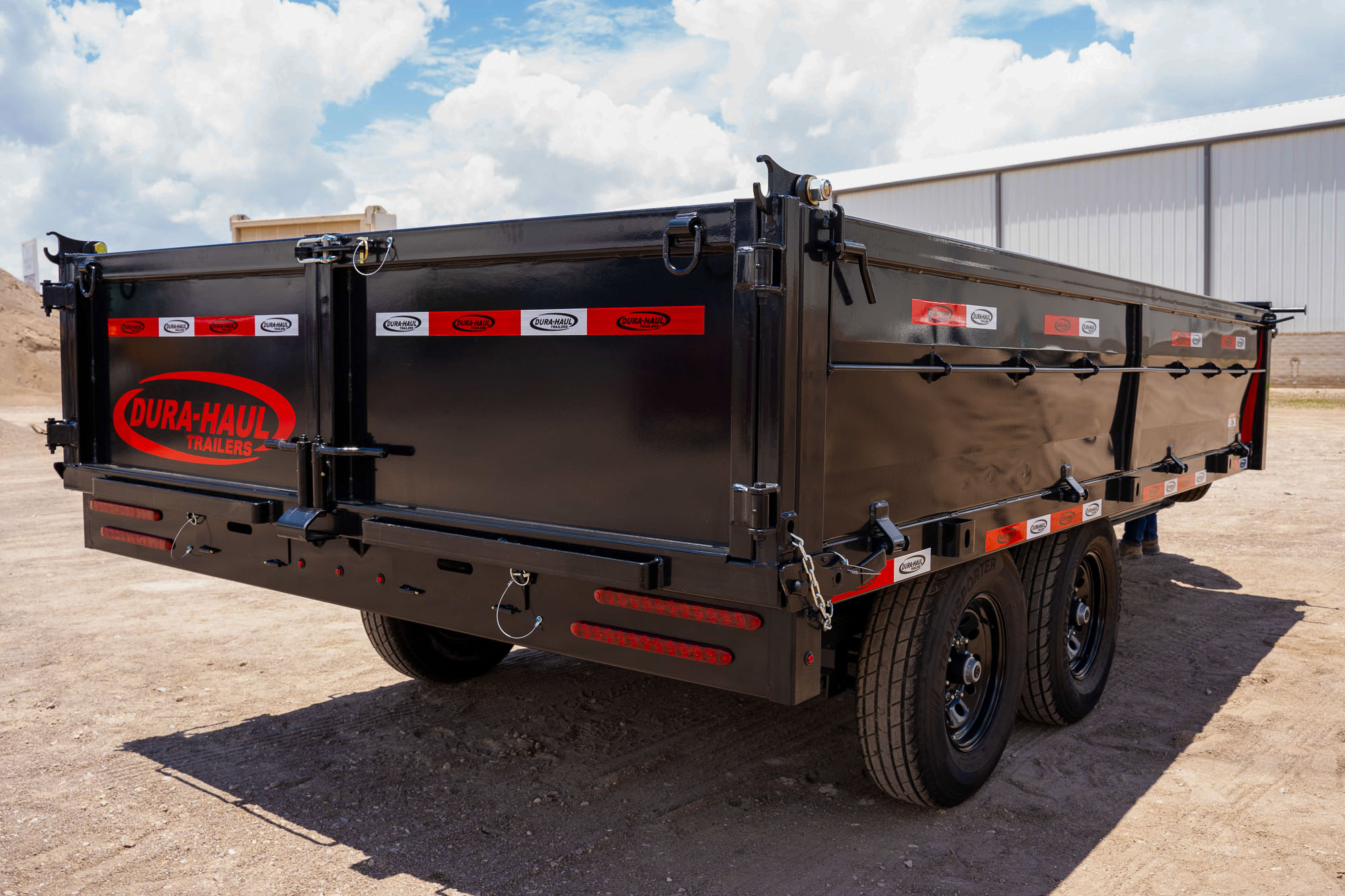

DRF-2S
Built to Load.
Built to Dump.
The Dura-Haul DRF-2S Dump Trailer is built for demanding jobs that require more than a standard dump trailer.
With 24″ fold-down sides, 7′ HD Quick Pull Ramps, an easy-load 34½” deck height, and a heavy-duty hydraulic scissor lift, the DRF-2S gives you the flexibility to load, haul, and unload with confidence.
Available in 8’×14′ and 8’×16′ configurations with up to 16,000 lbs GVWR.
8' × 14'
or 8' × 16'
8.45–9.8 yd³
Capacity
Hydraulic
Scissor Lift
24" Fold-Down
Sides
DRF-2S
DUMP TRAILER
DUMP TRAILER FOLD-DOWN SIDES
The fold down sides dump trailer provides unmatched versatility, allowing for easy side loading and unloading, perfect for efficient material handling.
Quick Specifications
ONE TRAILER. MORE WAYS TO WORK.
Load It. Haul It. Dump It.
The DRF-2S is designed for crews that need flexibility throughout the workday.
LOAD EQUIPMENT
Use the 7' HD Quick Pull Ramps, fold-down sides, and 34½" deck height to make loading more practical for compatible equipment and jobsite needs.
HAUL MATERIAL
With up to 9.8 yd³ of capacity, the DRF-2S is ready for material hauling, cleanup, landscaping, and other demanding applications.
DUMP AND MOVE ON
When the job calls for unloading, the heavy-duty hydraulic scissor lift provides the power to raise the dump body and keep your operation moving.
Designed to Make Loading Easier
The DRF-2S combines an easy-load 34½” deck height with 7′ HD Quick Pull Ramps to provide a practical loading setup.

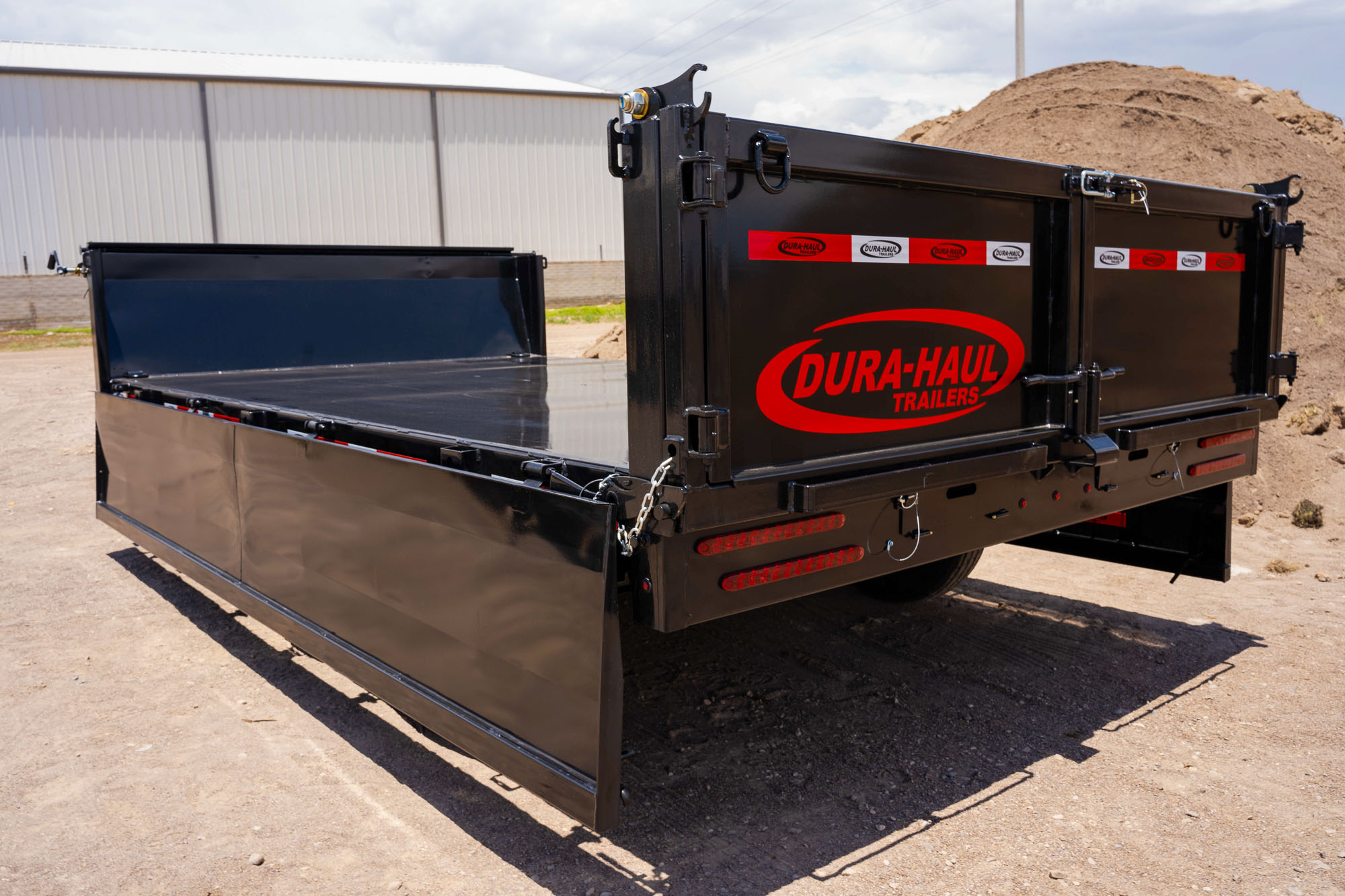

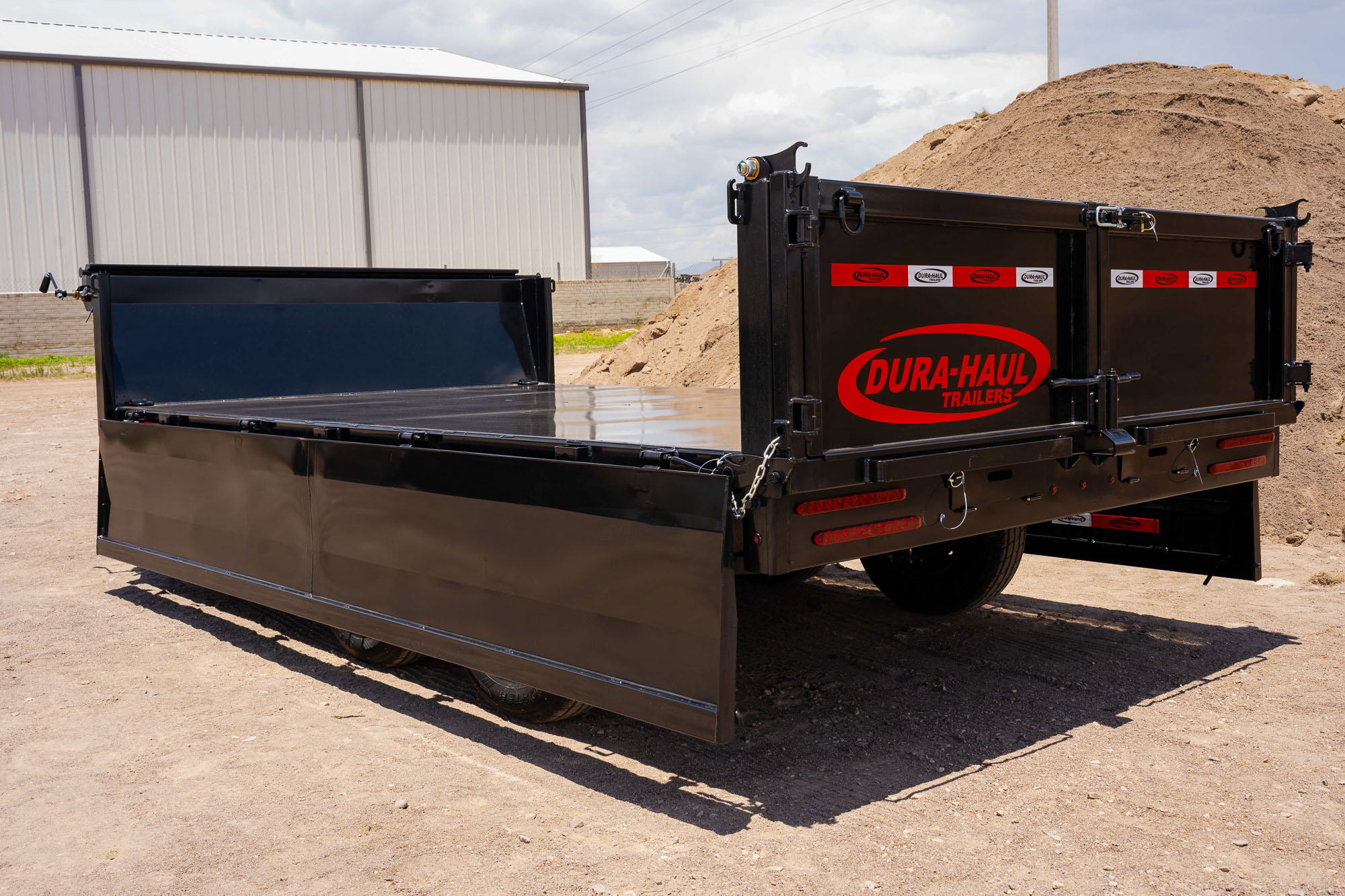

The DRF-2S features 24″ high fully formed fold-down sides, giving the trailer added versatility when loading, accessing, or working around the trailer.
When raised, the sides help contain the load. When lowered, they provide easier access to the trailer bed.
34½"
Deck Height
A low-profile design that helps improve access when loading.

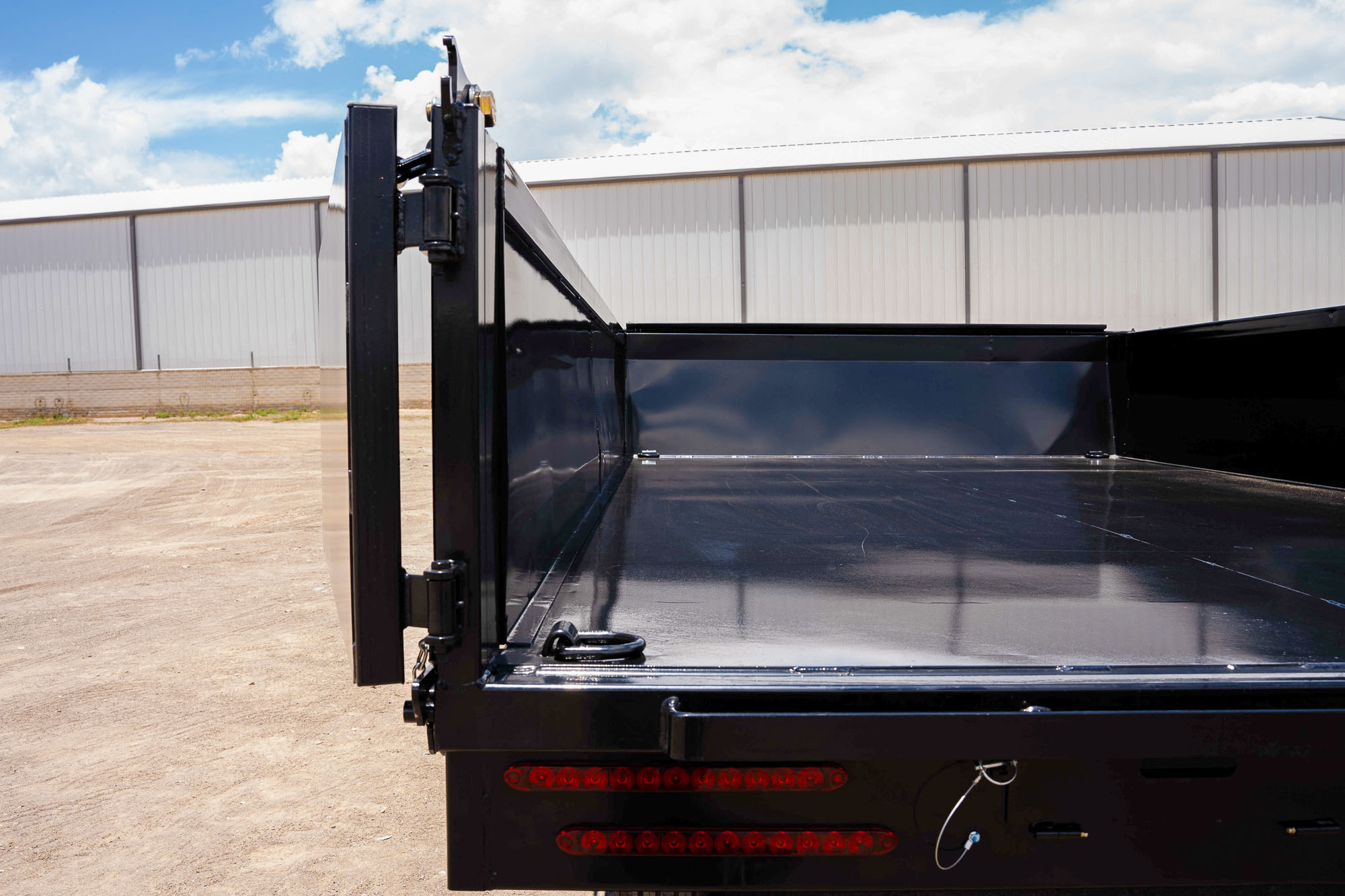

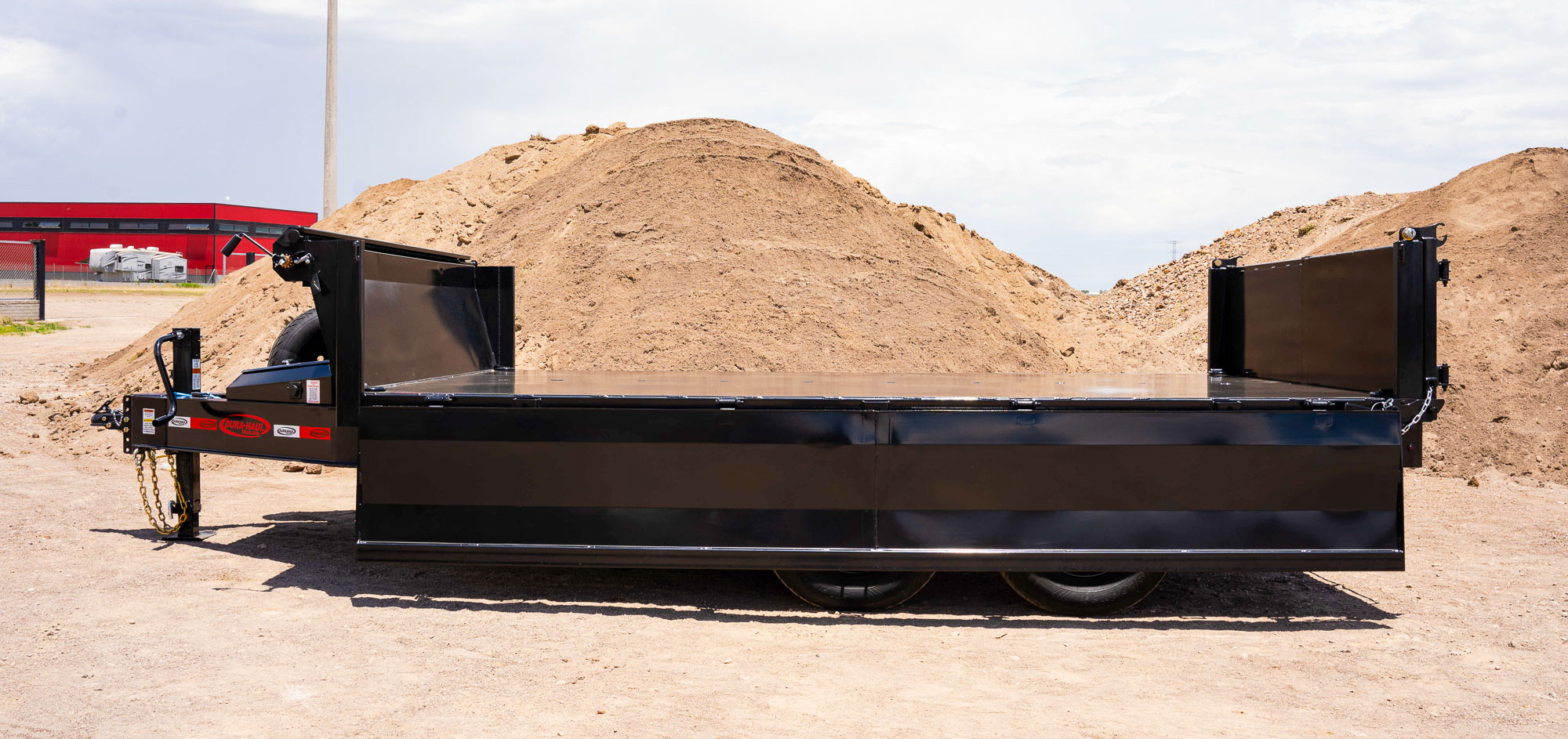

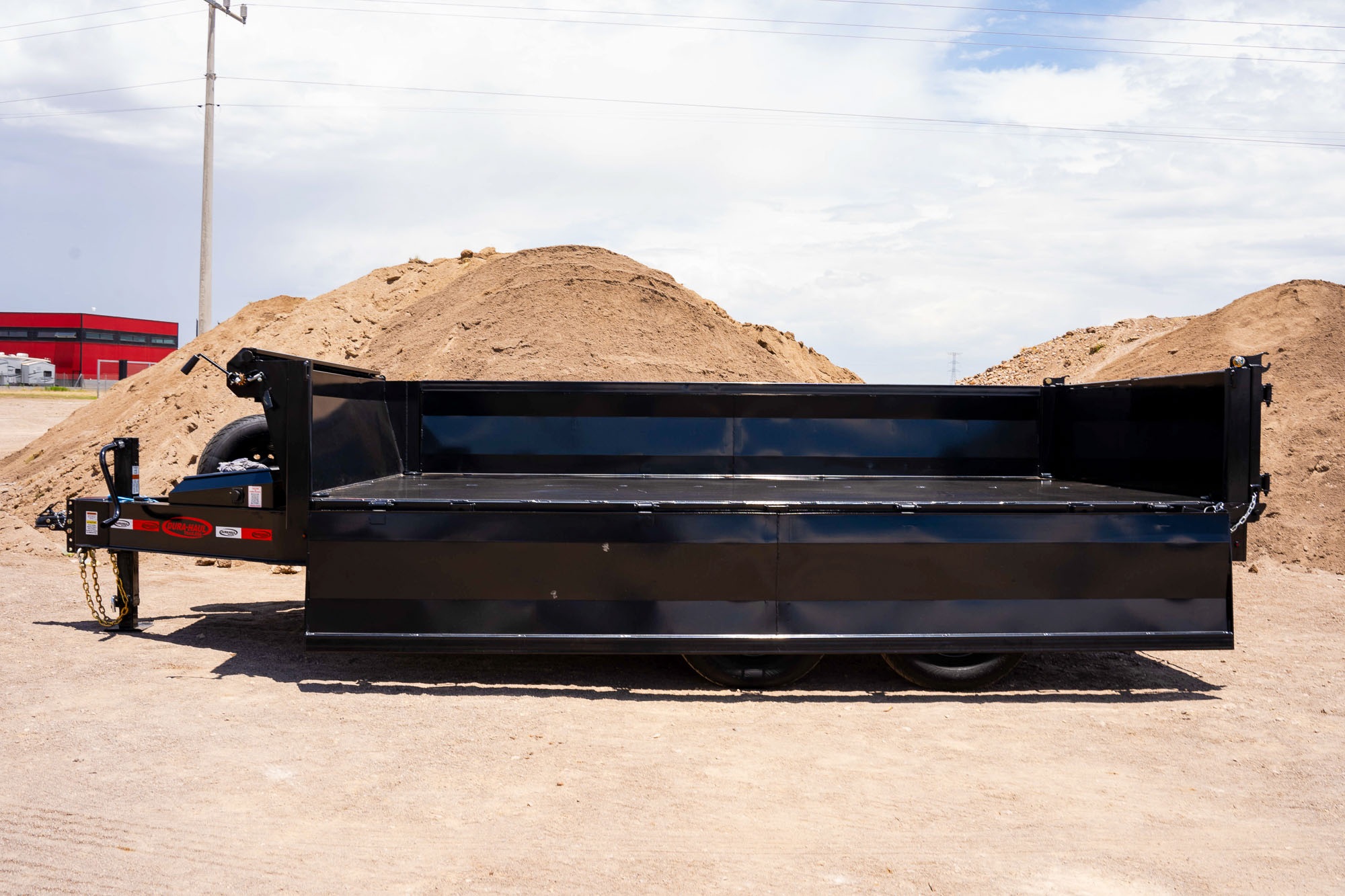

24" High Fold-Down Sides
Lower the sides when easier access to the trailer bed is needed.

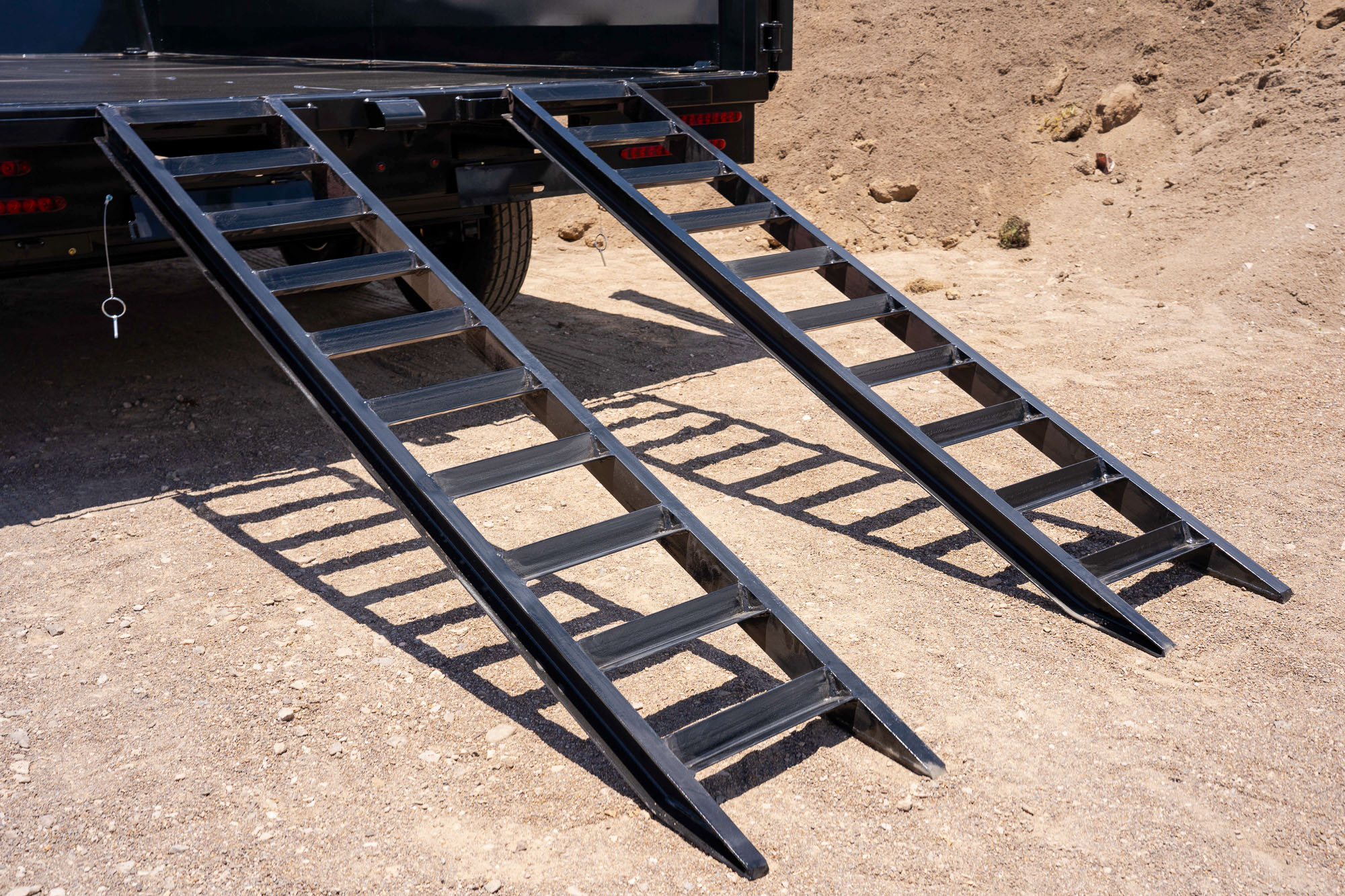

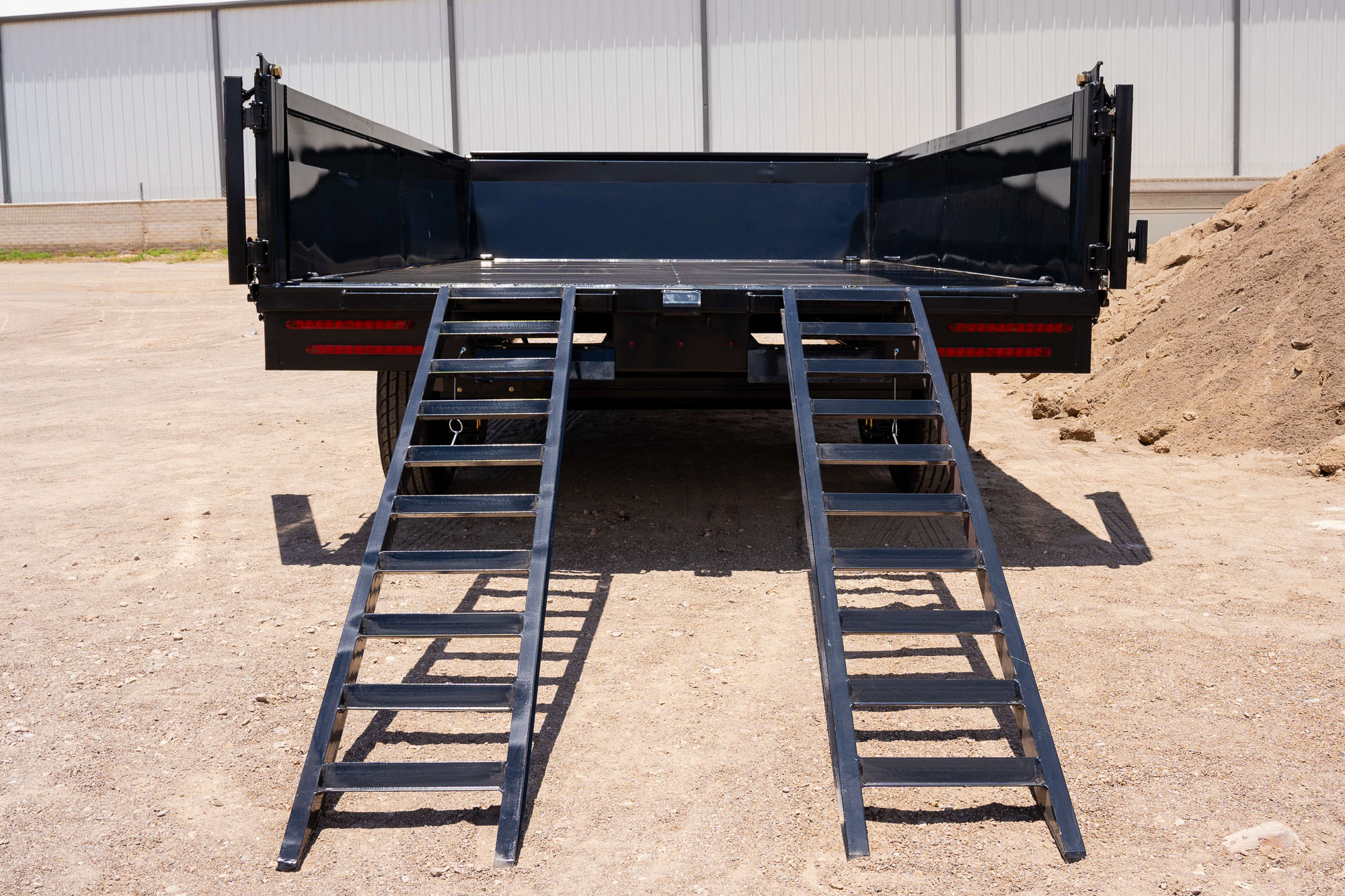

7' HD Quick Pull Ramps
Heavy-duty ramps designed for convenient deployment and storage.

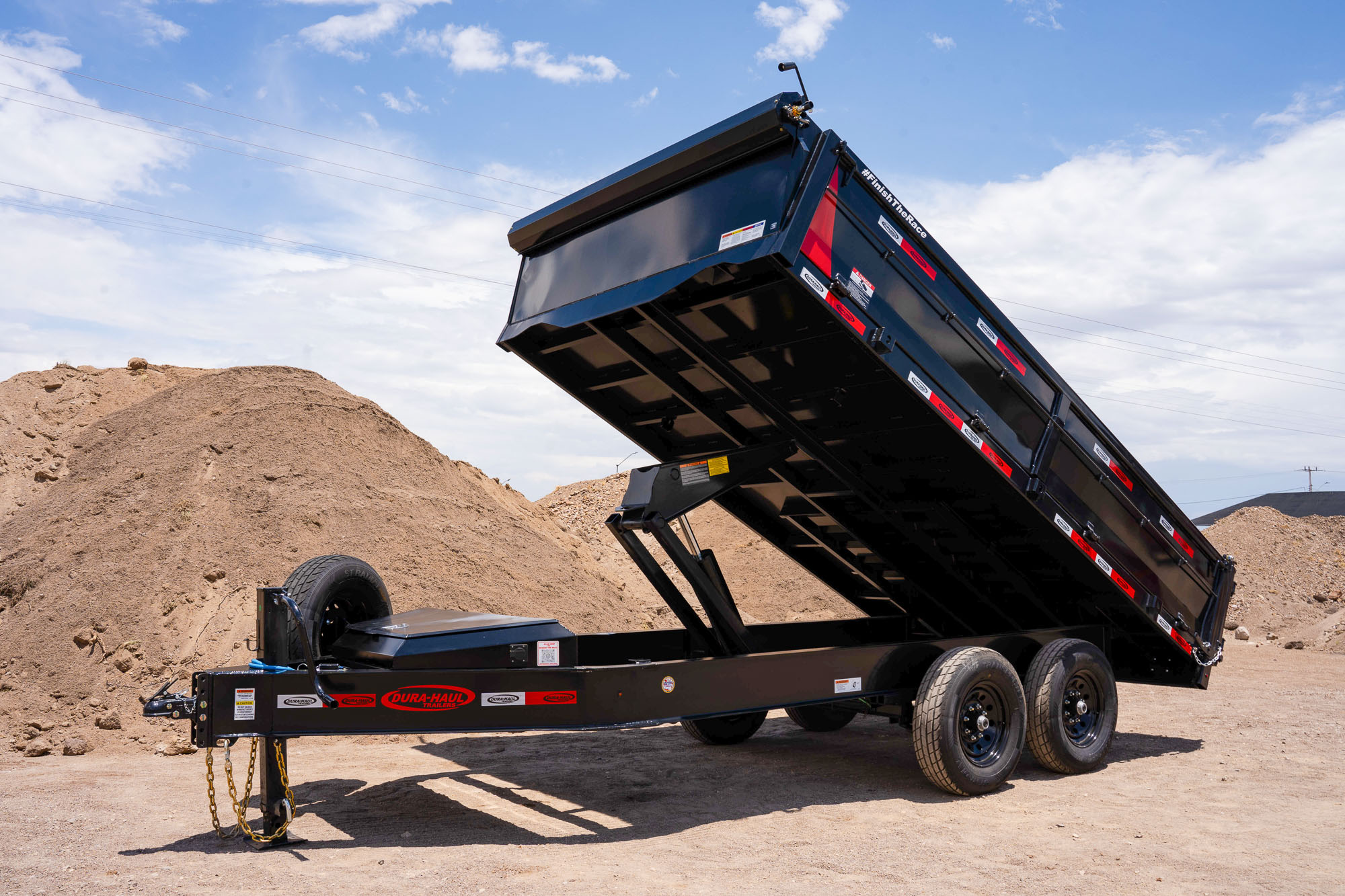

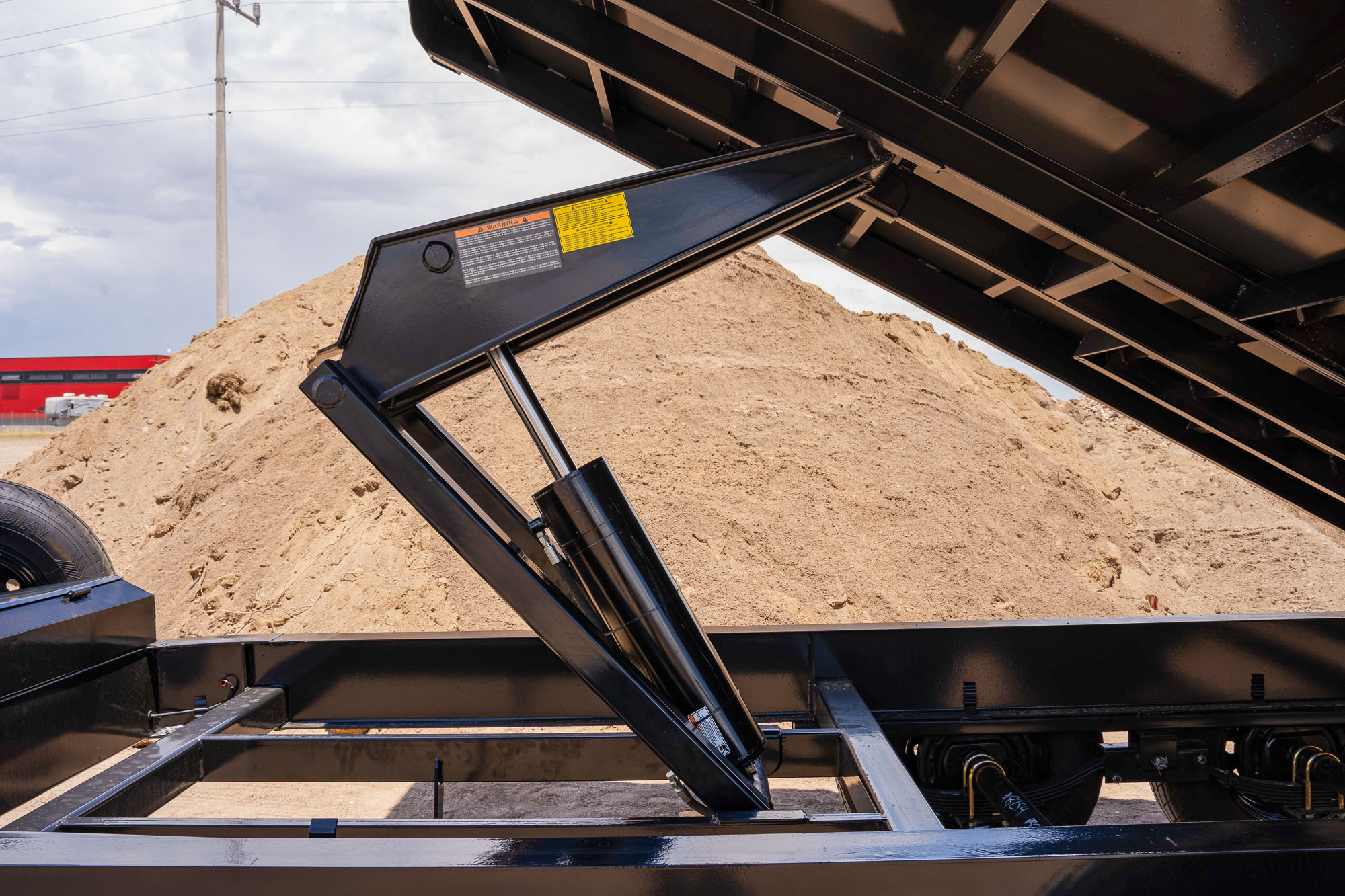

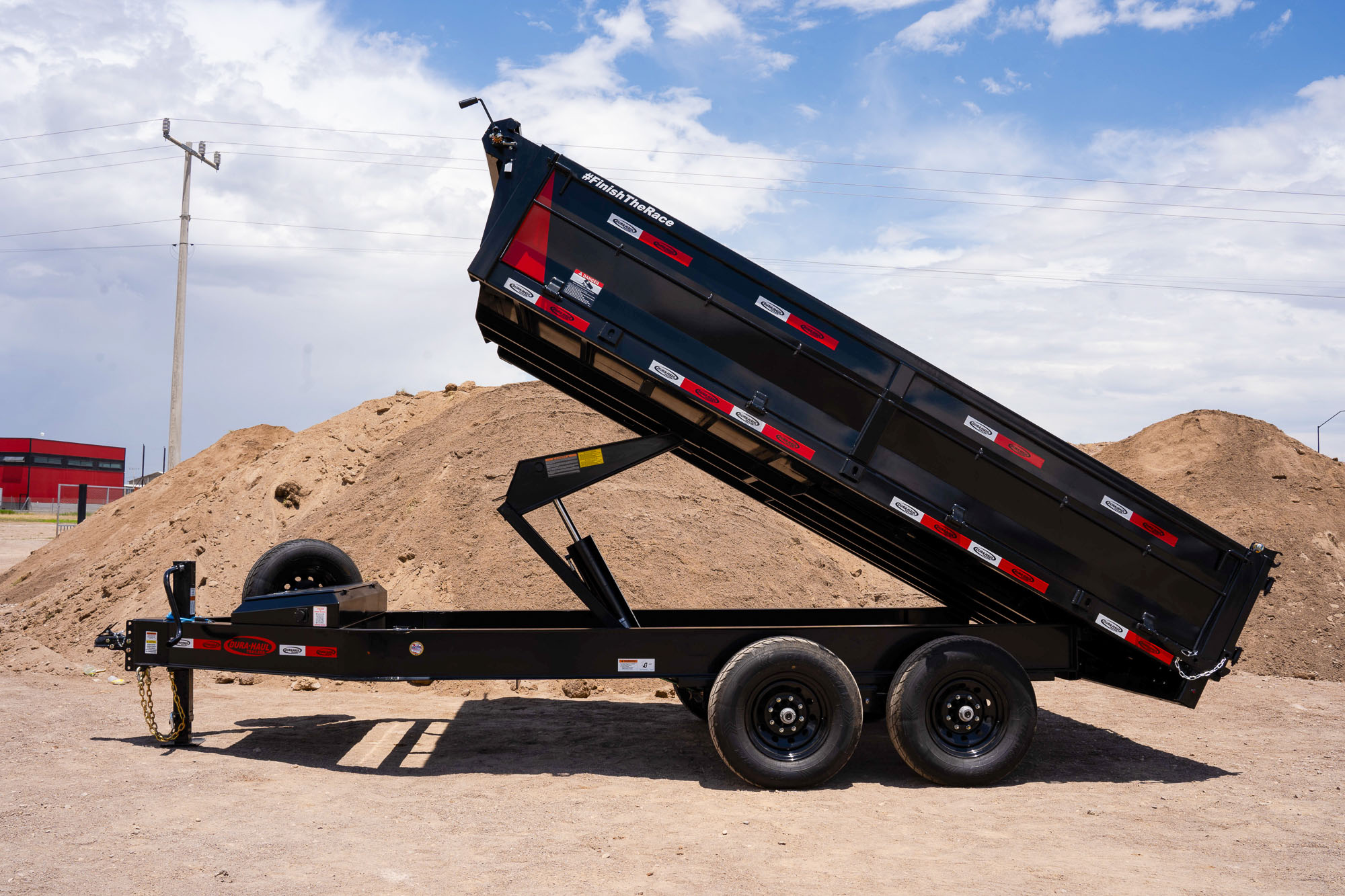

Heavy-Duty Hydraulic Scissor Lift
Designed for dependable lifting and dumping performance.

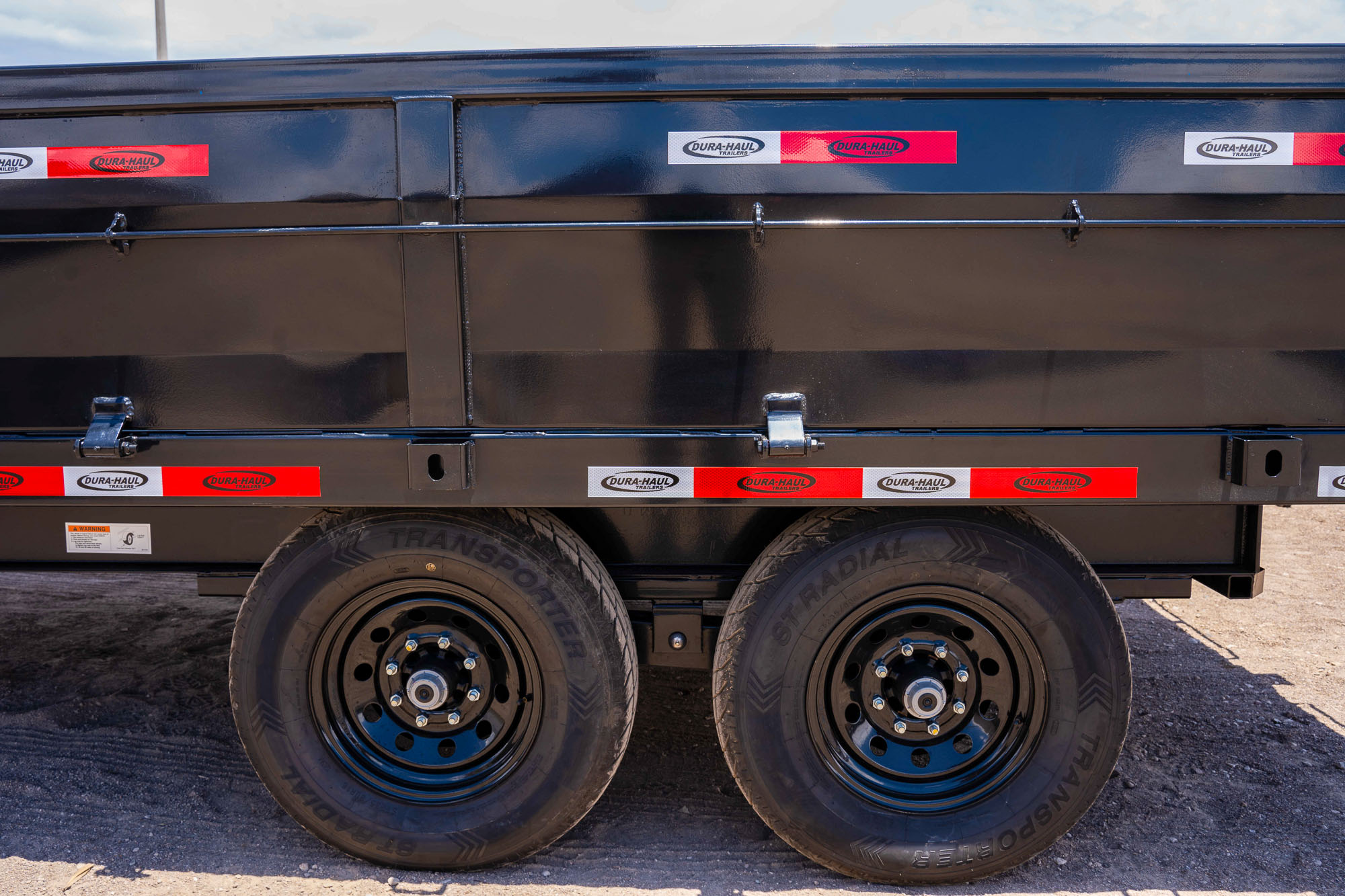

7K or 8K Tandem Axles
Available axle configurations.

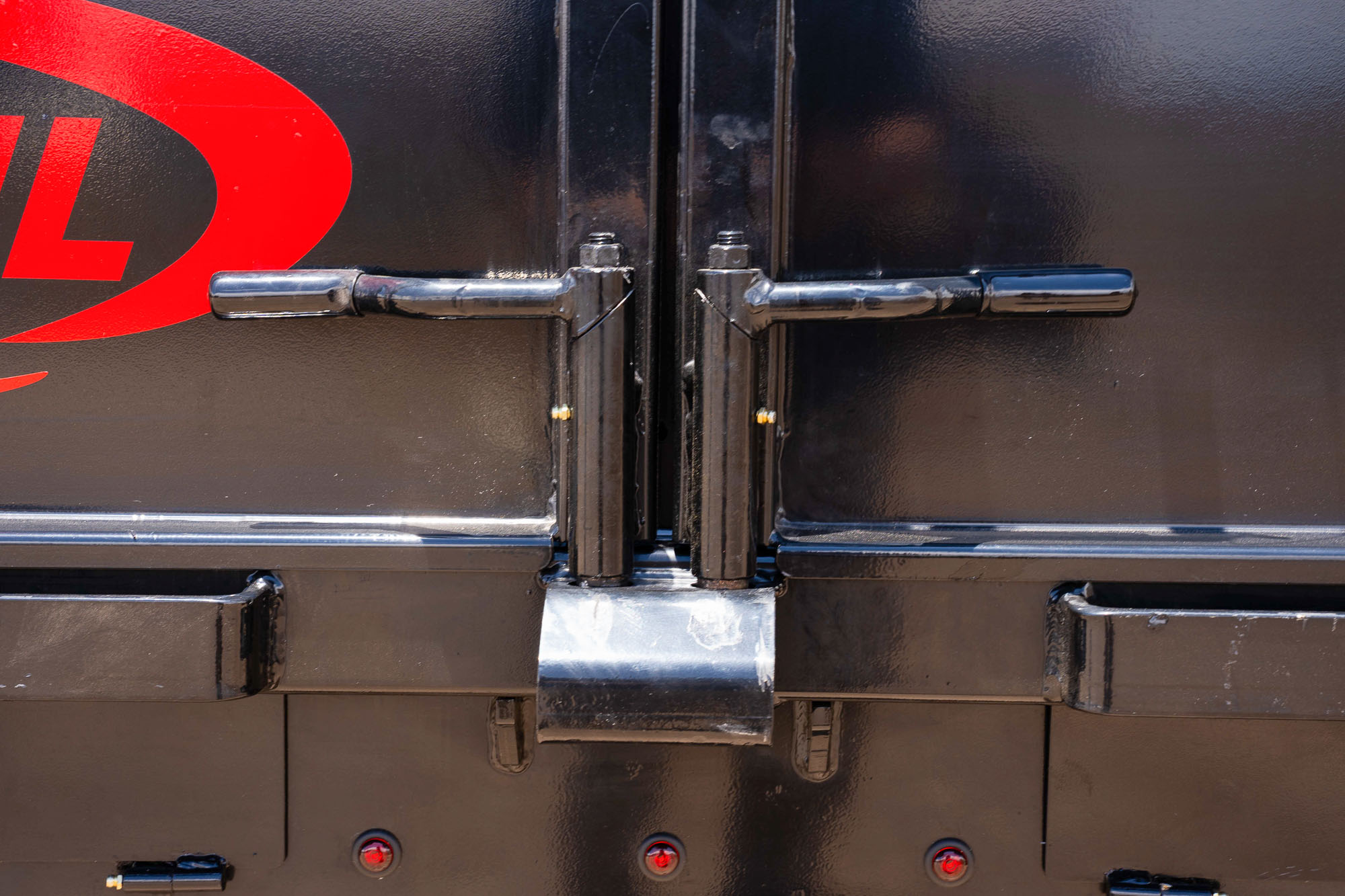

Twix Door Locking System
Designed to secure the rear door system.
10" Ultra Strong
I-Beam Frame
A strong foundation for demanding hauling and dumping applications.
10-Gauge Smooth Plate Flooring
A durable steel floor designed for demanding work.
Roadside & Curbside Handles
Convenient access to operate the spreader gate from either side.
Technical Specifications
The Dura-Haul DRF-2S combines fold-down sides, equipment-loading capability, and heavy-duty hydraulic dumping performance in a versatile dump trailer platform.
General Specifications
| Available Sizes | 8' × 14' / 8' × 16' |
| Capacity | 8.45–9.8 yd³ |
| GVWR | 14,000–16,000 lbs |
| Side Height | 24" |
| Deck Height | 34½" |
| Tarp Width | 96" |
Size & Capacity
| Size | Axles | Capacity | GVWR | Weight |
|---|---|---|---|---|
| 8' × 14' | 7K–8K | 8.45 yd³ | 14,000–16,000 lbs | 4,916 lbs |
| 8' × 16' | 7K–8K | 9.8 yd³ | 14,000–16,000 lbs | 5,196 lbs |
Frame & Body
| Frame | 10" Ultra Strong I-Beam |
| Flooring | 10-Gauge Smooth Plate |

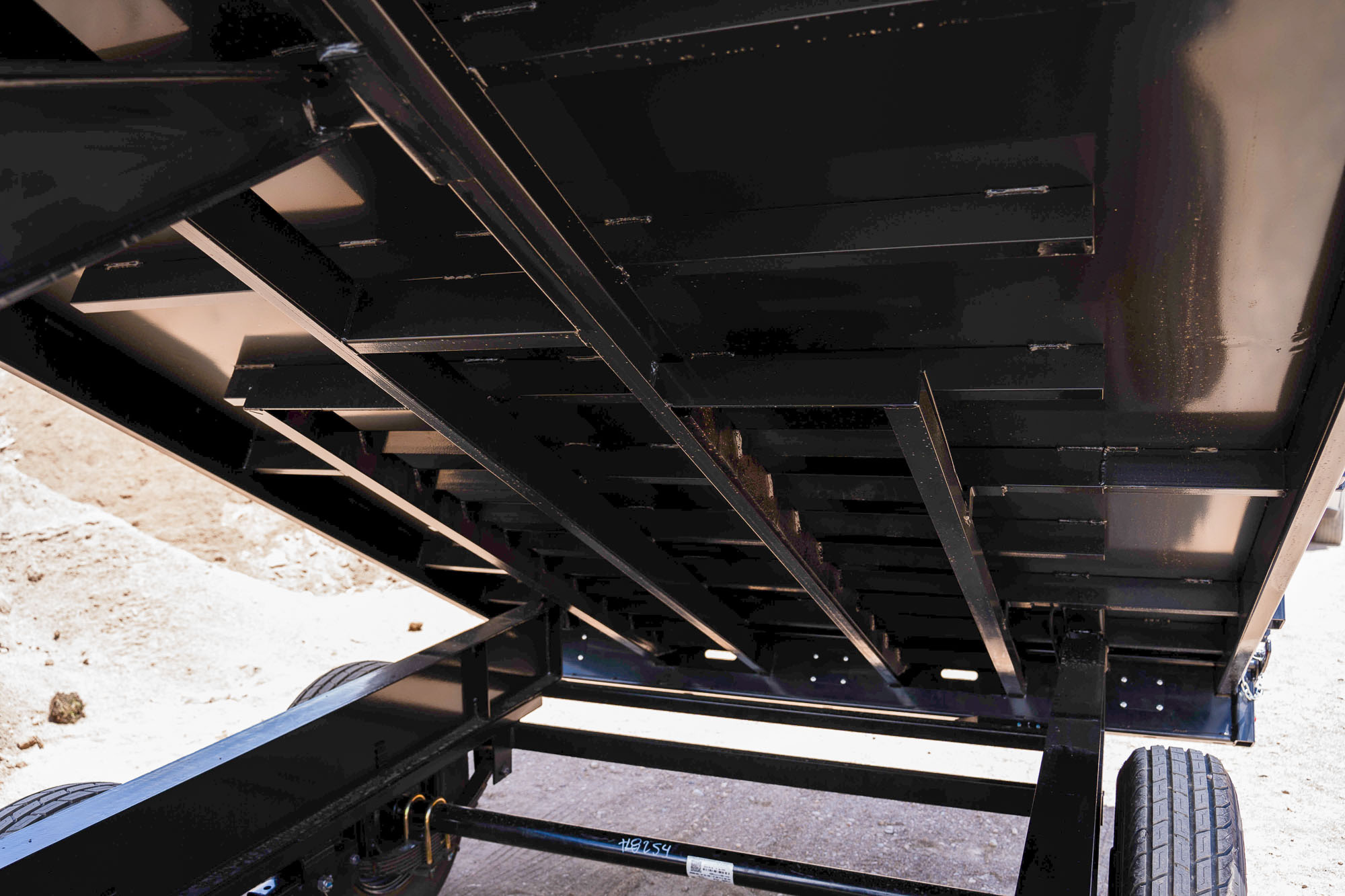

| Bed Cross-Members | 3" Channel — 16" OC |
| Side Height | 24" |
| Sides | Fully Formed Fold-Down Sides |
| Side Construction | 12-Gauge HSS 3" × 2" / 11-Gauge |
Hydraulic System
| Lift System | Heavy-Duty Hydraulic Scissor Lift |
| Hydraulic Equipment | Pump, Battery, Charger & Remote Control |
| Toolbox | Lockable Toolbox |
Loading
| Deck Height | Easy-Load 34½" |
| Ramps | HD Quick Pull Ramps — 7' Long |

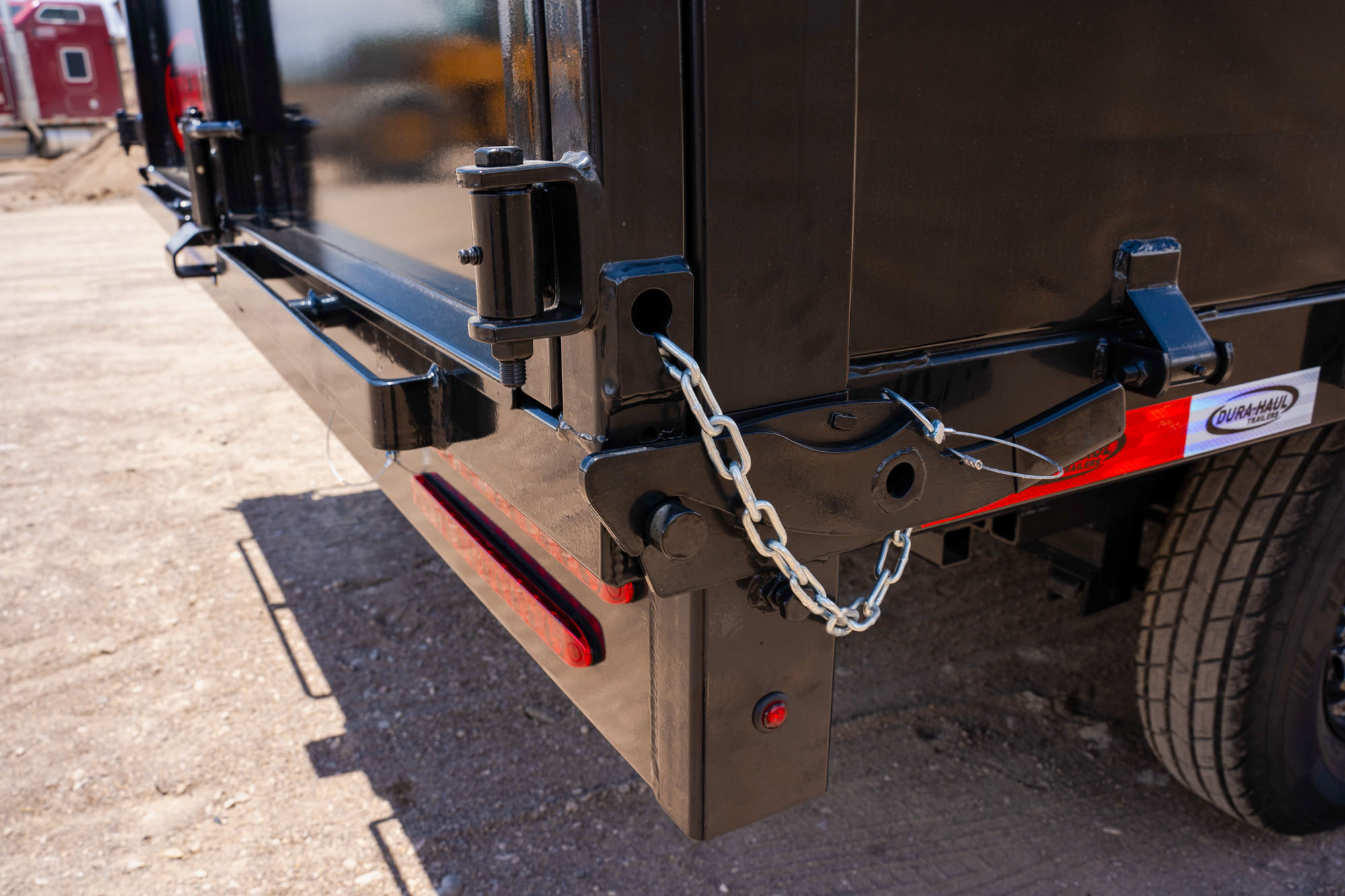

Rear Gate & Doors
| Rear Gate | Adjustable Rear Spreader Gate |
| Doors | Barn Doors |
| Gate Handles | Roadside & Curbside |
| Door Locking System | Twix Door Locking System |
| Open Door Safety | Open Door Safety Locks |
Axles, Brakes & Suspension
| Axles | 7,000 or 8,000 lb Tandem |
| Brakes | Electric Brakes |
| Suspension | Multi-Leaf Spring with Equalizer |
| Tires — 7K | ST235/80R16 LRE — 10 Ply |
| Tires — 8K | ST235/80R16 LRE — 14 Ply |
| Wheels | 16" 8-Hole |
| Hubs | Quick Lube Hubs & Dust Caps |
Load Securement
| Interior D-Rings | (4) 5/8" |
| Exterior D-Rings | (2) 1/2" |

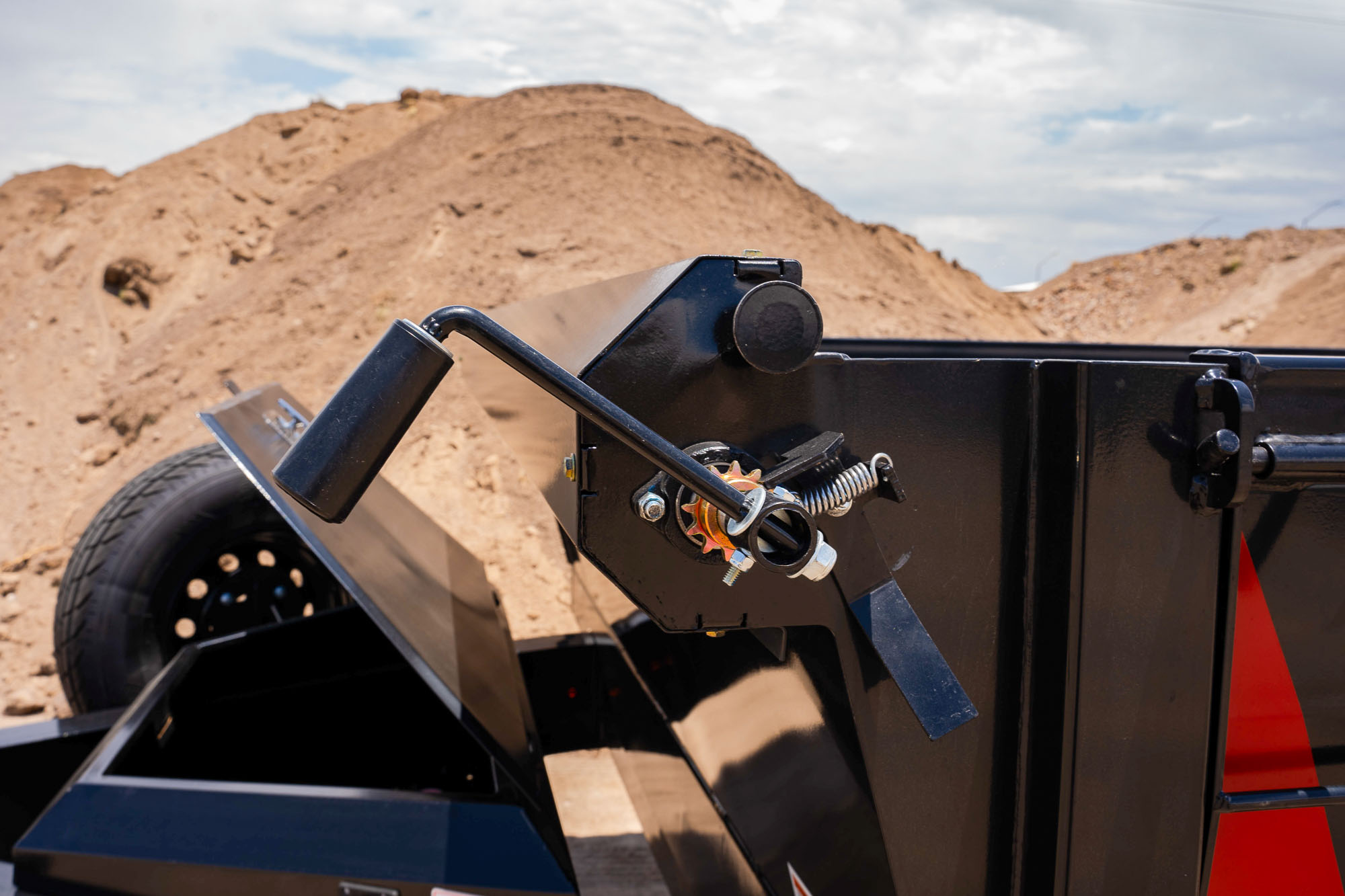

Tarp & Cover
| Tarp System | Tarp and Cover |
| Tarp Width | 96" |

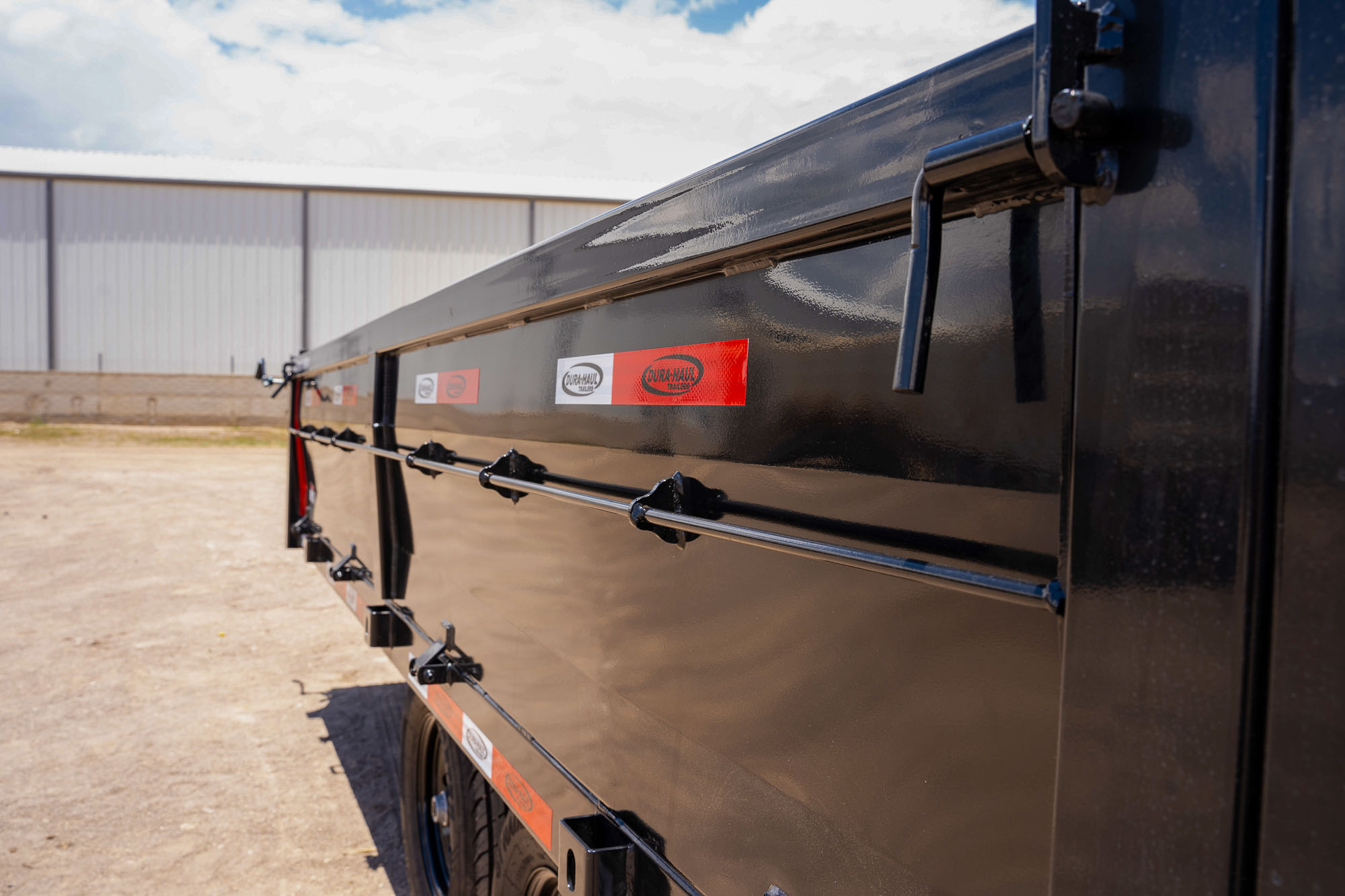

| Tarp Operation | Crank Roller Style |
| Rear Securement | Rear Rod Tarp Hooks |
Hitch & Jack
| Coupler | 2-5/16" Adjustable Coupler — 5 Positions |
| Jack | 12,000 lb Spring-Loaded Adjustable Leg Crank Jack |
| Safety Chains | 2 |
Equipment & Convenience
| Lubrication | Grease Zerk |

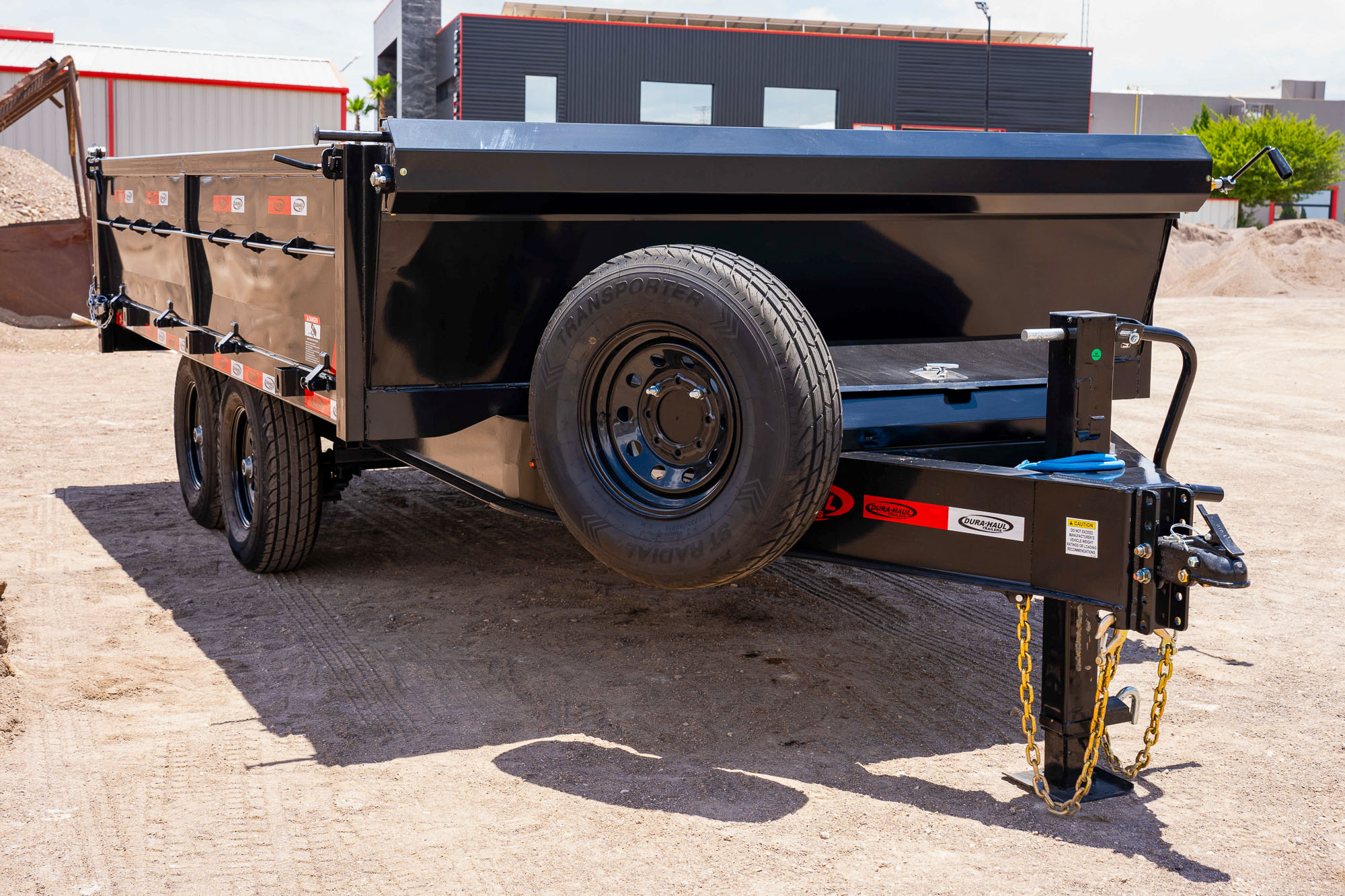

| Spare Tire | Spare Tire and Mount |
Electrical & Safety
| Wiring | All-Weather Wiring & Harness |
| Safety Break-Away | System with Cable |
| LED Markers | Fender, Side & Rear — (9) DOT Approved |
| Safety Tape | Reflective DOT Safety Tape |
Finish
| Finish | Superior Powder Coat Paint Finish |
Available Options
| Color | Optional |
| Axles | Optional |
| Solar Panel | Optional |
| Hydraulic Jack | Optional |
| Spare Tire | Optional |
Available Options
CHOOSE YOUR DRF-2S
Two Sizes. Built for Different Demands. Configure It for Your Operation.
Choose Your Trailer
8' × 14' DRF-2S
8.45 yd³ Capacity
Approx. Weight: 4,916 lbs
7K or 8K Tandem Axles
A versatile configuration for operators who need a combination of hauling capacity, fold-down sides, equipment-loading flexibility, and hydraulic dumping performance.
8' × 16' DRF-2S
9.8 yd³ Capacity
Approx. Weight: 5,196 lbs
7K or 8K Tandem Axles
Additional length and capacity for operations that need more room while maintaining the flexibility of the fold-down side design.
Axles
Select the axle configuration that fits your hauling requirements.
Hydraulic Jack
Upgrade the trailer's jack system.
Solar Panel
Add solar charging capability to help maintain the trailer's electrical system.
Spare Tire
Custom Color Options
Match your company branding or fleet appearance with available powder coat color options.
More Flexibility for the Work Ahead
From loading and hauling to controlled unloading, the Dura-Haul DRF-2S is built to give your operation more ways to work.
With fold-down sides, HD ramps, a strong 10″ I-Beam frame, and heavy-duty hydraulic dumping power, it’s ready for the demands of the job.
Load It. Haul It. Dump It. Your Way.
FAQ
The DRF-2S is available in 8’×14′ and 8’×16′ configurations. The 14′ model offers 8.45 yd³ of capacity, while the 16′ model provides 9.8 yd³.
The DRF-2S combines 24″ fold-down sides, 7′ HD Quick Pull Ramps, a 34½” deck height, and a heavy-duty hydraulic scissor lift to provide added flexibility for different types of work.
The trailer uses a heavy-duty hydraulic scissor lift. The pump, battery, charger, and remote control are housed in a lockable toolbox.
Yes. The trailer includes 7′ long HD Quick Pull Ramps.
The DRF-2S is available with 7,000 lb or 8,000 lb tandem axles, both including electric brakes.
The 24″ fold-down sides provide additional flexibility by allowing easier access to the trailer bed when lowered while helping contain the load when raised.
The trailer features an adjustable rear spreader gate and barn doors, along with roadside and curbside handles, a Twix door locking system, and open door safety locks.
Available options include color, axles, solar panel, hydraulic jack, and spare tire.
features

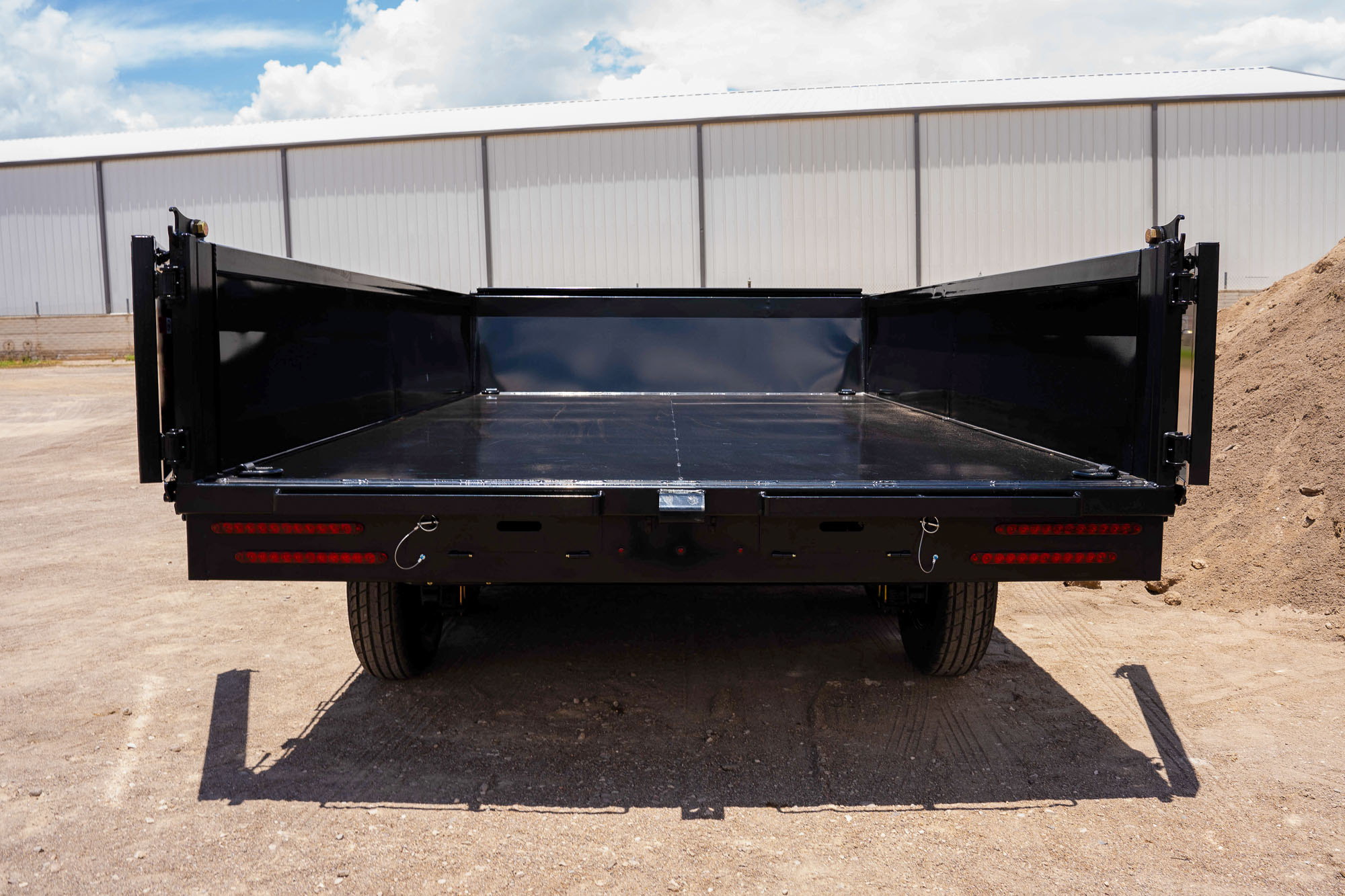

FOLD-DOWN SIDES
Our fold-down sides provide easy access for side loading and unloading, enhancing versatility and efficiency for any job.

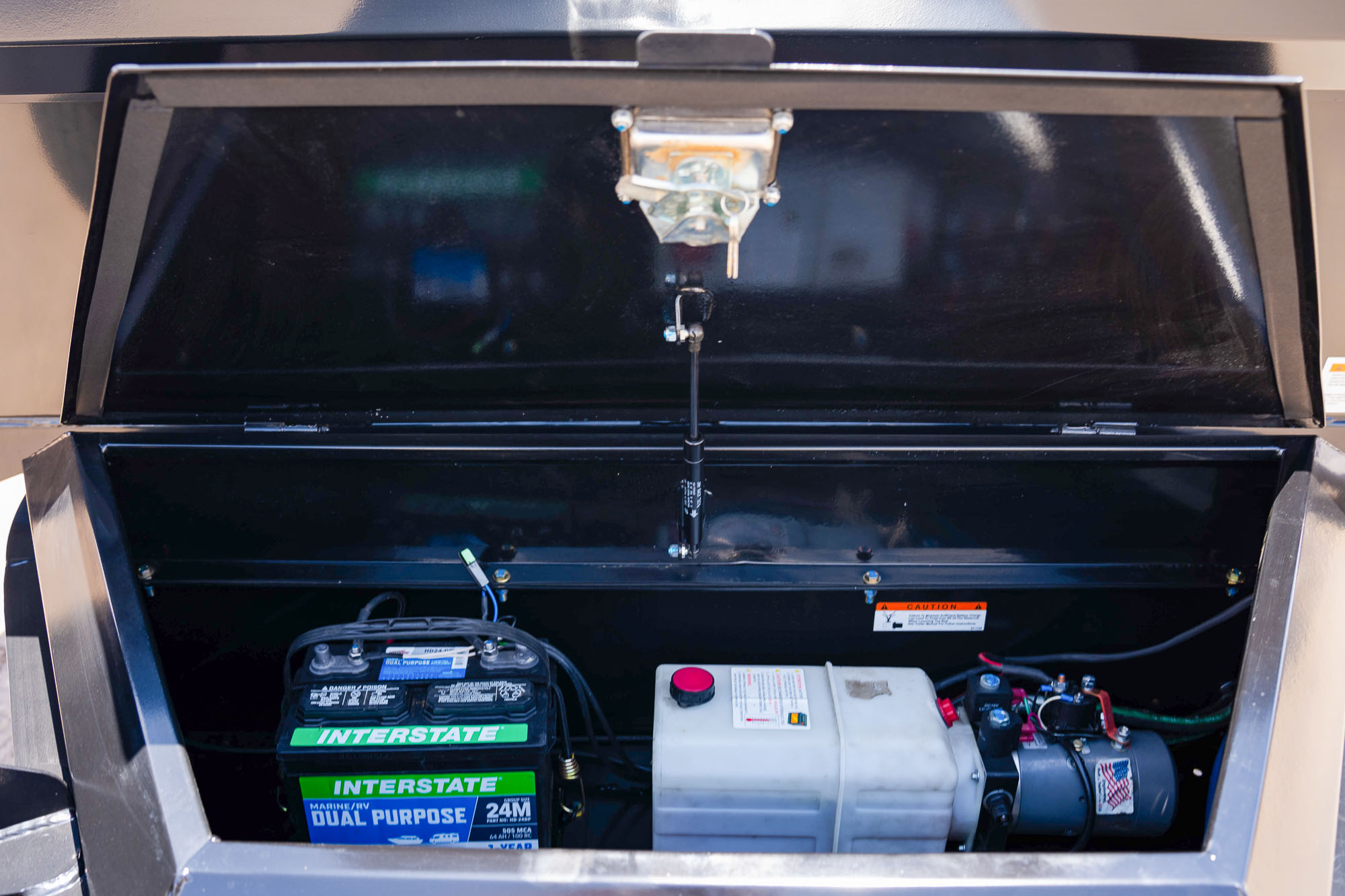

Lockable Hydraulic Toolbox
Our dump trailers feature a durable and spacious toolbox that houses a reliable KTY hydraulic pump. This setup provides easy access to essential tools and ensures your hydraulic system is protected and ready to perform, even in the toughest conditions.
