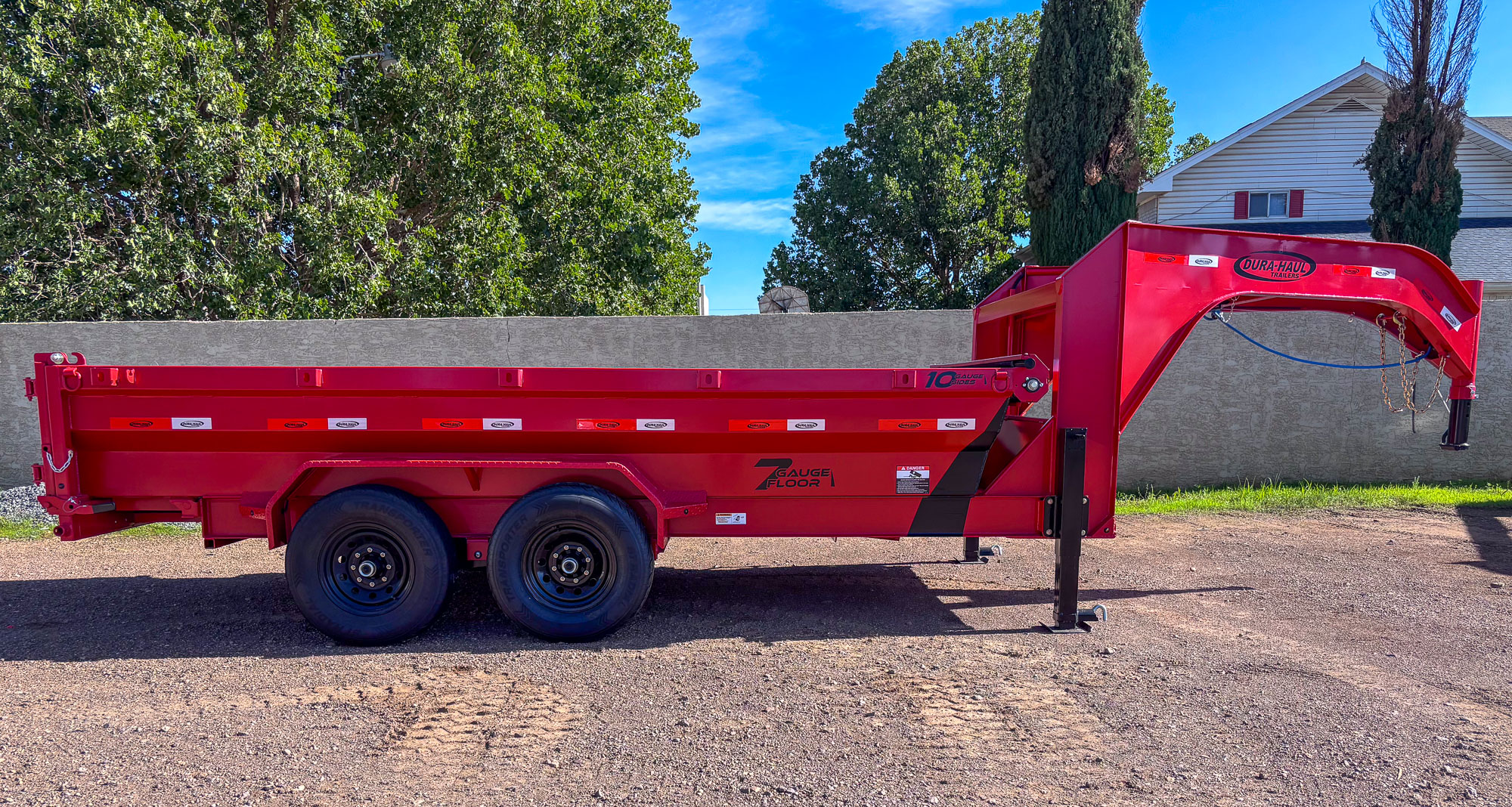

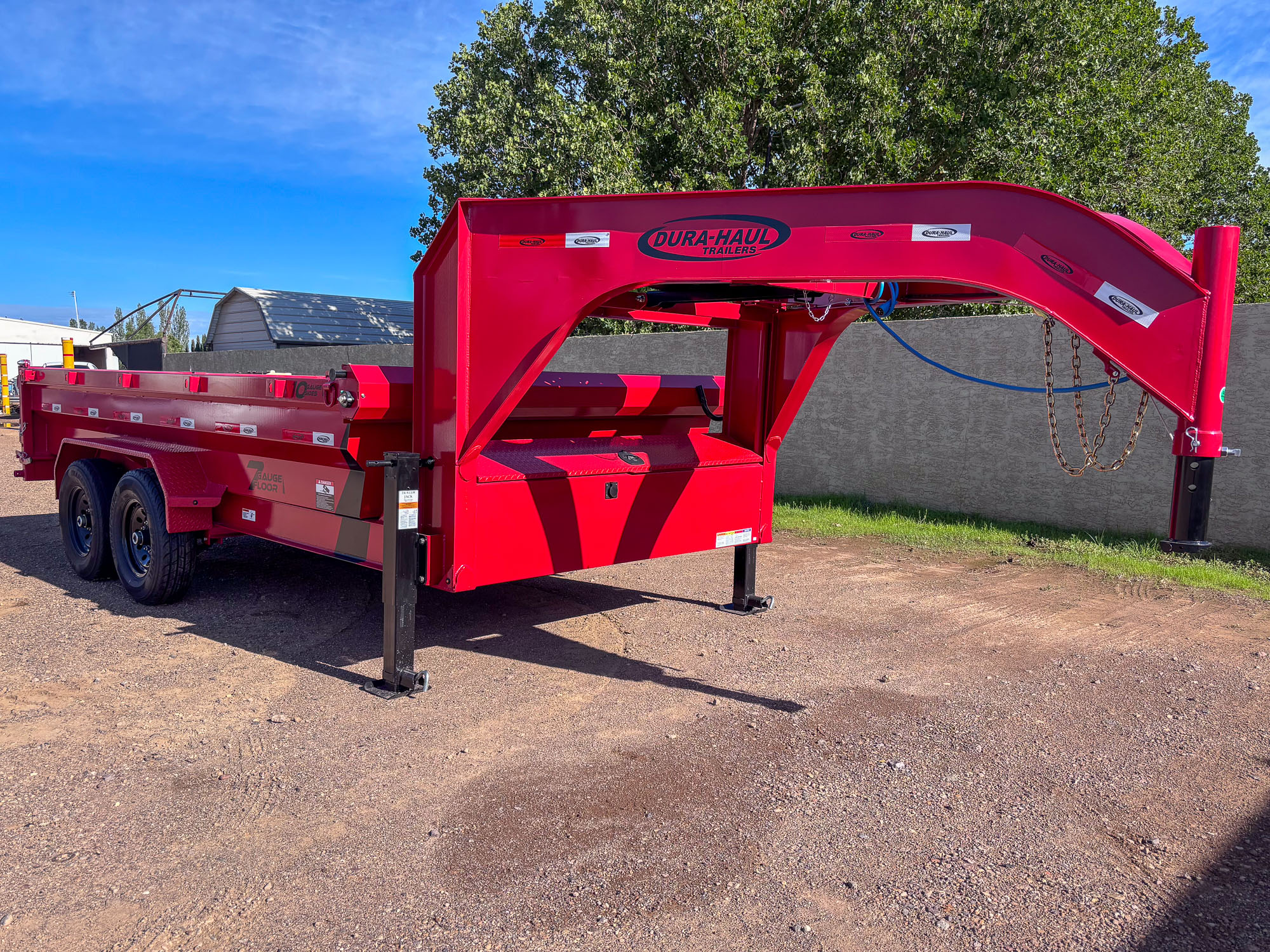

DKL-2S
Load More. Haul More. Dump with Confidence.
The Dura-Haul DKL-2S Low Profile Dump Trailer is built for demanding work that requires more than a standard hauling solution.
With an extra-low 27″ deck height, 6’3″ HD Quick Pull Ramps, and a heavy-duty hydraulic scissor lift, the DKL-2S gives you the flexibility to load equipment, haul material, and unload efficiently.
Available in 14′ and 16′ configurations with 14,000 to 16,000 lbs GVWR.
14' or 16'
Lengths
8.45–9.8 yd³
Capacity
Hydraulic
Scissor Lift
27" Low Deck
Height
DKL-2S
DUMP TRAILER

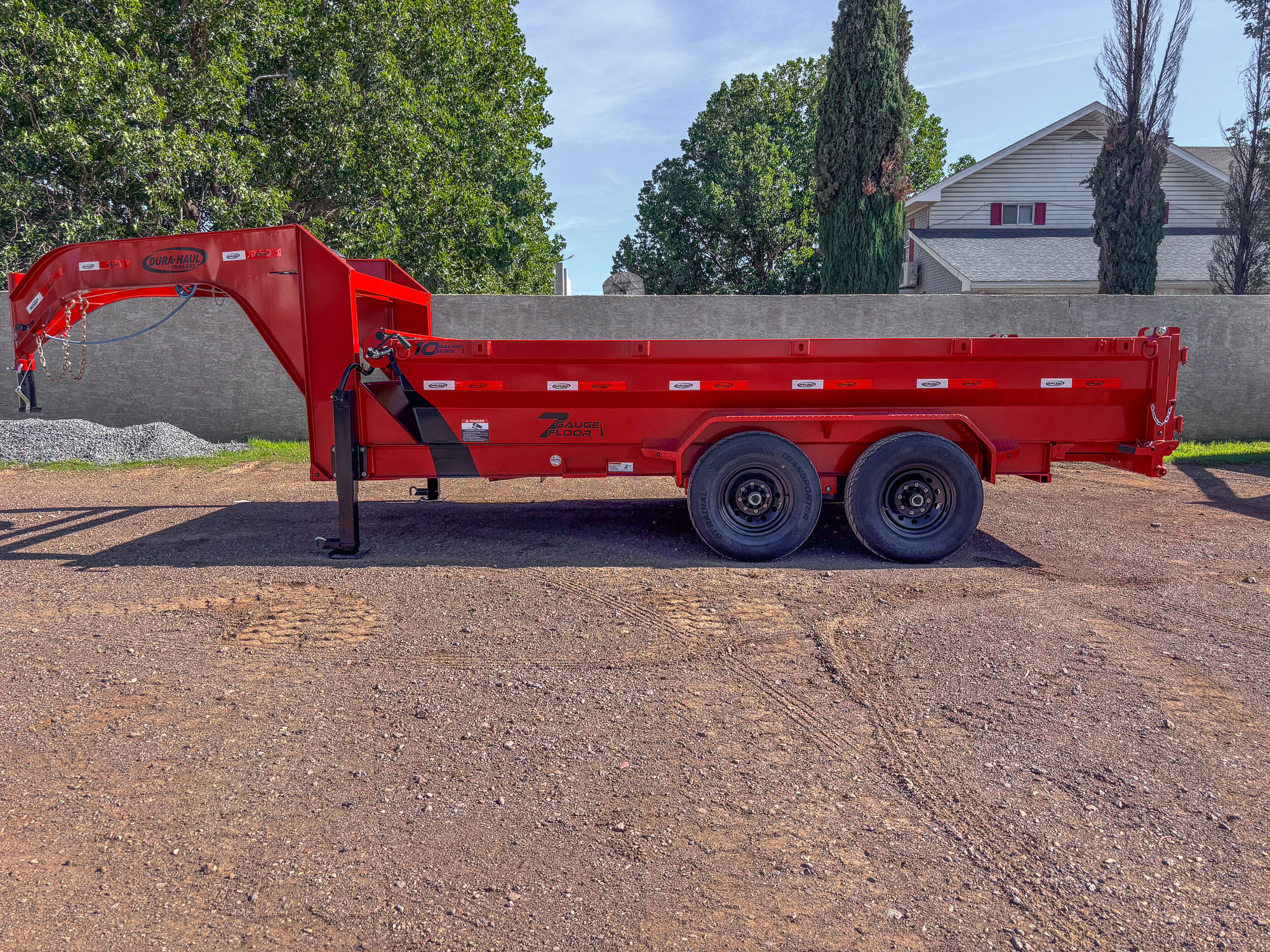

The DKL 7’ x 14′ or 7′ x 16′ HD LOW PRO DUMP GN LOW SIDE offers superior maneuverability and loading ease, making it a dependable choice for versatile tasks.
Quick Specifications
ONE TRAILER.
THREE WAYS TO WORK.
The DKL-2S gives contractors and crews the flexibility to keep one trailer working across different tasks throughout the day.
LOAD EQUIPMENT
Use the 27" low deck height and 6'3" HD Quick Pull Ramps to load compatible equipment and transport it to the jobsite.
HAUL MATERIAL
Once the equipment is unloaded, put the trailer to work hauling materials for construction, landscaping, cleanup, or other demanding applications.
DUMP AND MOVE ON

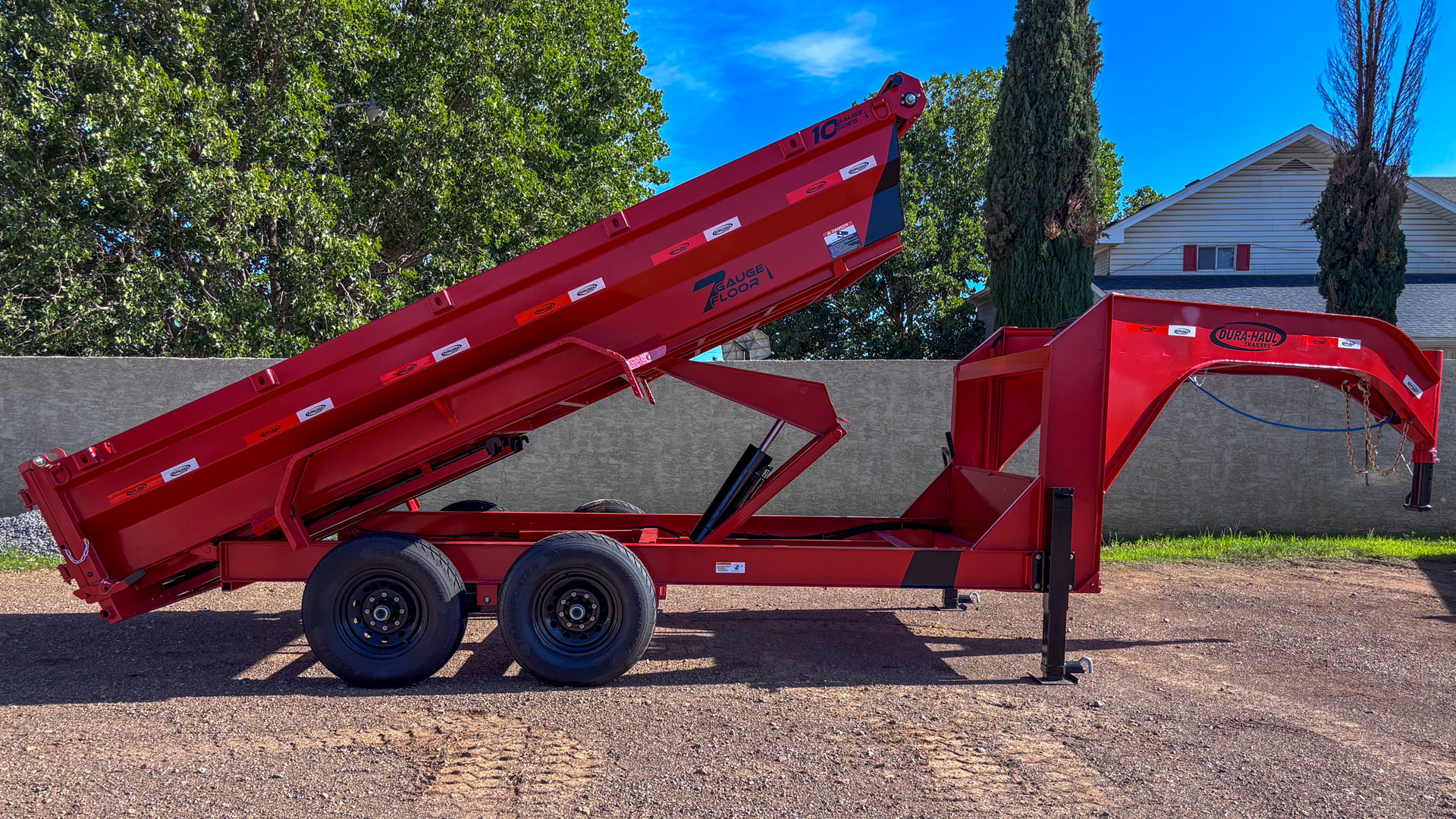

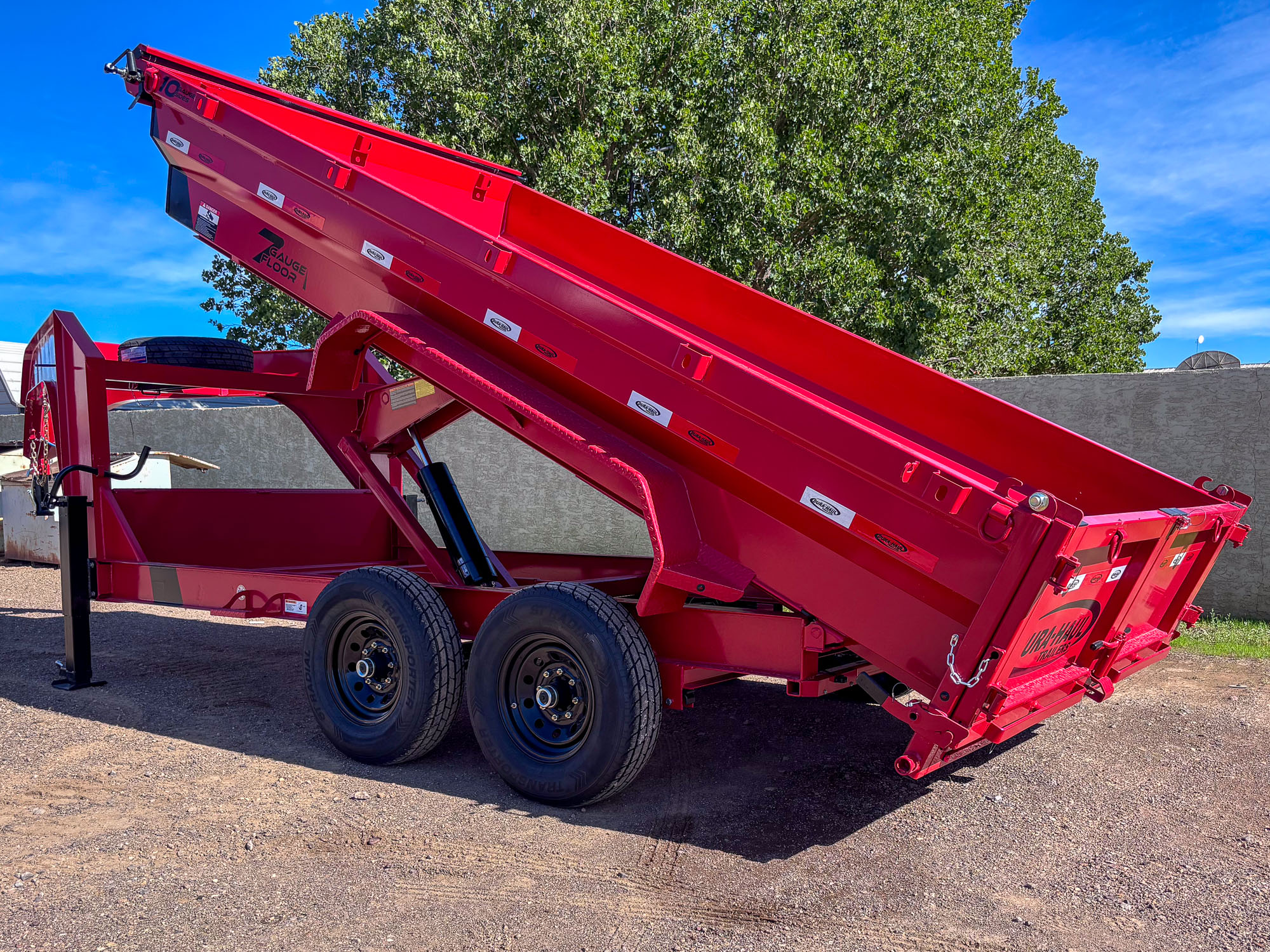

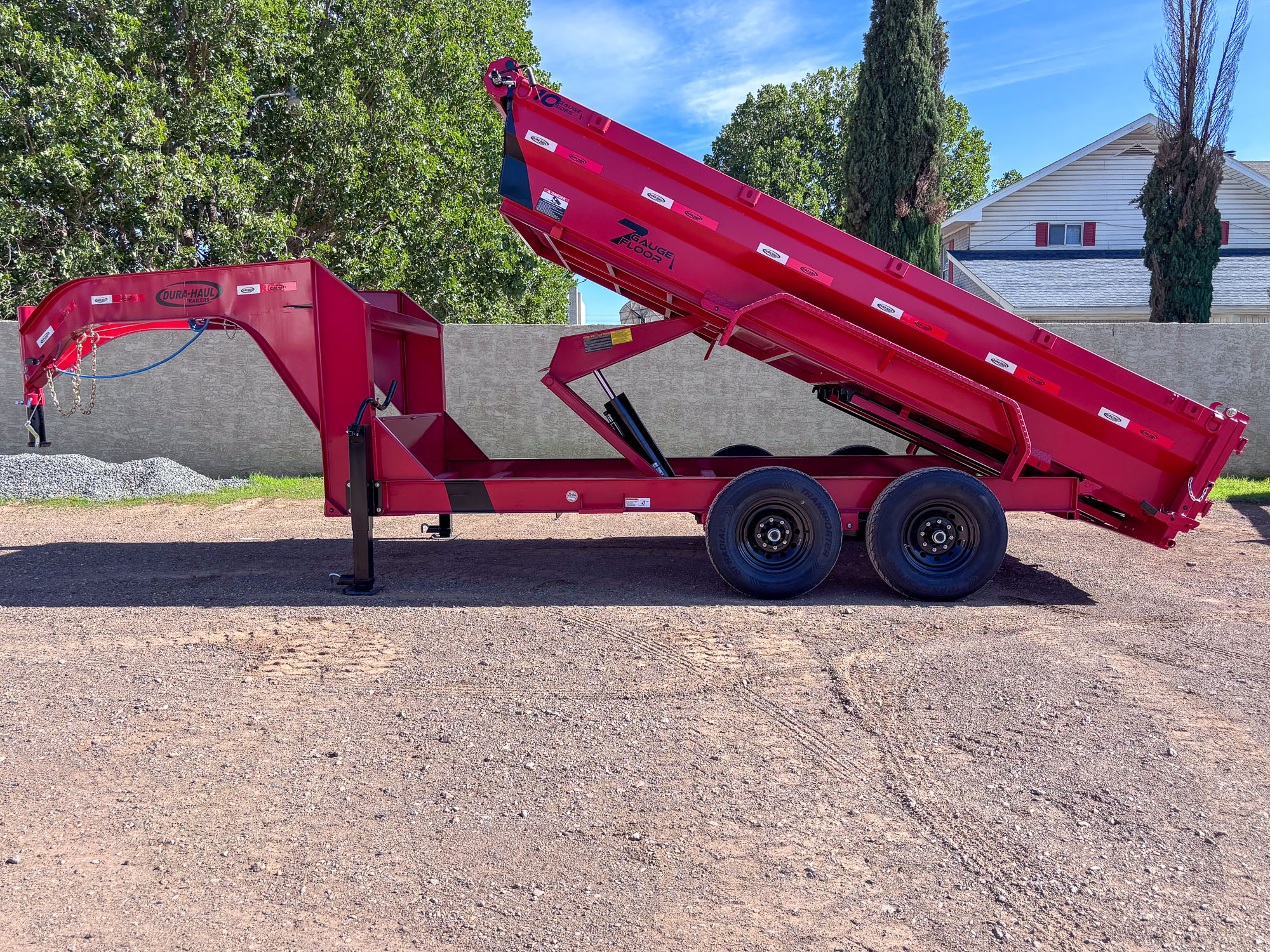

When it's time to unload, the heavy-duty hydraulic scissor lift raises the dump body so you can unload and get ready for the next task.
Built for More Than One Type of Job
Loading equipment starts with access. The DKL-2S features an extra-low 27″ deck height designed to work with its 6’3″ HD Quick Pull Ramps, helping create a practical loading setup for compatible equipment.

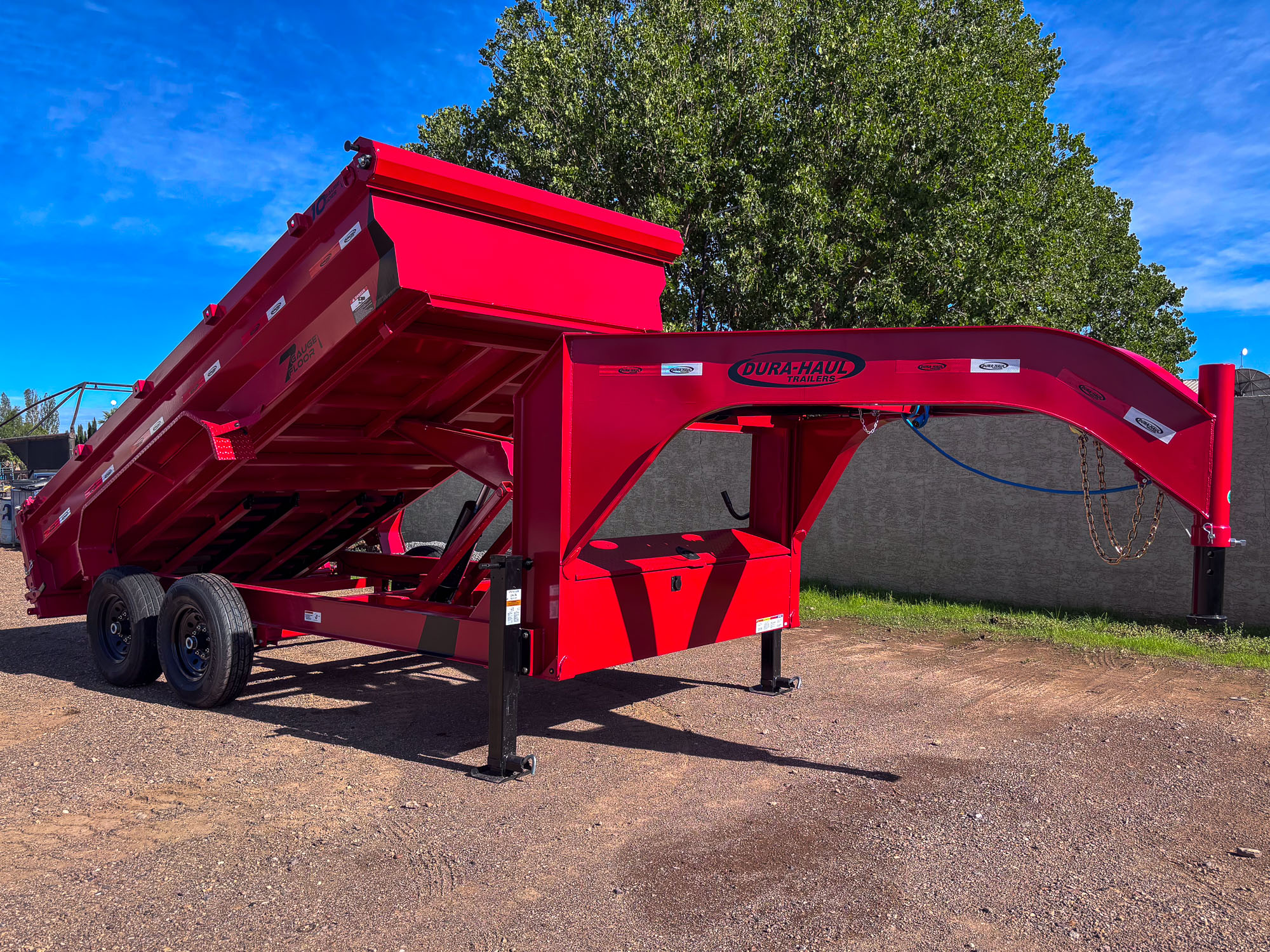

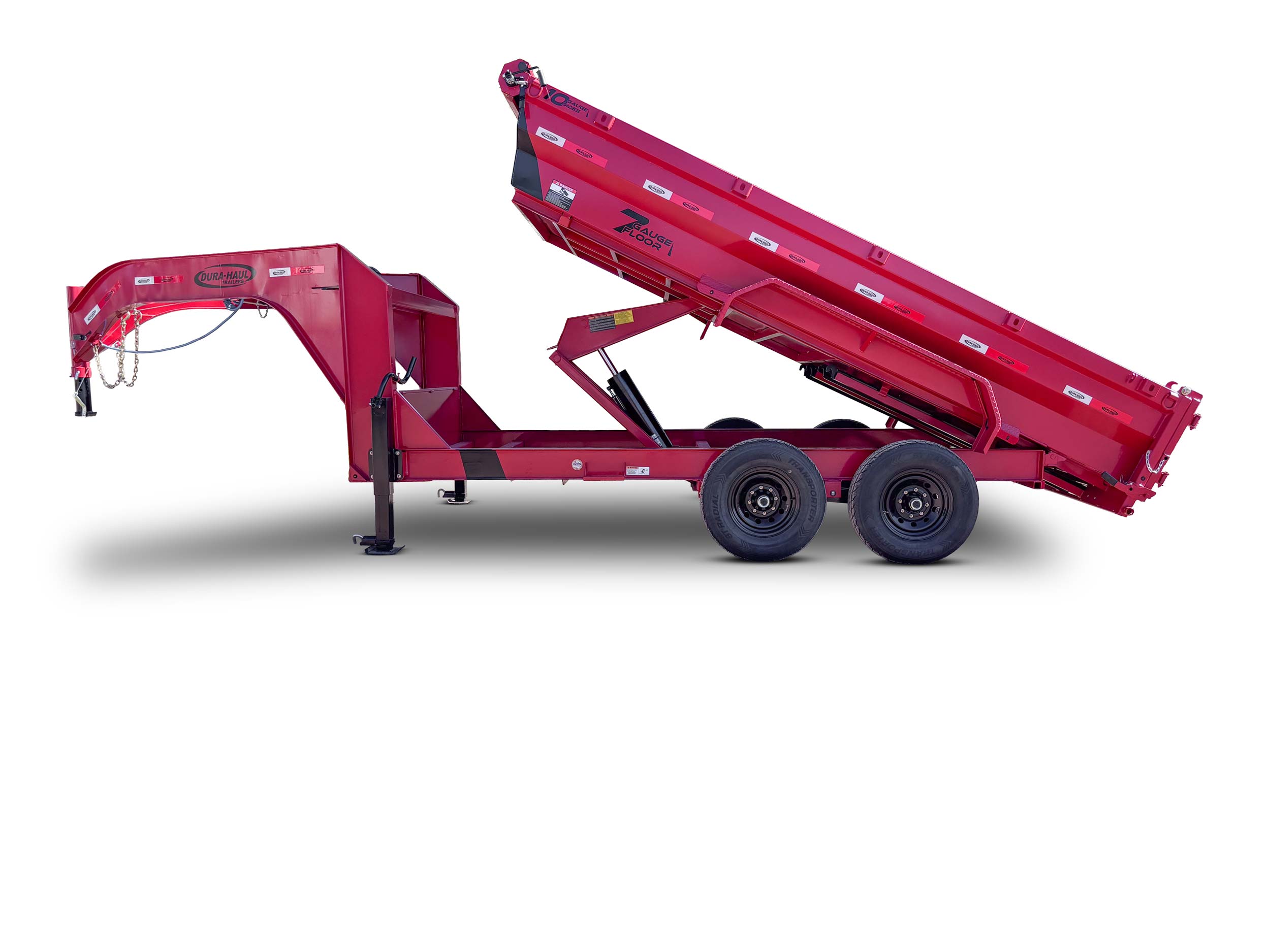

The DKL-2S uses a heavy-duty hydraulic scissor lift designed for dependable dumping performance.
27" Low
Deck
A low-profile design for easier loading access.
6'3" HD Quick Pull Ramps
Built to add equipment-loading versatility.

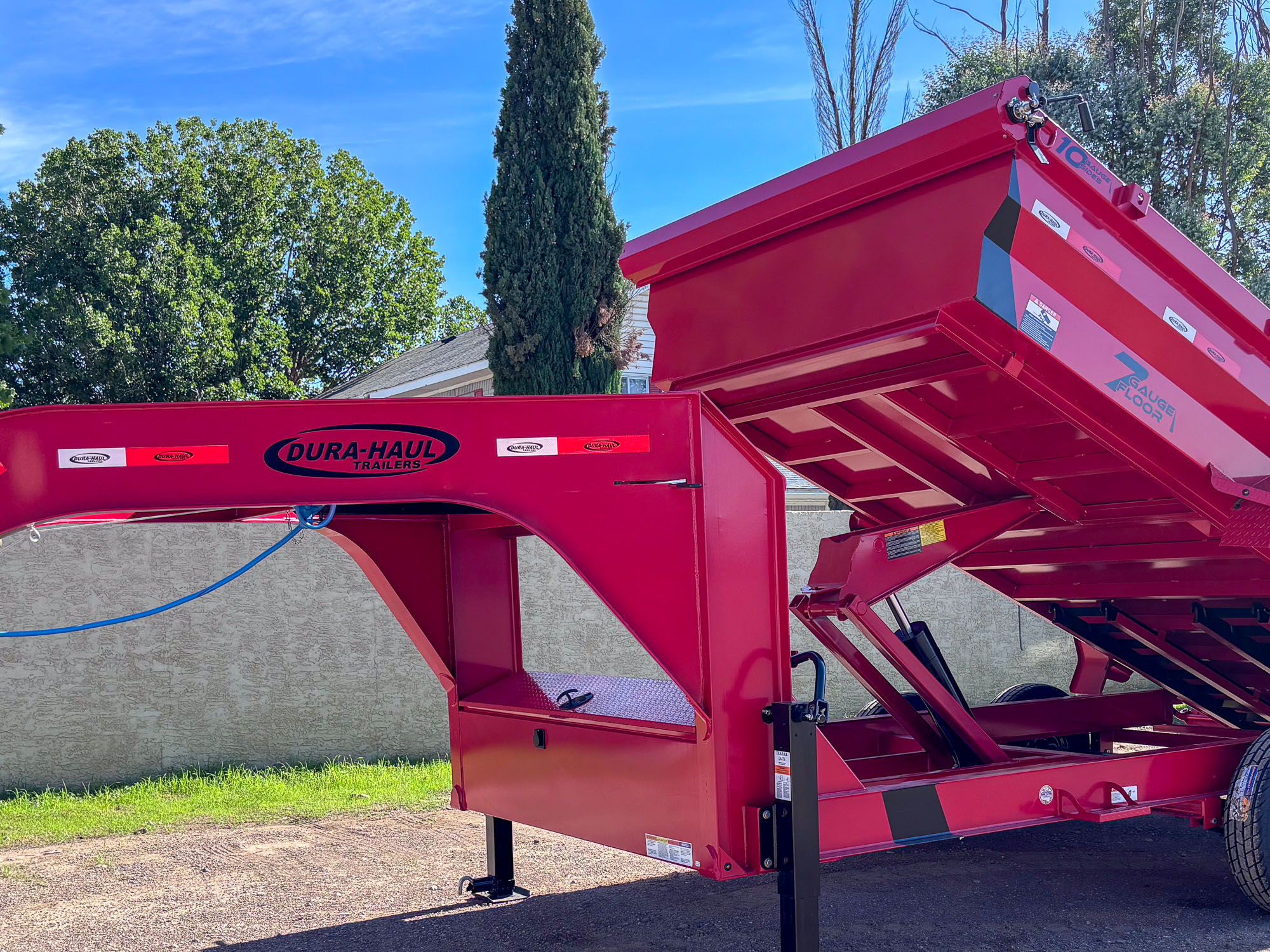

Heavy-Duty Hydraulic
Scissor Lift
Designed for reliable lifting performance.

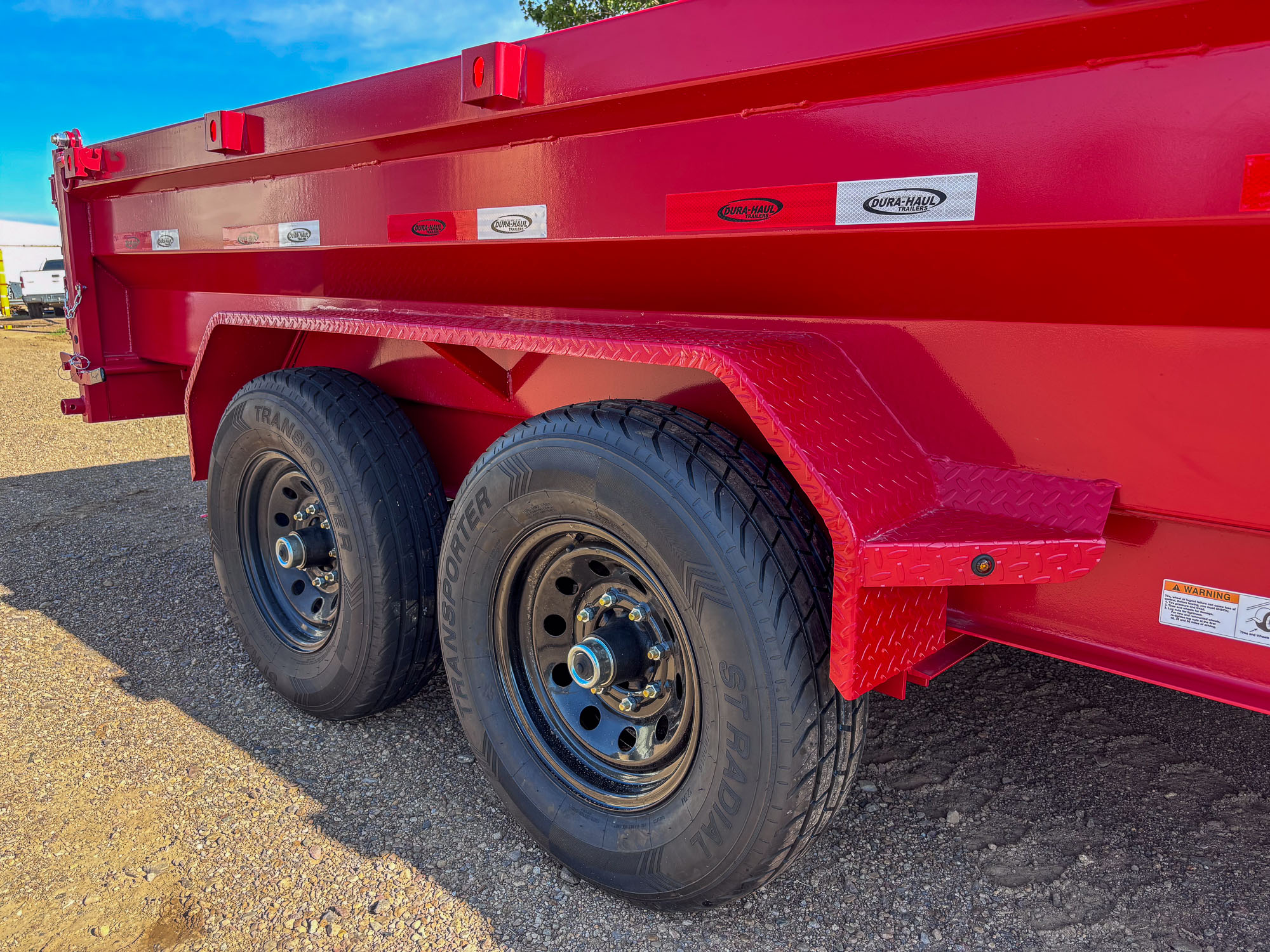

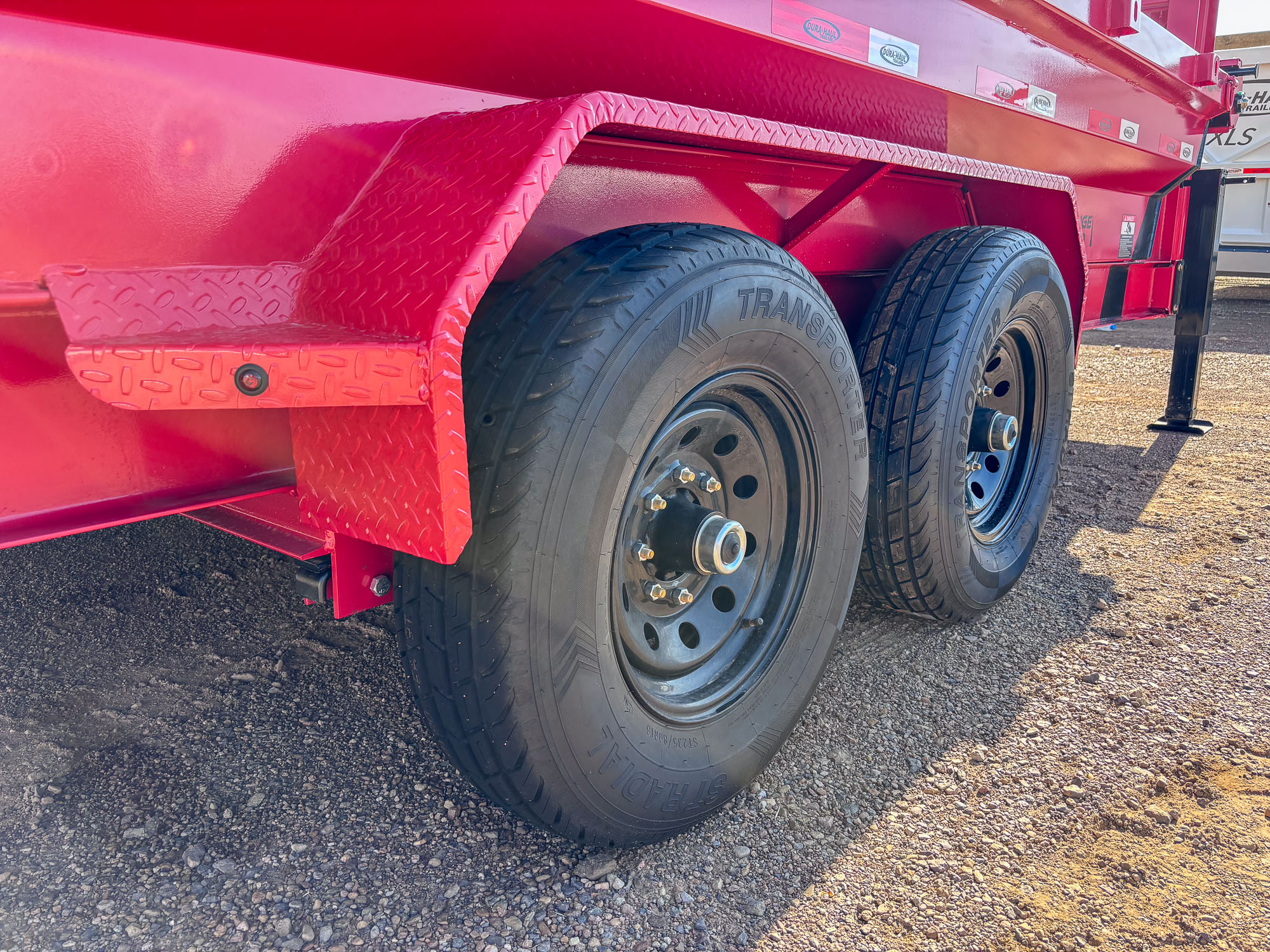

7K or 8K Tandem Axles
Configure the trailer based on your GVWR requirements.
8" Ultra Strong
I-Beam Frame
Provides the structural foundation of the trailer.
Multi-Leaf Spring Suspension with Equalizer
Designed to support balanced load distribution.

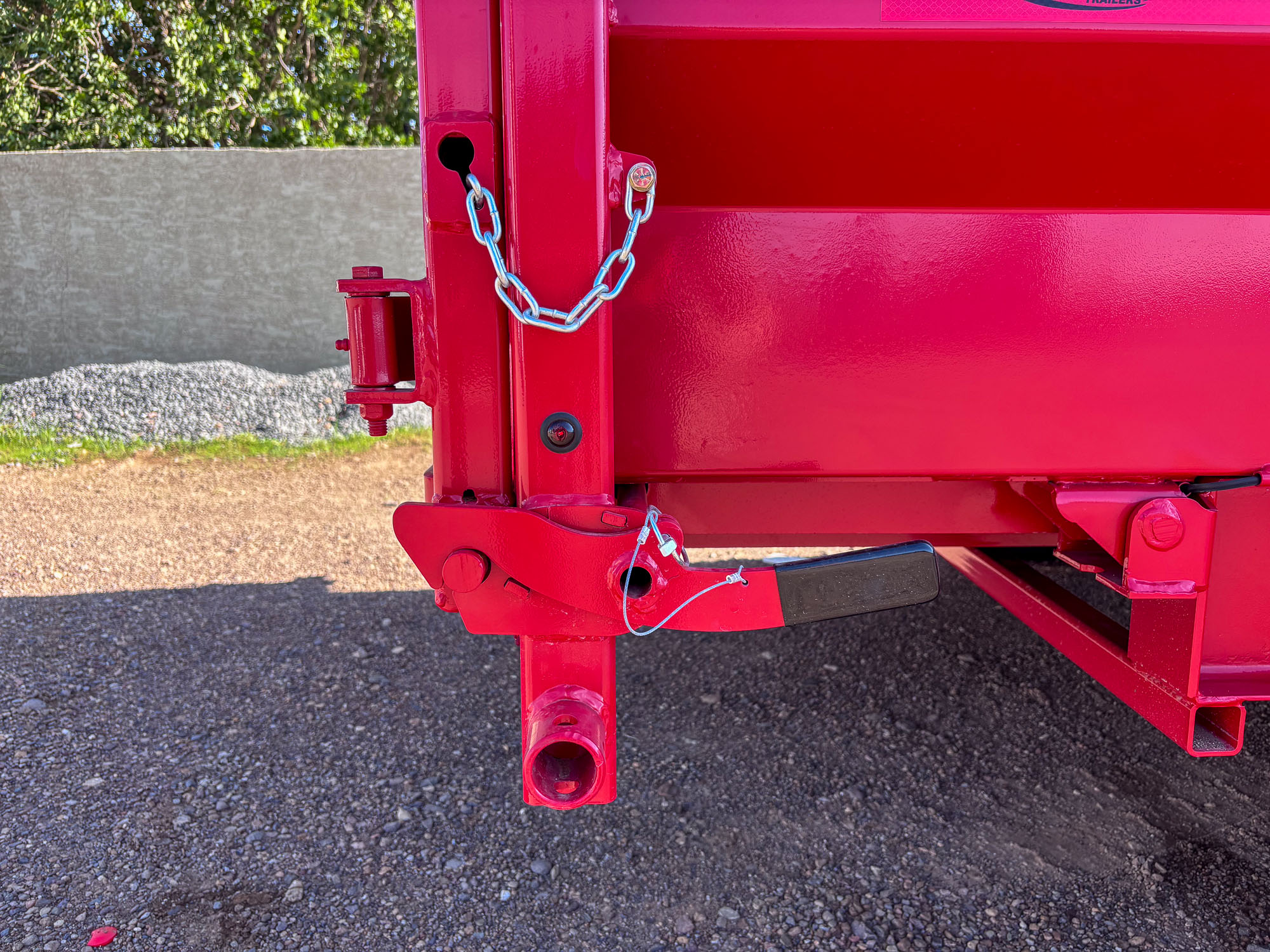

Twix Door Locking System
Designed to secure the rear door system.

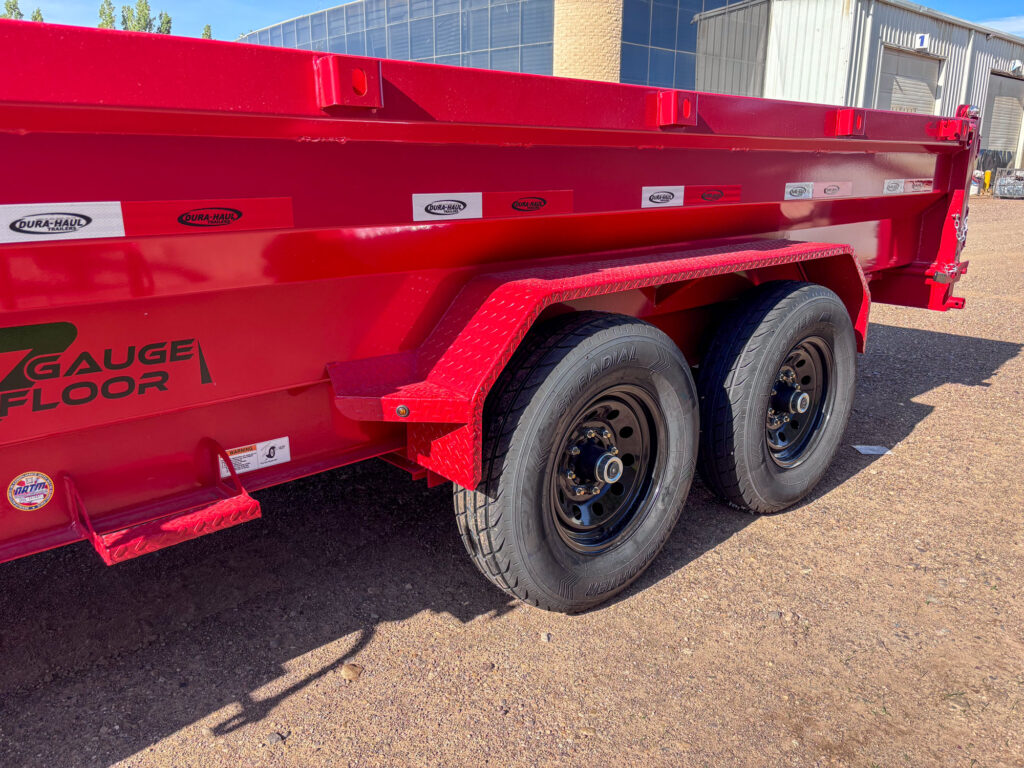

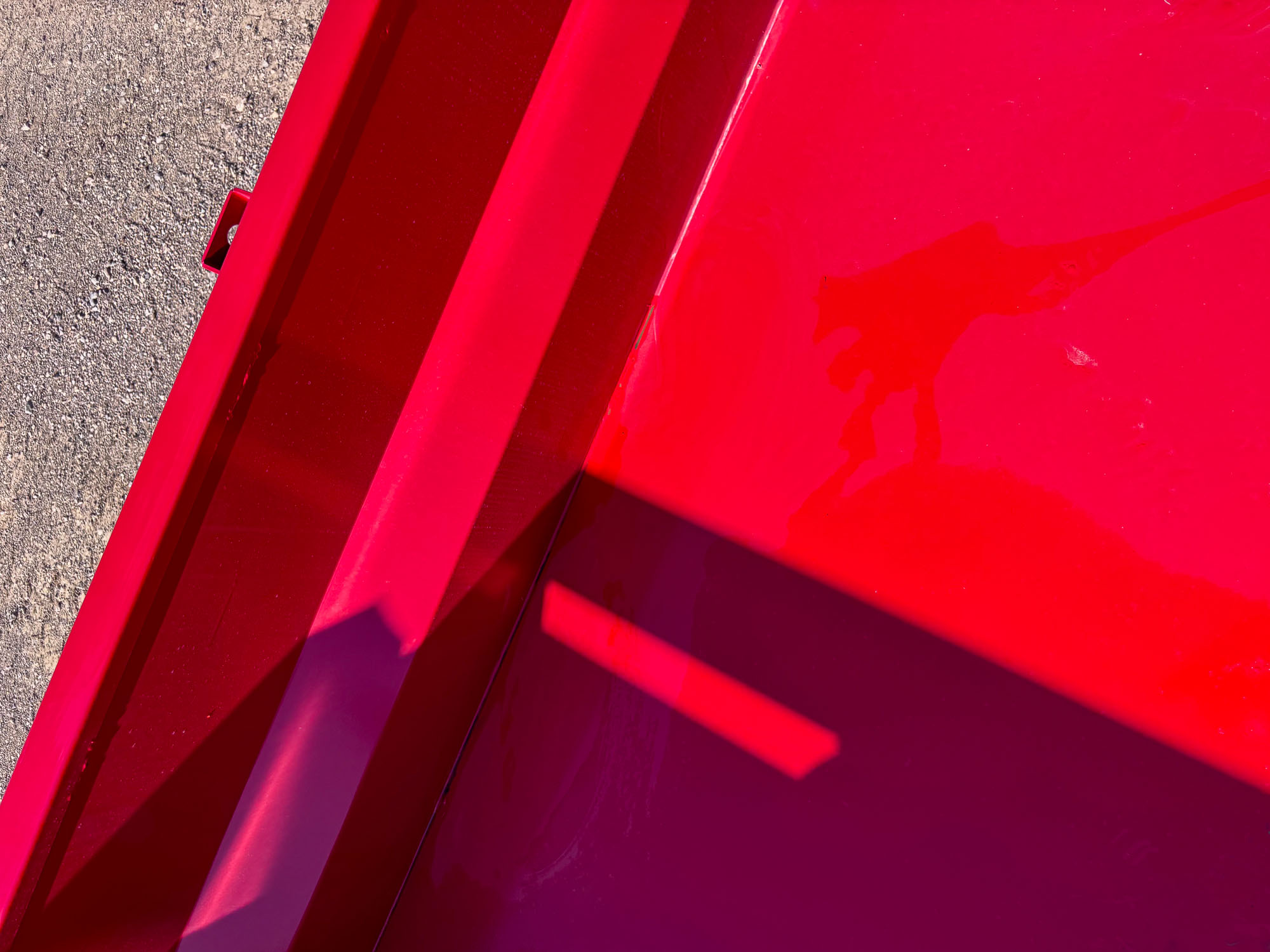

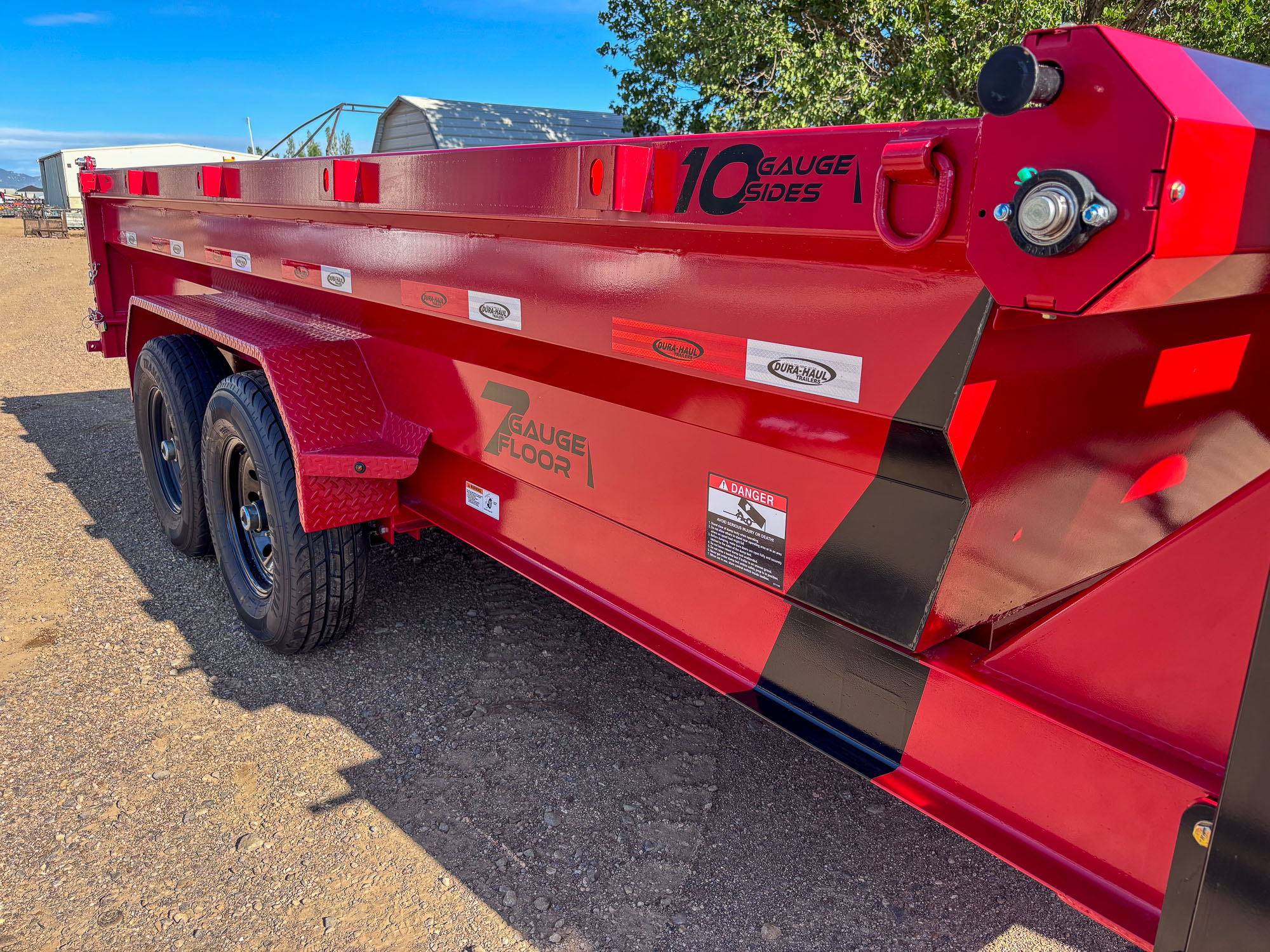

7-Gauge Smooth Plate Floor
A durable floor surface for material-hauling applications.

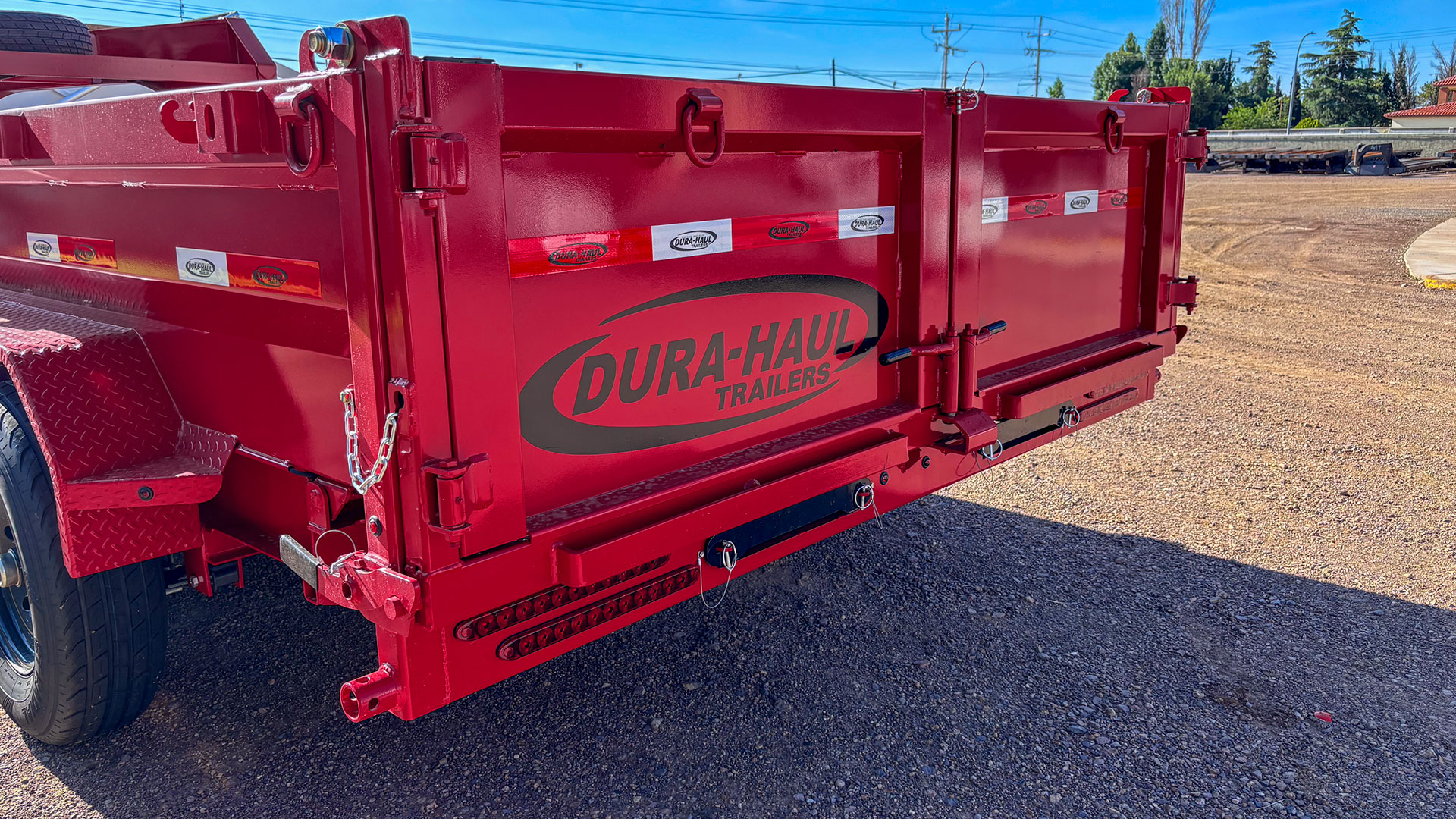

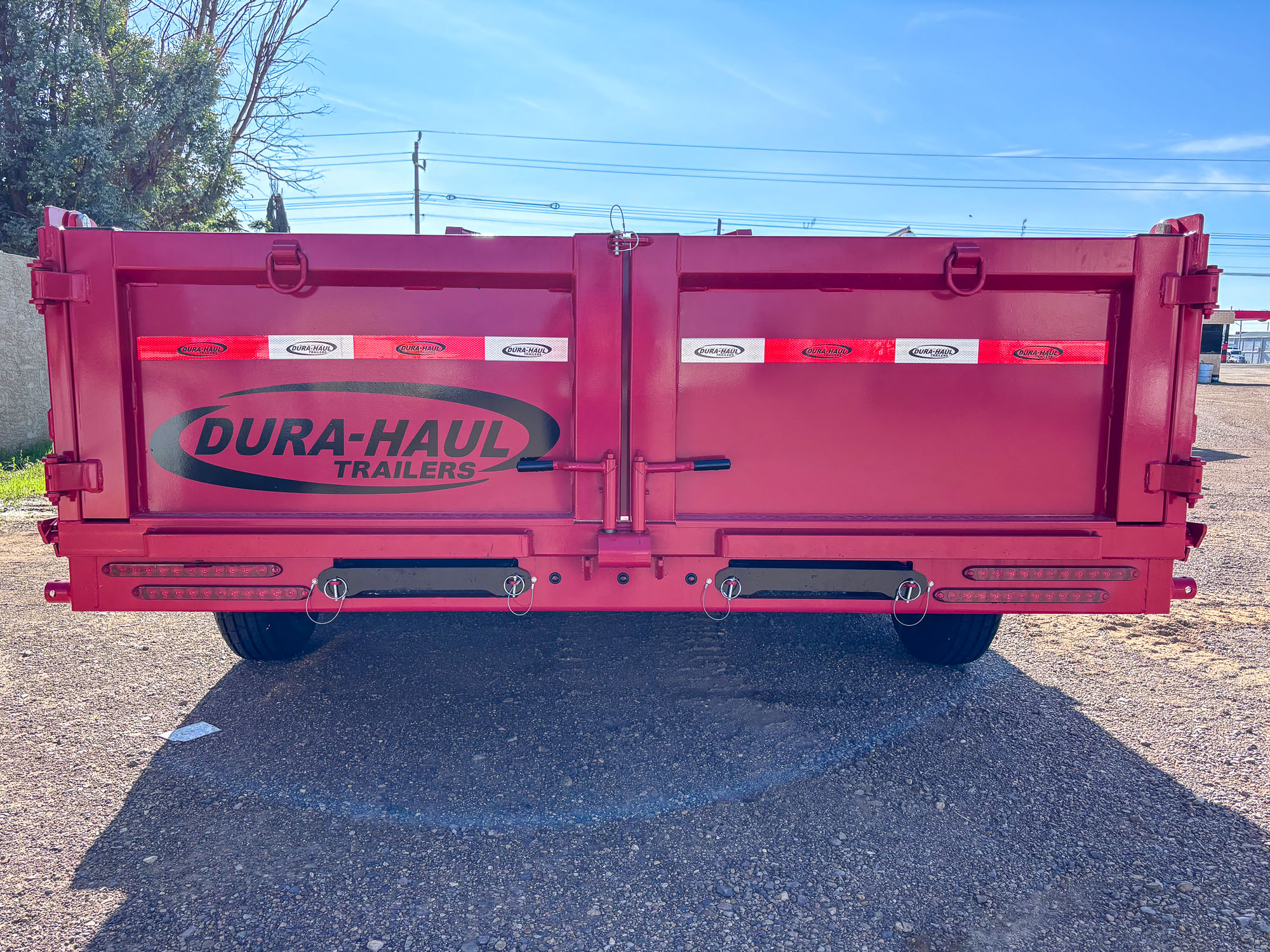

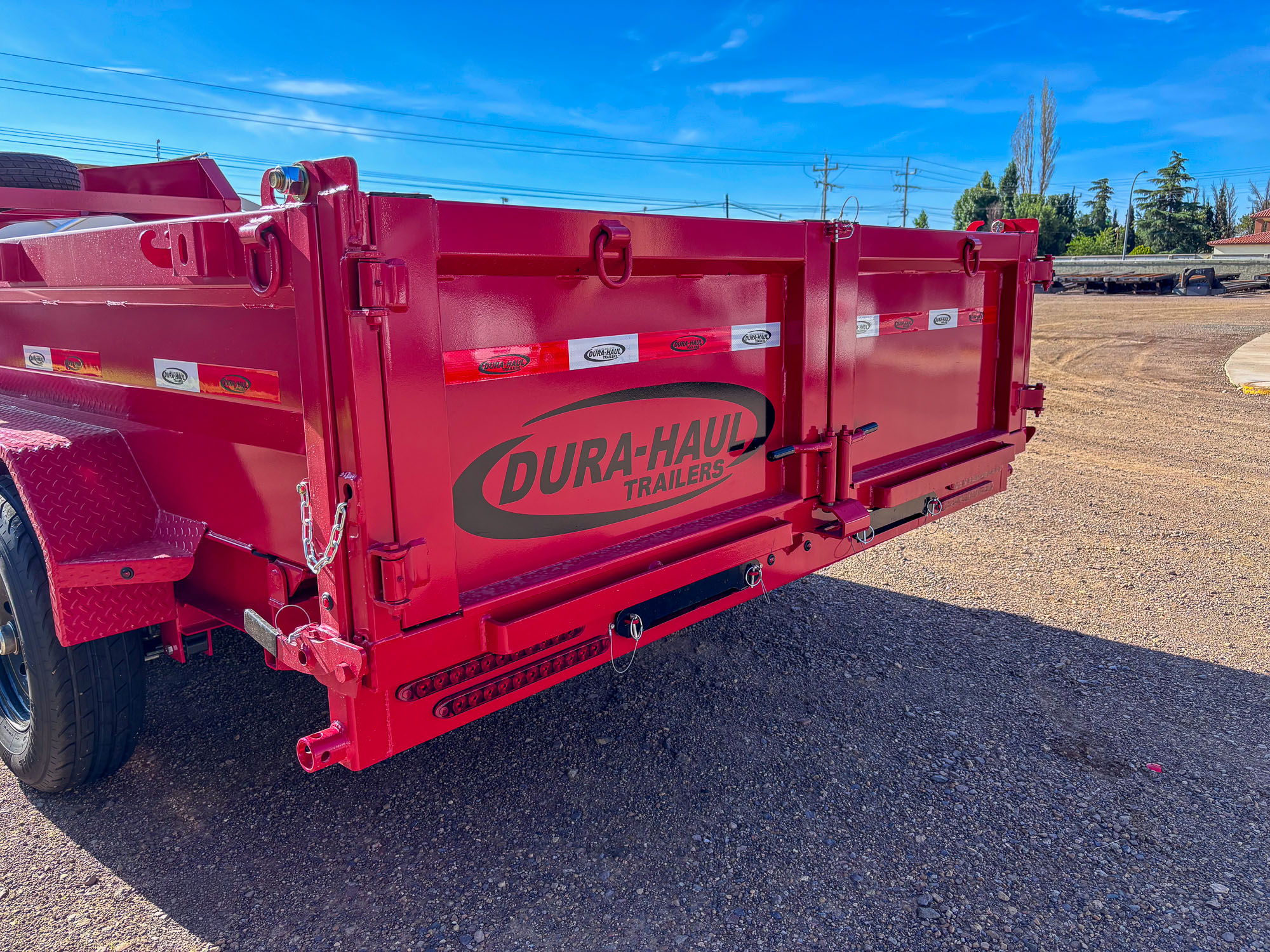

Adjustable Spreader Gate & Barn Doors
Designed to provide more control when distributing material.
Technical Specifications
The Dura-Haul DKL-2S combines a low-profile dump body, equipment-loading capability, and heavy-duty hydraulic performance in a versatile gooseneck trailer.
General Specifications
| Available Sizes | 14' / 16' |
| Capacity | 8.45–9.8 yd³ |
| GVWR | 14,000–16,000 lbs |
| Deck Height | 27" |
| Top Box Width | 91" |
Size & Capacity
| Size | Axles | Capacity | GVWR | Weight |
|---|---|---|---|---|
| 14' | 7K–8K | 8.45 yd³ | 14,000–16,000 lbs | 4,740 lbs |
| 16' | 7K–8K | 9.8 yd³ | 14,000–16,000 lbs | 4,960 lbs |
Frame & Body
| Frame | 8" Ultra Strong I-Beam |
| Flooring | 7-Gauge Smooth Plate |
| Bed Cross-Members | 3" Channel — 16" OC |
| Side Height | 24" |

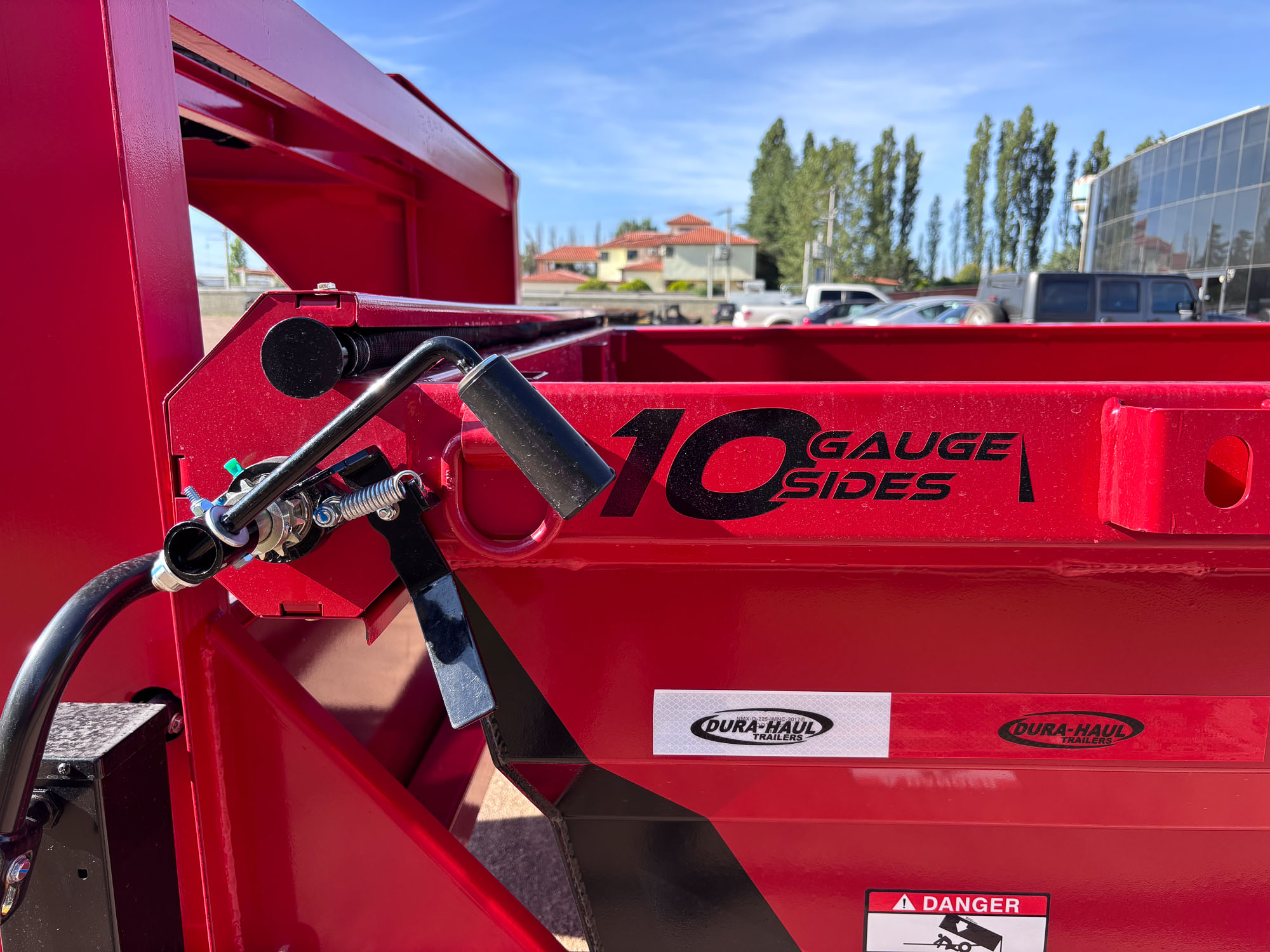

| Sides | Fully Formed 10-Gauge Engineered Sides |
| Top Rail | 10-Gauge — 2.75" × 4.25" |
| Top Box Width | 91" |
Hydraulic System
| Lift System | Heavy-Duty Hydraulic Scissor Lift |

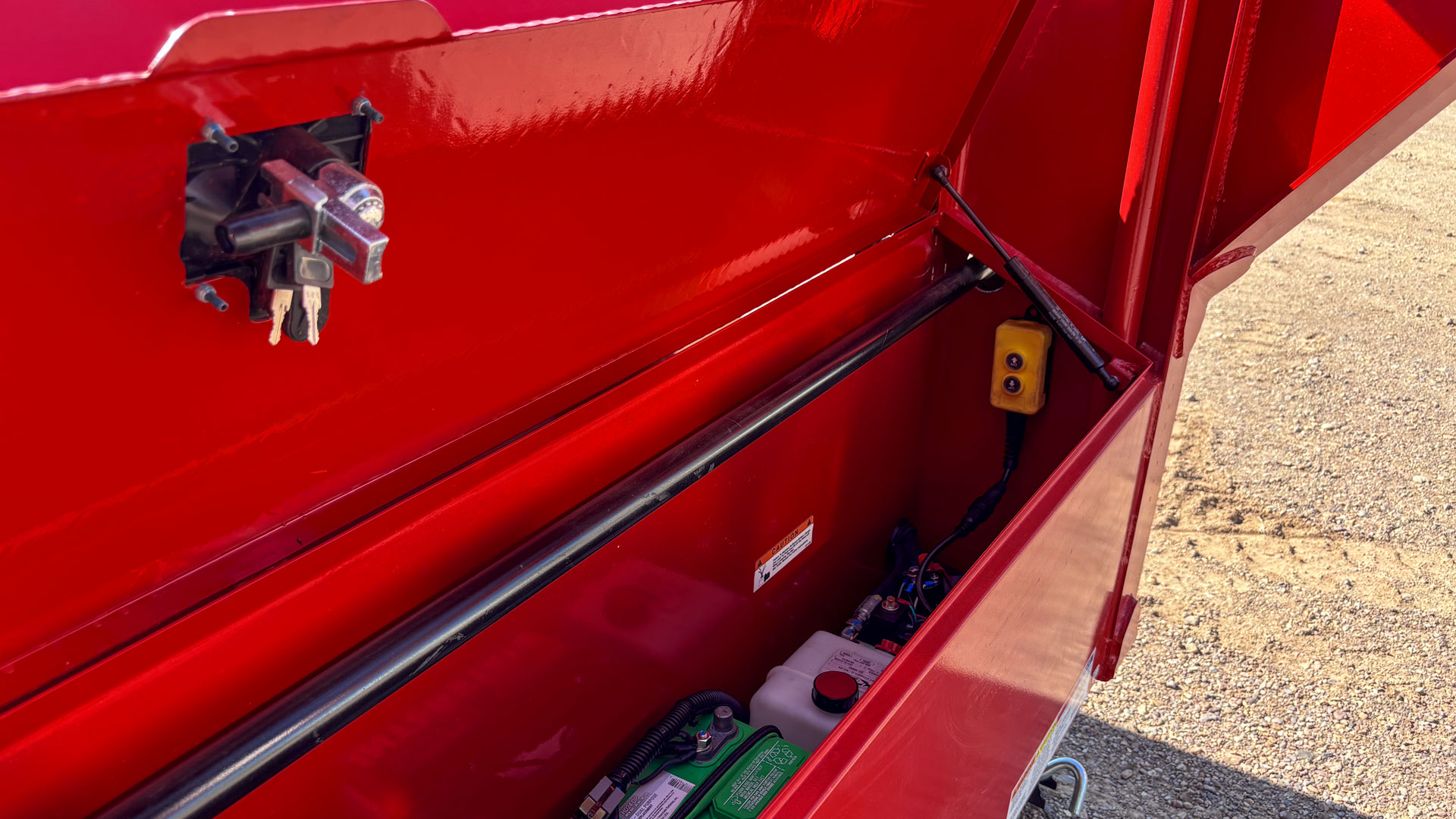

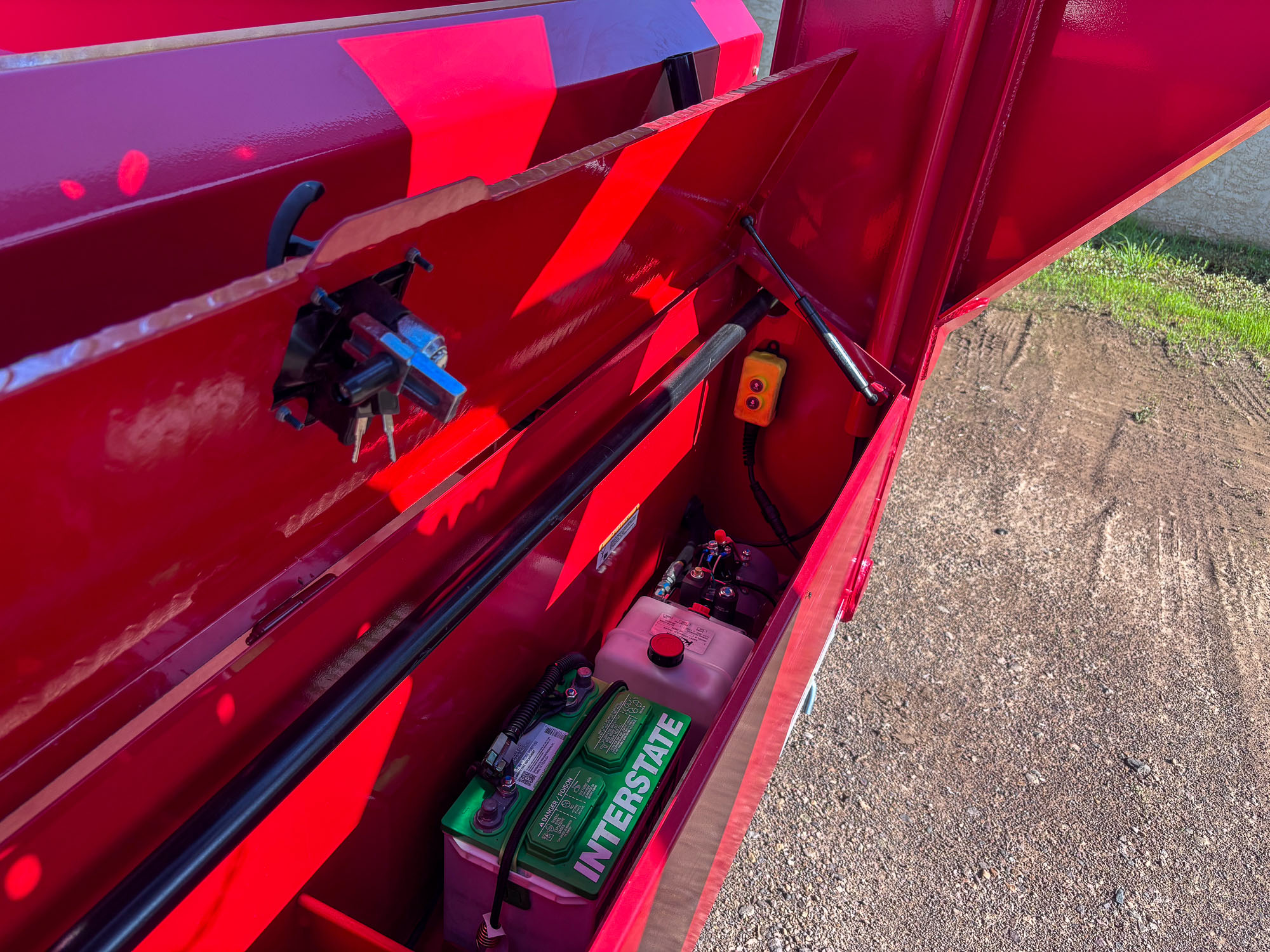

| Hydraulic Equipment | Pump, Battery, Charger & Remote Control |

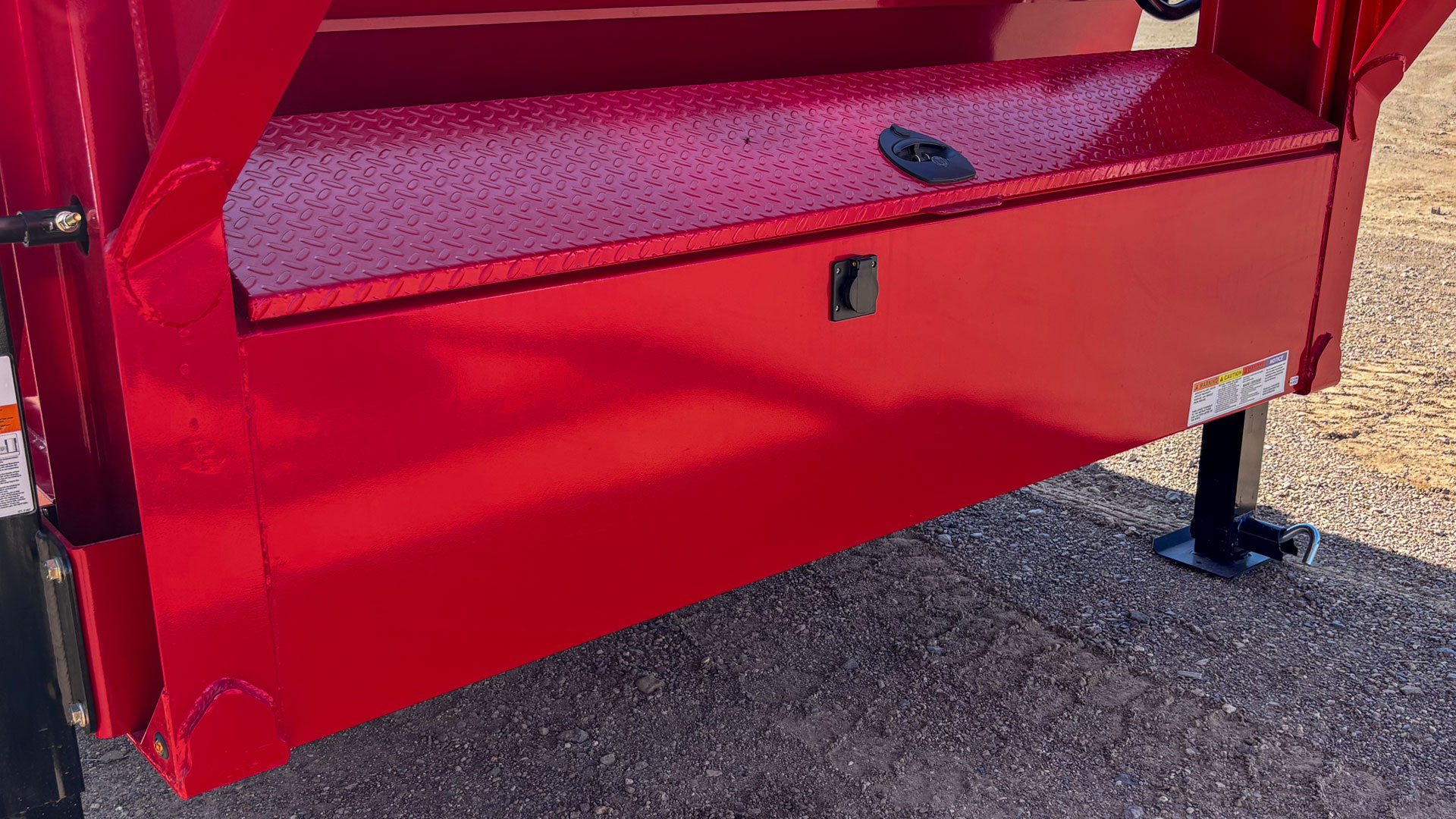

| Toolbox | Lockable Toolbox |
Loading
| Deck Height | Extra-Low 27" |
| Ramps | HD Quick Pull Ramps — 6'3" Long |
| Rear Stabilizer | Rear Easy Stabilizer |

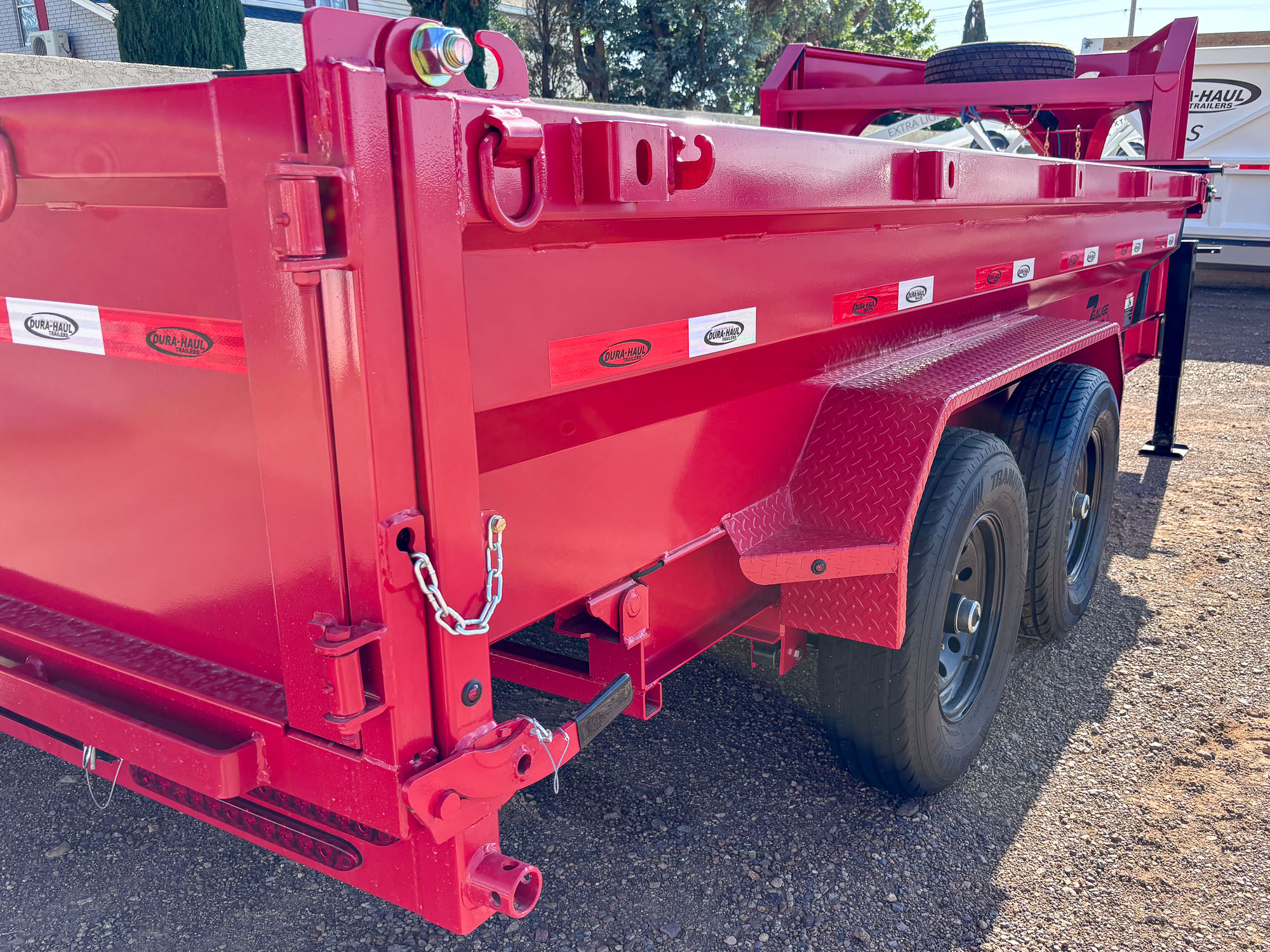

Rear Gate & Doors
| Rear Gate | Adjustable Rear Spreader Gate |
| Doors | Barn Doors |
| Gate Handles | Roadside & Curbside |
| Door Locking System | Twix Door Locking System |
| Open Door Safety | Open Door Safety Locks |
Axles, Brakes & Suspension
| Axles | 7,000 or 8,000 lb Tandem |
| Brakes | Electric Brakes |
| Suspension | Multi-Leaf Spring with Equalizer |
| Tires — 7K | ST235/80R16 LRE — 10 Ply |
| Tires — 8K | ST235/80R16 LRE — 14 Ply |
| Wheels | 16" 8-Hole |
| Hubs | Quick-Lube Hubs & Dust Caps |
Load Securement
| Interior D-Rings | (4) 5/8" |
| Exterior D-Rings | (6) 1/2" |
| 14' Extension Pockets | 15 |
| 16' Extension Pockets | 17 |
Tarp & Cover
| Tarp System | Tarp and Cover |
| Tarp Width | 91" |
| Tarp Operation | Crank Roller Style |
| Rear Securement | Rear Rod Tarp Hooks |
Gooseneck & Jack
| Coupler | 2-5/16" Adjustable Coupler — 5 Positions |

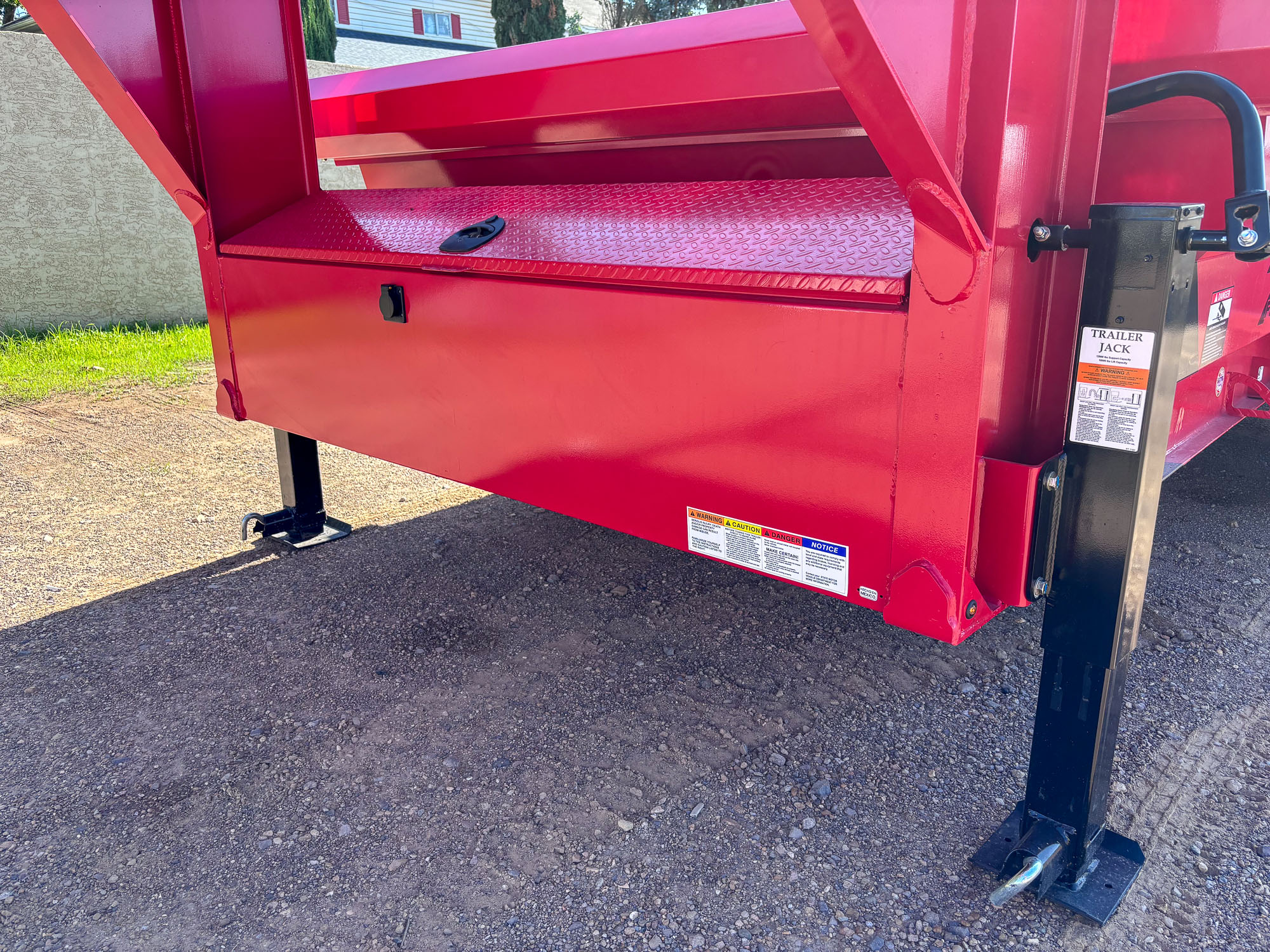

| Jack | 12,000 lb Spring-Loaded Adjustable Leg Crank Jack |
| Safety Chains | 2 |
Equipment & Convenience
| Side Step | Built-In |
| Fenders | Diamond Plate |

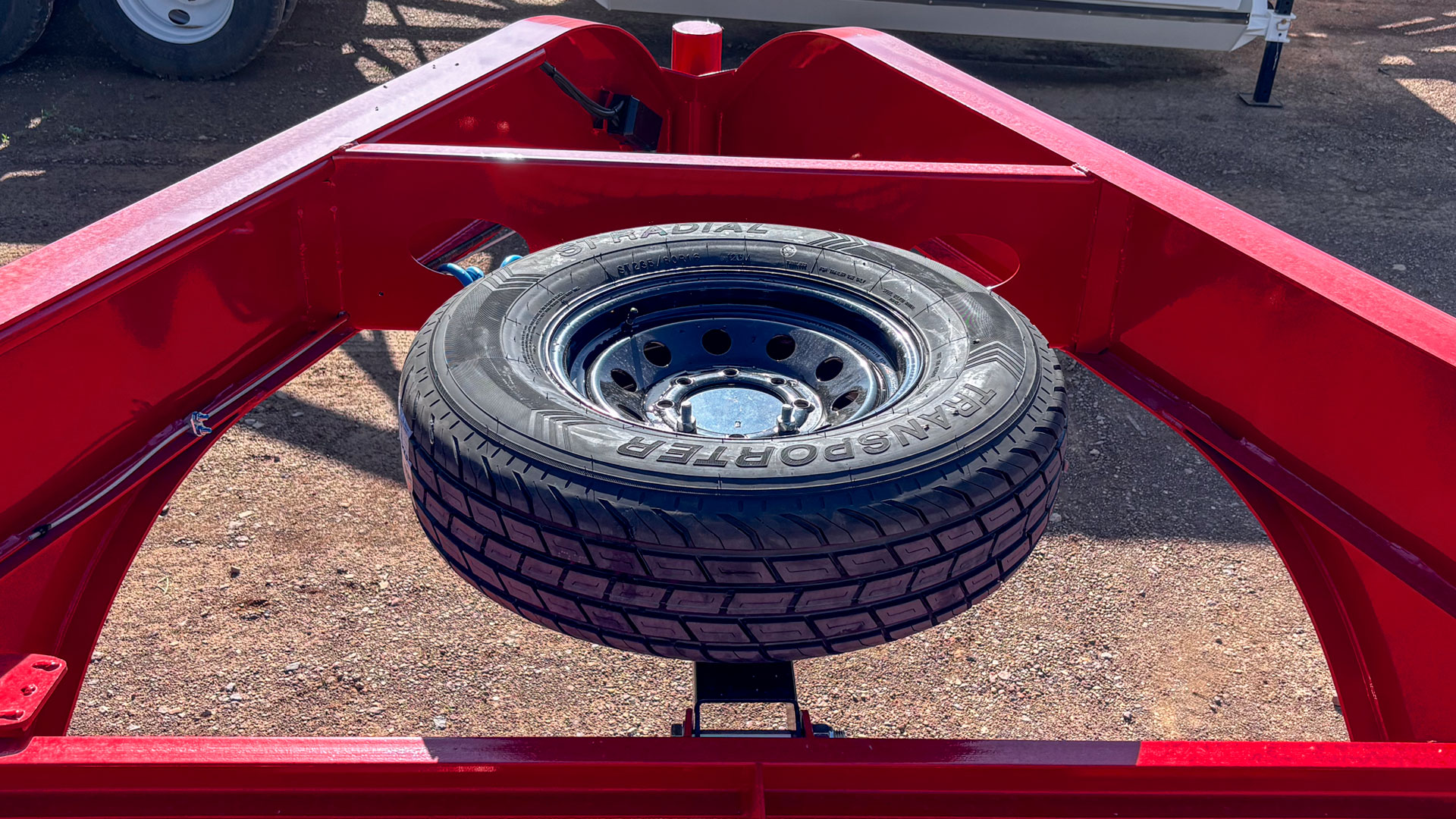

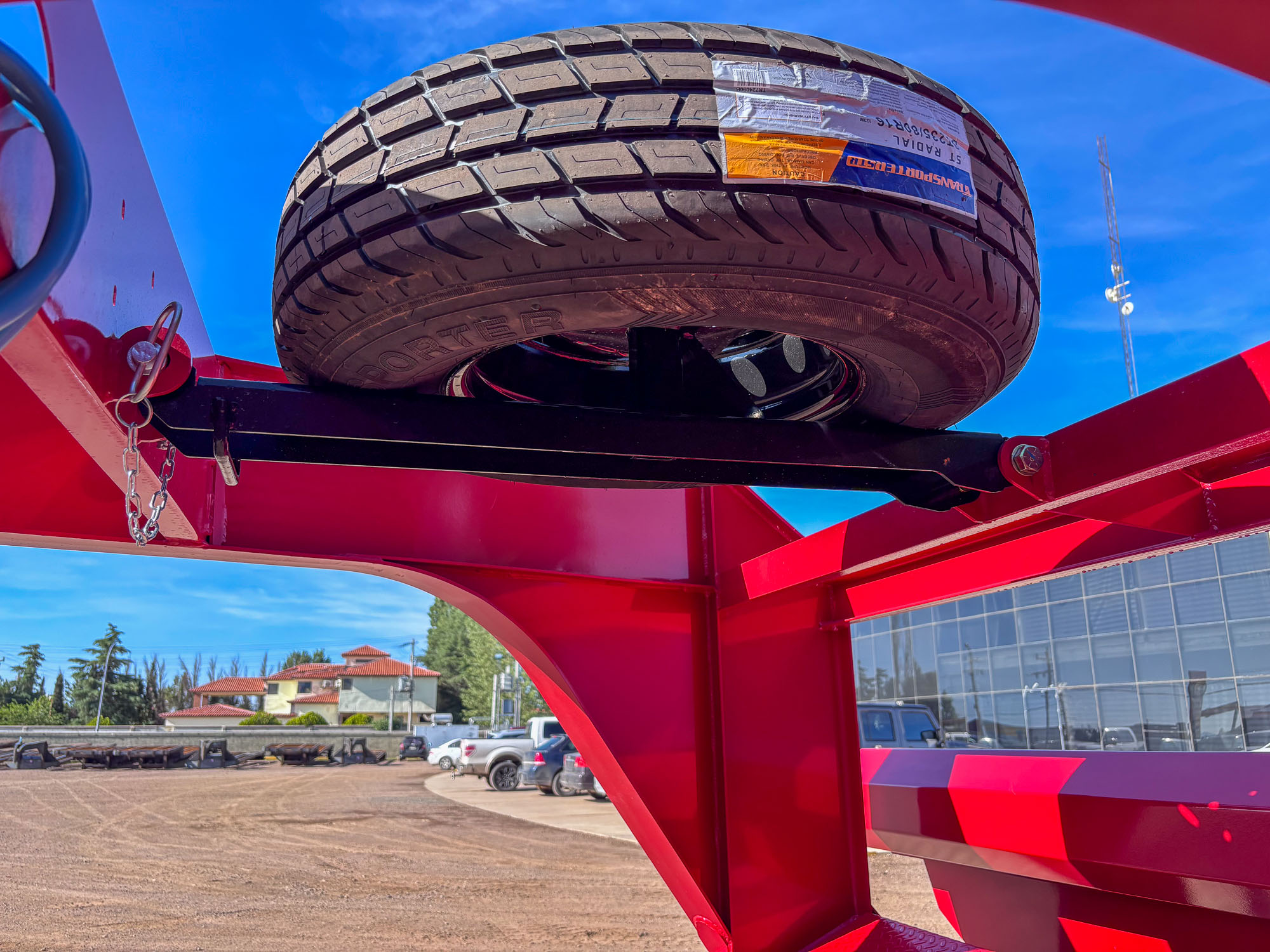

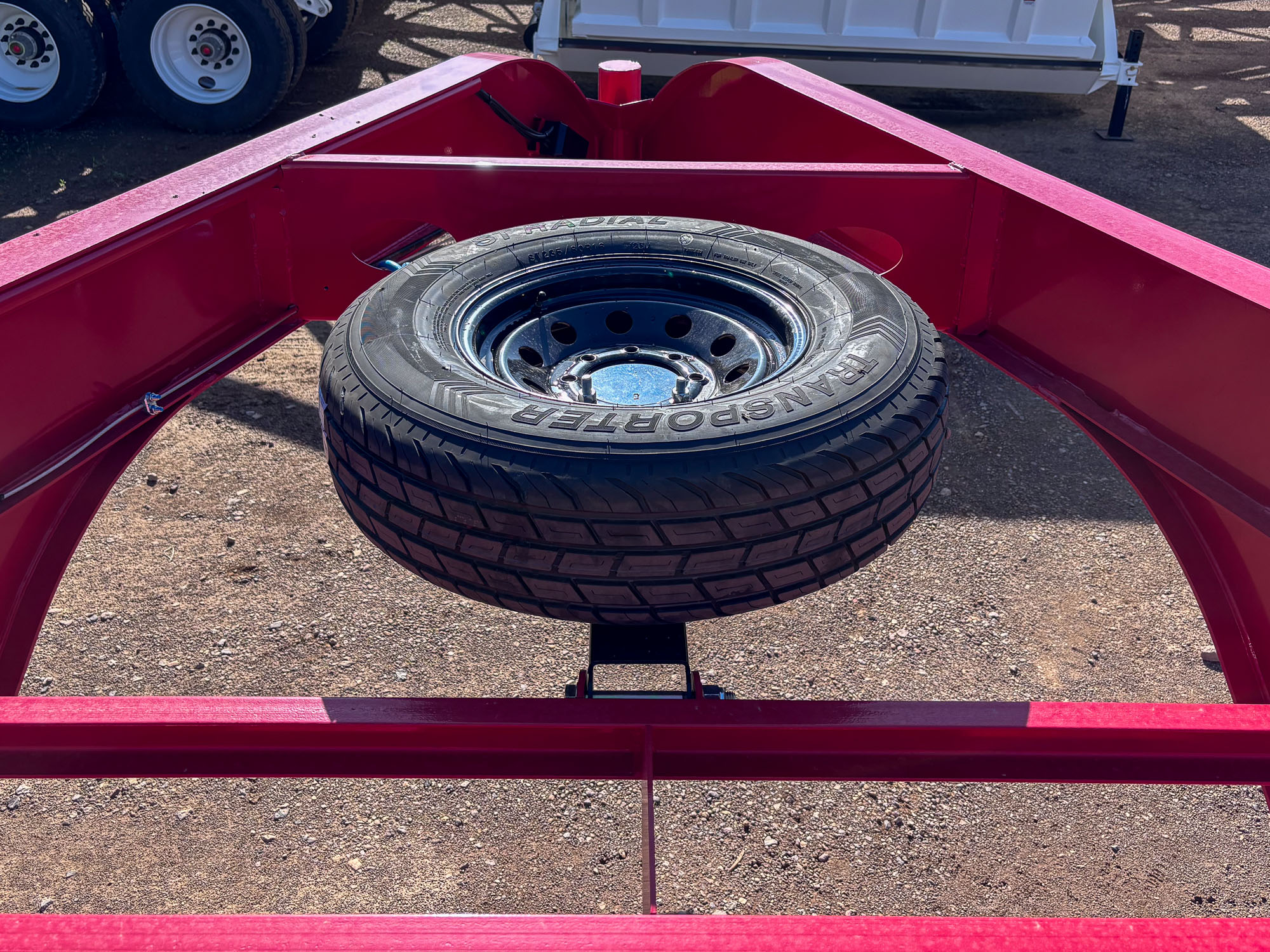

| Spare Tire Mount | Included |
| Lubrication | Grease Zerk |
Electrical & Safety
| Wiring | All-Weather Wiring & Harness |
| Safety Break-Away | System with Cable |
| LED Markers | Fender, Side & Rear — (11) DOT Approved |
| Safety Tape | Reflective DOT Safety Tape |
Finish
| Finish | Superior Powder Coat Paint Finish |
Available Options
| Color | Optional |
| Axles | Optional |
| Electric Tarp | Optional |
| Solar Panel | Optional |
| Hydraulic Jack | Optional |
| Spare Tire | Optional |
Available Options
Choose the Configuration That Fits Your Work
The DRM-2S is available in two tandem axle configurations, allowing you to select the GVWR and running gear that best match your hauling requirements.
Choose Your Trailer
14' DKL-2S
Capacity: 8.45 yd³
Approx. Weight: 4,740 lbs
7K or 8K Tandem Axles
A compact configuration for operators who need a low-profile dump trailer with equipment-loading versatility.
16' DKL-2S
Capacity: 9.8 yd³
Approx. Weight: 4,960 lbs
7K or 8K Tandem Axles
Additional length and volume for operations that need more room for material while maintaining the same low-profile loading design.
Axles
Select the axle configuration that fits your hauling requirements.
Electric Tarp
Add powered tarp operation.
Solar Panel
Available as an additional power option.
Hydraulic Jack
Upgrade the trailer's jack system.
Spare Tire
Custom Color Options
Match your company branding or fleet appearance with available powder coat color options.
Put More Versatility Behind Your Truck
From loading equipment to hauling material and unloading at the jobsite, the Dura-Haul DKL-2S is built to keep up with changing demands.
Load It. Haul It. Dump It.
FAQ
The DKL-2S is available in 14′ and 16′ lengths.
The 14′ model offers 8.45 cubic yards of capacity, while the 16′ model provides 9.8 cubic yards.
The DKL-2S features an extra-low 27″ deck height, designed to provide easier loading access.
Yes. The trailer includes 6’3″ HD Quick Pull Ramps and a rear easy stabilizer.
The DKL-2S uses a heavy-duty hydraulic scissor lift.
The trailer is available with 7,000 lb or 8,000 lb tandem axles, including electric brakes.
It features a multi-leaf spring suspension with an equalizer.
The DKL-2S includes an adjustable rear spreader gate and barn doors, allowing different unloading configurations.
Available options include color, axles, an electric tarp, solar panel, hydraulic jack, and spare tire.
features
EZ LATCH COUPLER
Operate the coupler from outside the truck bed for quicker, easier trailer hookups throughout the workday.

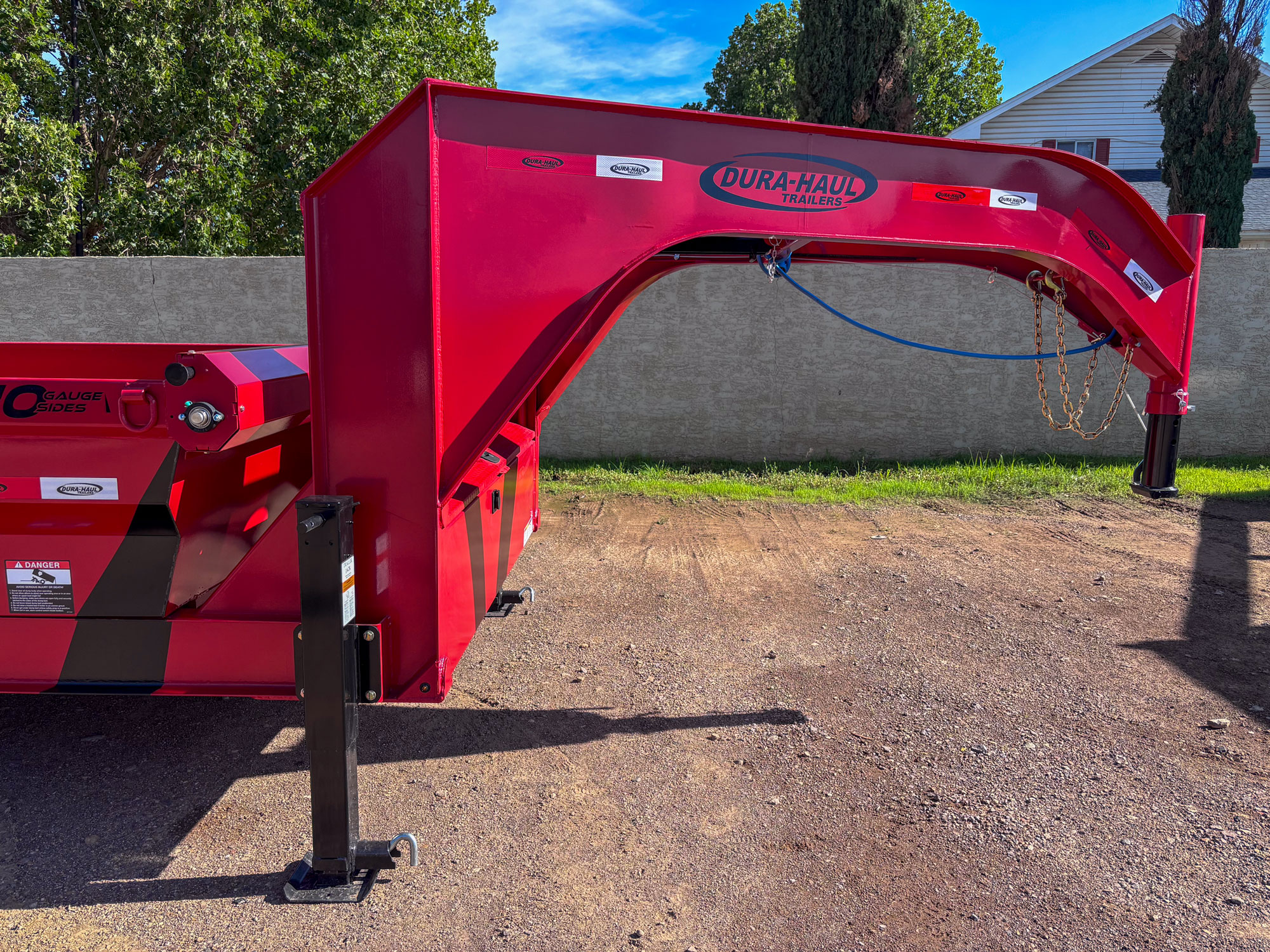

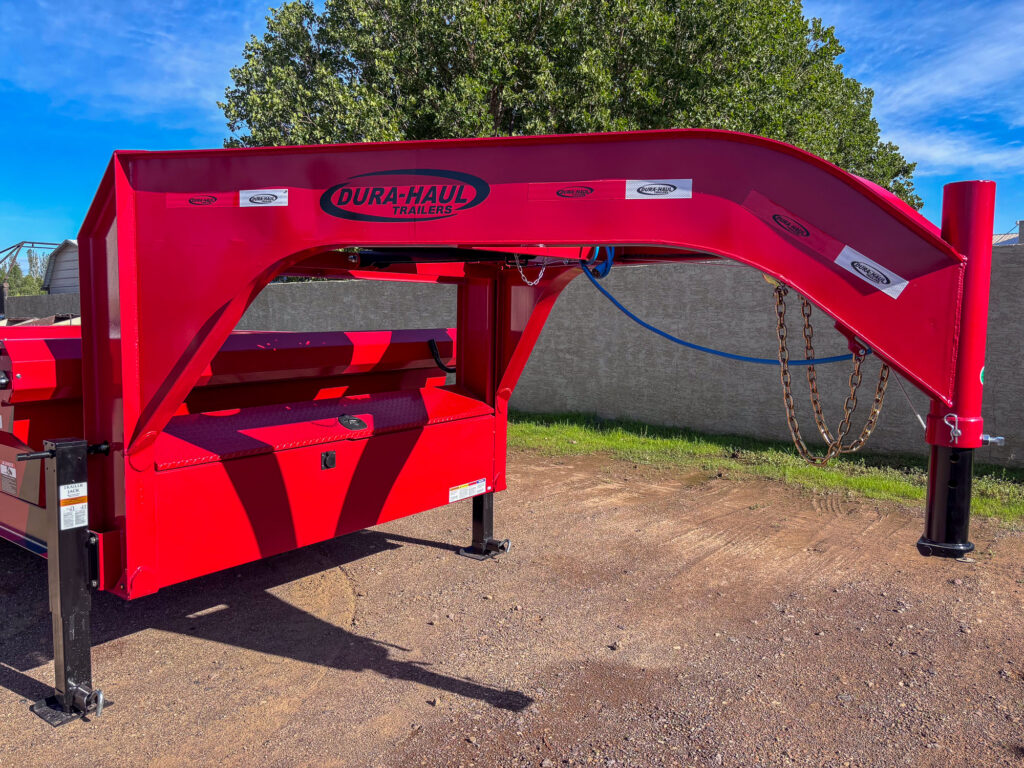

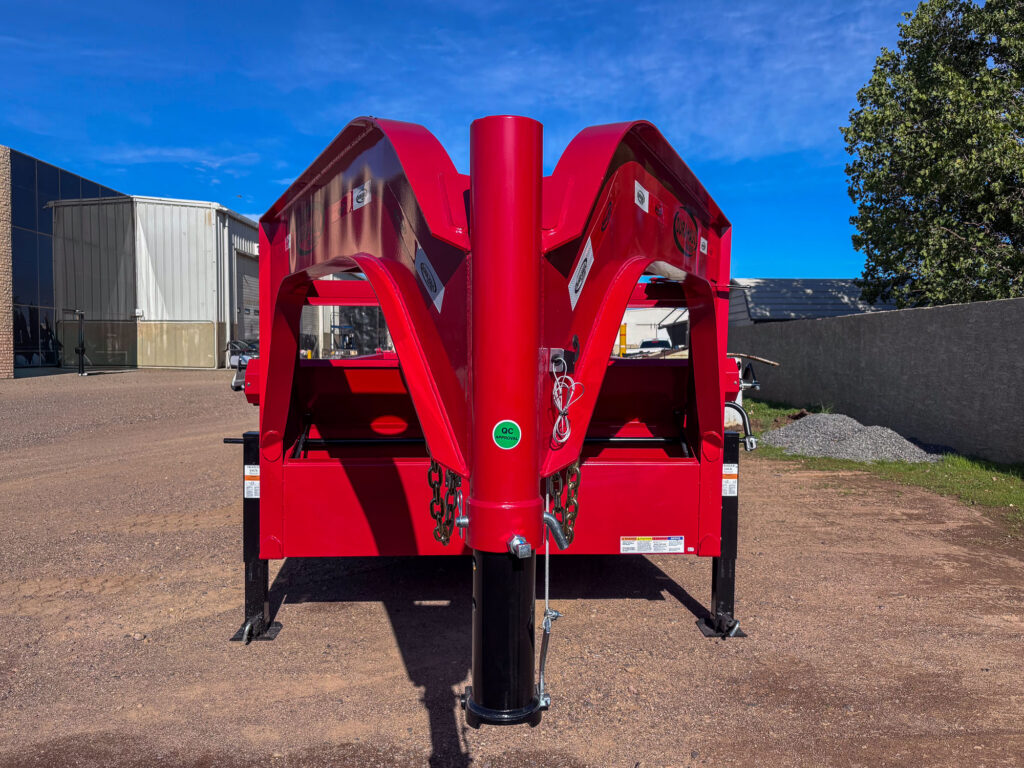

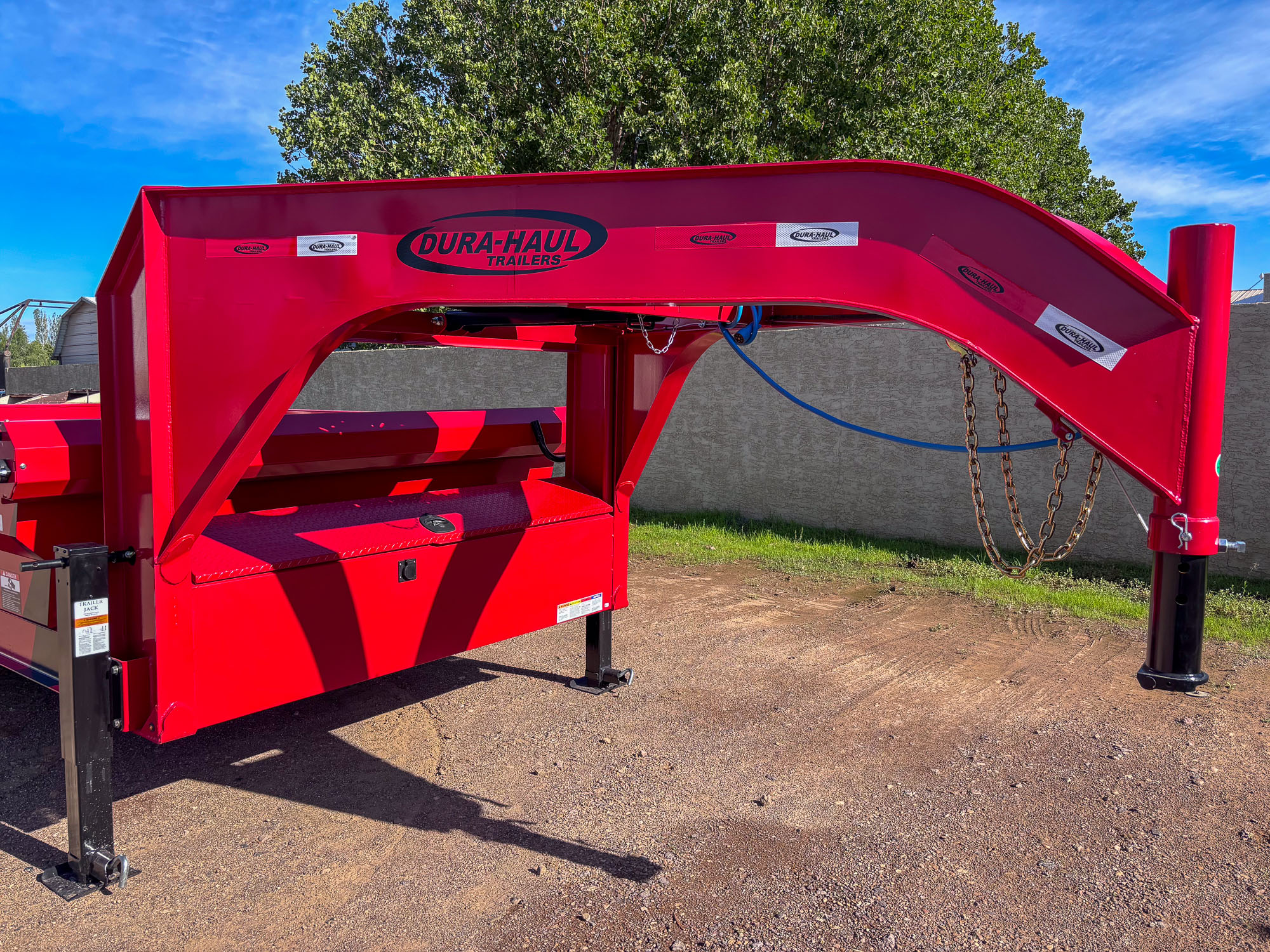

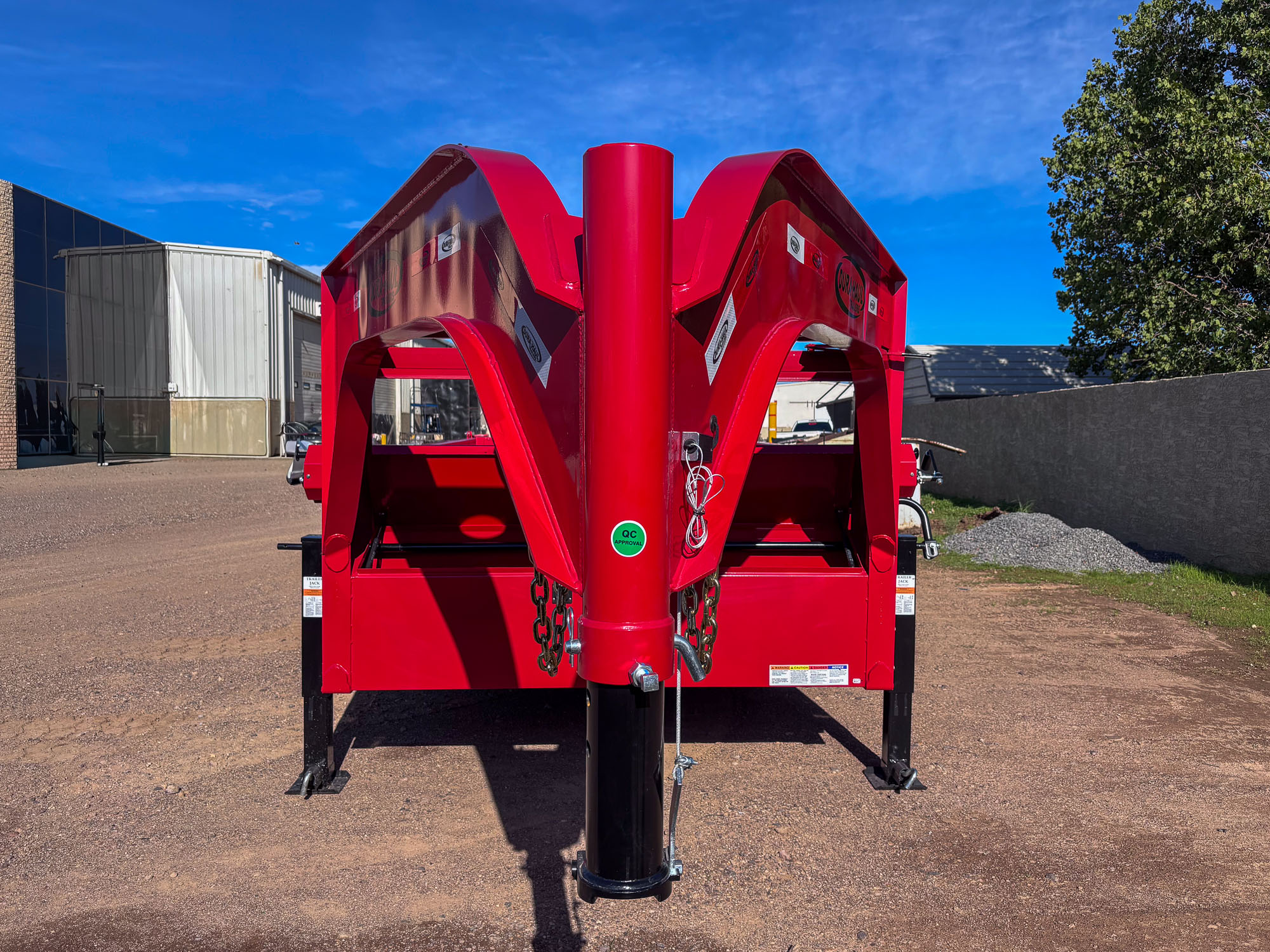

GOOSENECK DESIGN
Provides improved weight distribution, tighter turning, and greater towing stability for demanding hauling applications.
